Wheel Alignment Angles: Dogtracking

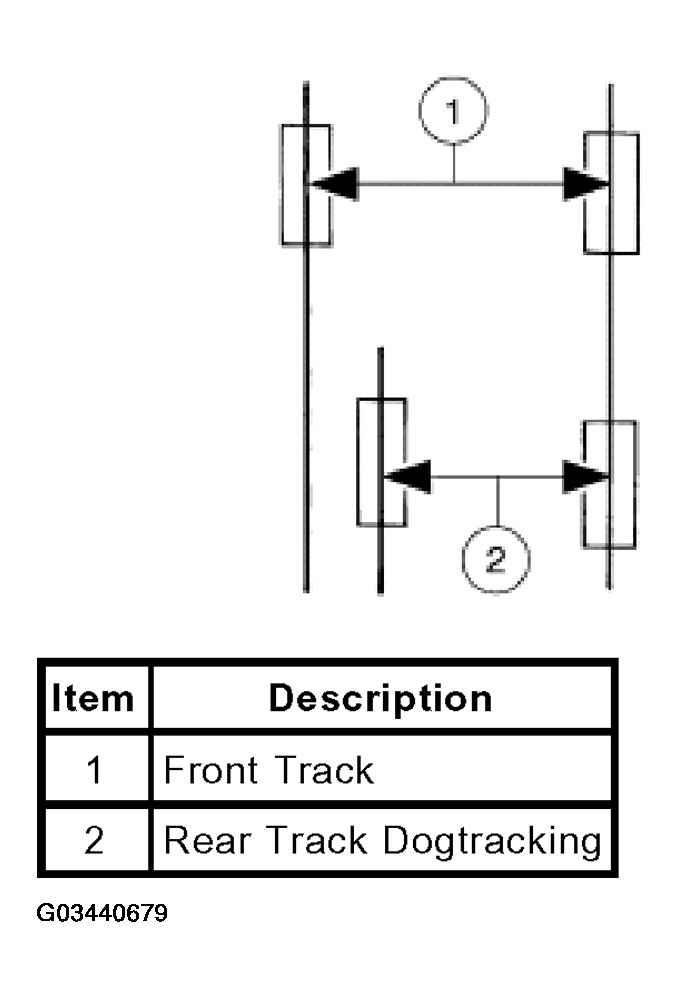

Fig 1: Identifying Dogtracking
G03440679Courtesy of FORD MOTOR CO.

Dogtracking is the condition where the rear axle is not square to the chassis. Heavily crowned roads may give the illusion of dogtracking.
