Forward Drive System Components

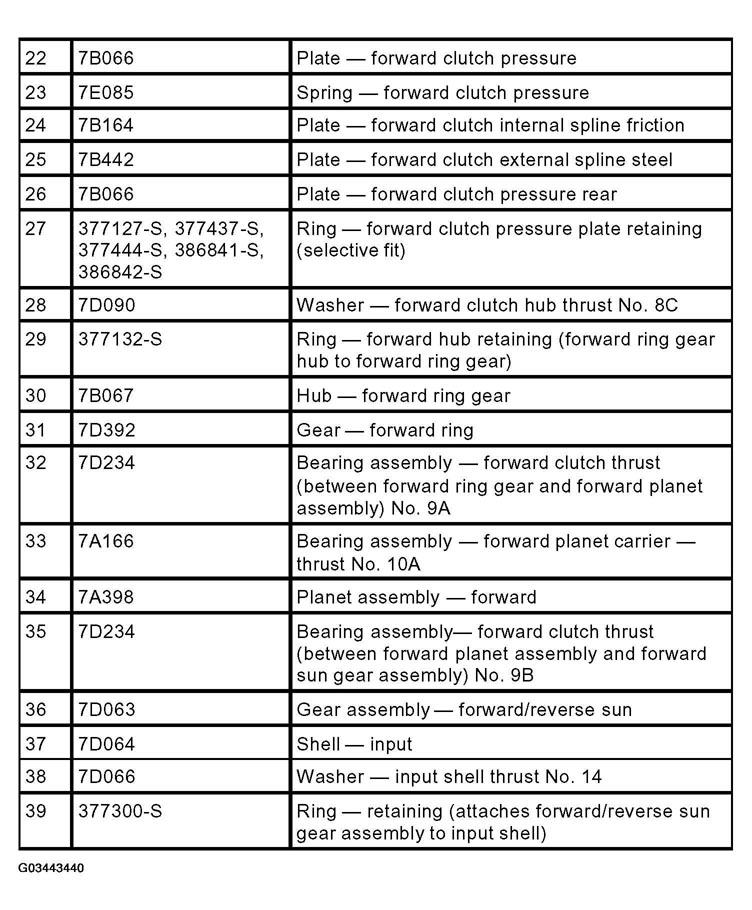

Fig 1: Identifying Forward Drive System Components (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Forward Drive System Components (2 Of 2)

Courtesy of FORD MOTOR CO.
