Input Shell: Disassembly

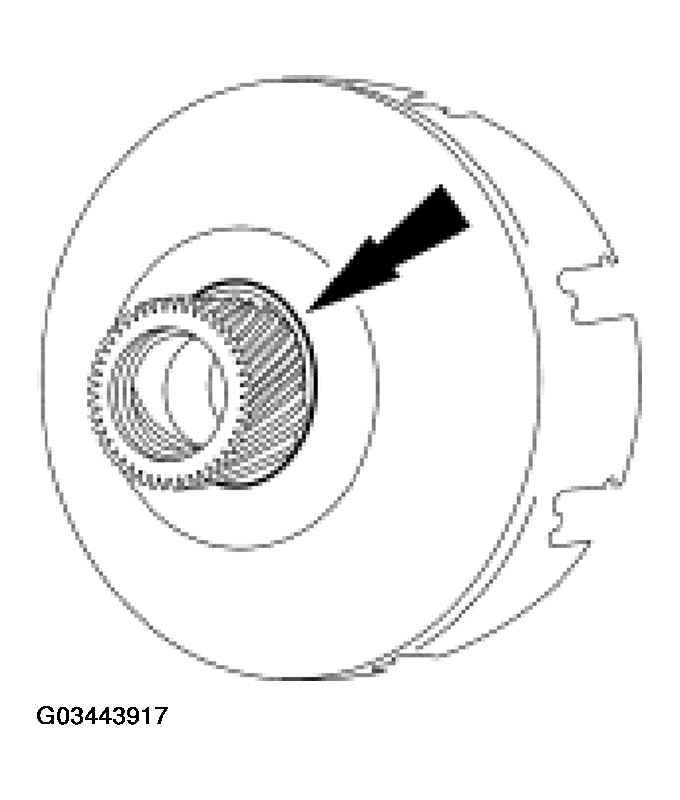

  1. Remove and discard the forward/reverse sun gear retaining ring.
    Fig 1: Removing Forward/Reverse Sun Gear Retaining Ring
    G03443917Courtesy of FORD MOTOR CO.
  2. Remove the No. 14 input shell thrust washer.
    Fig 2: Removing No. 14 Input Shell Thrust Washer
    G03443918Courtesy of FORD MOTOR CO.

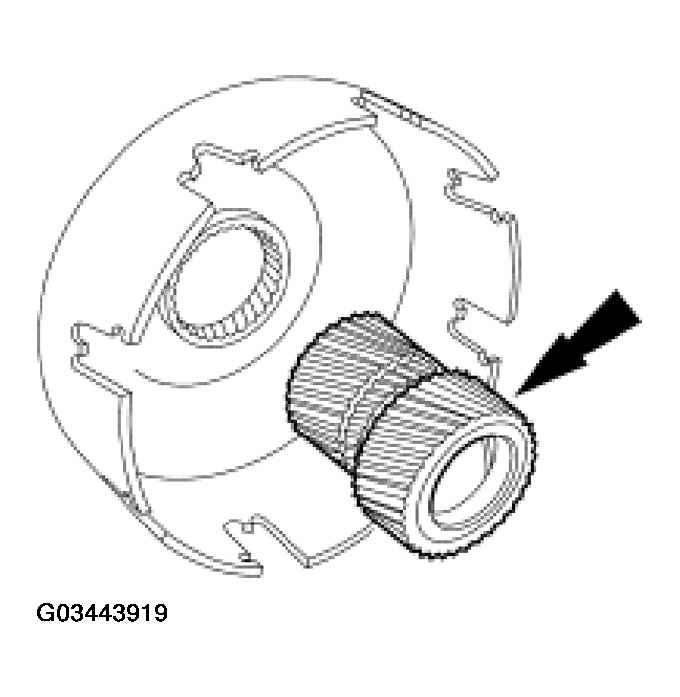

  3. Remove the forward/reverse sun gear.
    Fig 3: Removing Forward/Reverse Sun Gear
    G03443919Courtesy of FORD MOTOR CO.
