Reverse Clutch Piston: Disassembly

  1. Remove the reverse clutch piston outer lip seal.

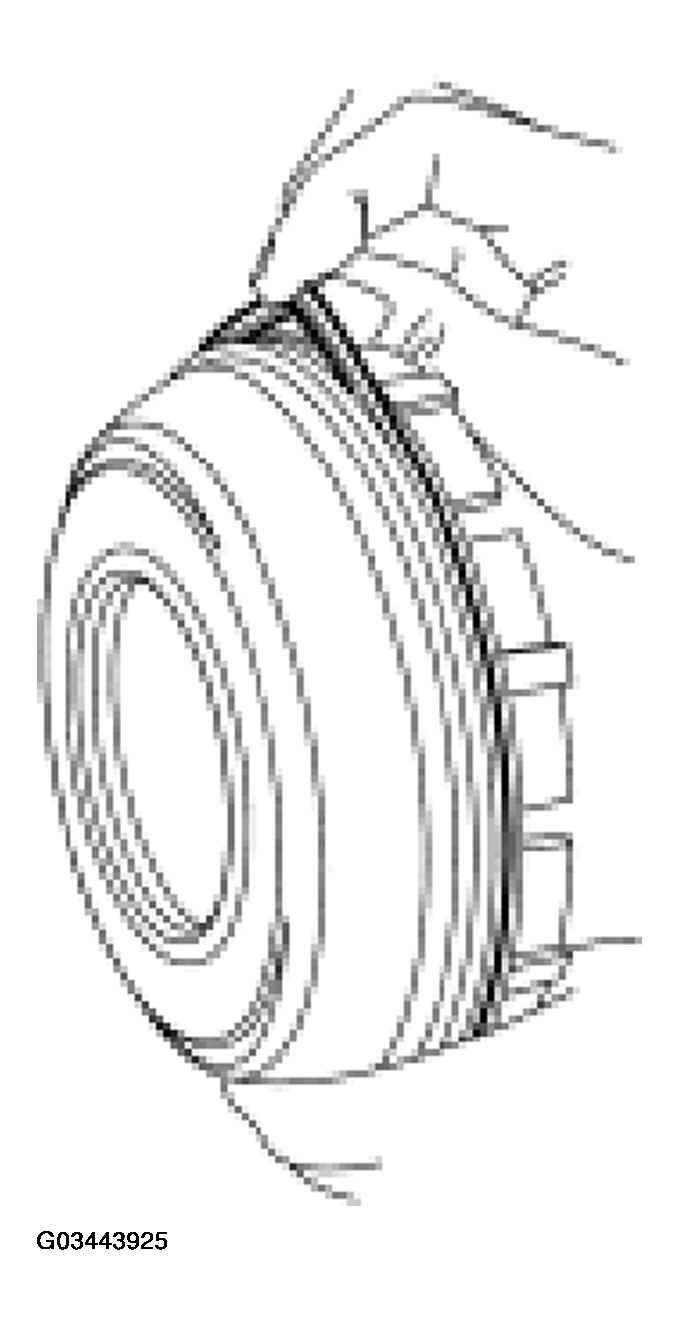

    Fig 1: Removing Reverse Clutch Piston Outer Lip Seal
    G03443925Courtesy of FORD MOTOR CO.
  2. Remove the reverse clutch piston inner lip seal.

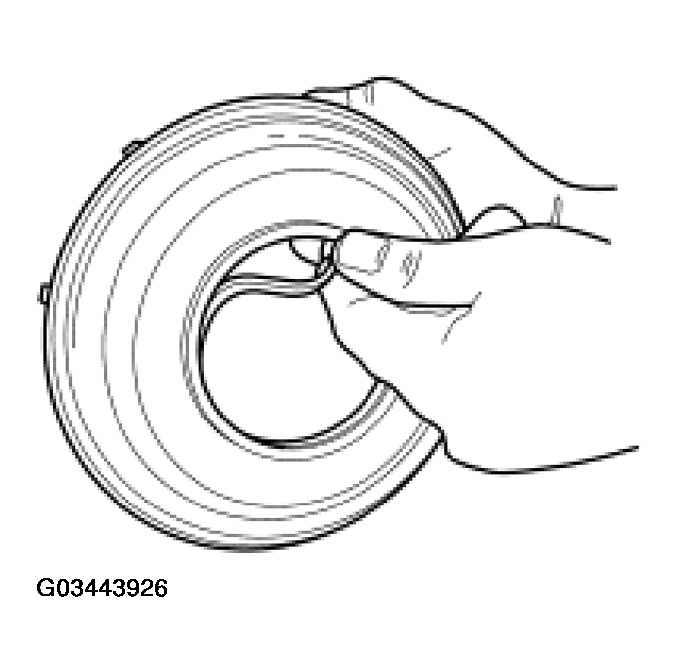

    Fig 2: Removing Reverse Clutch Piston Inner Lip Seal
    G03443926Courtesy of FORD MOTOR CO.
