Digital Transmission Range (TR) Sensor: Installation

Install the digital transmission range (TR) sensor.
1. Install digital transmission range (TR) sensor.
2. Loosely install the bolts.

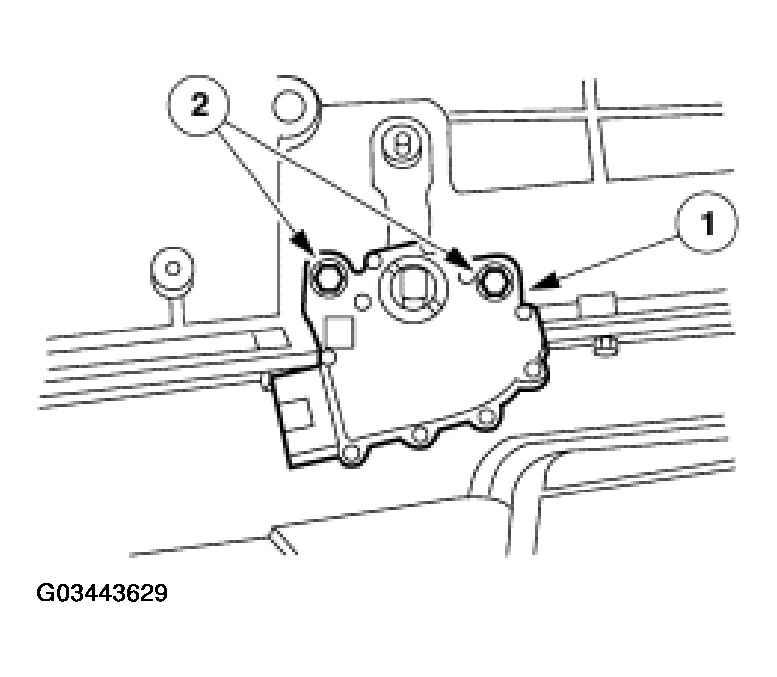

Fig 1: Installing Digital Transmission Range (TR) Sensor & Bolts
Courtesy of FORD MOTOR CO.

NOTE: Make sure that the manual control lever is in the neutral position.

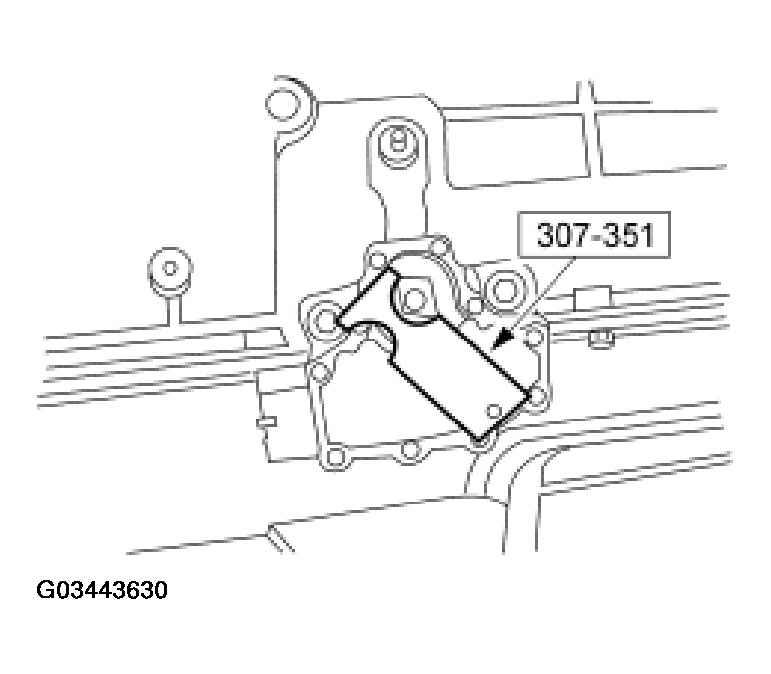

Fig 2: Aligning Digital Transmission Range (TR) Sensor

G03443630

Courtesy of FORD MOTOR CO.

Using the special tool, align the digital TR sensor.
Tighten the bolts.

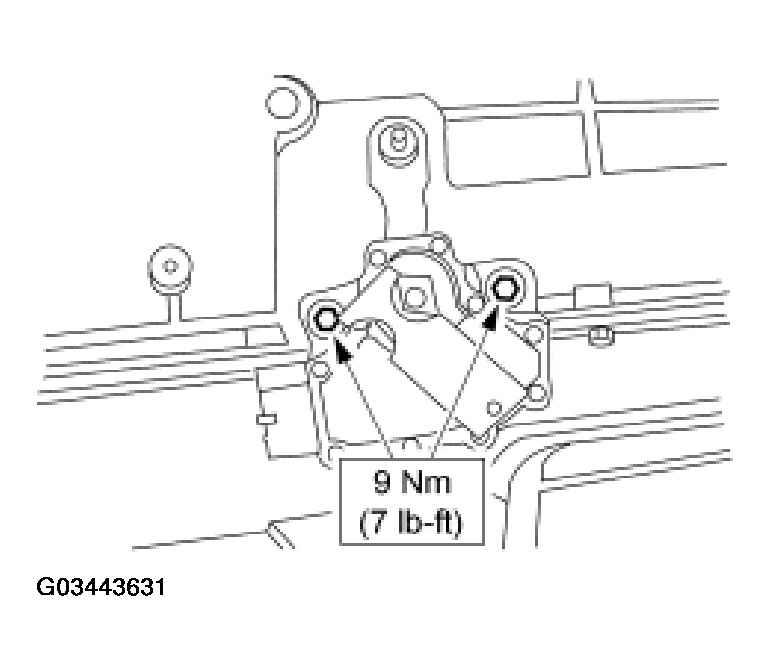

Fig 3: Tightening Digital Transmission Range (TR) Sensor Bolts
Courtesy of FORD MOTOR CO.

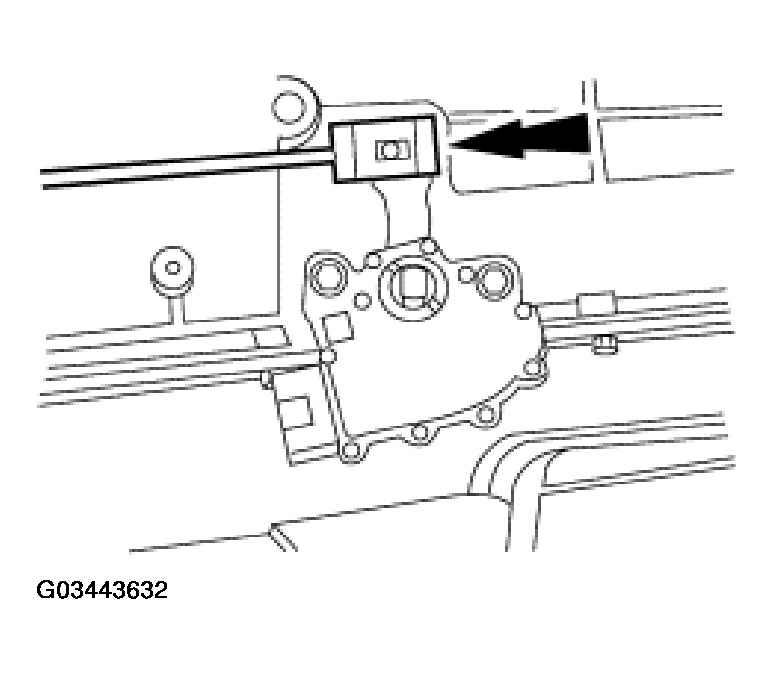

Reconnect the shift cable at the manual control lever.

Fig 4: Connecting Shift Cable To Manual Control Lever
Courtesy of FORD MOTOR CO.
Reconnect the connector.

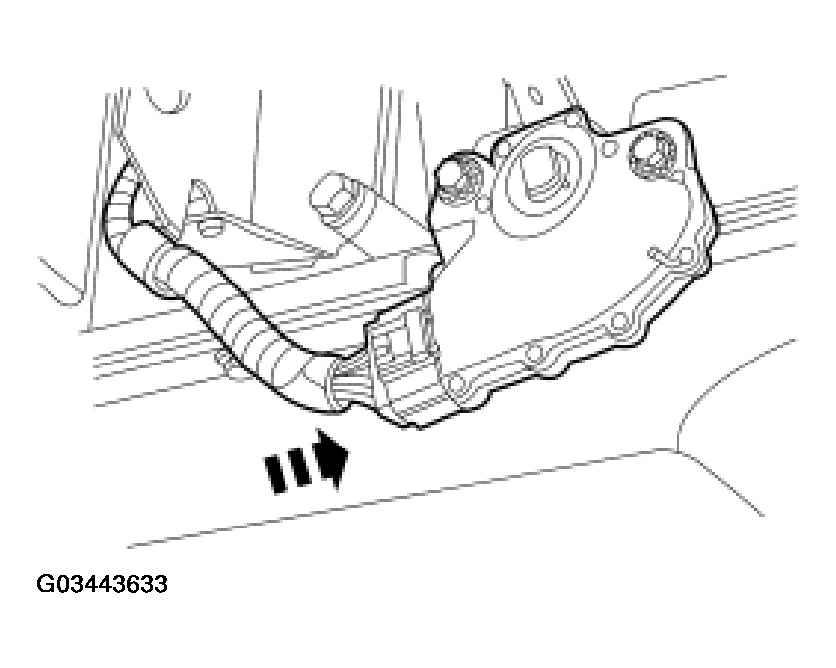

Fig 5: Connecting Connector
Courtesy of FORD MOTOR CO.
Lower the vehicle.
