Home › Lincoln › 2002 › Town Car Base › Repair and Diagnosis › Accessories & Equipment › Accessories Control Systems › Component Tests › Component Testing › Master Window Control Switch

Master Window Control Switch

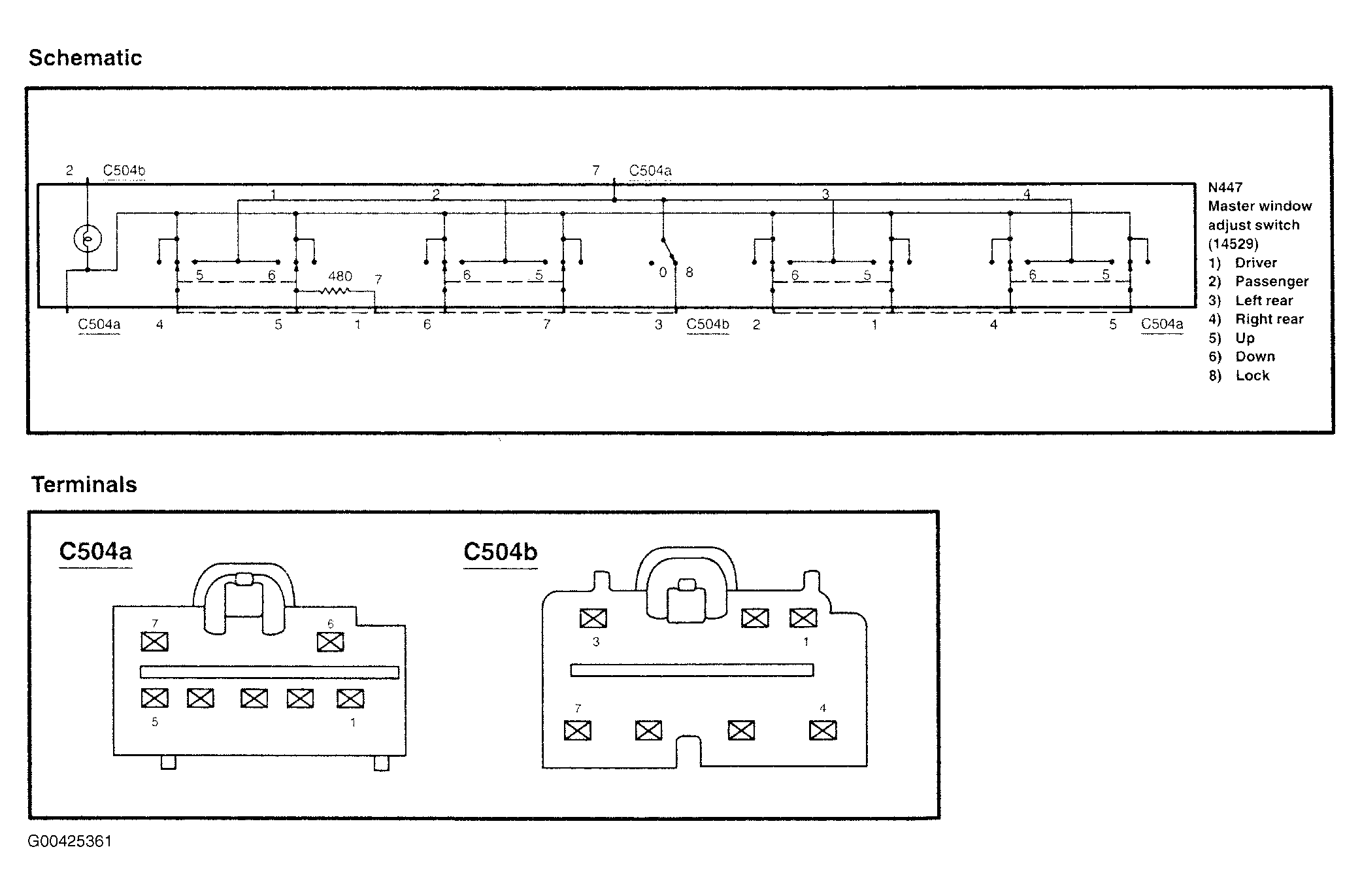

Fig 1: Testing Master Window Control Switch (1 Of 2)
G00425361Courtesy of FORD MOTOR CO.

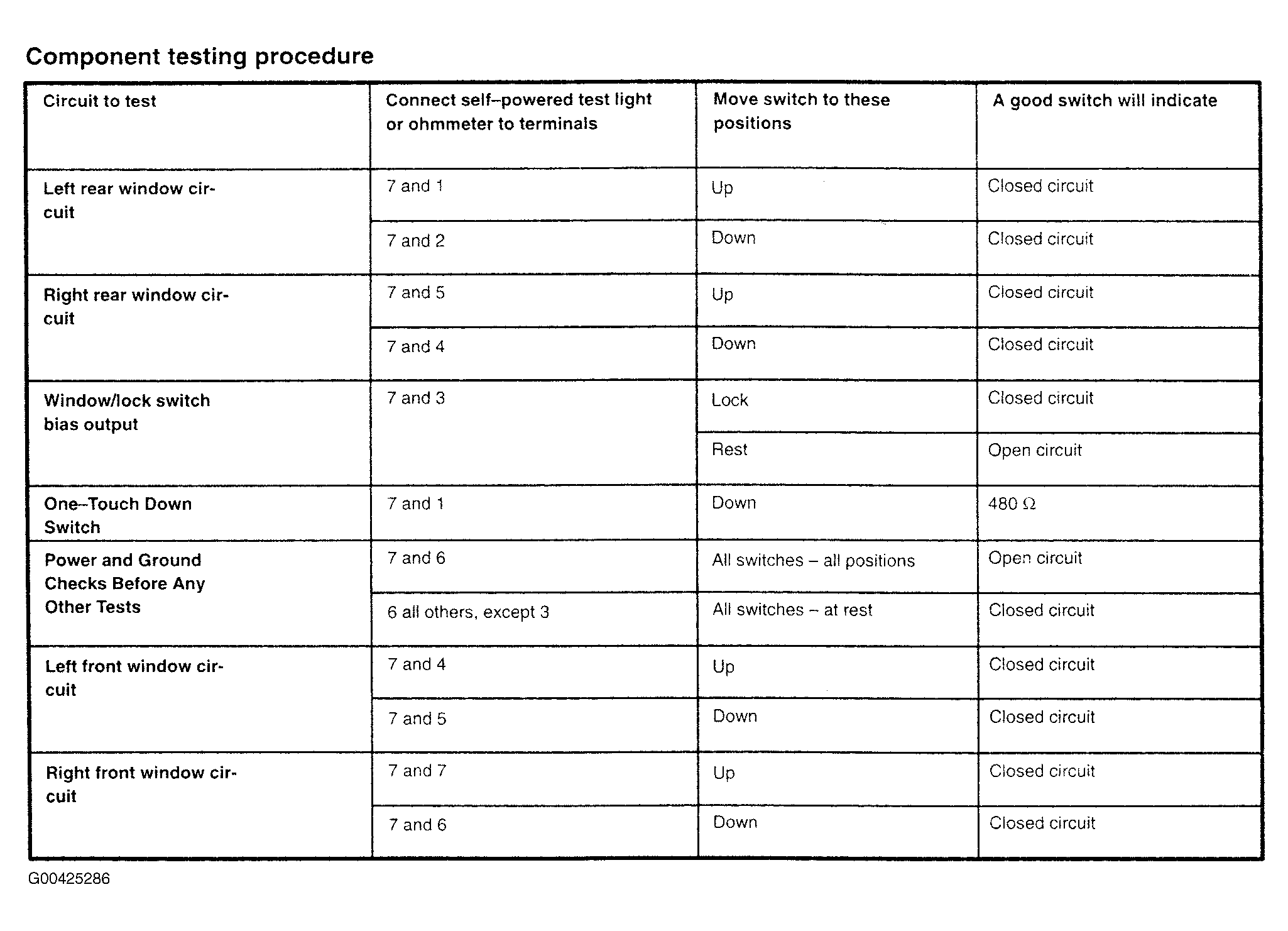

Fig 2: Testing Master Window Control Switch (2 Of 2)
G00425286Courtesy of FORD MOTOR CO.
