Pinpoint Test F: The Doors Do Not Lock/Unlock Using The Remote Transmitter

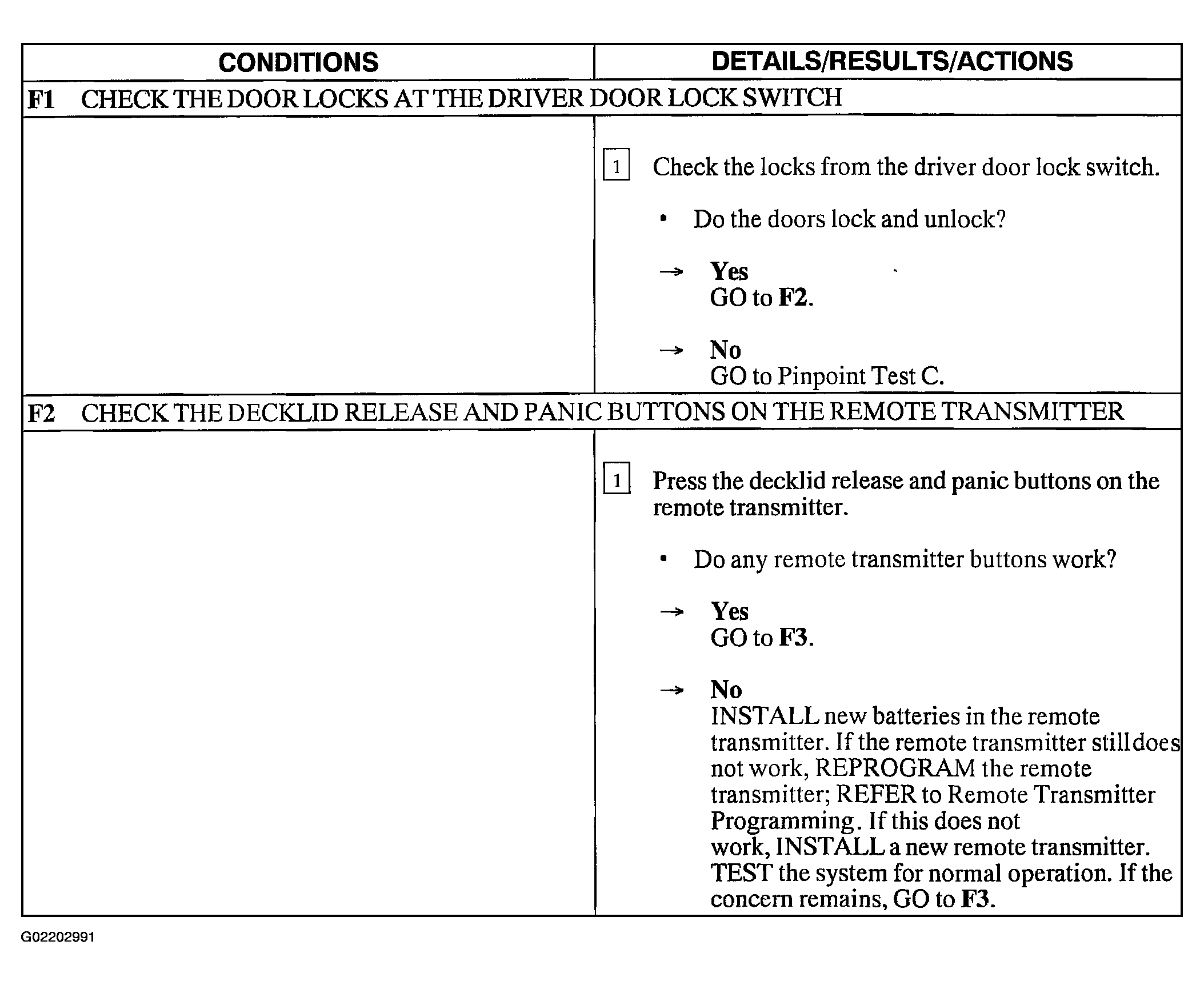

Fig 1: Pinpoint Test F: Doors Do Not Lock/Unlock Using Remote Transmitter (F1 - F2)
G02202991Courtesy of FORD MOTOR CO.

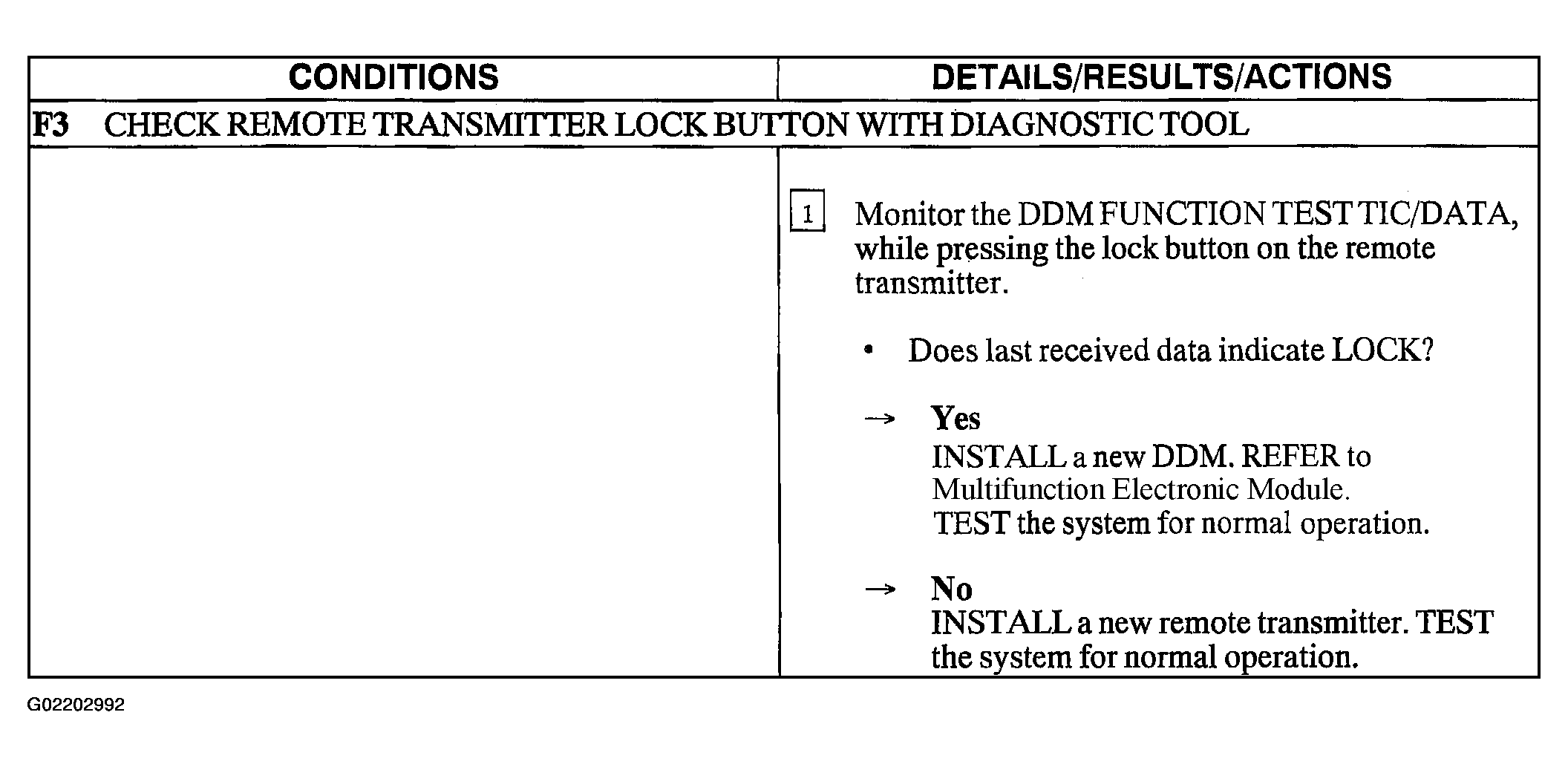

Fig 2: Pinpoint Test F: Doors Do Not Lock/Unlock Using Remote Transmitter (F3)
G02202992Courtesy of FORD MOTOR CO.
