Anti-Lock Brake Control Module Parameter Identification Index

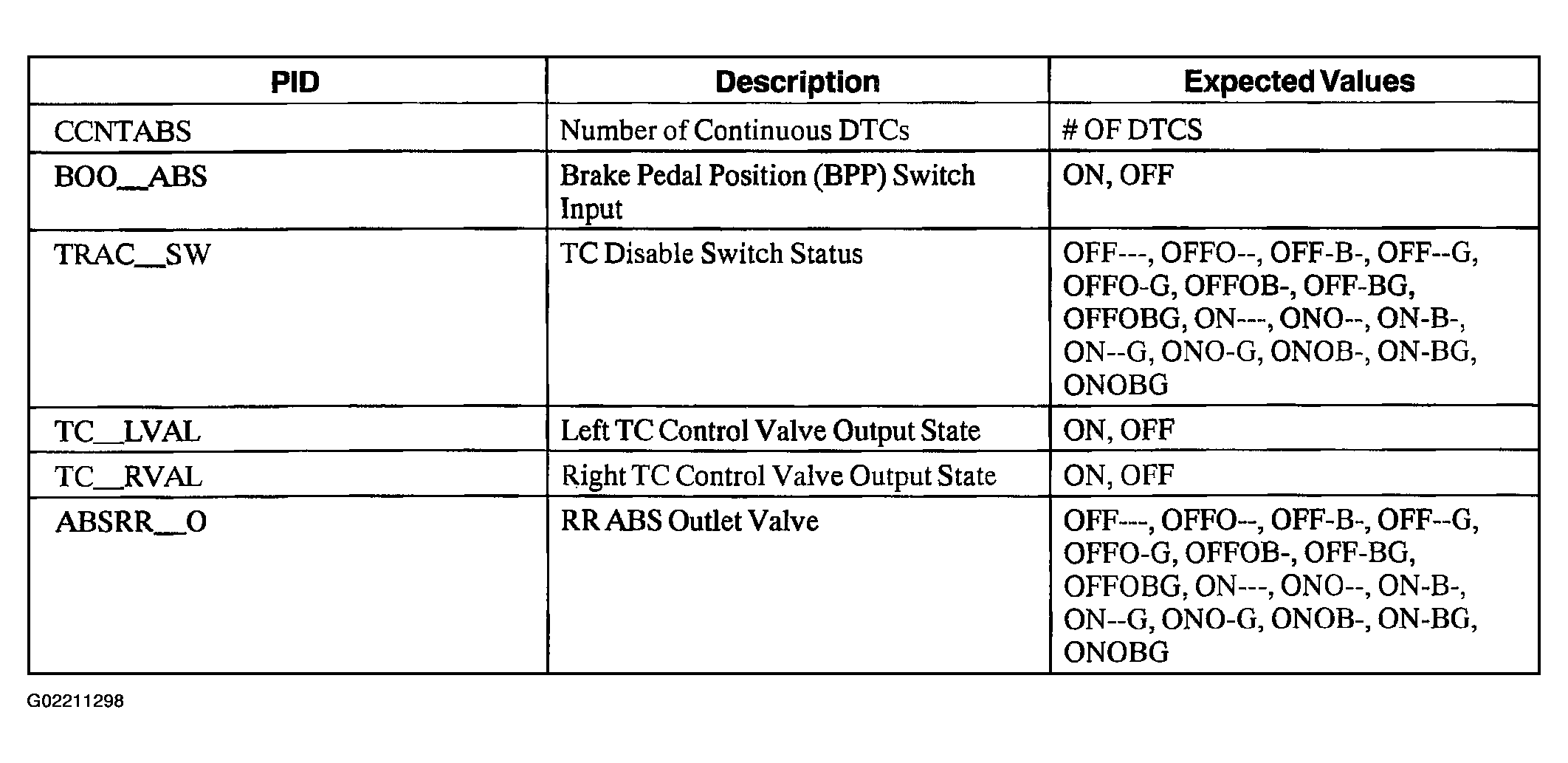

Fig 1: Anti-Lock Brake Control Module Parameter Identification Index (1 Of 2)

Courtesy of FORD MOTOR CO.

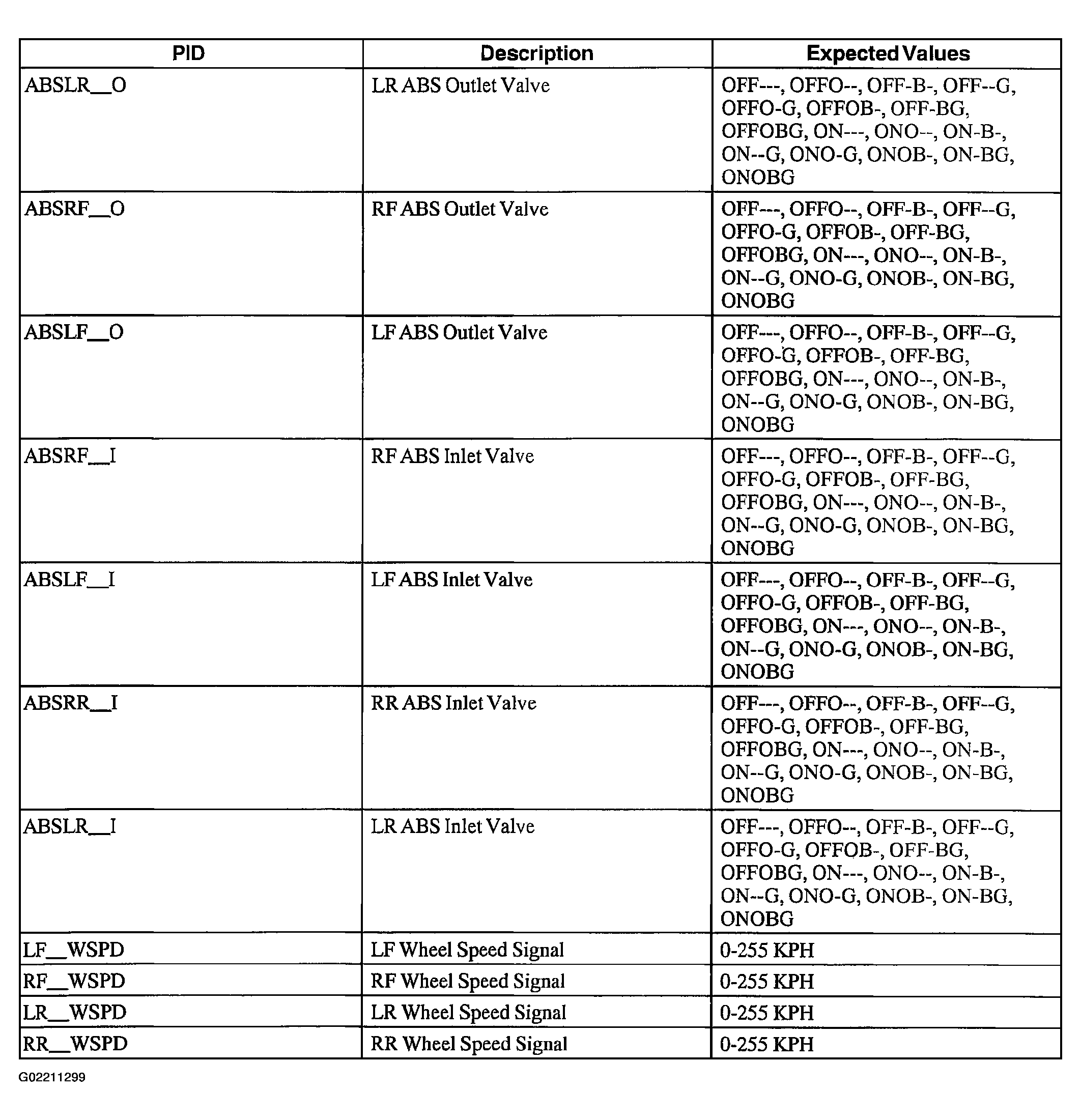

Fig 2: Anti-Lock Brake Control Module Parameter Identification Index (2 Of 2)

Courtesy of FORD MOTOR CO.
