Connecting Rod - Twist

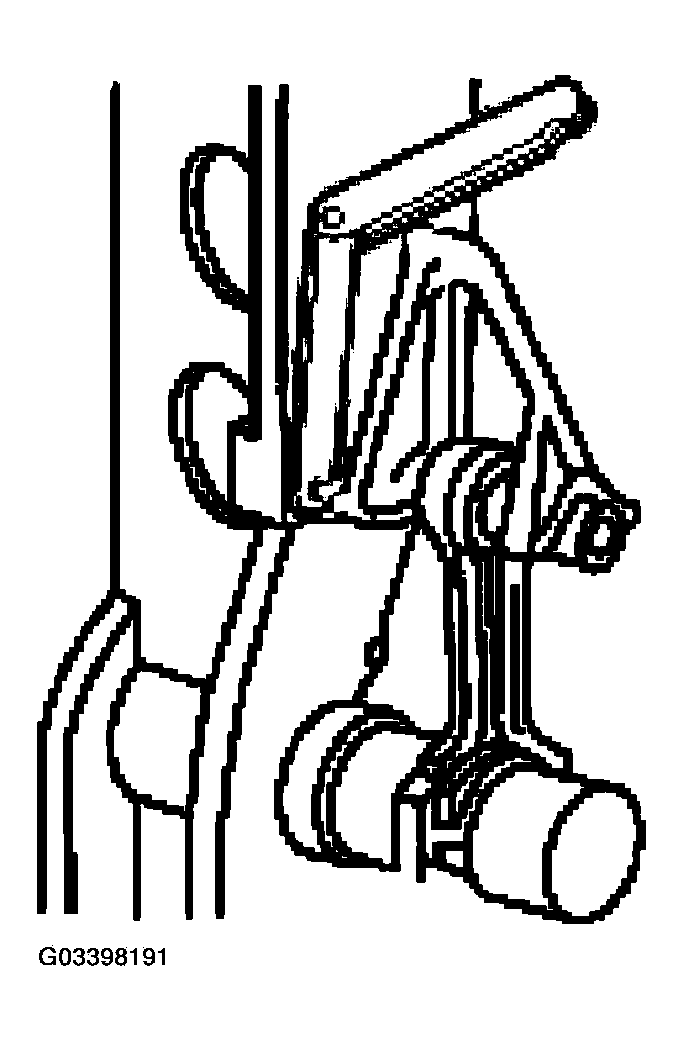

- Measure the connecting rod twist on a suitable alignment fixture. Follow the instructions of the fixture manufacturer. Verify the measurement is within specification.
- Refer to ENGINE
.
- If out of specification, install new components as necessary. Refer to ENGINE
.
Courtesy of FORD MOTOR CO.
