Pinpoint Test E: Panic Function Does Not Operate Correctly
WARNING: This page is about a different car, the 2003 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

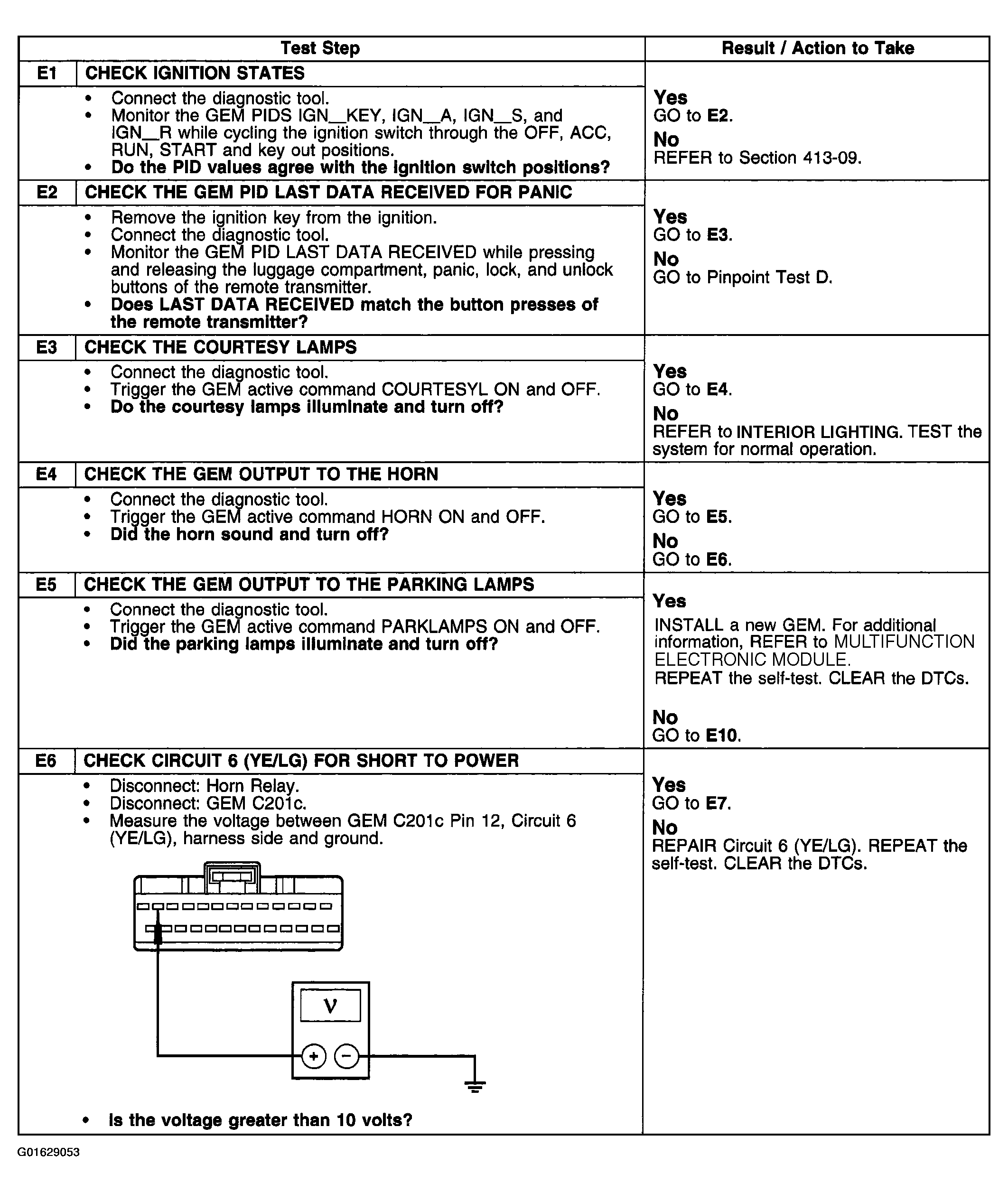

Fig 1: Identifying Pinpoint Test E: Panic Function Does Not Operate Correctly (E1-E6)
Courtesy of FORD MOTOR CO.

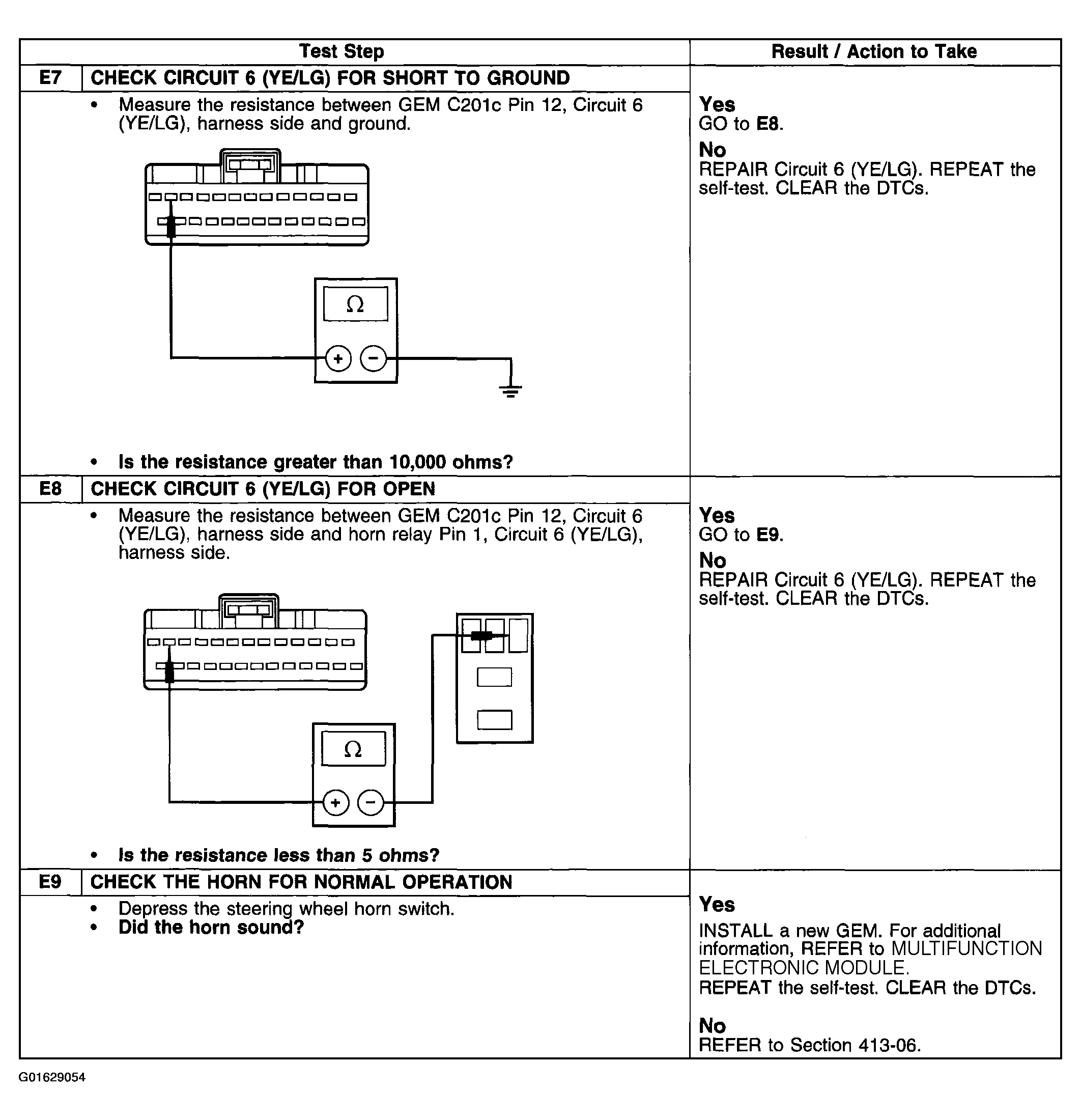

Fig 2: Identifying Pinpoint Test E: Panic Function Does Not Operate Correctly (E7-E9)
Courtesy of FORD MOTOR CO.

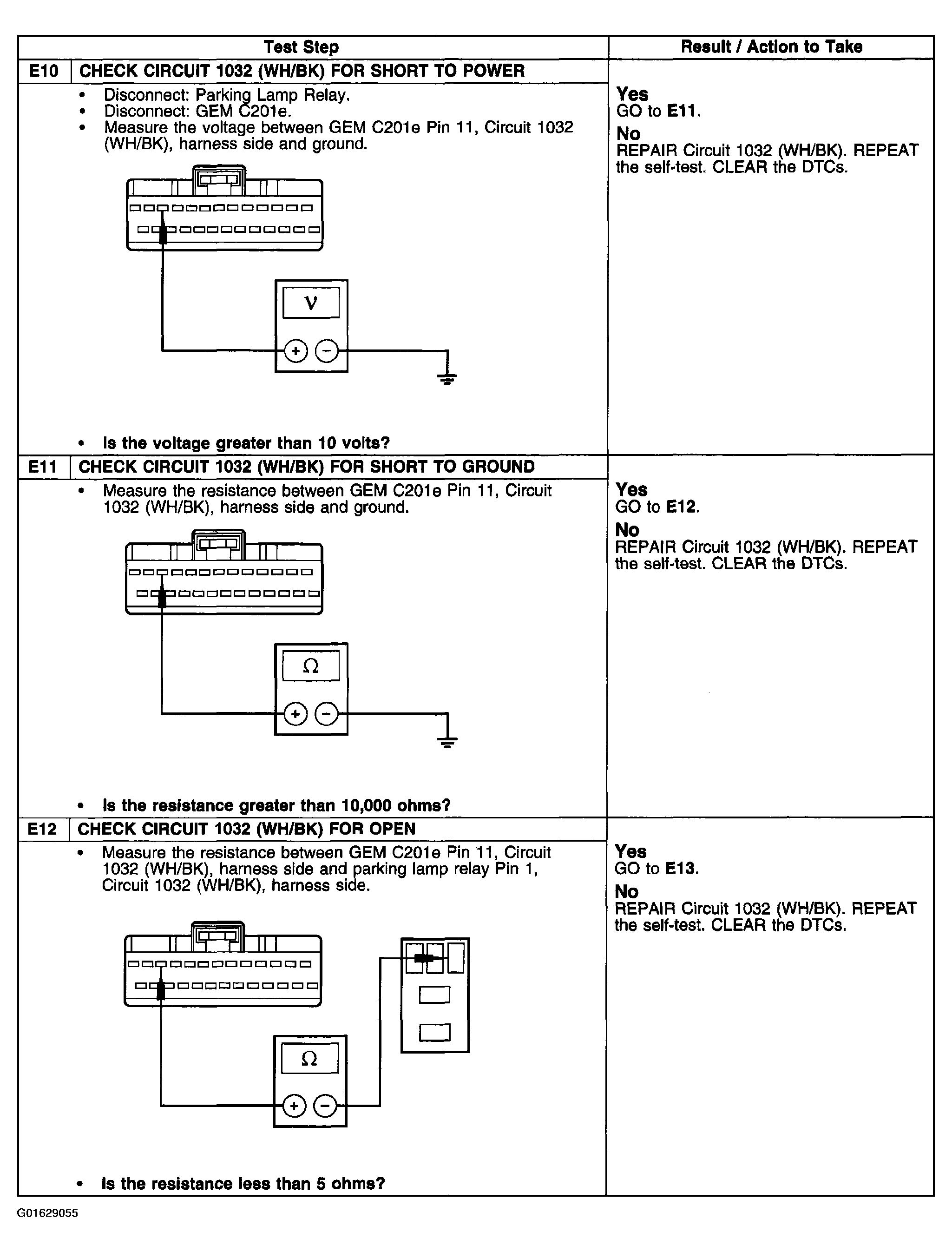

Fig 3: Identifying Pinpoint Test E: Panic Function Does Not Operate Correctly (E10-E12)
Courtesy of FORD MOTOR CO.

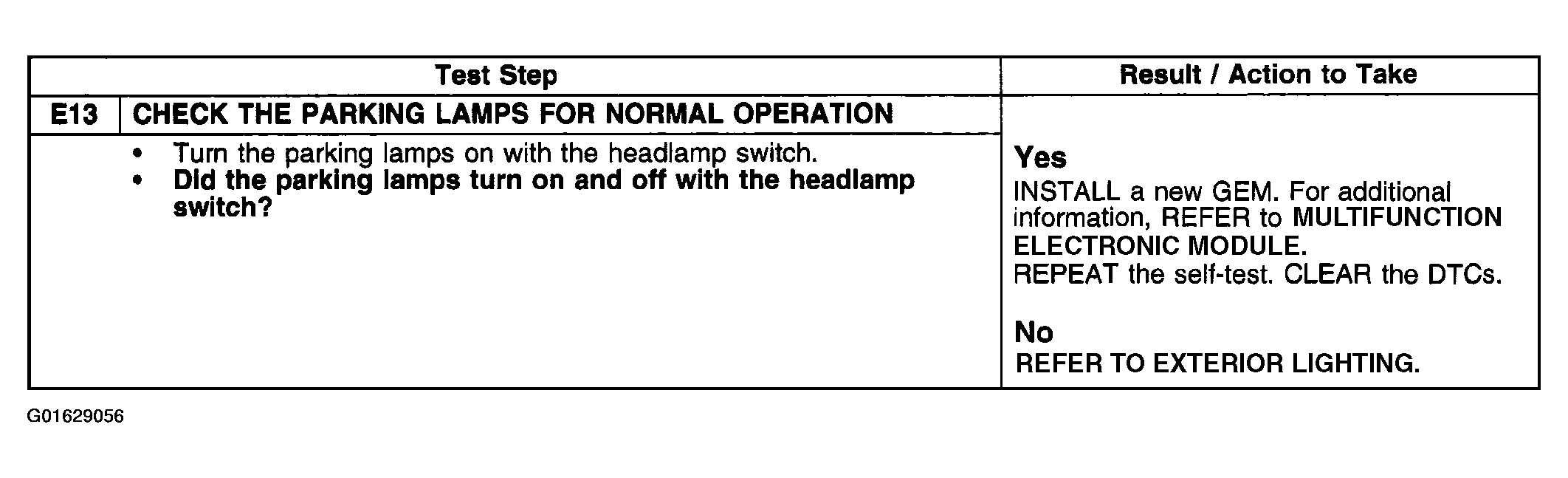

Fig 4: Identifying Pinpoint Test E: Panic Function Does Not Operate Correctly (E13)
