Removal And Installation: Module: Removal

Lower the panel.

Fig 1: Identifying Lower Panel
Courtesy of FORD MOTOR CO.
Remove the lamp from the panel and disconnect the wiring.

Fig 2: Removing Lamp From Panel And Disconnecting Wiring
Courtesy of FORD MOTOR CO.
Remove the screws.

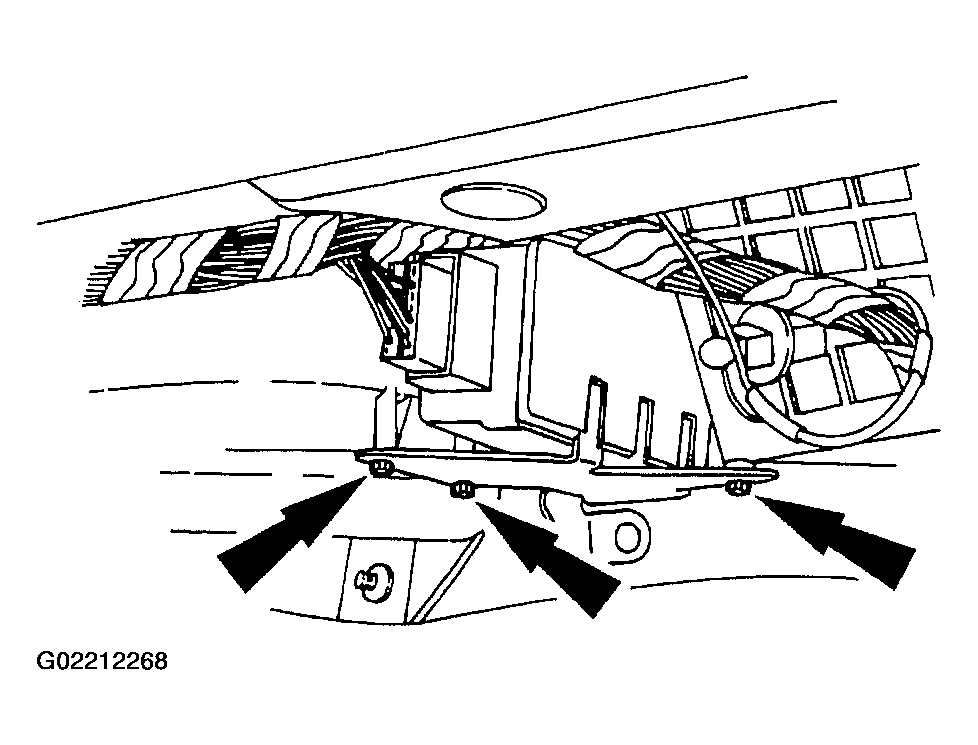

Fig 3: Removing Screws
Courtesy of FORD MOTOR CO.
Disconnect the wiring and remove the control module.

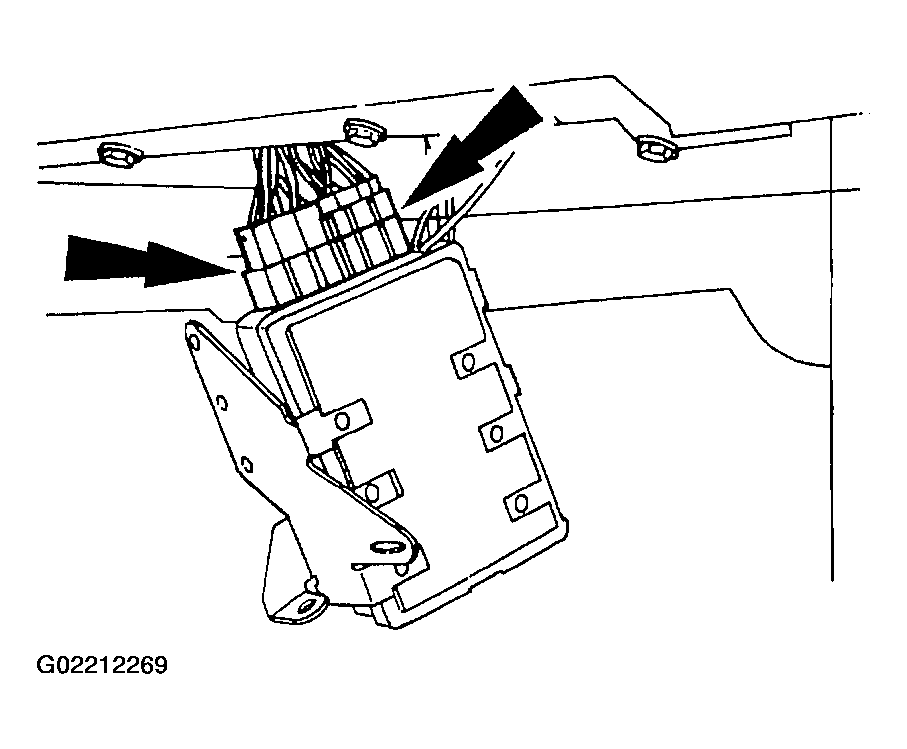

Fig 4: Disconnecting Wiring And Removing Control Module
Courtesy of FORD MOTOR CO.
