Removal And Installation: Gear: Installation

To install, reverse the removal procedure.

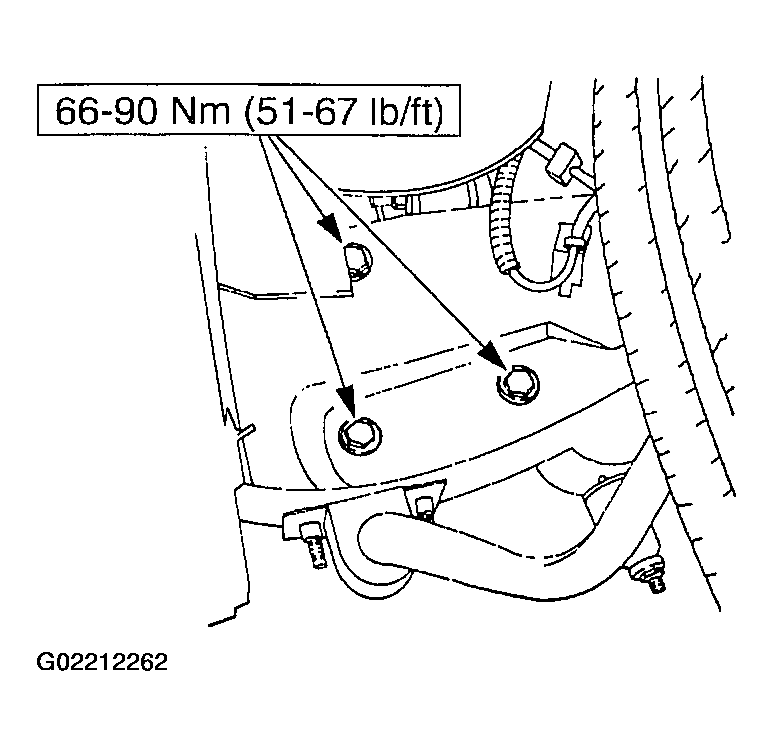

Fig 1: Installing Steering Gear Bolts
Courtesy of FORD MOTOR CO.

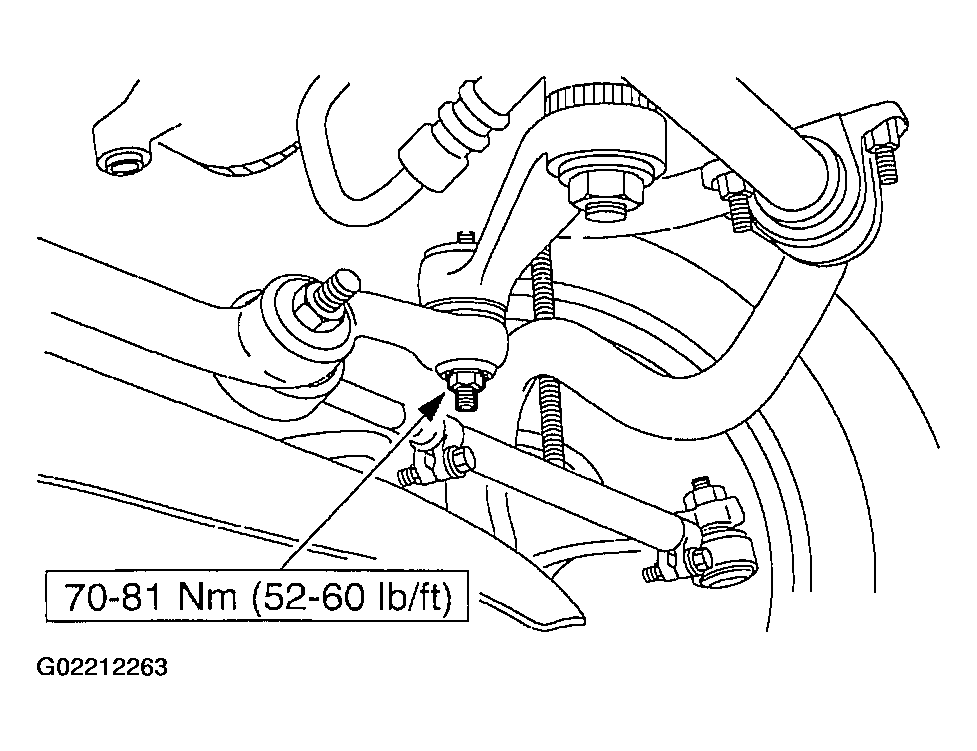

Fig 2: Installing Joint
Courtesy of FORD MOTOR CO.

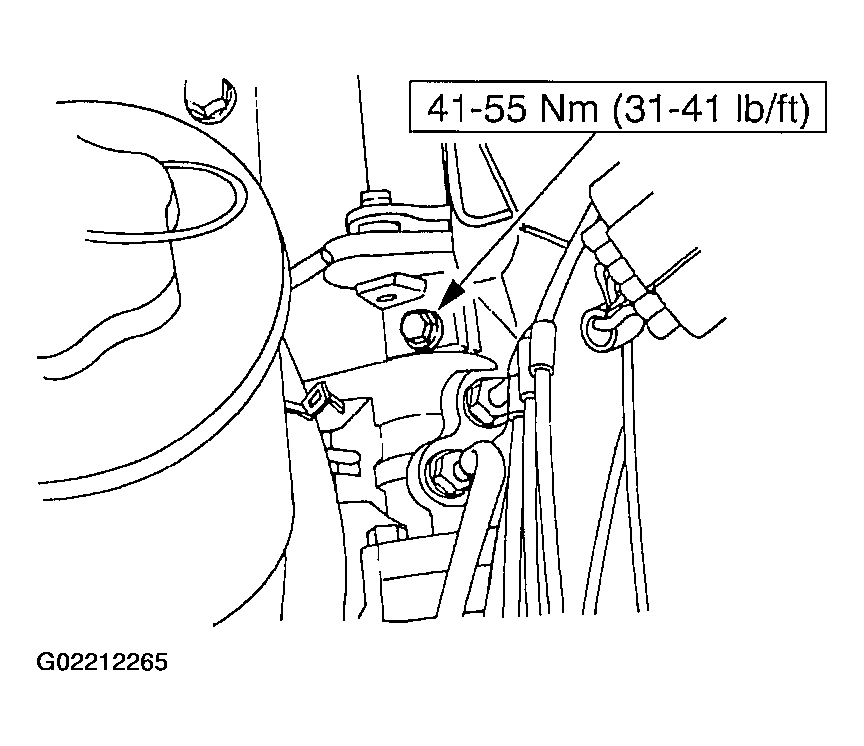

Fig 3: Installing Lines
Courtesy of FORD MOTOR CO.

Fig 4: Installing Intermediate Shaft
Courtesy of FORD MOTOR CO.
Fill and leak check the system. For additional information, refer to STEERING SYSTEM - GENERAL INFORMATION .
