Removal And Installation: Pump: Installation

  1. Follow the removal procedure in reverse order.

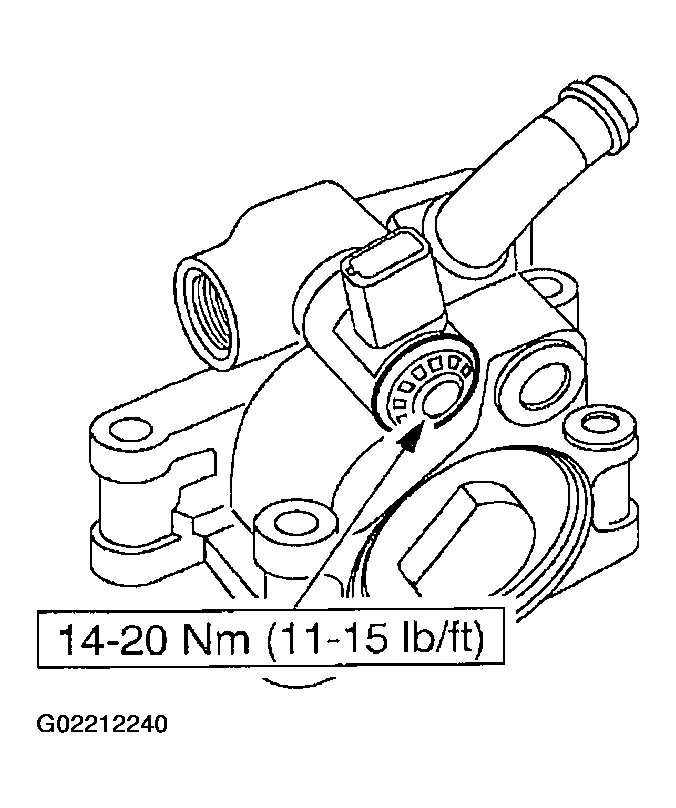

    Fig 1: Installing Actuator
    G02212240Courtesy of FORD MOTOR CO.

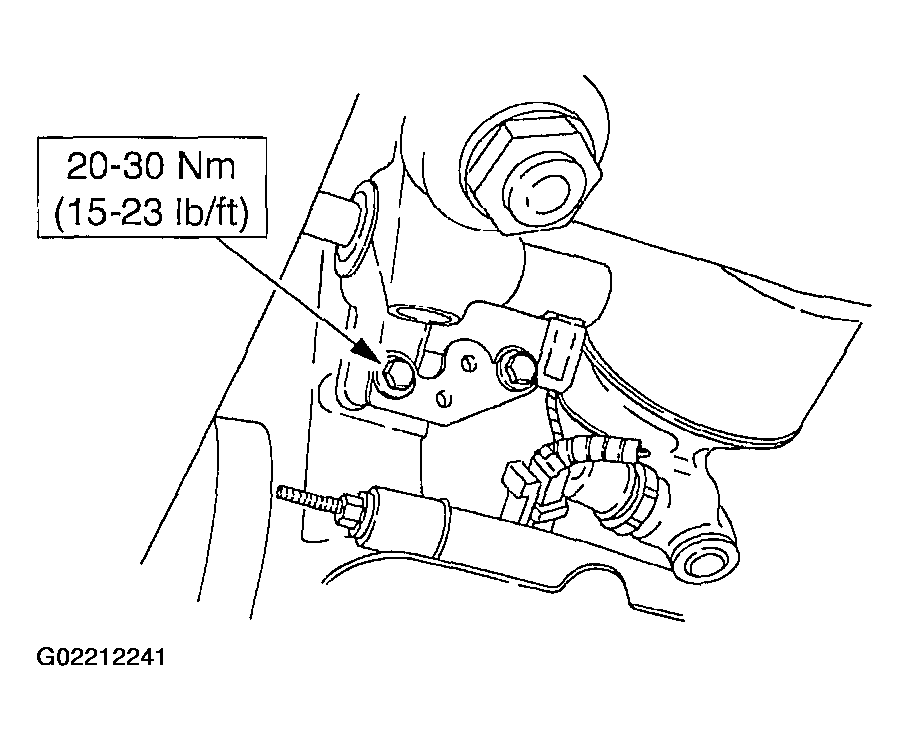

    Fig 2: Installing Pump Mounting Bolts
    G02212241Courtesy of FORD MOTOR CO.

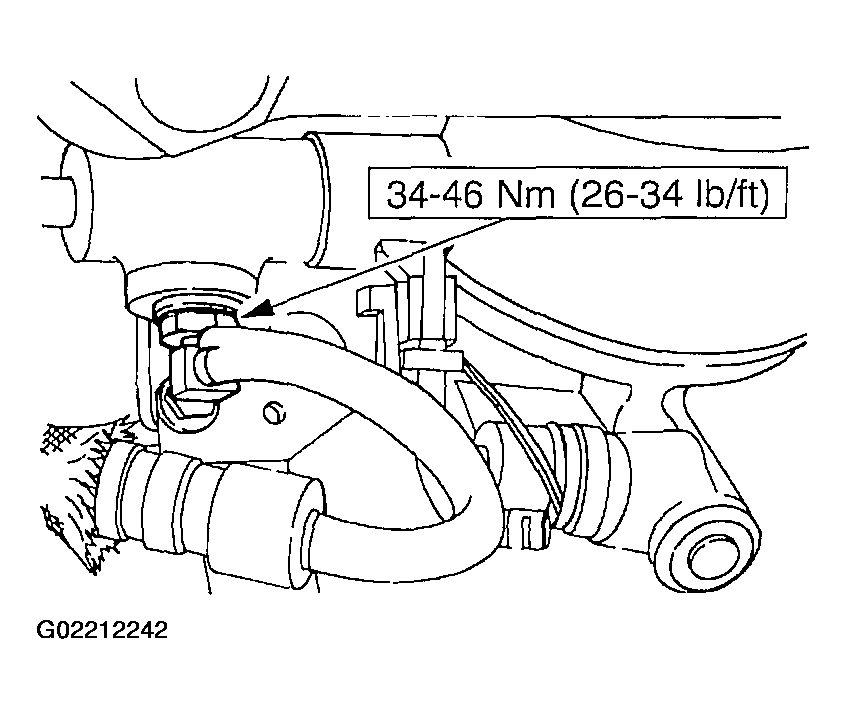

    Fig 3: Installing Pressure Hose
    G02212242Courtesy of FORD MOTOR CO.

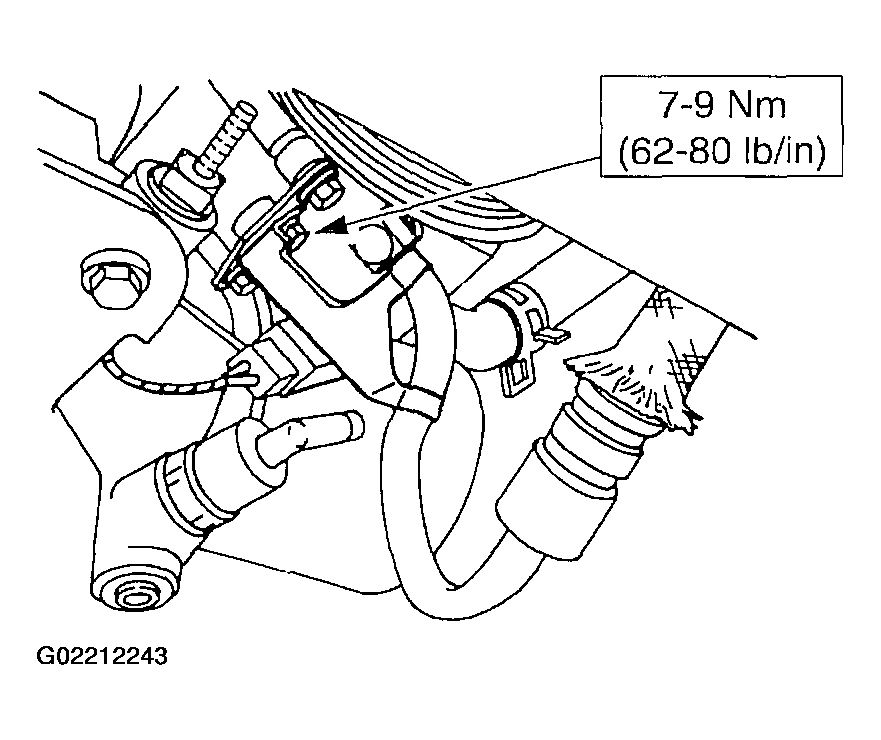

    Fig 4: Installing Routing Bracket
    G02212243Courtesy of FORD MOTOR CO.
  2. Fill and leak check the system; for additional information, refer to STEERING SYSTEM - GENERAL INFORMATION .
