Steering Wheel Rotation Sensor: Removal

  1. Remove the screws.
    Fig 1: Removing Screws
    G02212274Courtesy of FORD MOTOR CO.
  2. Remove the sound panel.
    Fig 2: Removing Sound Panel
    G02212275Courtesy of FORD MOTOR CO.
  3. Remove the finish panel.
    Fig 3: Removing Finish Panel
    G02212276Courtesy of FORD MOTOR CO.
  4. Remove the knee bolster.
    Fig 4: Removing Knee Bolster
    G02212277Courtesy of FORD MOTOR CO.
  5. Remove the bracket.
    Fig 5: Removing Bracket
    G02212278Courtesy of FORD MOTOR CO.

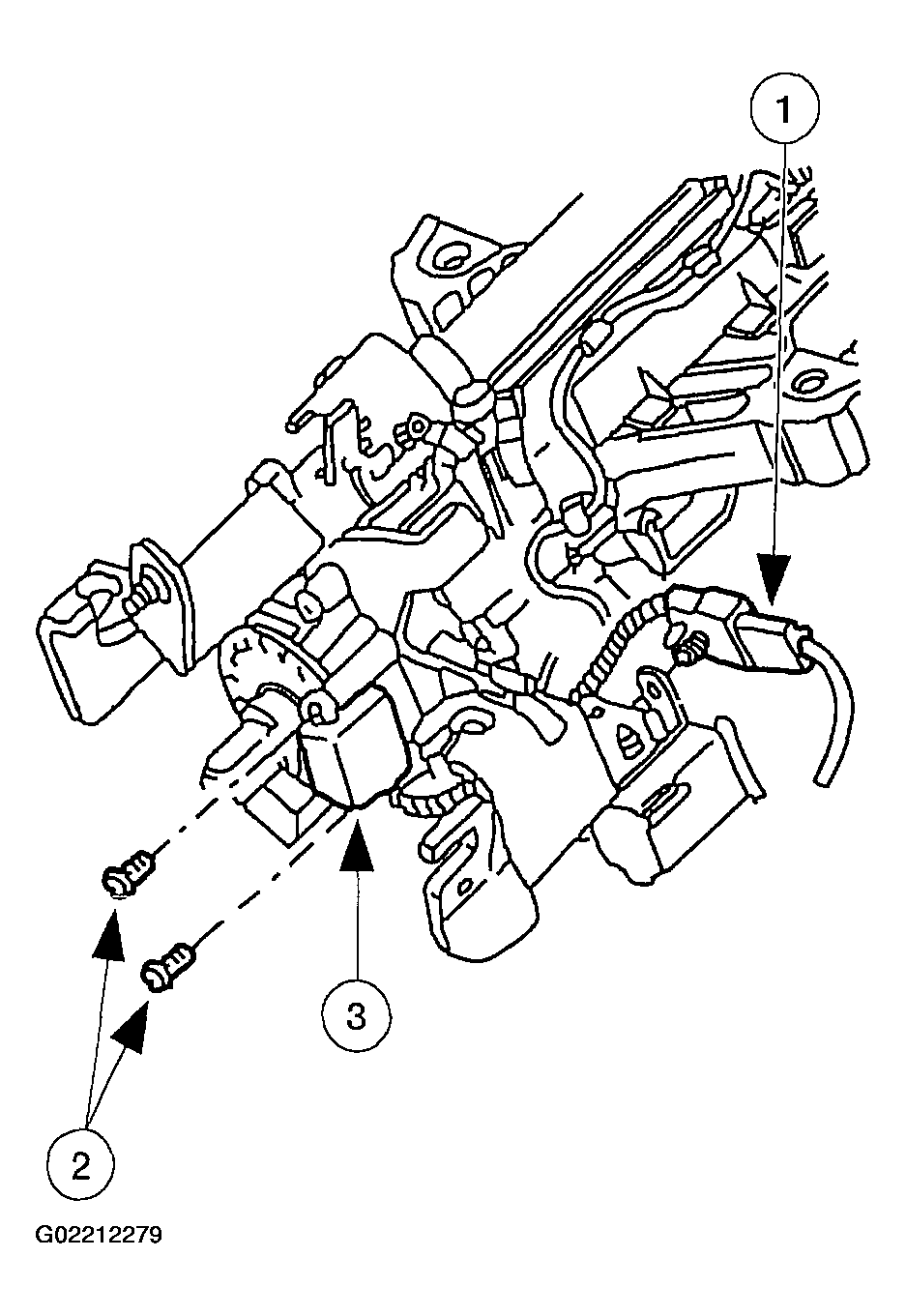

  6. Remove the sensor.
    1. Disconnect the wiring.
    2. Remove the screws.
    3. Remove the sensor.
    Fig 6: Removing Screws
    G02212279Courtesy of FORD MOTOR CO.
