Pinpoint Test F: No Communication With Module - Rear Air Suspension Control Module

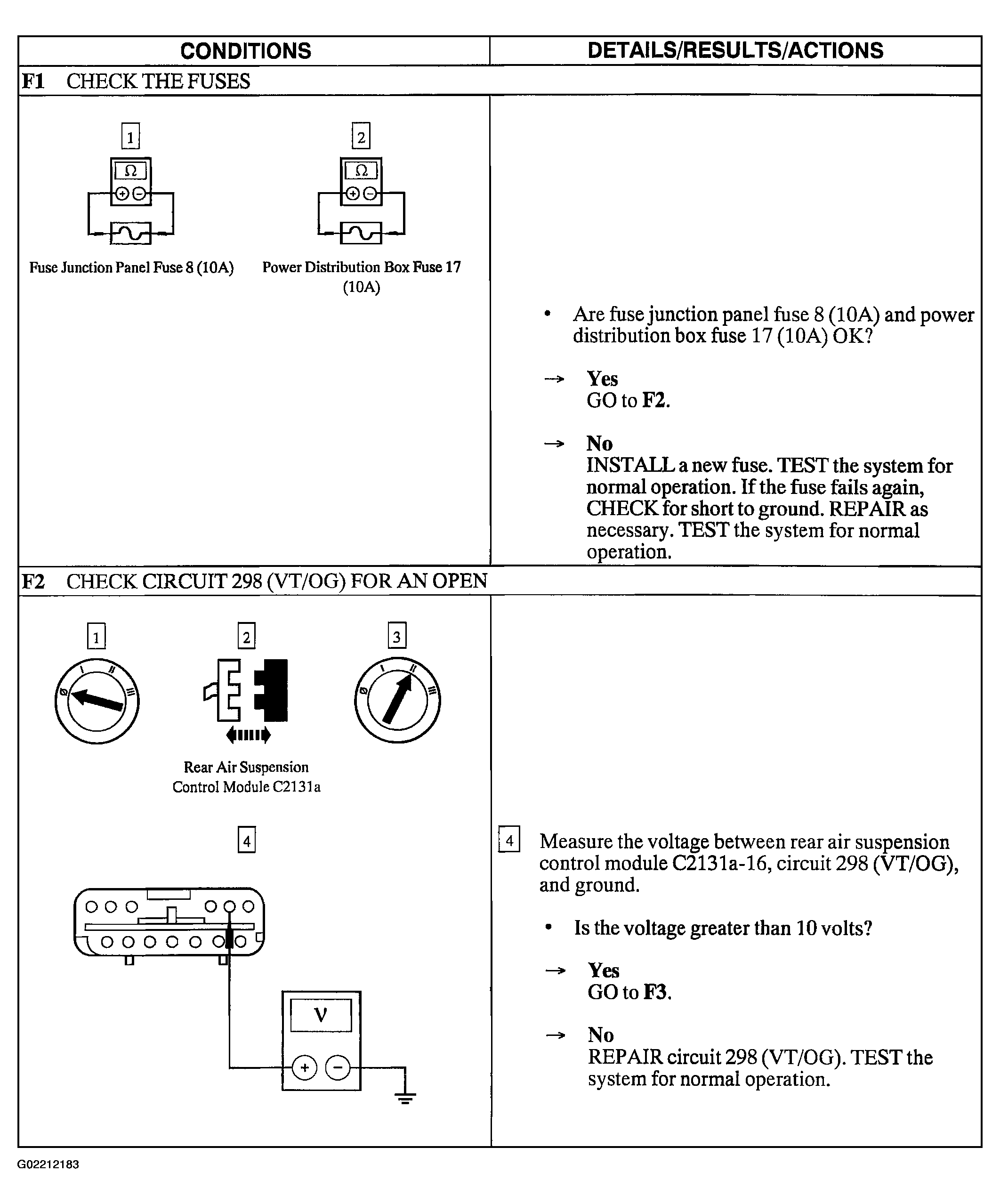

Fig 1: Pinpoint Test F: No Communication With Module - Rear Air Suspension Control Module Chart (F1-F2)

Courtesy of FORD MOTOR CO.

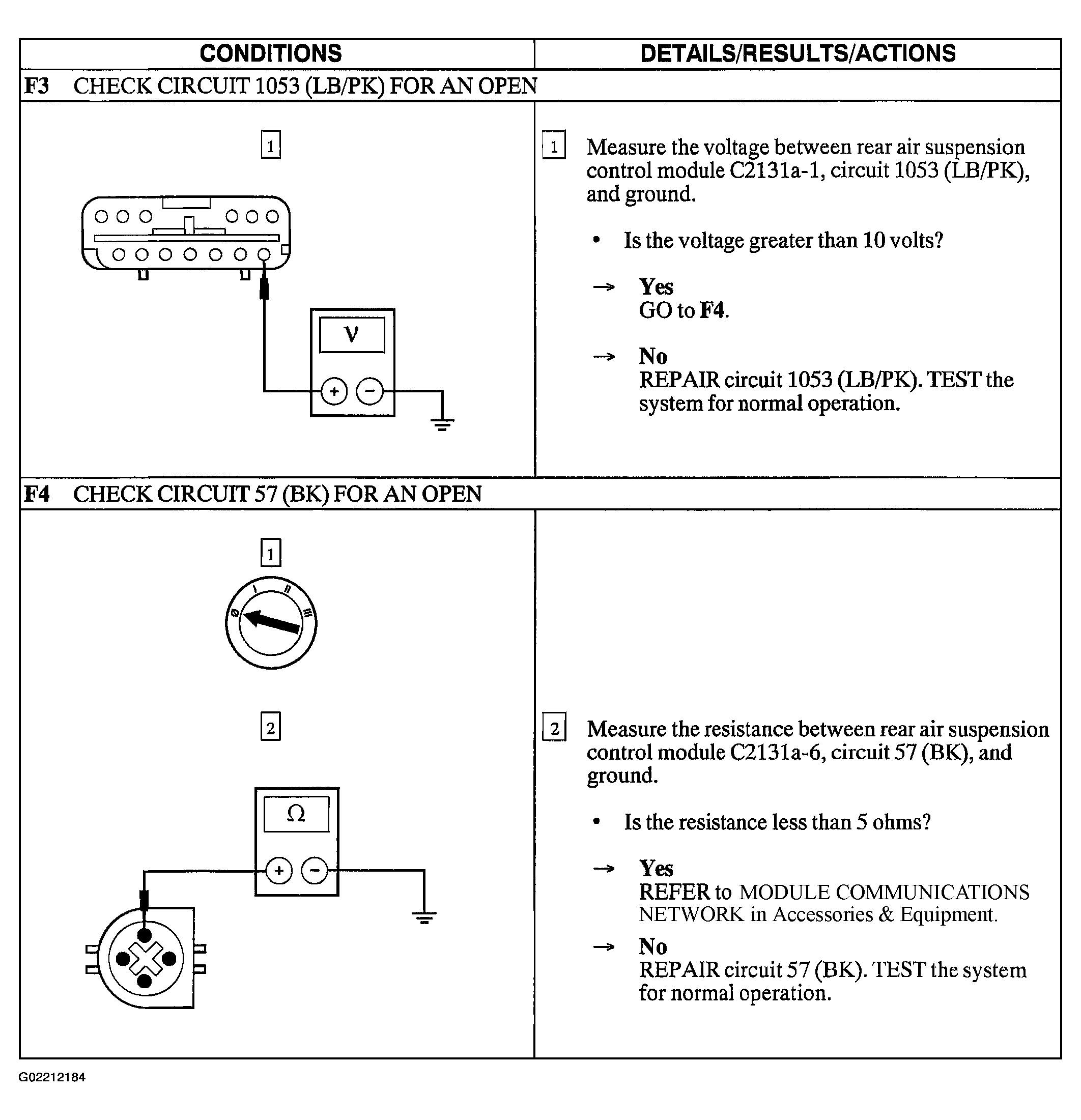

Fig 2: Pinpoint Test F: No Communication With Module - Rear Air Suspension Control Module Chart (F3-F4)

Courtesy of FORD MOTOR CO.
