Lincoln
›
2003
›
Aviator AWD
›
Repair and Diagnosis
›
Accessories & Equipment
›
Accessories Control Systems
›
Component Testing
›
Component Testing
›
Multifunction Switch, Turn Portion
Multifunction Switch, Turn Portion

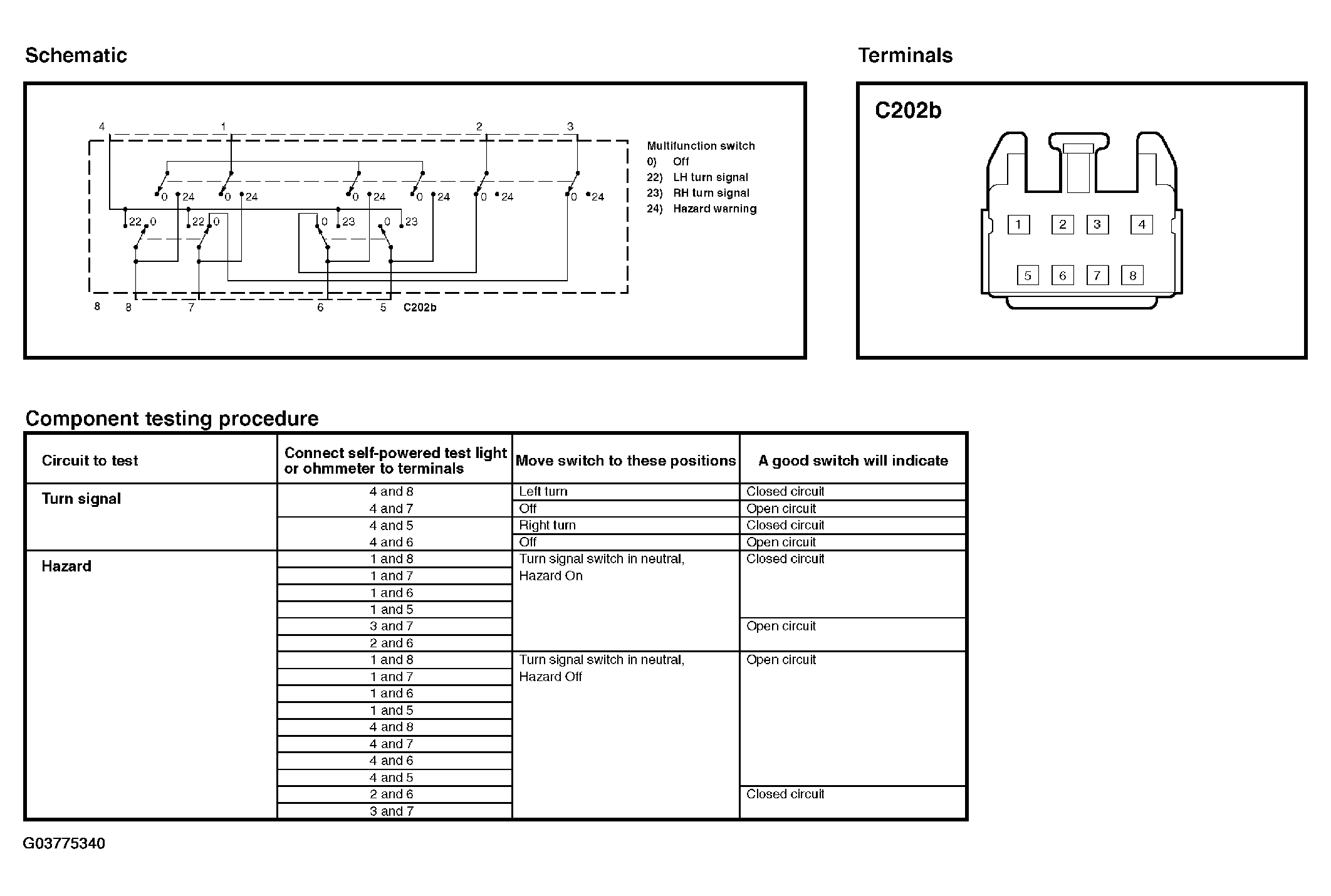

Fig 1: Testing Multifunction Switch - Turn Portion
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
