Component Location

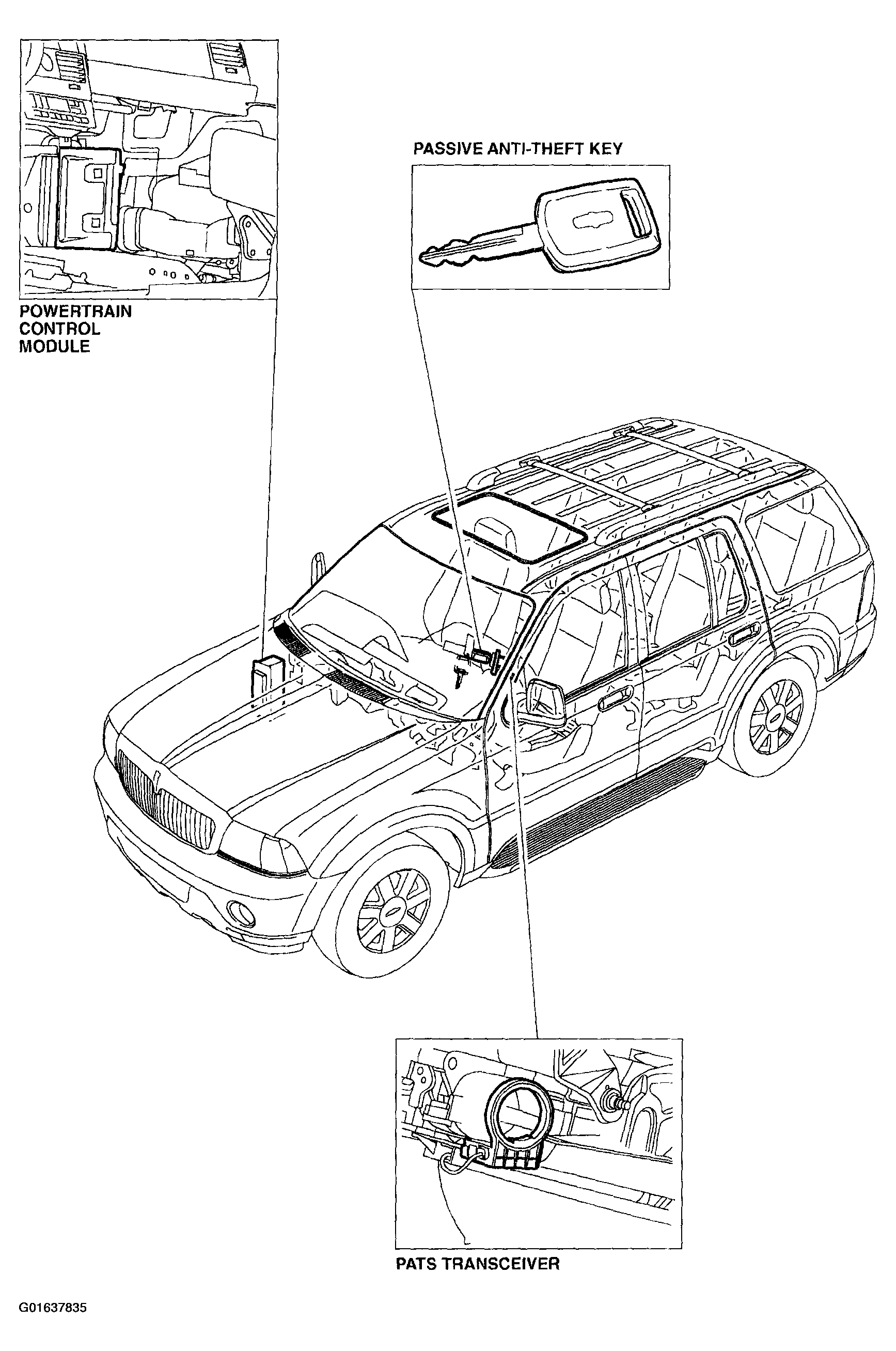

Fig 1: Anti-Theft Component Location Index - Passive Anti-Theft System
G01637835Courtesy of FORD MOTOR CO.

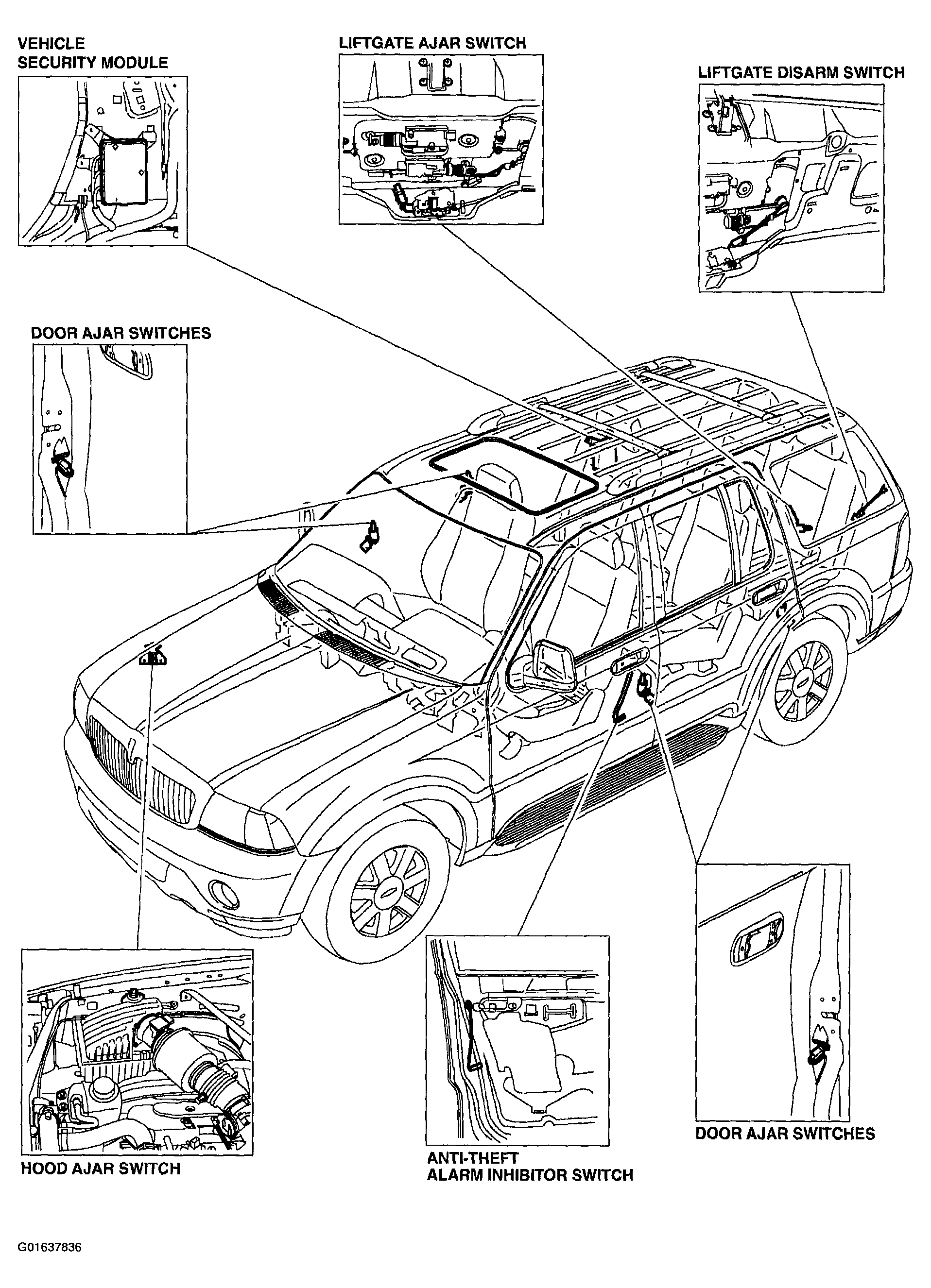

Fig 2: Anti-Theft Component Location Index - Perimeter Alarm System
G01637836Courtesy of FORD MOTOR CO.
