Roof Opening Panel Alignment

  1. Loosen the four roof opening panel bolts.
    Fig 1: Loosening Four Roof Opening Panel Bolts
    G01636000Courtesy of FORD MOTOR CO.
  2. Close the roof opening panel.
  3. Adjust the roof opening panel to specification.

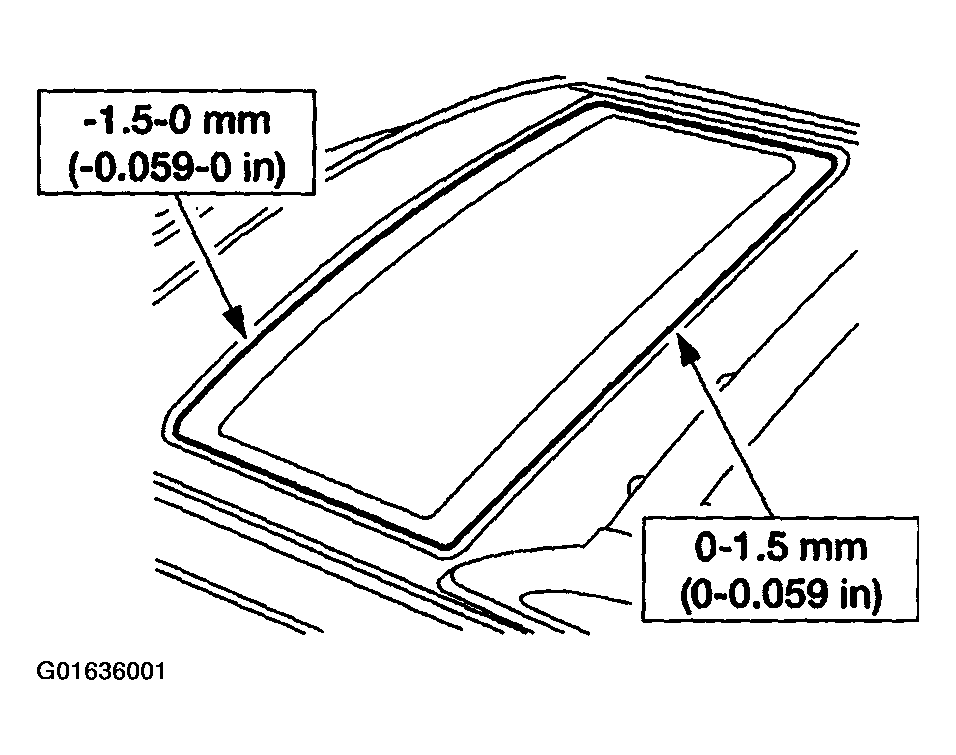

    Fig 2: Adjusting Roof Opening Panel
    G01636001Courtesy of FORD MOTOR CO.
  4. Tighten the roof opening panel glass screws.
    Fig 3: Tightening Roof Opening Panel Glass Screws
    G01636002Courtesy of FORD MOTOR CO.
