Component Location

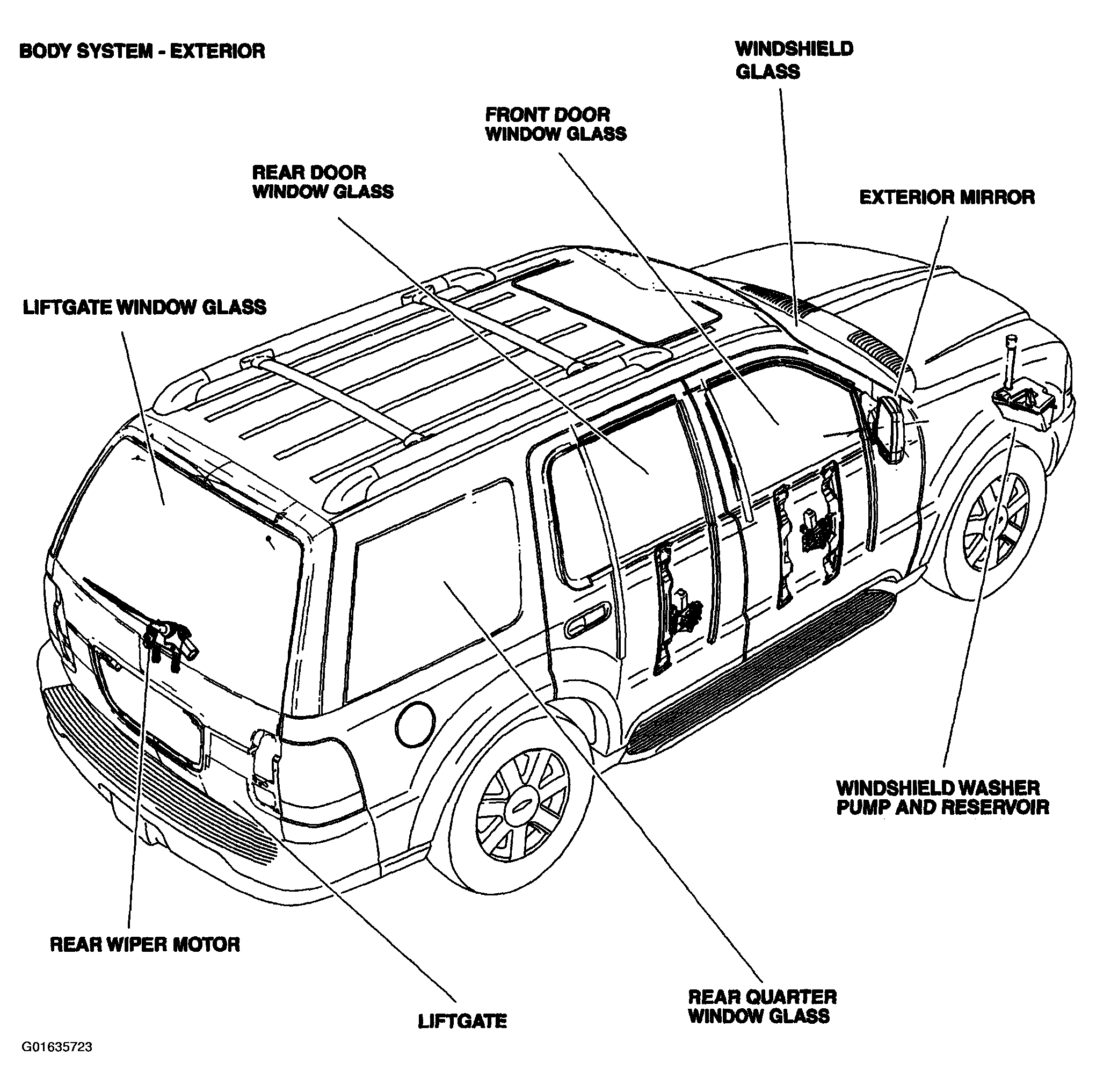

Fig 1: Locating Body System Components - Exterior Components (1 Of 2)
G01635723Courtesy of FORD MOTOR CO.

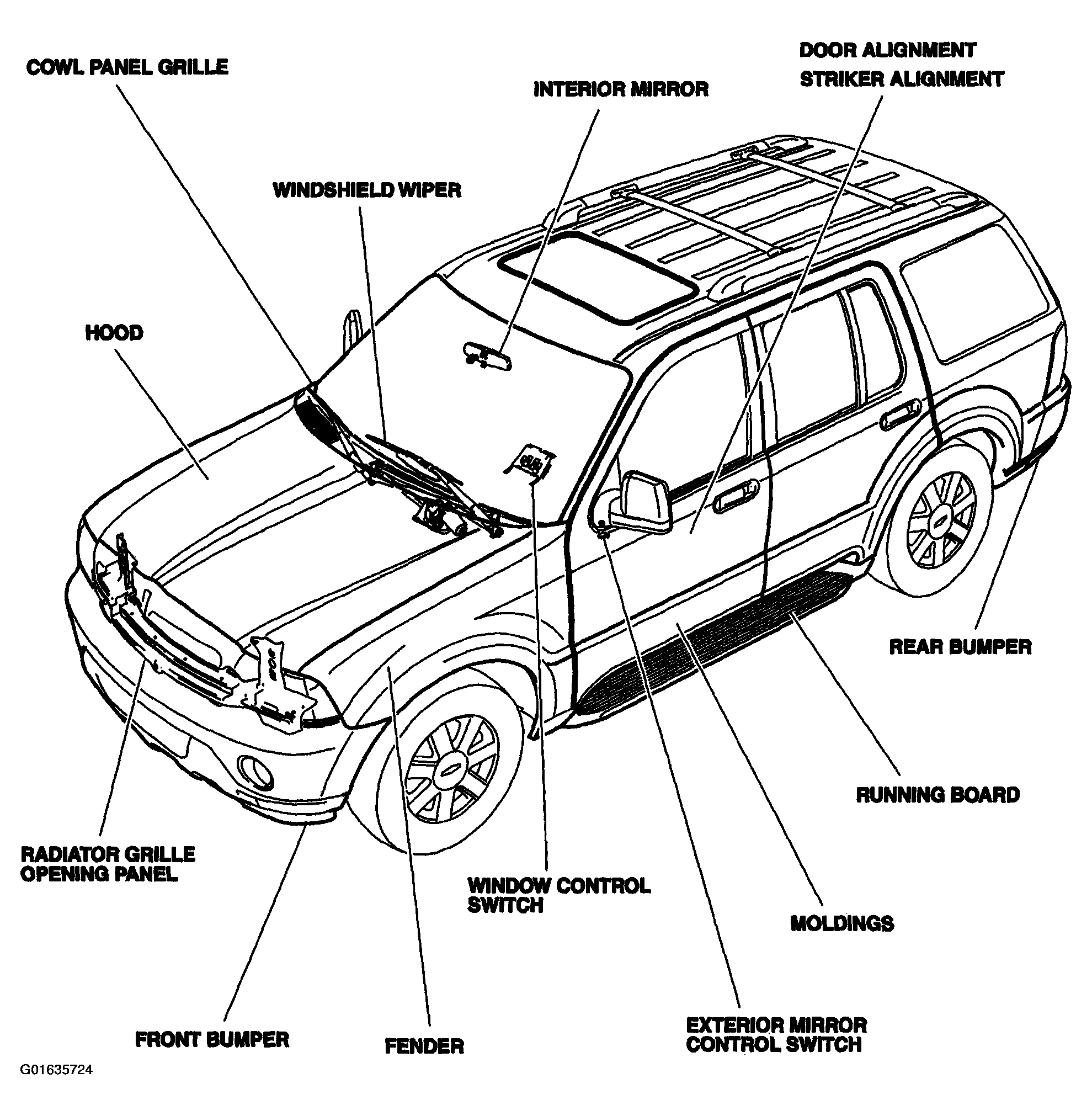

Fig 2: Locating Body System Components - Exterior Components (2 Of 2)
G01635724Courtesy of FORD MOTOR CO.
