Seat Control Switch
Seat Control Switch
Remove the driver door panel. For additional information, refer to
BODY SYSTEM - EXTERIOR
.
Remove the components in the order indicated in the following illustration.
To install, reverse the removal procedure.

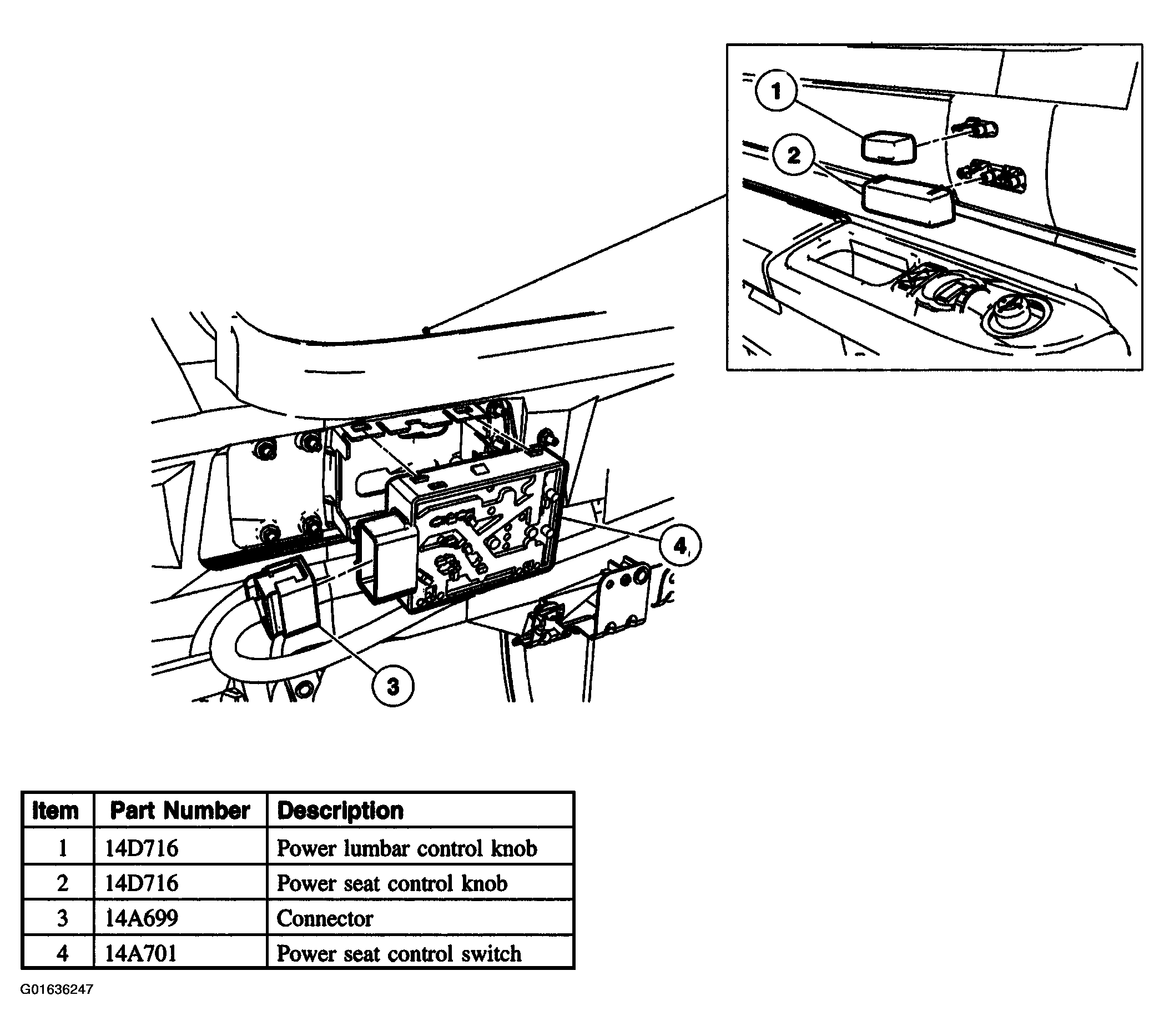

Fig 1: Seat Control Switch Removal Sequence
Courtesy of FORD MOTOR CO.
