Connector Circuit Reference

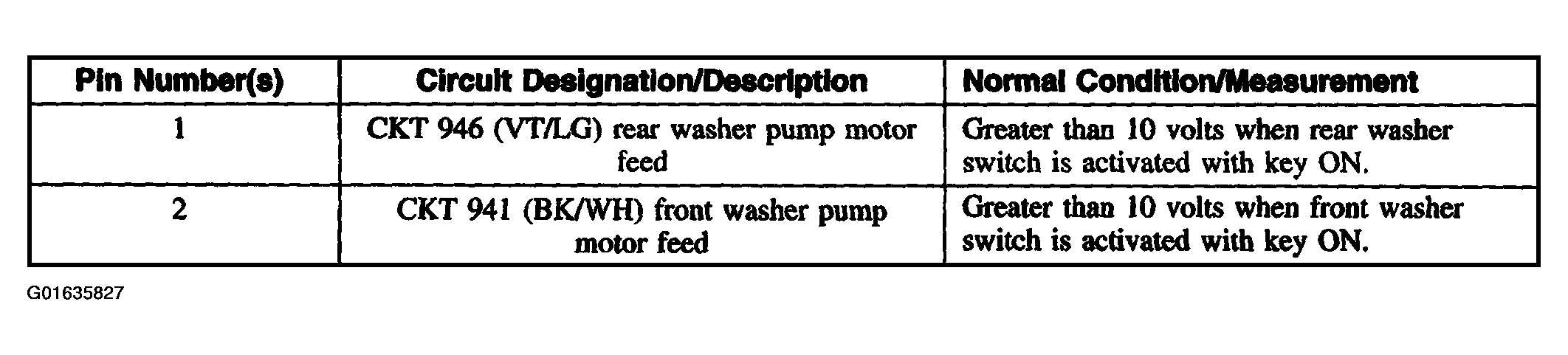

Fig 1: Identifying Washer Pump Motor C137 Connector Terminals

Courtesy of FORD MOTOR CO.

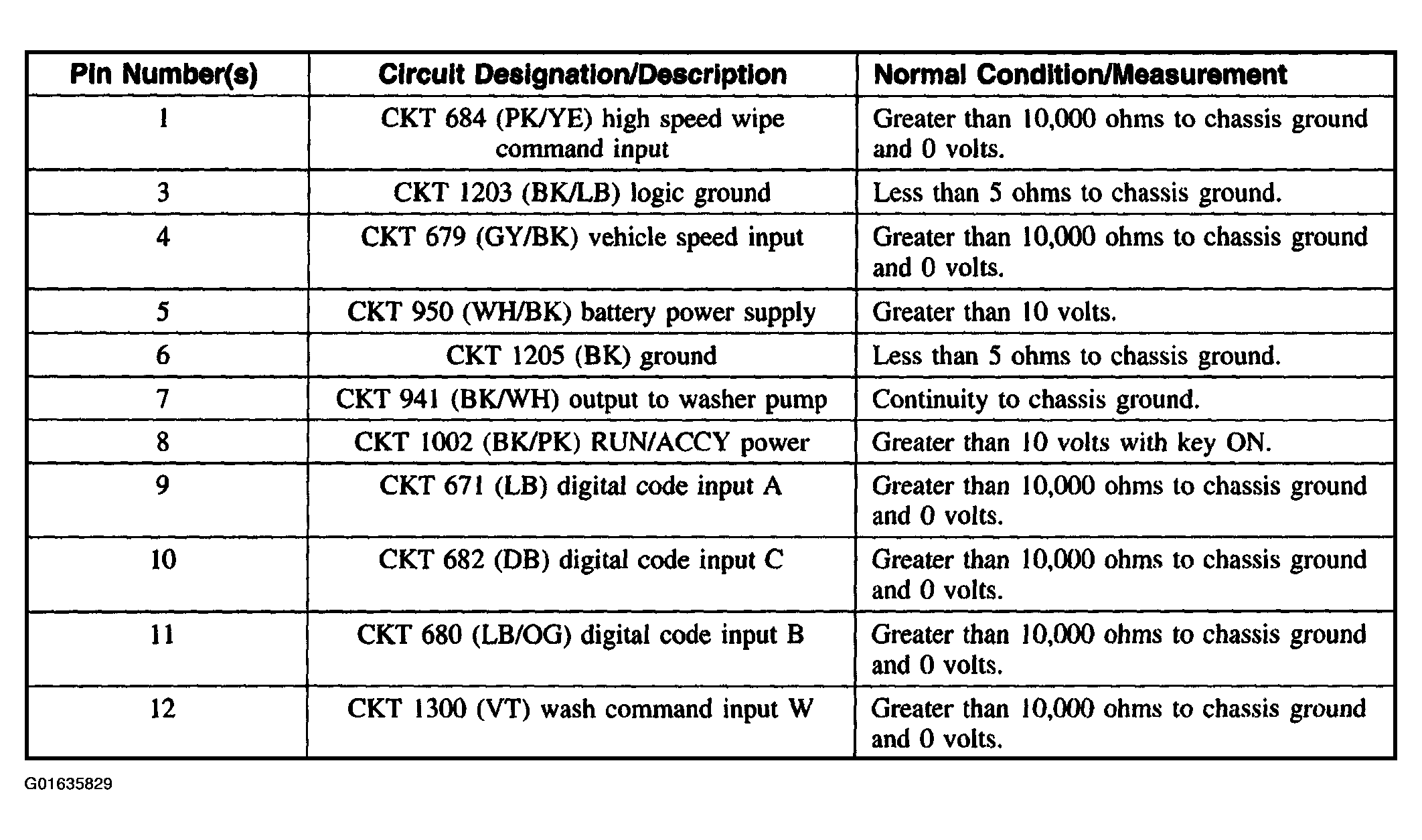

Fig 2: Washer Pump Motor C137 Connector Terminals Specifications

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Windshield Wiper Motor C1348 Connector Terminals

Courtesy of FORD MOTOR CO.

Fig 4: Windshield Wiper Motor C1348 Connector Terminals Specifications

Courtesy of FORD MOTOR CO.

Fig 5: Identifying PCM C175a Connector Terminals

Courtesy of FORD MOTOR CO.

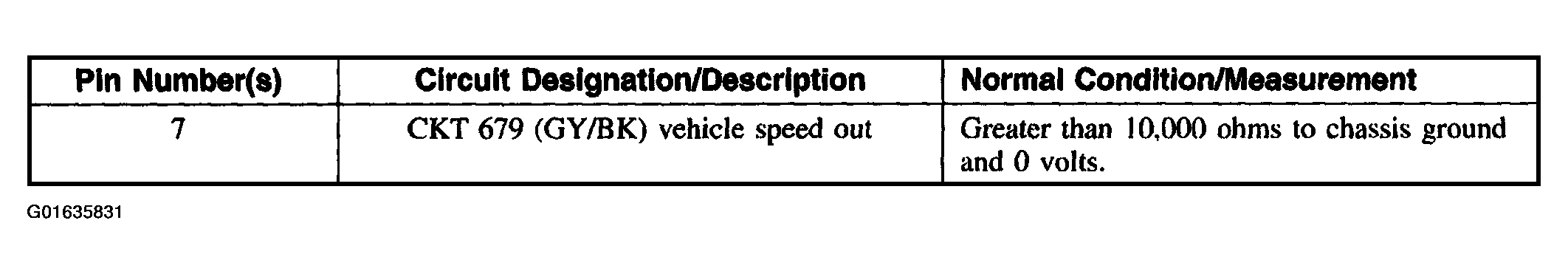

Fig 6: PCM C175a Connector Terminals Specifications

Courtesy of FORD MOTOR CO.

Fig 7: Identifying Multifunction Switch C202a Connector Terminals

Courtesy of FORD MOTOR CO.

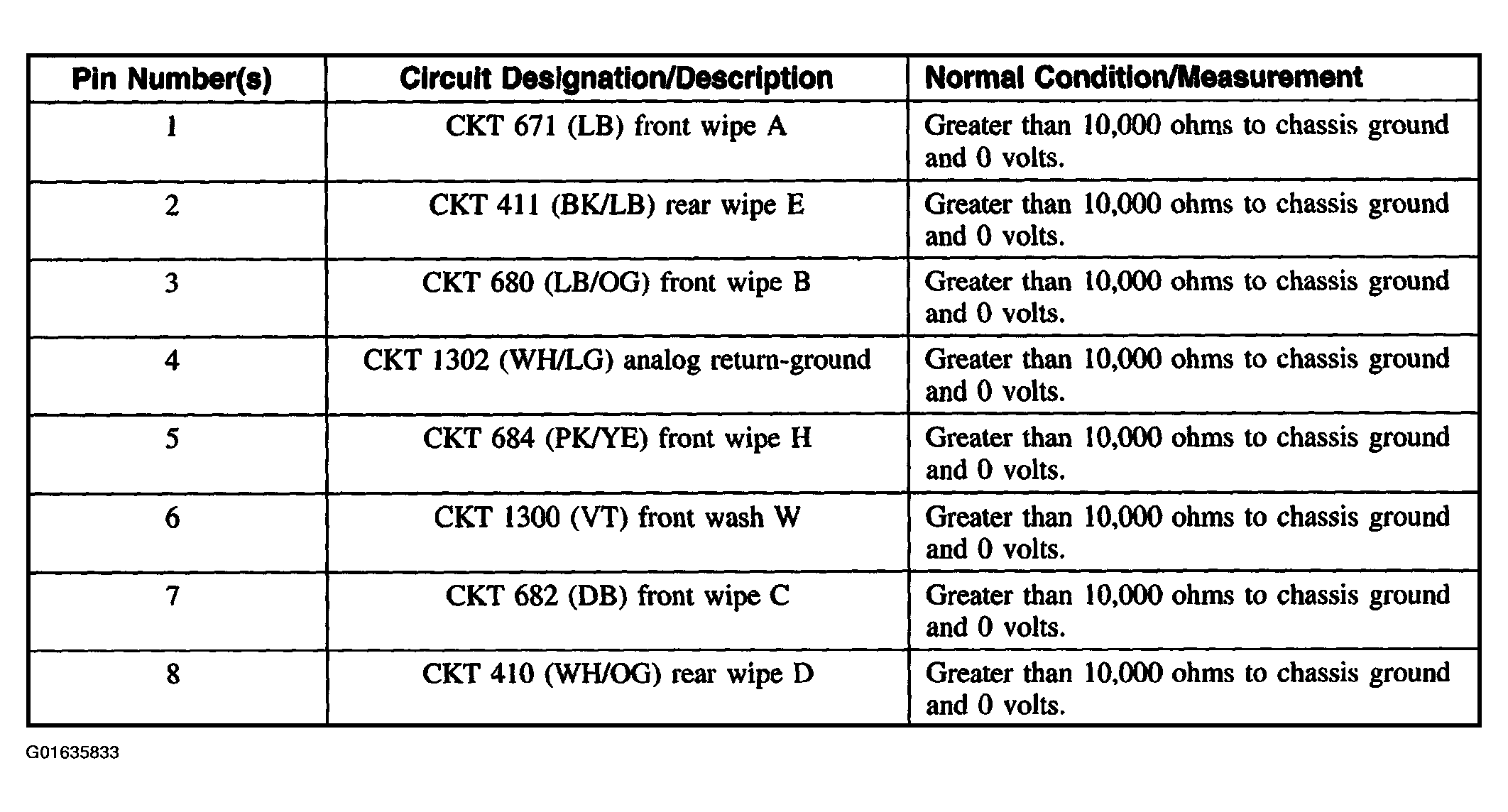

Fig 8: Multifunction Switch C202a Connector Terminals Specifications

Courtesy of FORD MOTOR CO.

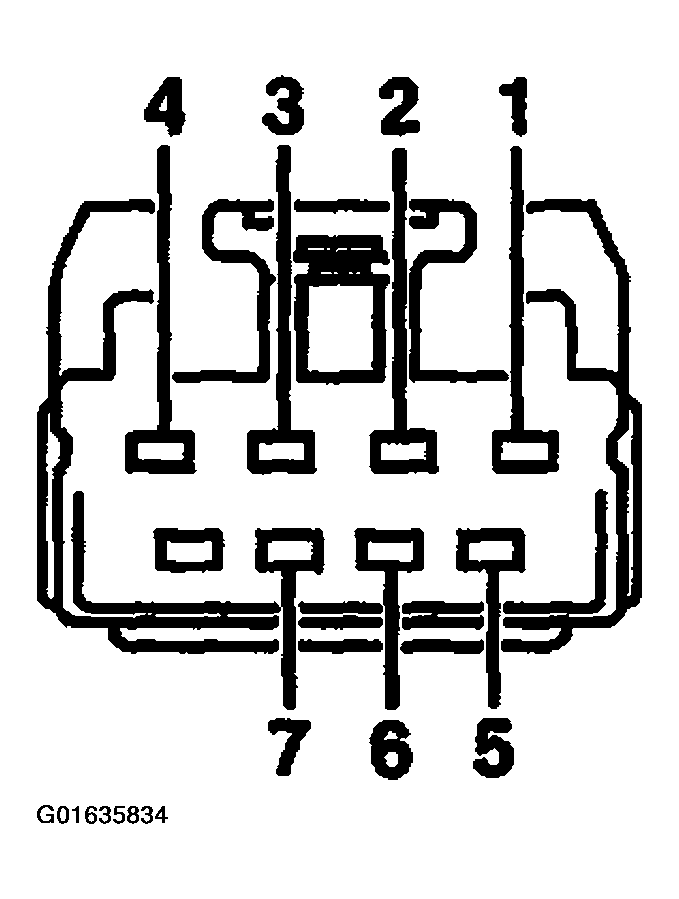

Fig 9: Identifying Rear Wiper Motor C4171 Connector Terminals

Courtesy of FORD MOTOR CO.

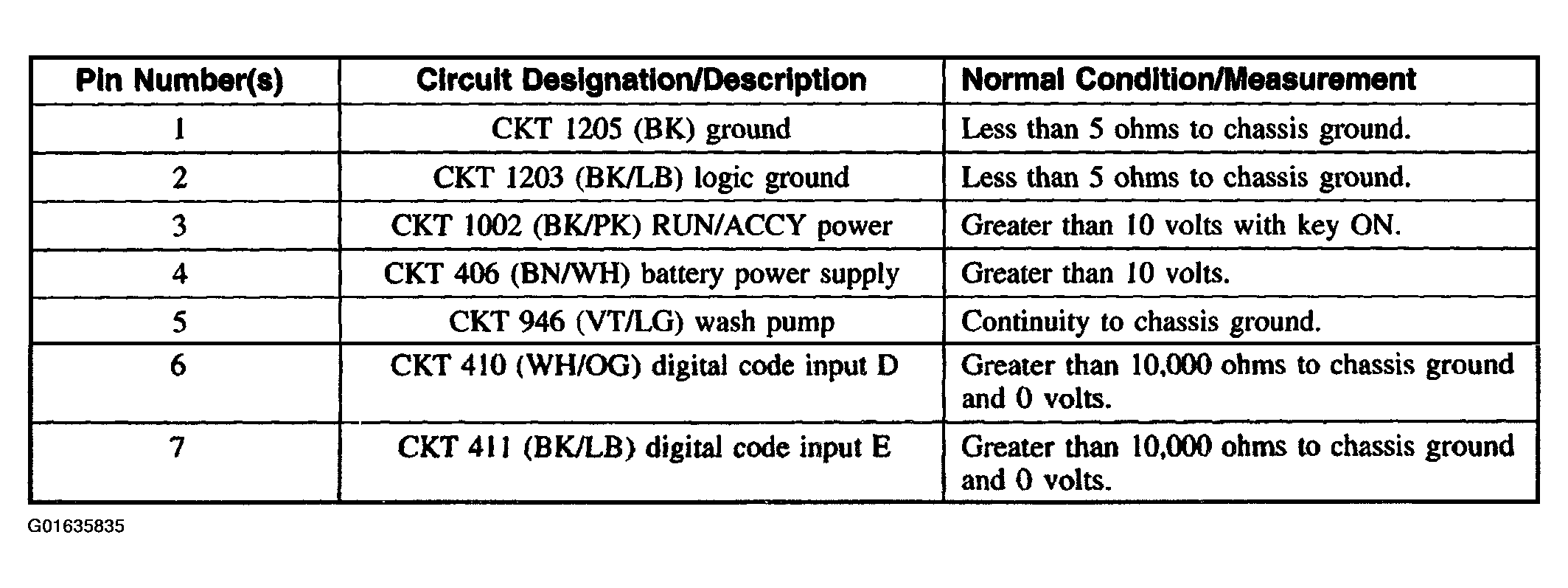

Fig 10: Rear Wiper Motor C4171 Connector Terminals Specifications

Courtesy of FORD MOTOR CO.
