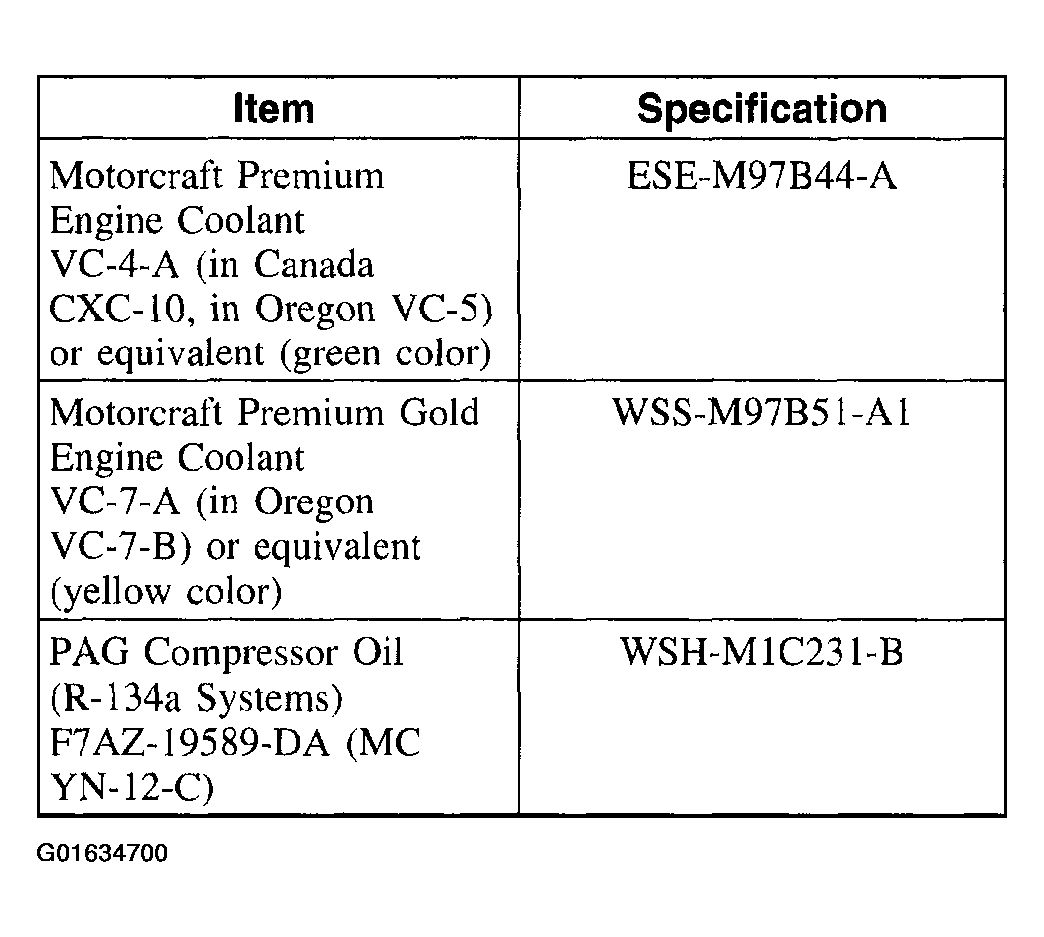

Cooling Module

1. Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
2. Recover the refrigerant. For additional information, refer to CLIMATE CONTROL SYSTEM .
3. Remove the fan shroud. For additional information refer to RADIATOR, COOLING FAN AND SHROUD, AND DEGAS BOTTLE .
4. Remove the components in the order indicated in the following illustration.
5. To install, reverse the removal procedure.

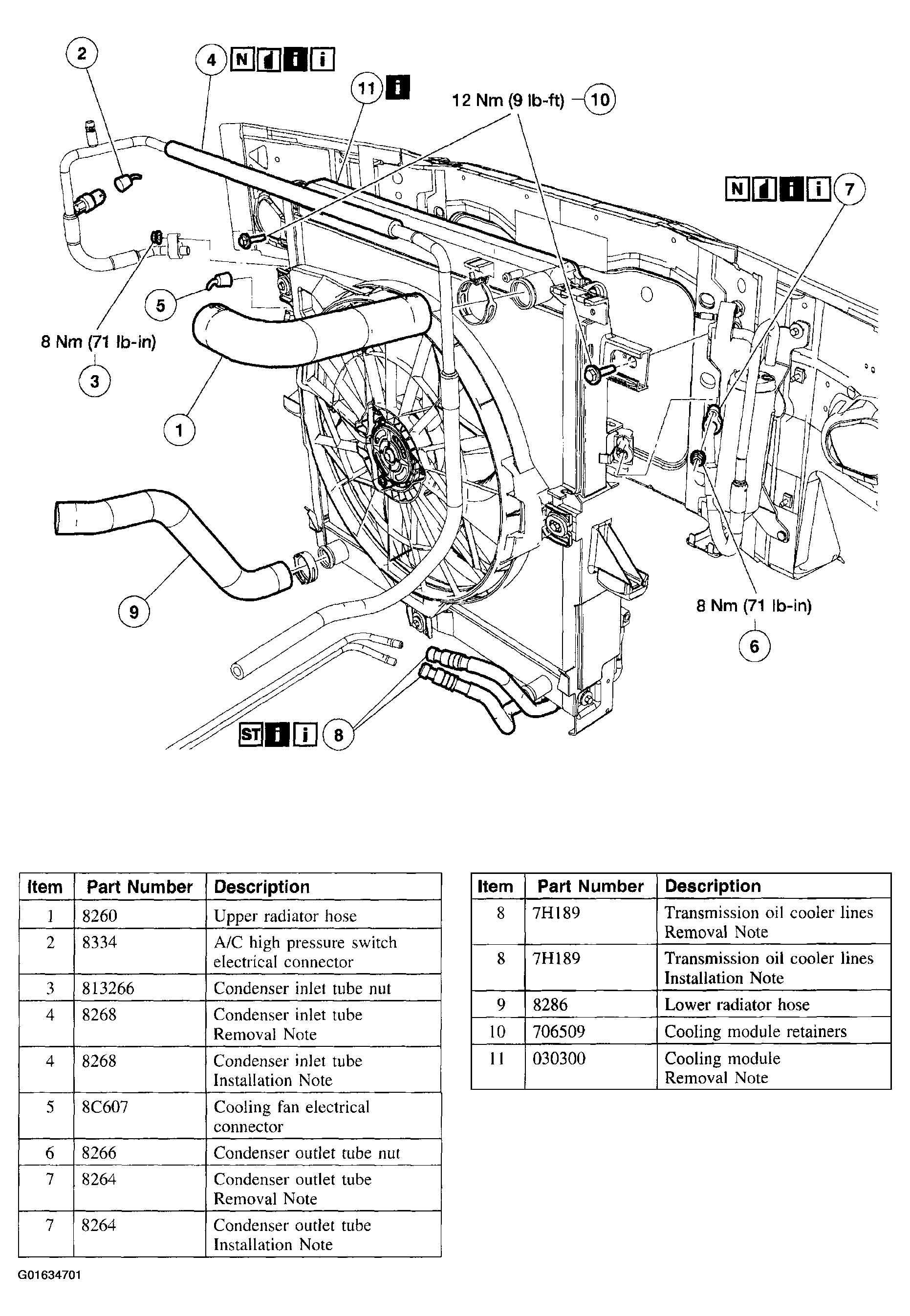

   Fig 3: Removal Sequence Of Cooling Module

   Courtesy of FORD MOTOR CO.
6. Fill and bleed the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .

Item 4: Condenser Inlet Tube Removal Note

1. Release the condenser inlet tube from the retaining clips and position aside.

Item 7: Condenser Outlet Tube Removal Note

1. Disconnect and position aside.

Item 8: Transmission Oil Cooler Lines Removal Note

NOTE: If equipped, remove the safety retainer from the connectors.

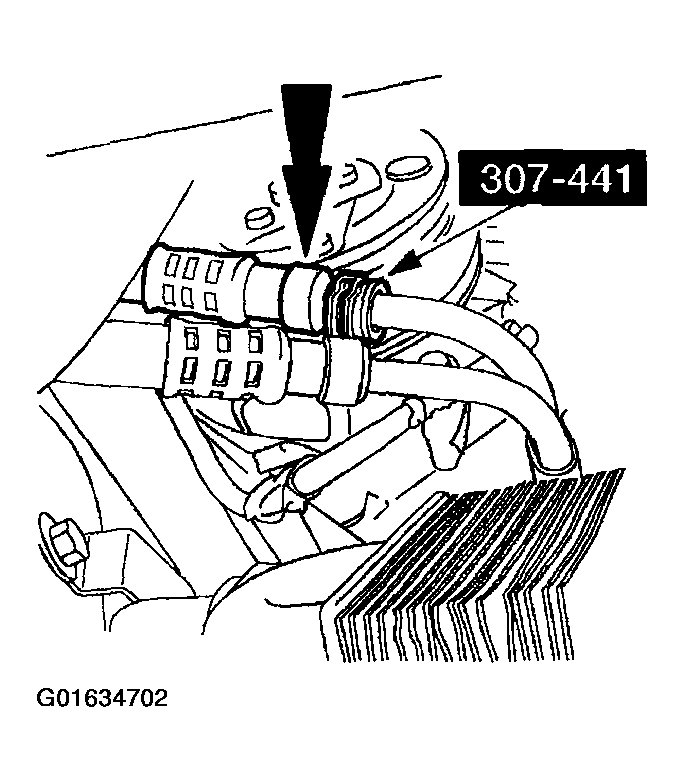

Fig 4: Disconnecting Quick Couplers
Courtesy of FORD MOTOR CO.
1. Using the special tool, disconnect the quick couplers.

Item 11: Cooling Module Removal Note

1. Lift the cooling module up and toward the engine to remove it from the vehicle.

Item 8: Transmission Oil Cooler Lines Installation Note

NOTE: If equipped, install the safety retainer on the connectors.

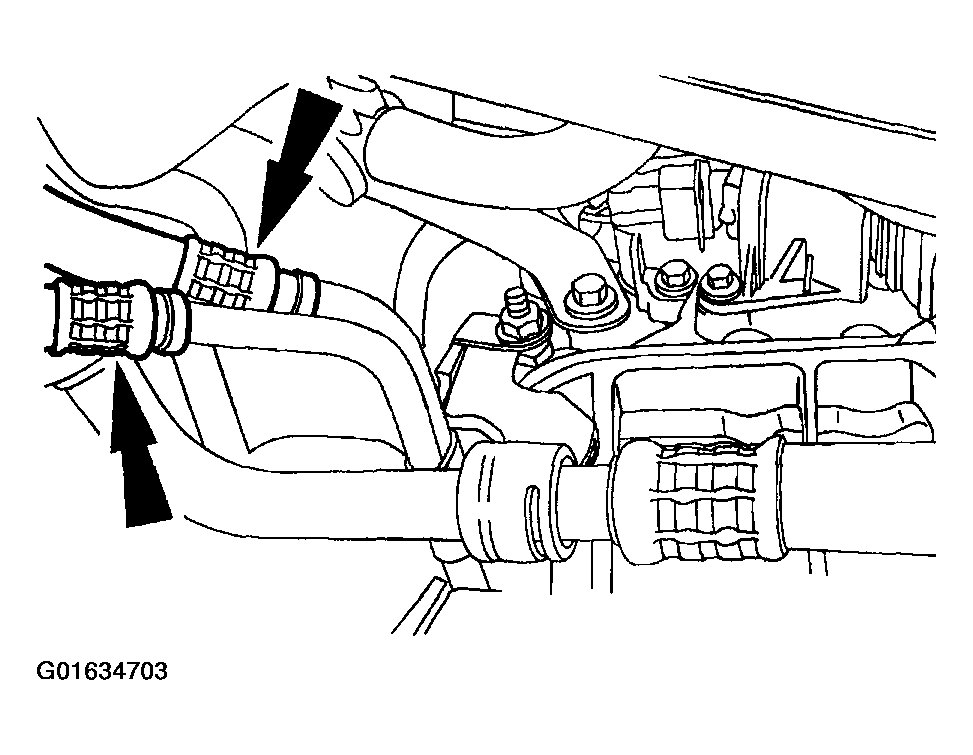

Fig 5: Connecting Fittings Of Transmission Oil Cooler Lines
Courtesy of FORD MOTOR CO.
1. Connect the fittings and pull on them to make sure they are fully engaged.

Item 7: Condenser Outlet Tube Installation Note

1. Install new O-rings lubricated in clean PAG oil.

Item 4: Condenser Inlet Tube Installation Note

1. Install new O-rings lubricated in clean PAG oil.
