Valve Spring Installed Length

  1. Measure the installed length of each valve spring.
    • Refer to ENGINE for the procedure.
    • If out of specification, install new components. Refer to ENGINE for the procedure.

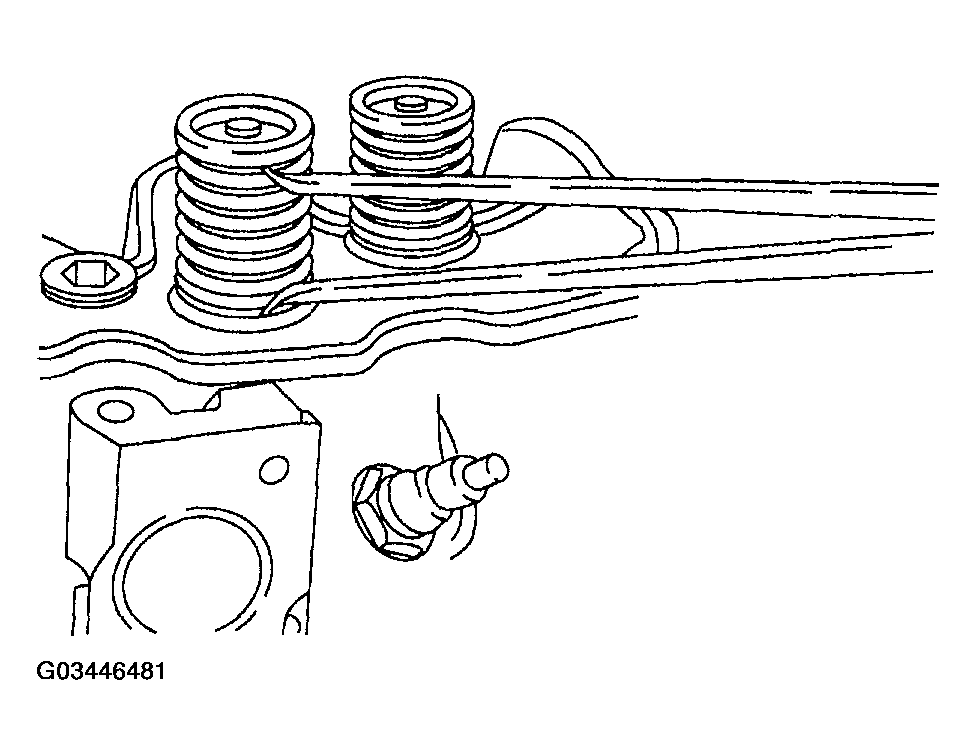

      Fig 1: Measuring Installed Length Of Valve Spring
      G03446481Courtesy of FORD MOTOR CO.
