Engine Component Location Index

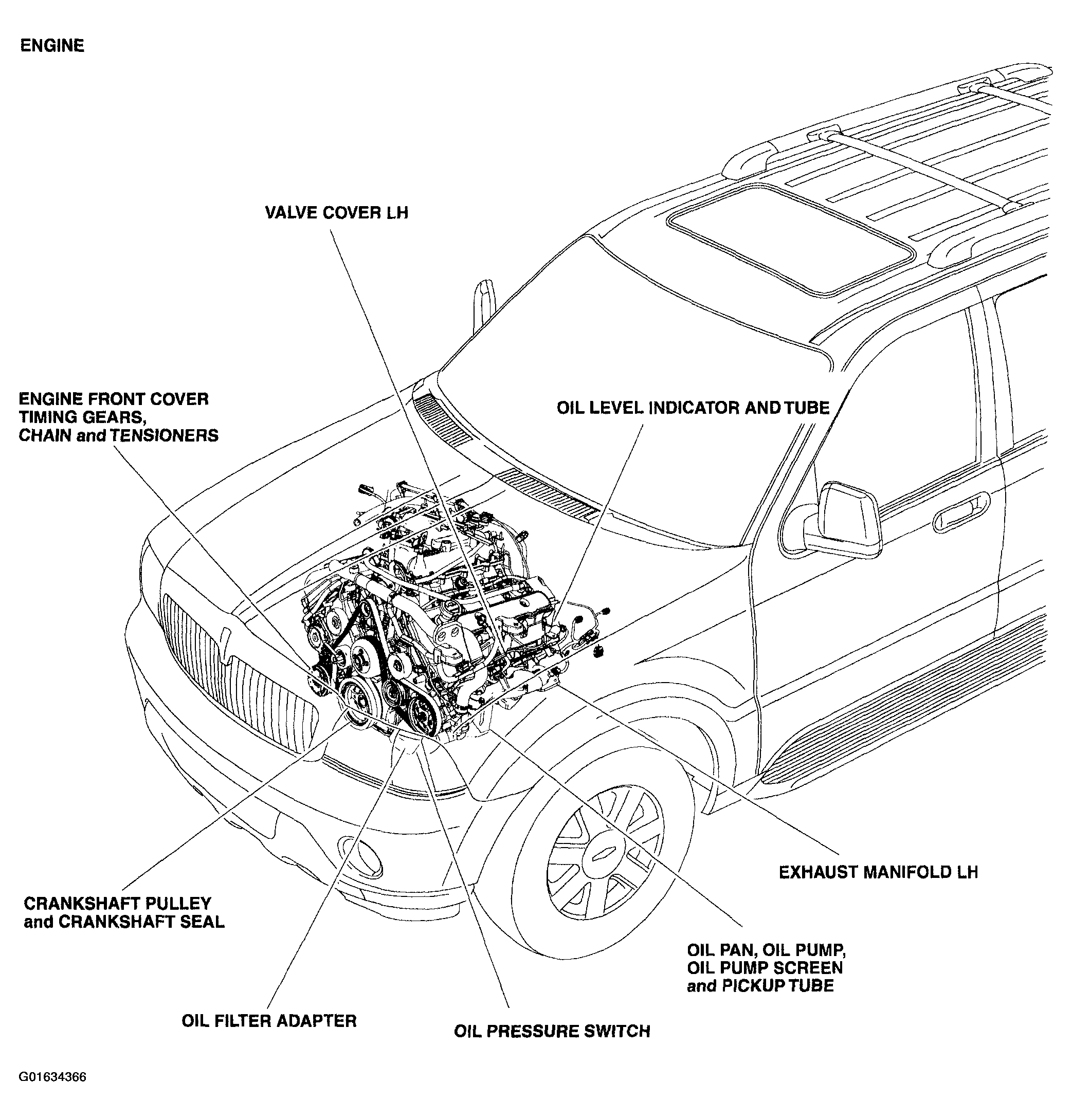

Fig 1: Locating Engine Component (Left Front View)
G01634366Courtesy of FORD MOTOR CO.

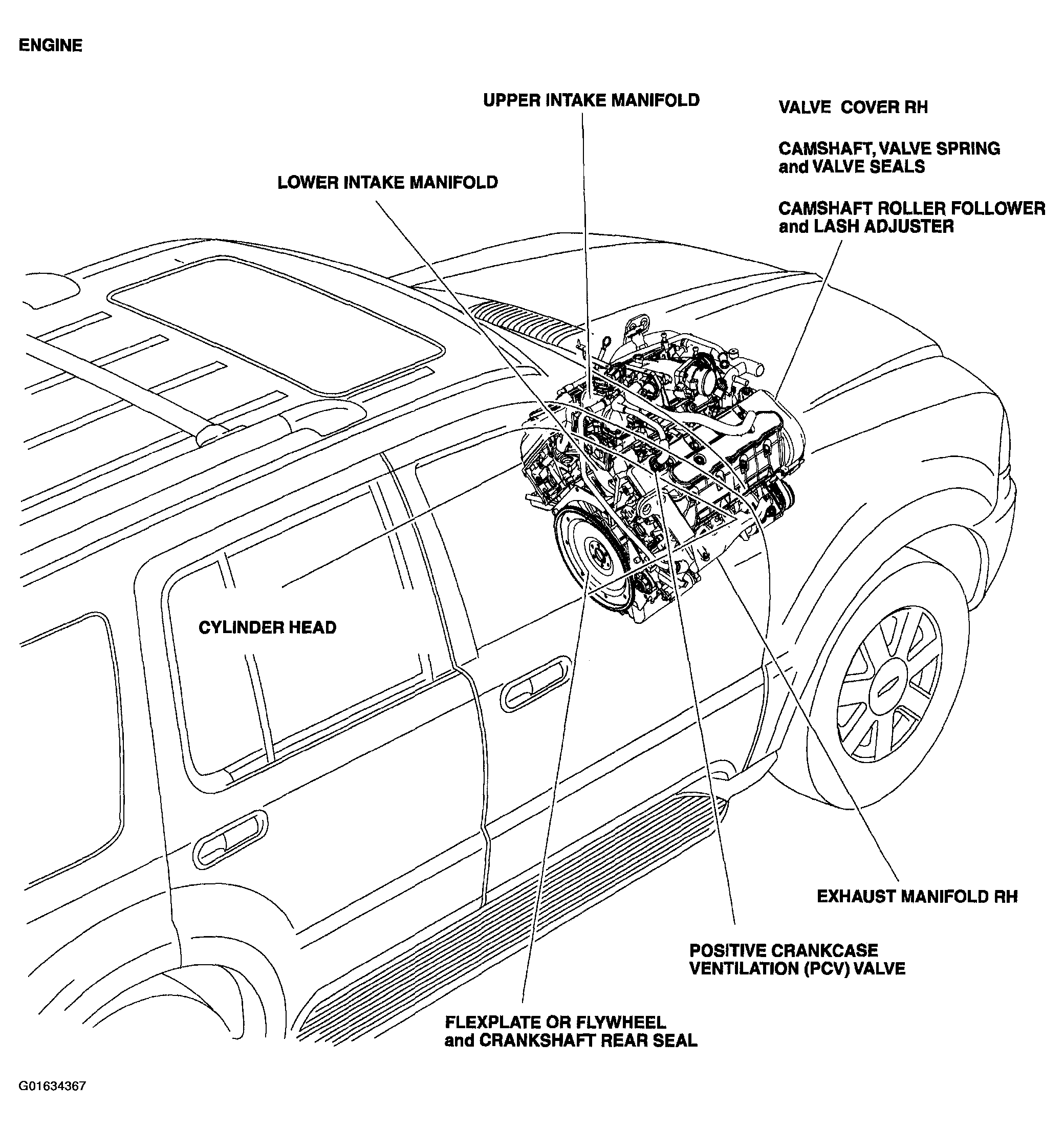

Fig 2: Locating Engine Component (Right Rear View)
G01634367Courtesy of FORD MOTOR CO.

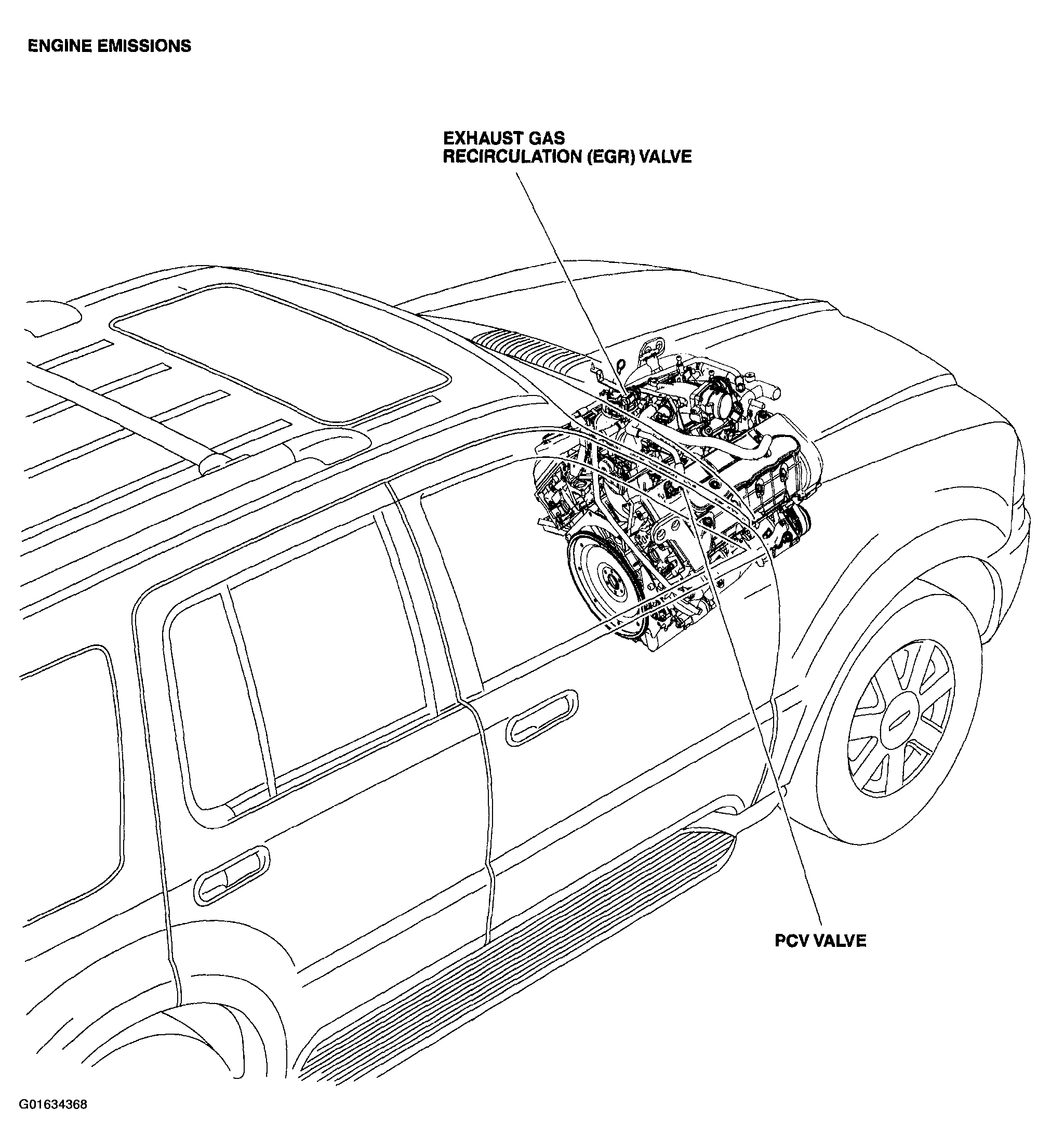

Fig 3: Locating Engine Emission Control Component
G01634368Courtesy of FORD MOTOR CO.
