Oil Level Indicator and Tube

  1. With the vehicle in NEUTRAL, position on a hoist.
  2. Remove the steering intermediate shaft. For additional information, refer to STEERING SYSTEM .
  3. Remove the LH front wheel and tire. For additional information, refer to SUSPENSION SYSTEM .
  4. Remove the LH front inner fenderwell. For additional information, refer to BODY SYSTEM - EXTERIOR .
  5. Remove the components in the order indicated in the following illustration.
  6. To install, reverse the removal procedure.

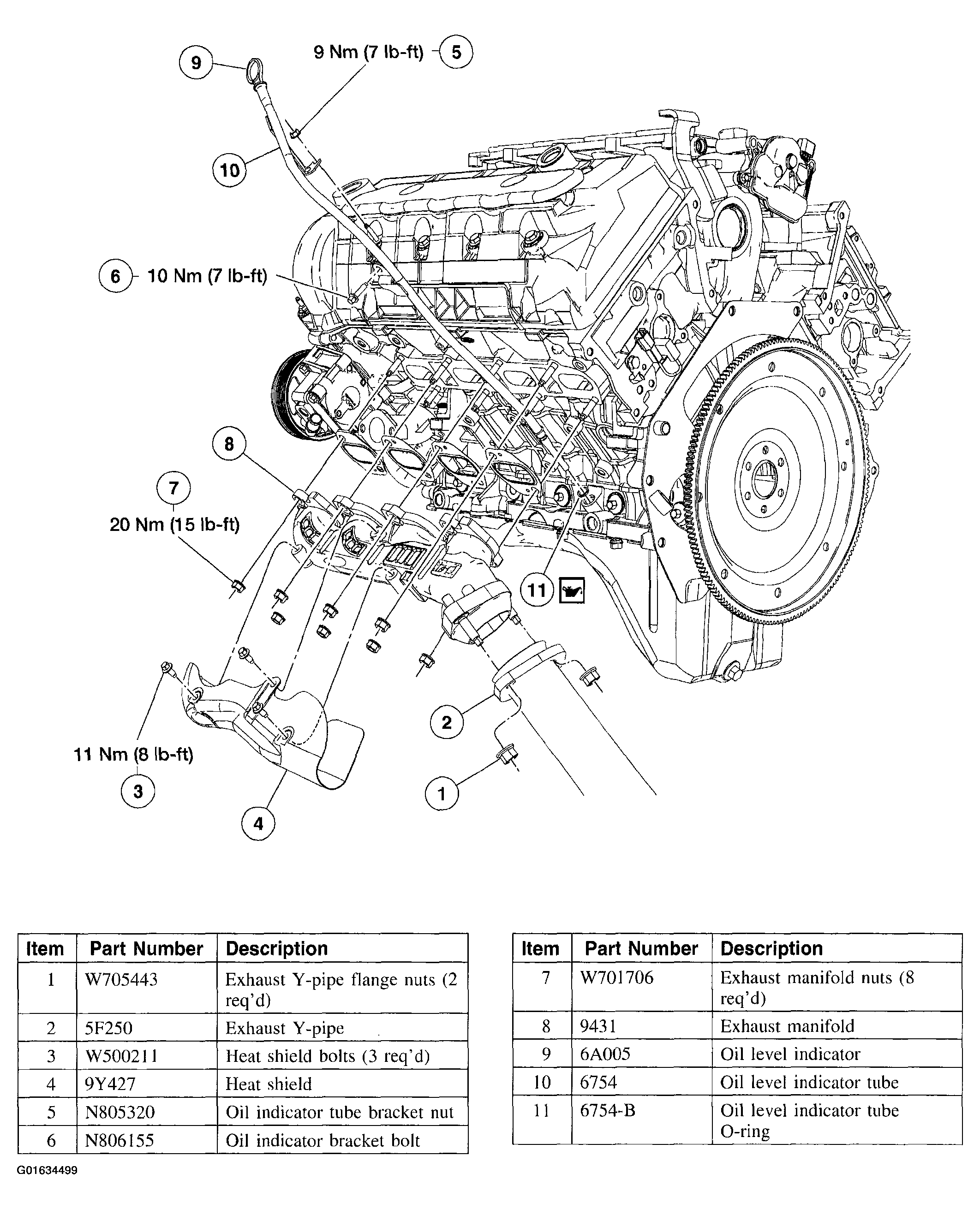

    Fig 1: Removal Sequence Of Oil Level Indicator And Tube
    G01634499Courtesy of FORD MOTOR CO.
