Front End Accessory Drive (FEAD) - Exploded View

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

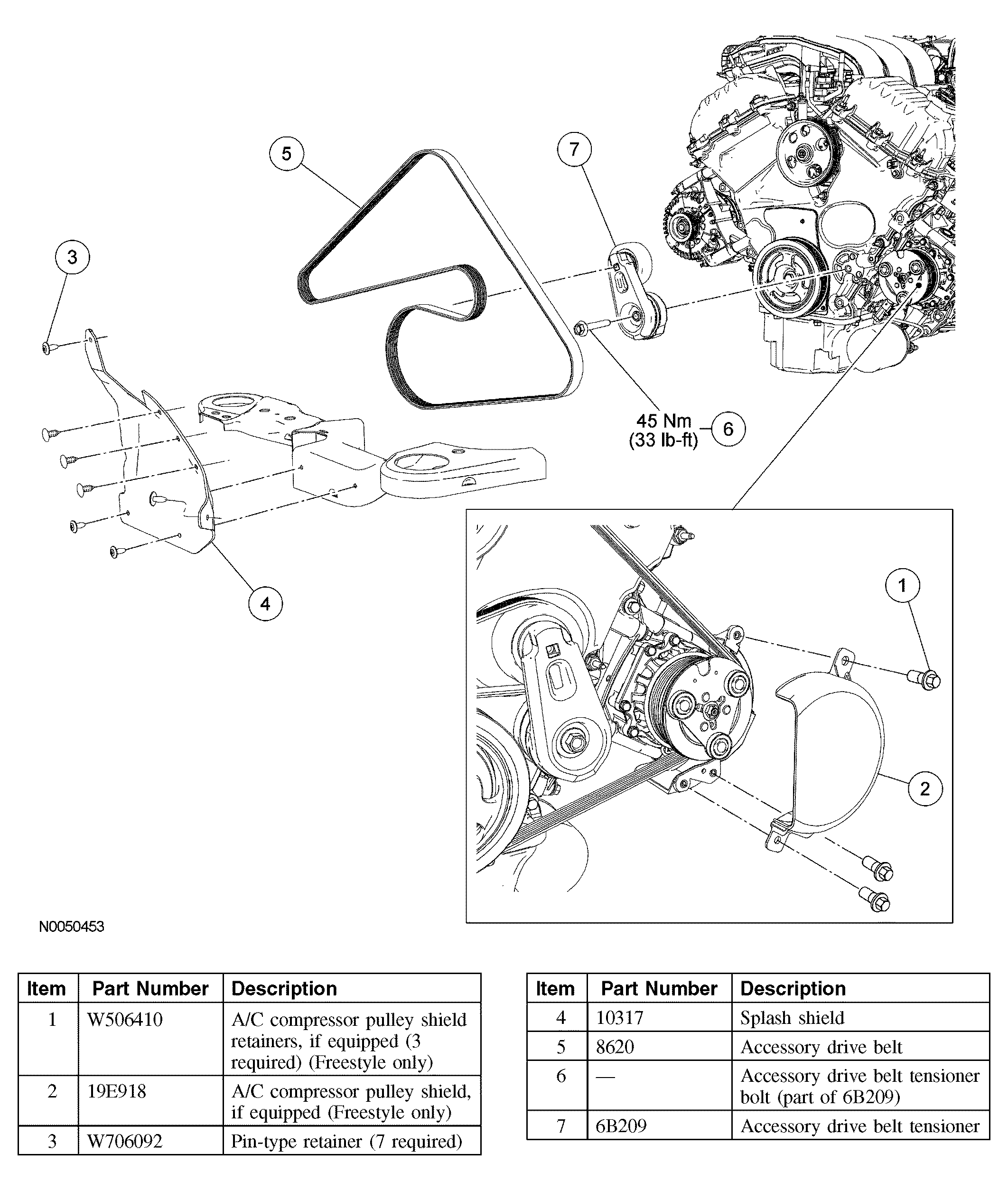

Fig 1: Removing/Installing Front End Accessory Drive (FEAD)
G03990604Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures below.
