Side Impact Sensor: Installation

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The tightening torque of the air bag side impact sensor retaining bolts is critical for correct system operation.

NOTE: The side impact sensor bolts must be installed in the sequence shown.

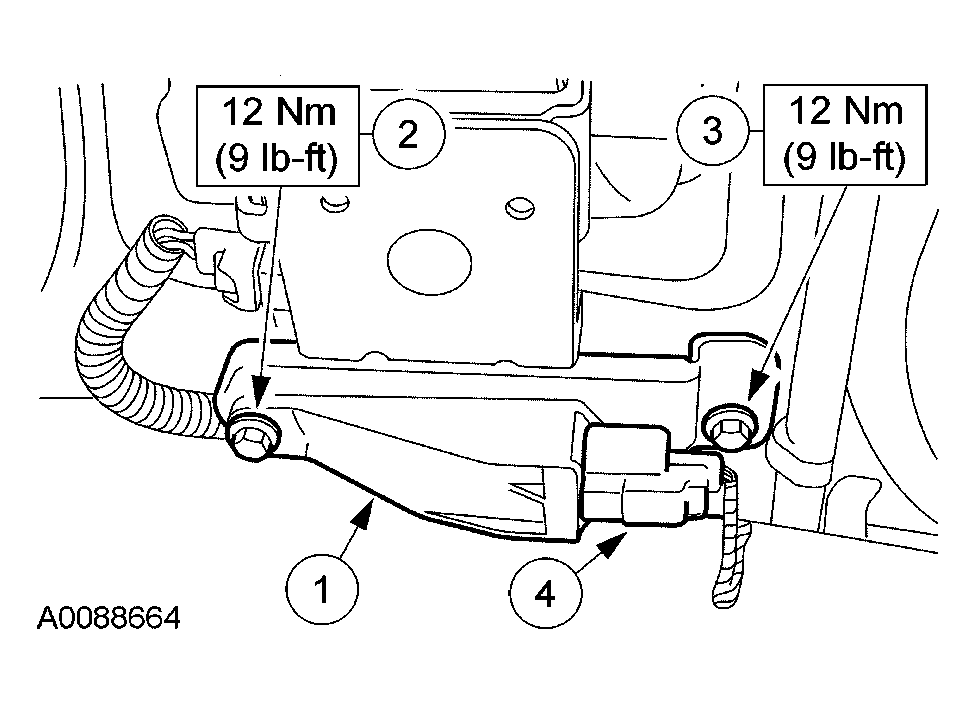

Fig 1: Installing Side Impact Sensor With Bracket

Courtesy of FORD MOTOR CO.

Install the side impact sensor with bracket.
1. Position the side impact sensor with bracket.
2. Install the bolt.
3. Install the bolt.
4. Connect the electrical connector.
Align and install the driver side B-pillar lower trim panel.

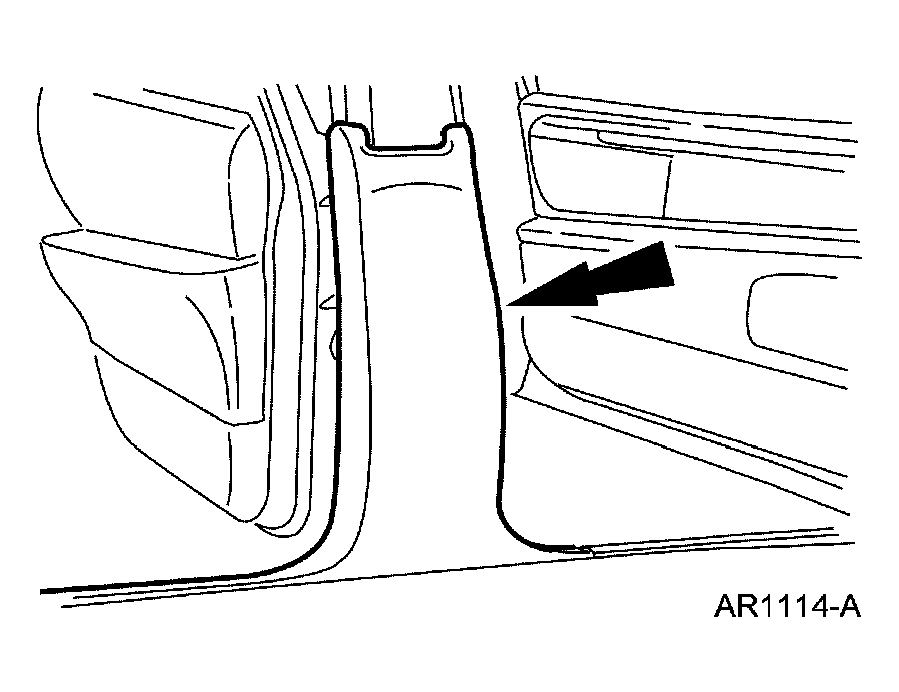

Fig 2: Identifying Driver Side B-Pillar Lower Trim Panel
Courtesy of FORD MOTOR CO.
Repower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
