Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument cluster finish panel. For additional information, Refer to INSTRUMENT PANEL AND CONSOLE .
Remove the screws.

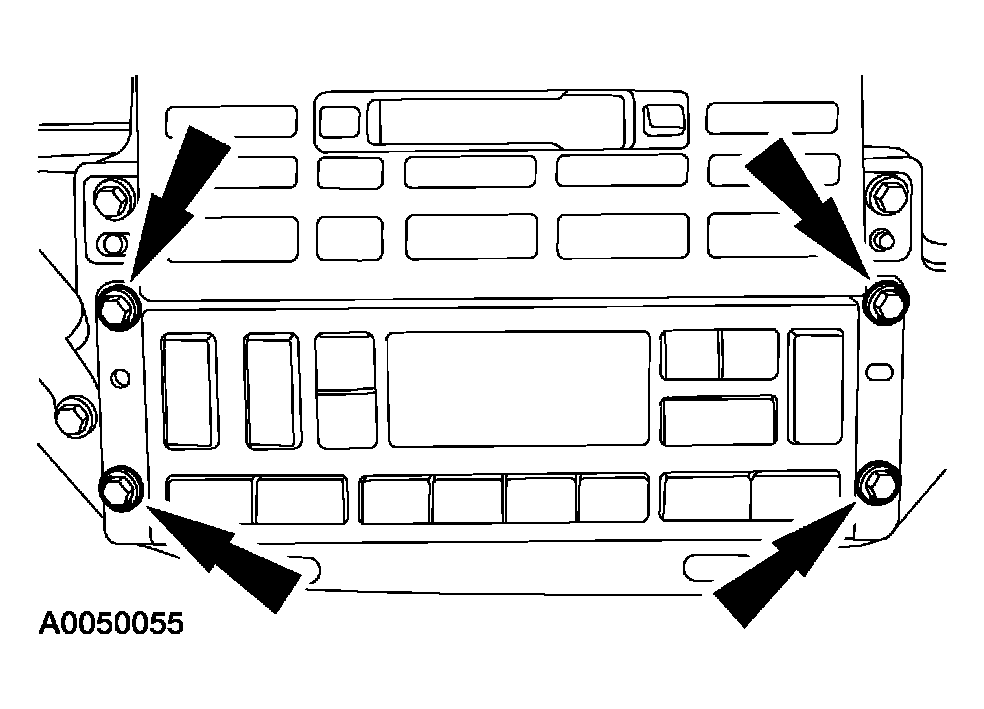

Fig 1: Removing Screws
Courtesy of FORD MOTOR CO.
Disconnect the climate control assembly electrical connectors and remove the climate control assembly.

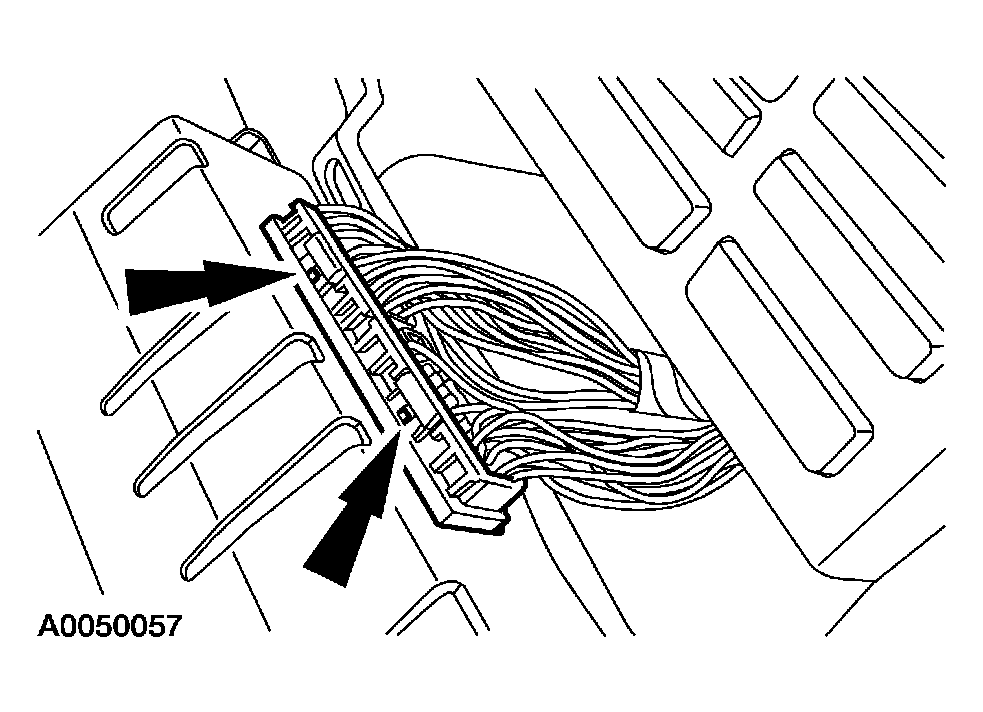

Fig 2: Disconnecting Climate Control Assembly Electrical Connectors
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
