Instrument Cluster: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

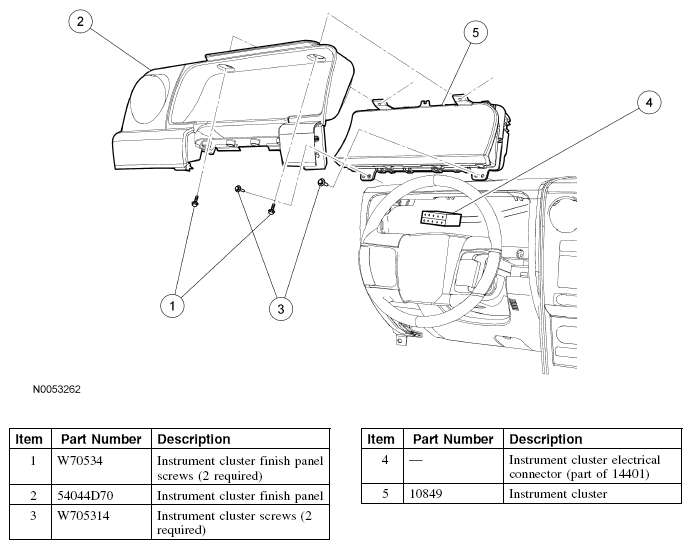

Fig 1: Identifying Instrument Cluster Components (Zephyr)

Courtesy of FORD MOTOR CO.

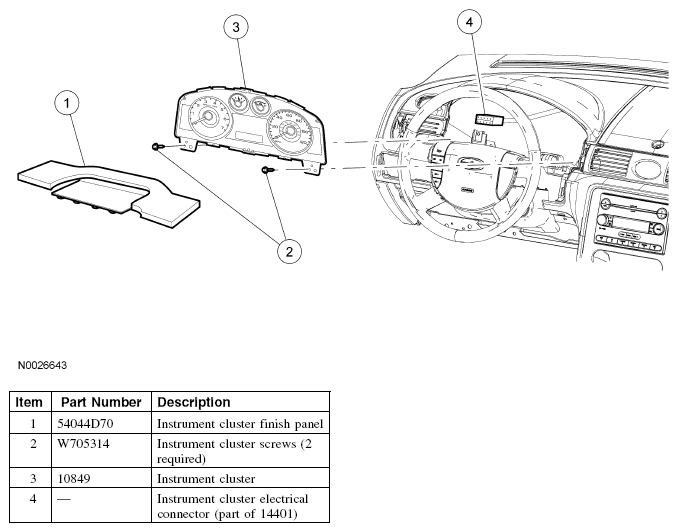

Fig 2: Identifying Instrument Cluster Components (Fusion, Milan)

Courtesy of FORD MOTOR CO.
