Pinpoint Test D: No Communication With The Lighting Control Module (LCM)

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

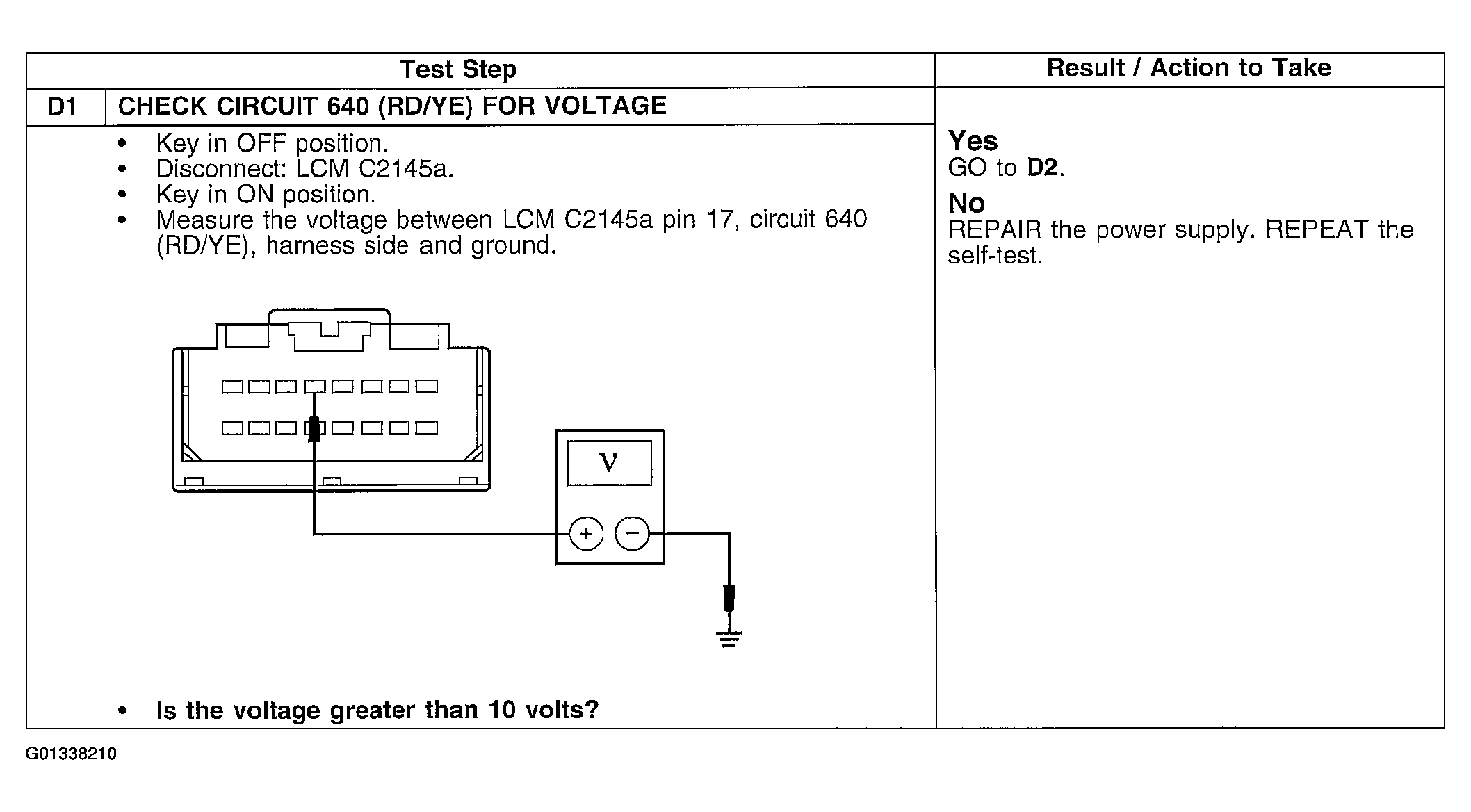

Fig 1: Pinpoint Test D (Step D1)

Courtesy of FORD MOTOR CO.

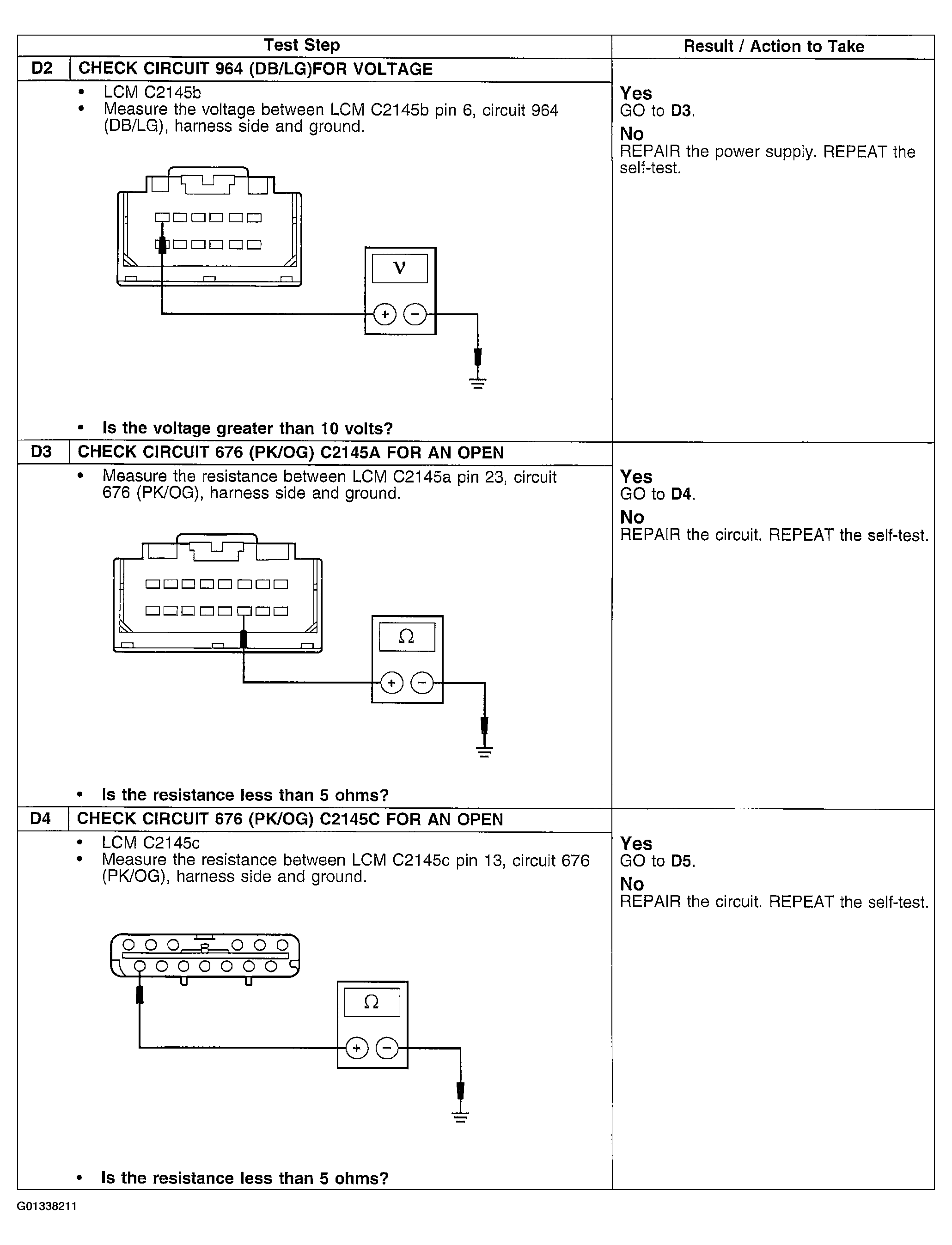

Fig 2: Pinpoint Test D (Steps D2-D4)

Courtesy of FORD MOTOR CO.

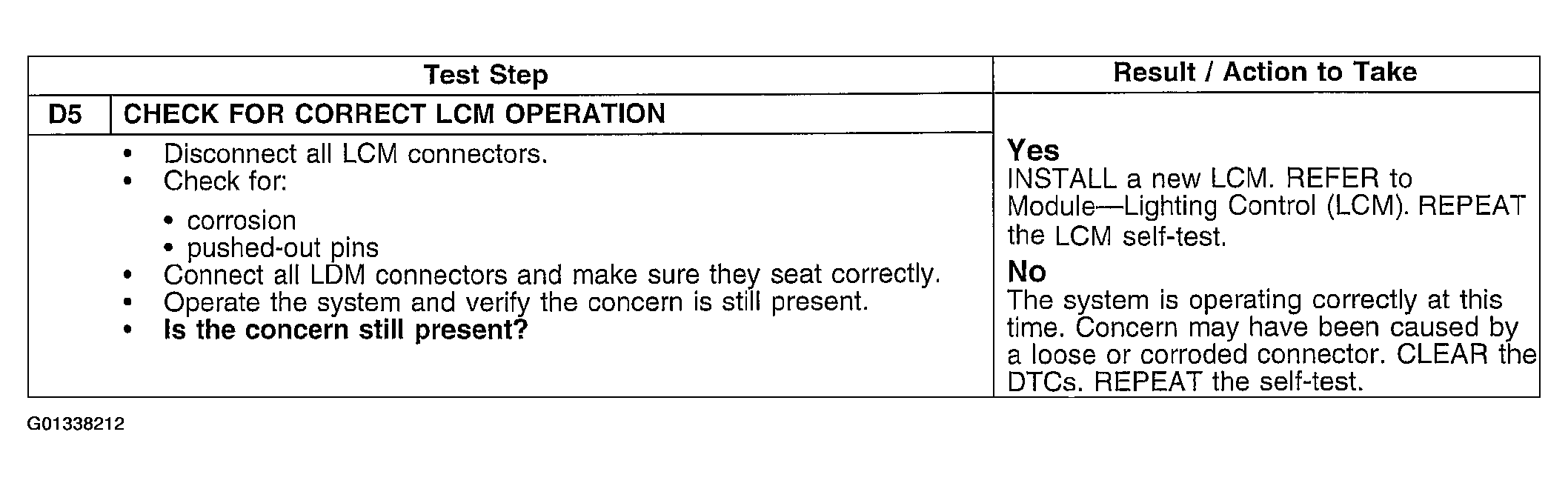

Fig 3: Pinpoint Test D (Step D5)

Courtesy of FORD MOTOR CO.
