Driver Memory Seat Module C341c

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

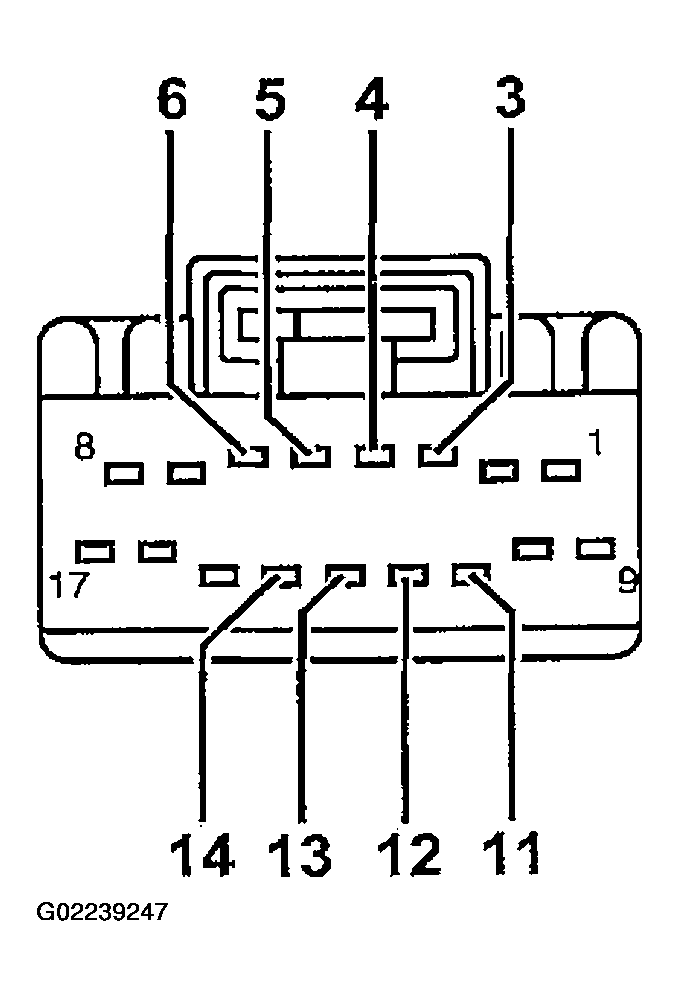

Fig 1: Identifying Driver Memory Seat Module C341c Connector

Courtesy of FORD MOTOR CO.

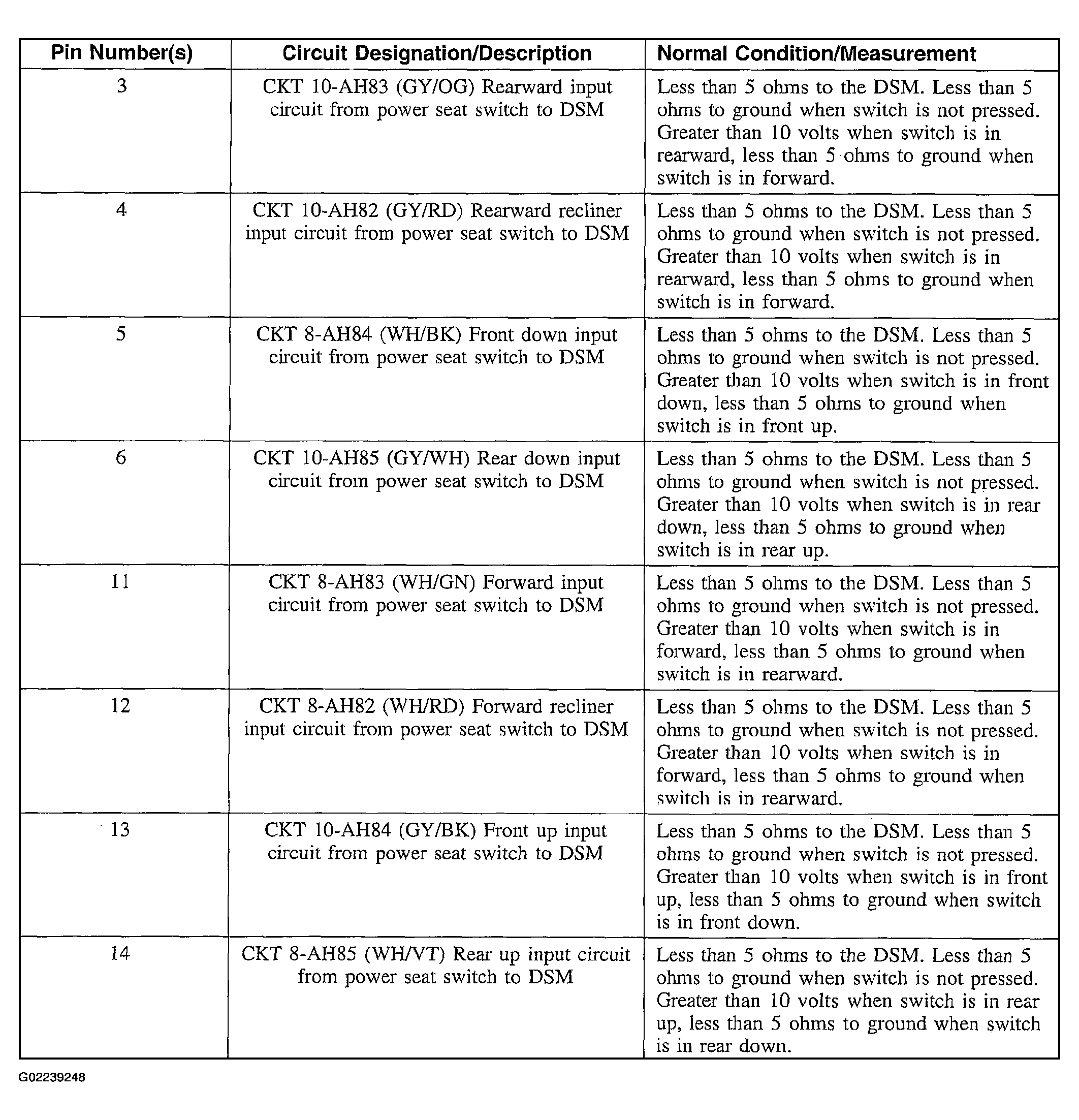

Fig 2: Measurement Specifications

Courtesy of FORD MOTOR CO.
