Protocol 3

WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

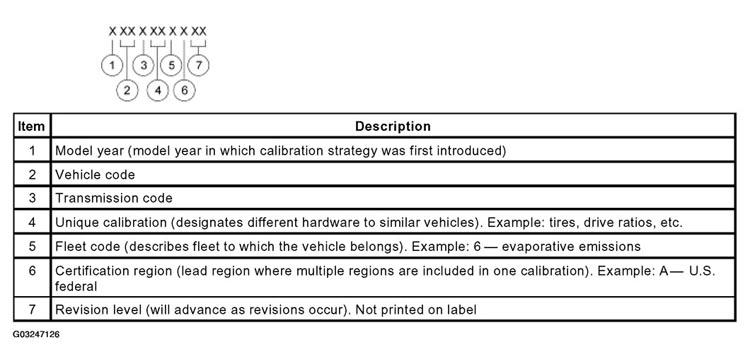

Fig 1: Identifying Protocol 3
G03247126Courtesy of FORD MOTOR CO.


The following offers a more detailed explanation of the coding strategy used for Protocol 3.

Model Year

Vehicle Line

Transmission
