Lumbar adjust switch, right front (14B609)

WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

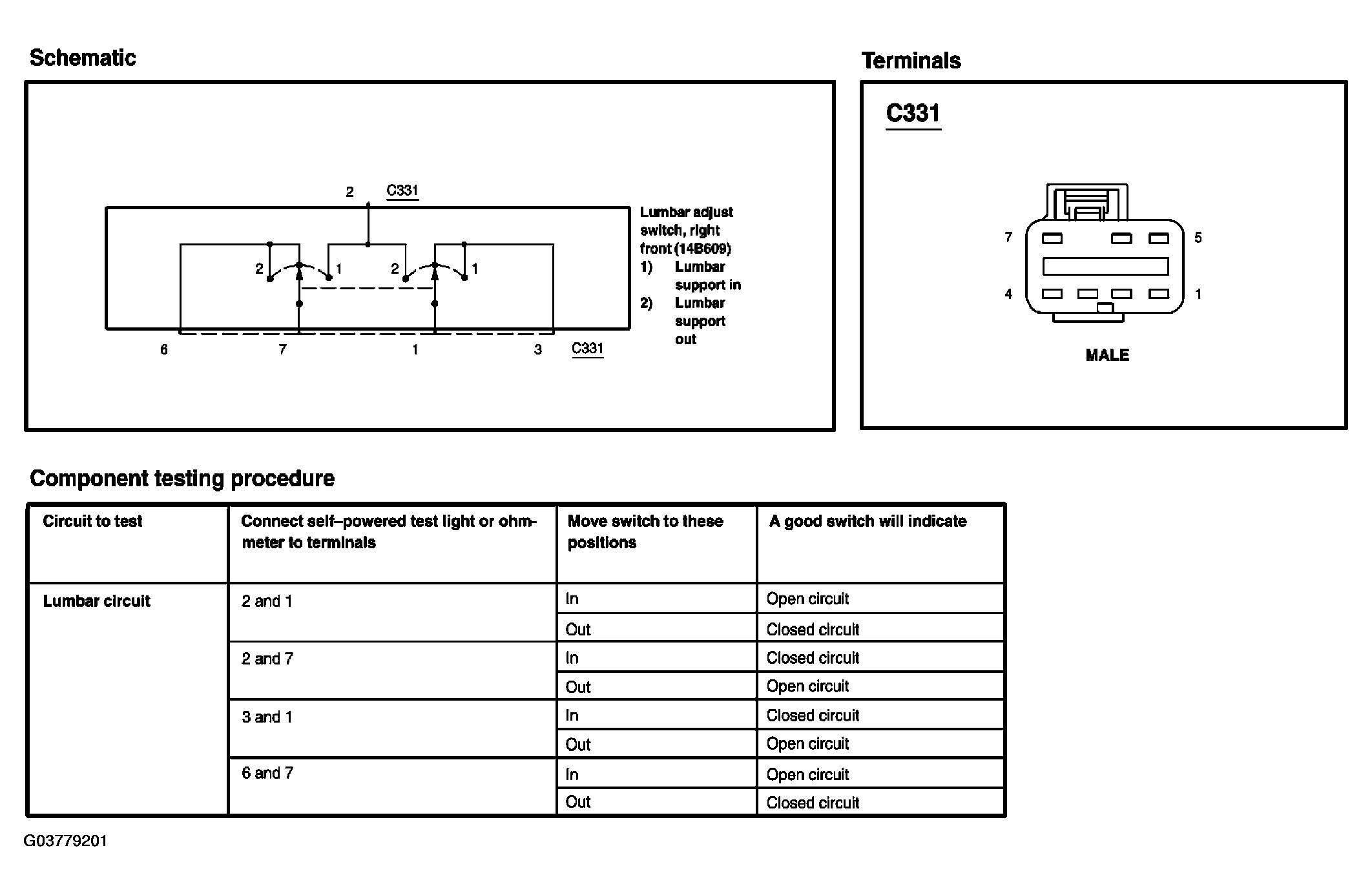

Fig 1: Testing Lumbar Adjust Switch, Right Front (14B609)
G03779201Courtesy of FORD MOTOR CO.
