Band and Clutch Application Chart A

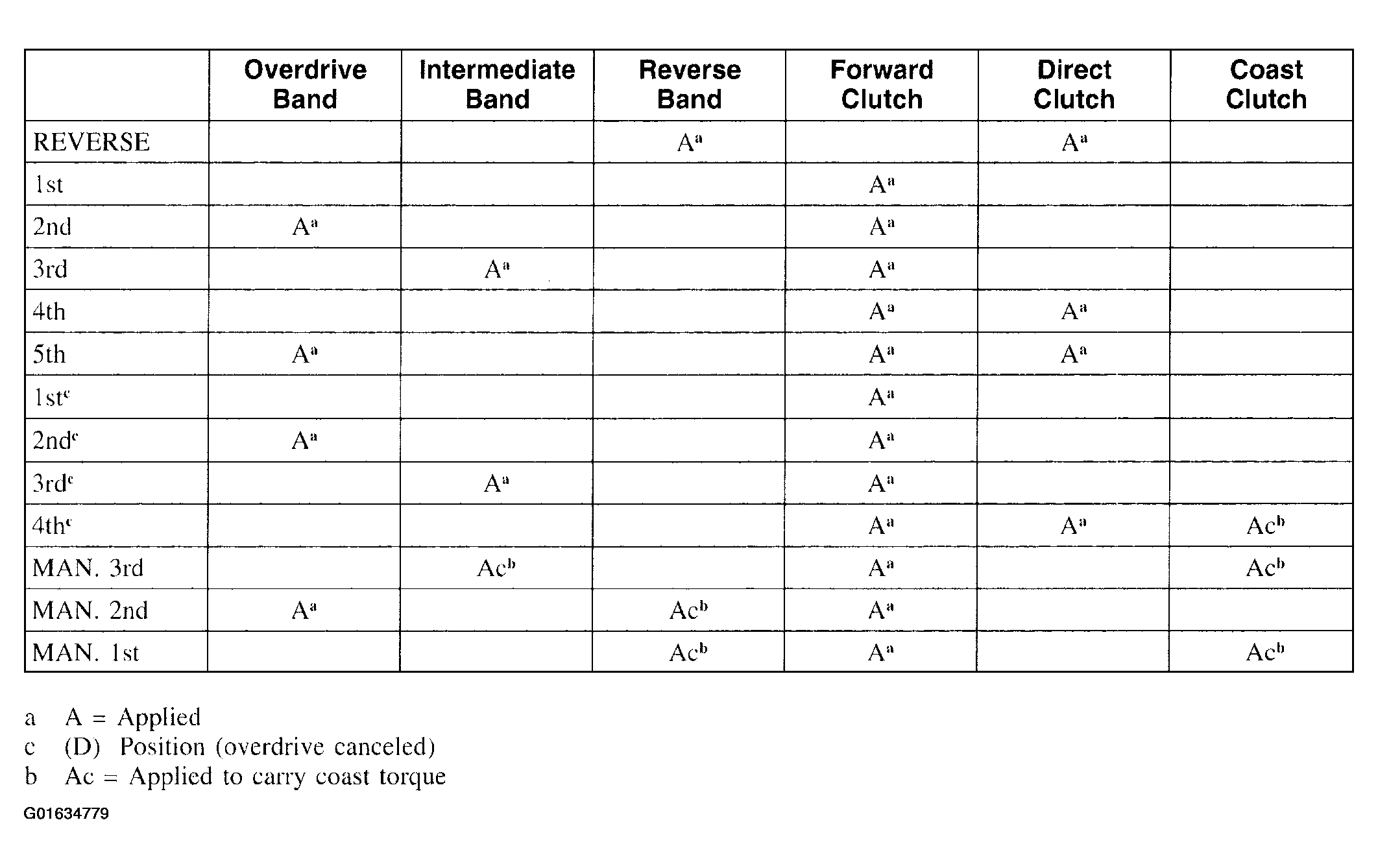

Fig 1: Band and Clutch Application Chart A
G01634779Courtesy of FORD MOTOR CO.
