End Play Specifications

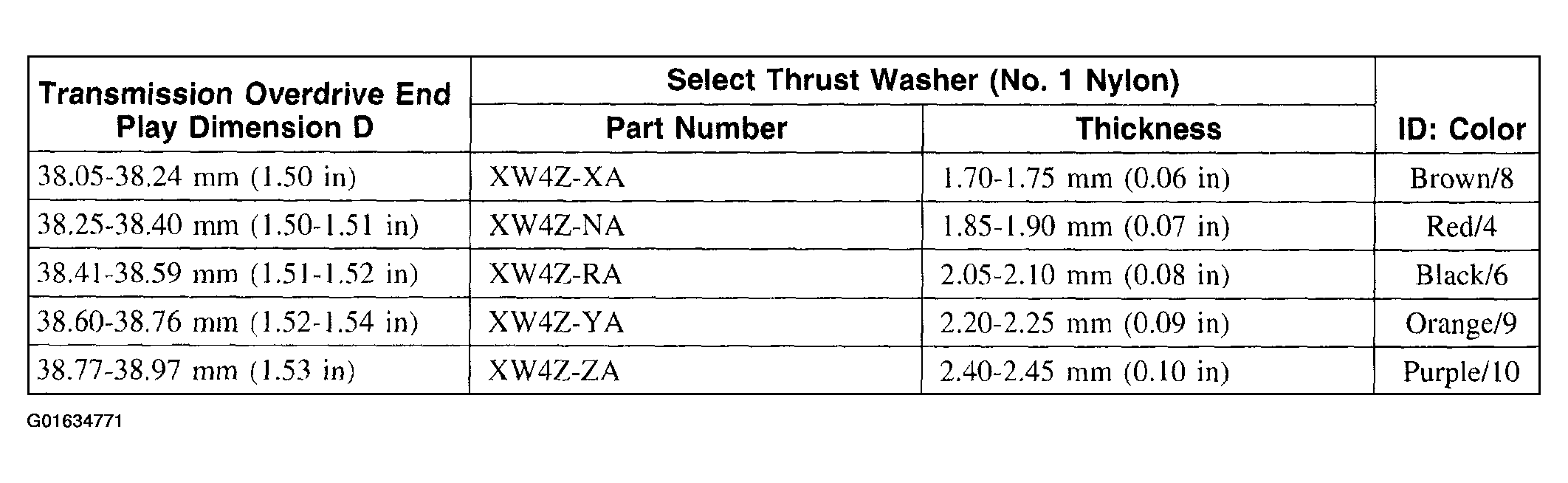

Fig 1: Transmission Overdrive End Play Dimension D Specifications
G01634771Courtesy of FORD MOTOR CO.

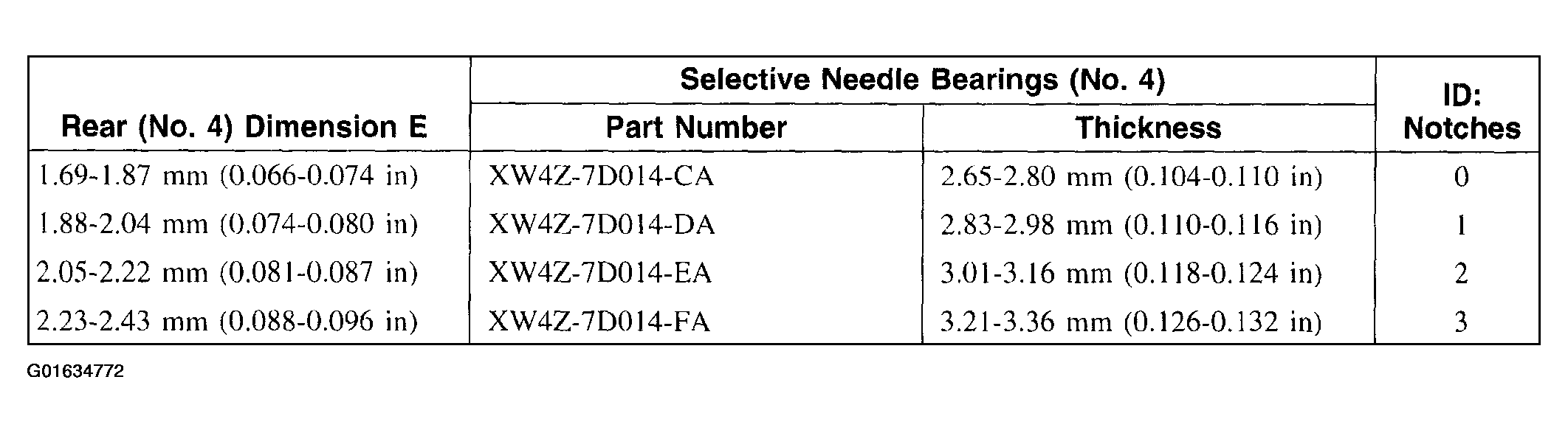

Fig 2: Rear No. 4 End Play Dimension E Specifications
G01634772Courtesy of FORD MOTOR CO.
