Solenoid Operation Chart

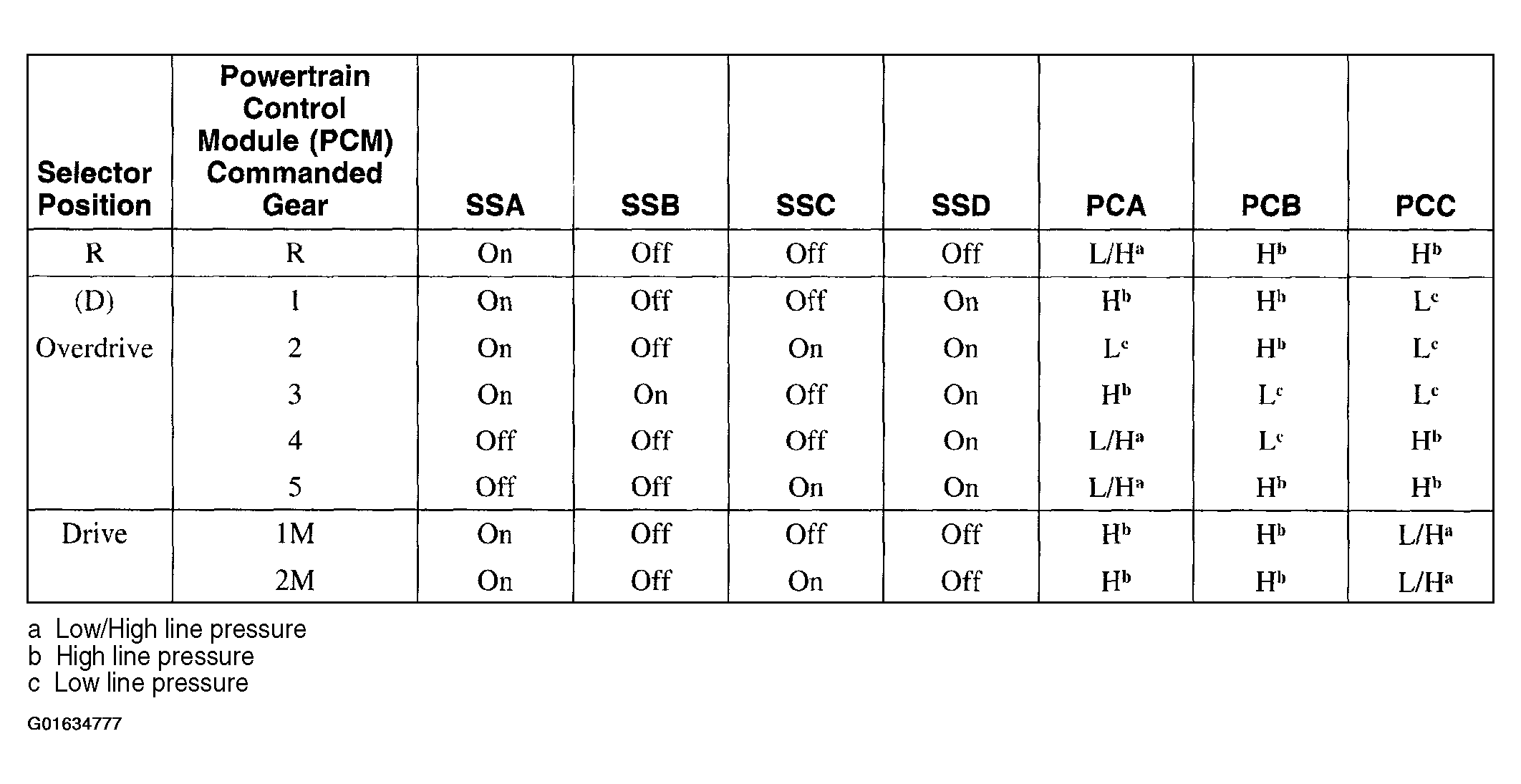

Fig 1: Solenoid Operation Chart (1 Of 2)
G01634777Courtesy of FORD MOTOR CO.

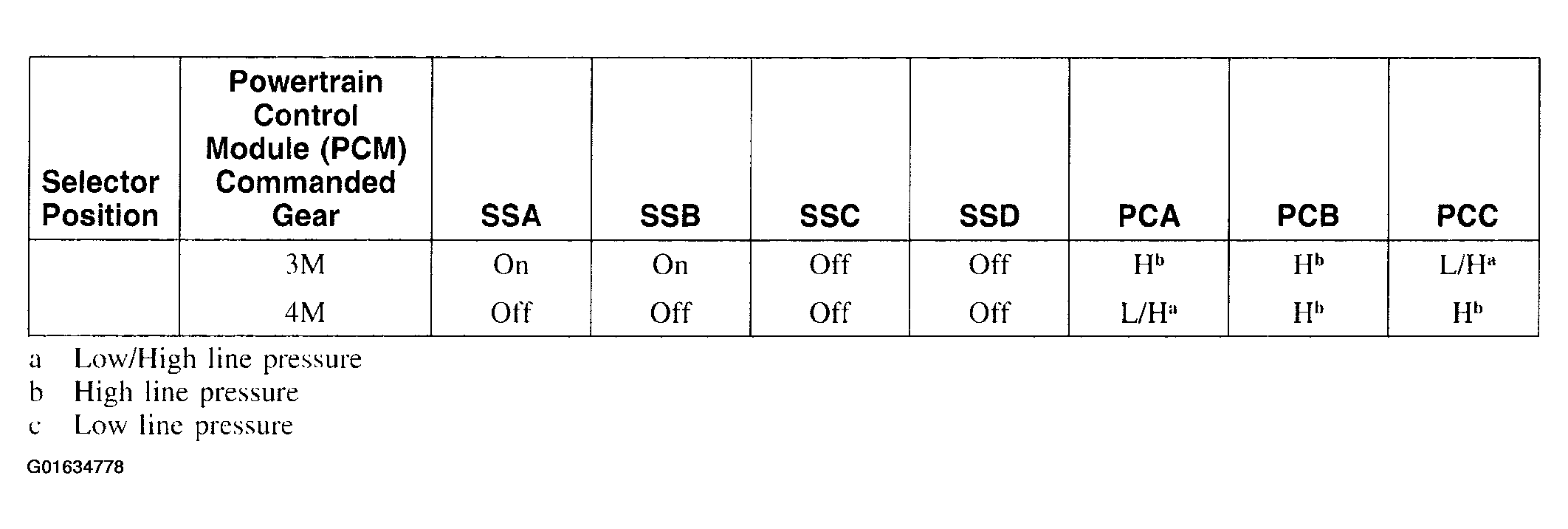

Fig 2: Solenoid Operation Chart (2 Of 2)
G01634778Courtesy of FORD MOTOR CO.
