Transfer Case Clutch C350

Fig 1: Identifying Transfer Case Clutch C350 Connector Terminals
G01635514Courtesy of FORD MOTOR CO.

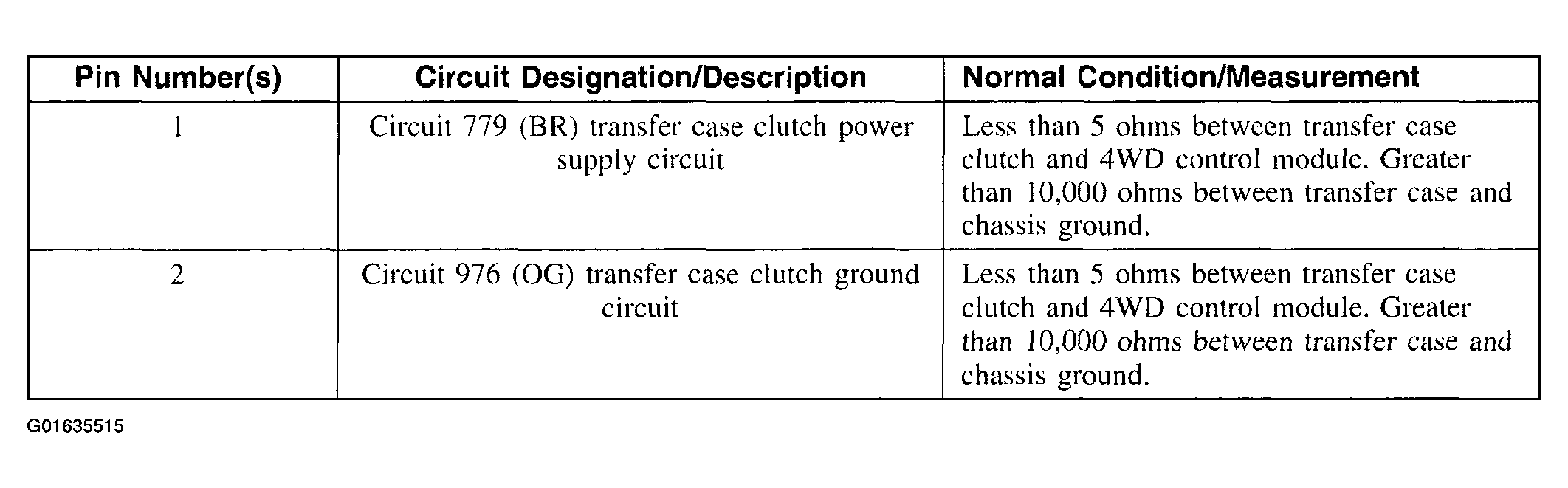

Fig 2: Transfer Case Clutch C350 Connector Terminals Specifications
G01635515Courtesy of FORD MOTOR CO.
