Item 14: Differential Case Disassembly Note

Install the special tool.

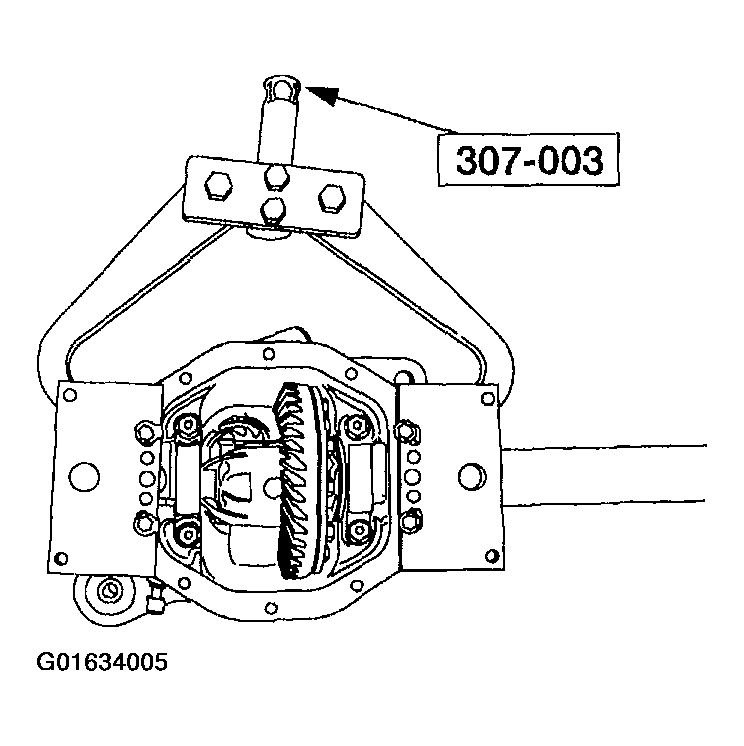

Fig 1: Installing Special Tool On Differential Case
Courtesy of FORD MOTOR CO.
Install the axle assembly into the bench fixture.

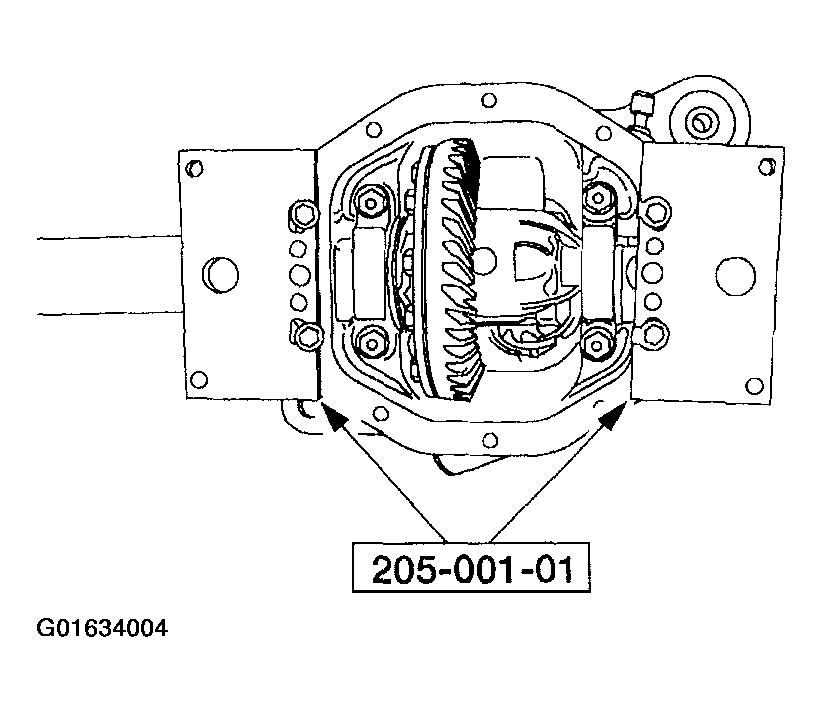

Fig 2: Installing Axle Assembly Into Bench Fixture
Courtesy of FORD MOTOR CO.
Install the special tools.

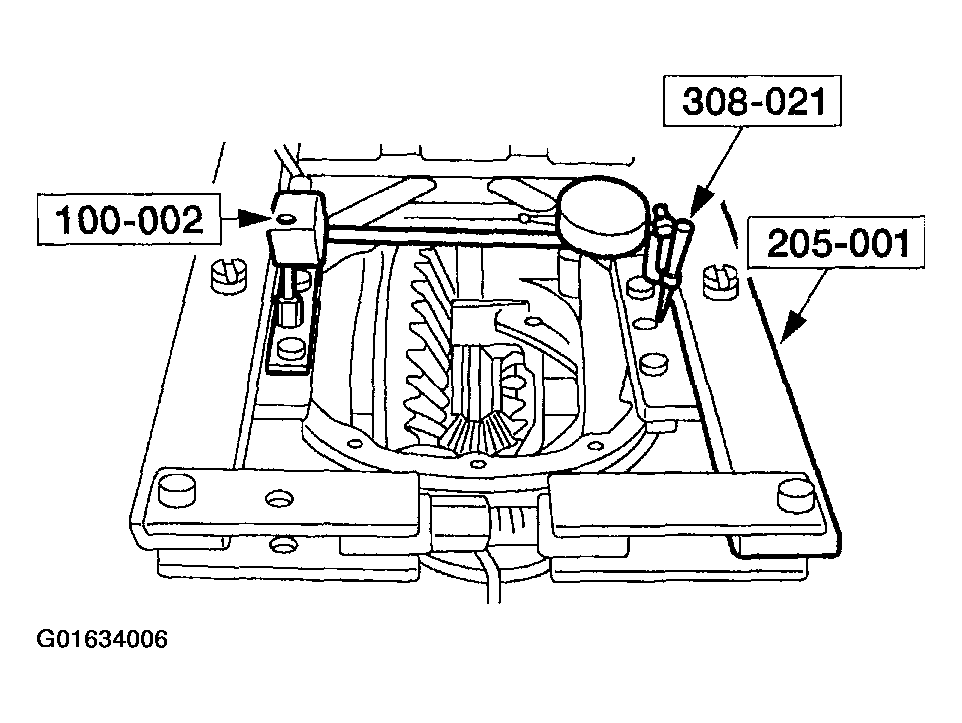

Fig 3: Installing Special Tools In Differential Assembly
Courtesy of FORD MOTOR CO.

CAUTION: Overspreading can damage the differential housing.

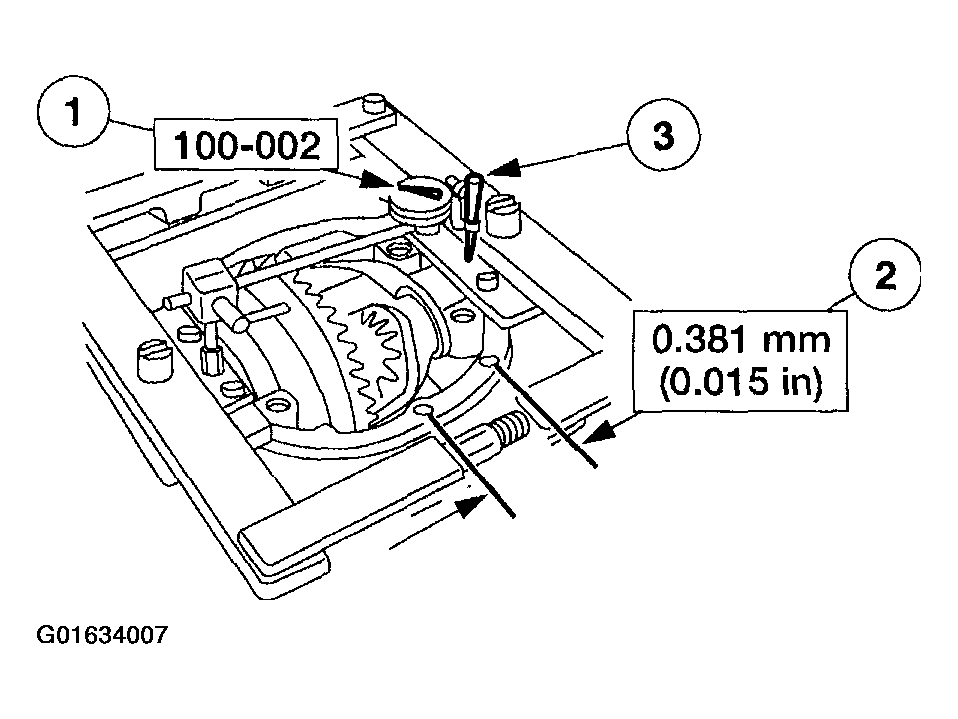

Fig 4: Tightening Differential Carrier Spreader Screw

Courtesy of FORD MOTOR CO.

Spread the differential housing to the specification.
1. Adjust the special tool to zero.
2. Tighten the differential carrier spreader screw.
3. Remove the dial indicator.

CAUTION: Use wood blocks to avoid damaging the differential housing.

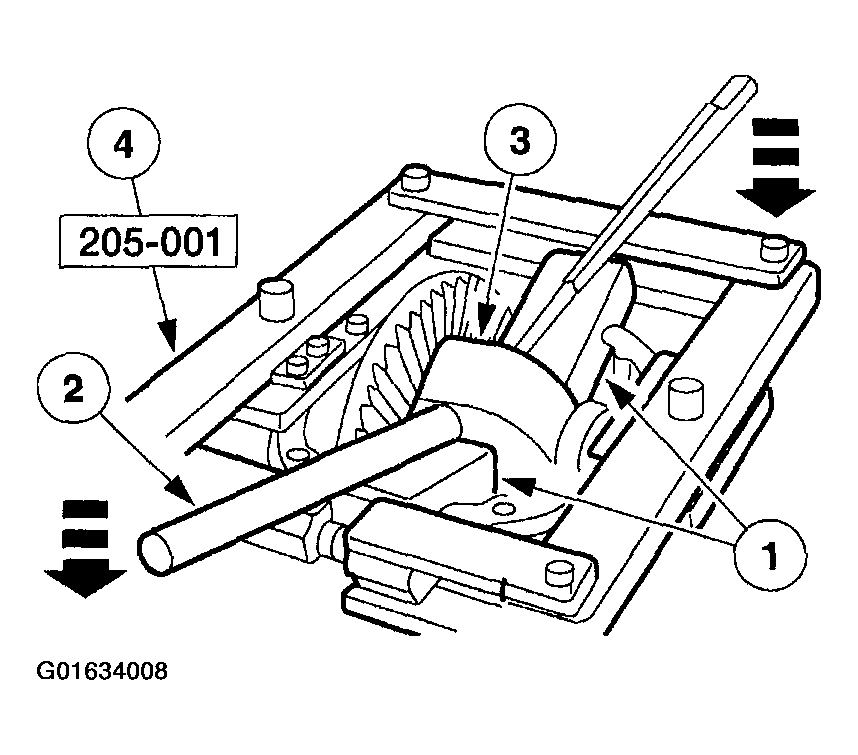

Fig 5: Removing Differential Assembly From Housing

Courtesy of FORD MOTOR CO.

Remove the differential assembly from the housing.
1. Position the wood blocks.
2. Push downward on the pry bars.
3. Remove the differential assembly.
4. Remove the special tool.
