Speed Control Deactivator Switch: Installation

WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully apply the brake pedal.
  2. Install the speed control deactivator switch.
    1. Position the speed control deactivator switch in the bracket and rotate clockwise.
    2. Connect the electrical connector.

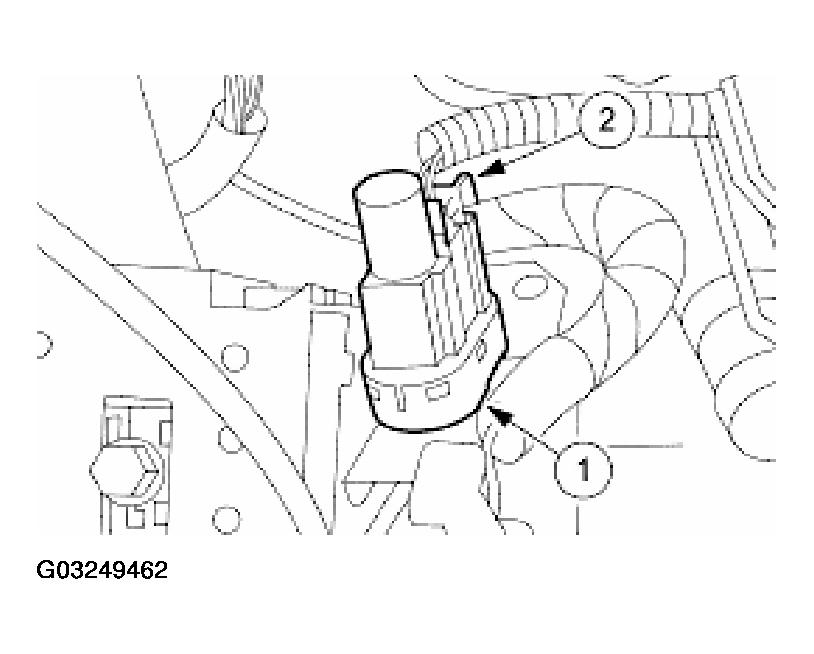

    Fig 1: Installing Speed Control Deactivator Switch
    G03249462Courtesy of FORD MOTOR CO.
  3. Insert a 1 mm (0.04 in) feeler gauge between the brake pedal actuation surface and the deactivator switch plunger.
  4. Slowly release the brake pedal.
