Four Wheel Drive (4WD) Control Module C281b

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Four Wheel Drive Control Module C281b Connector Terminals
G01635510Courtesy of FORD MOTOR CO.

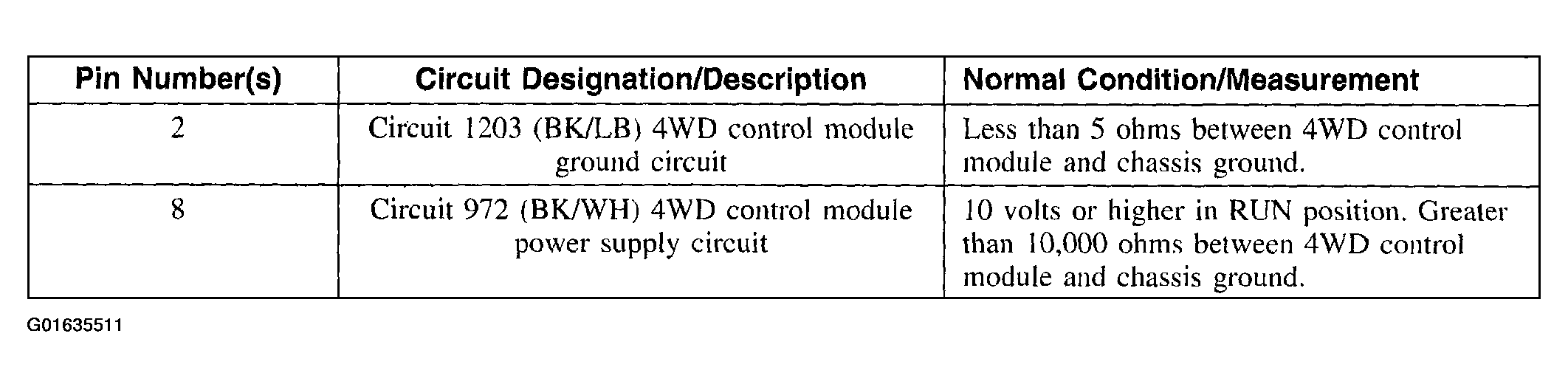

Fig 2: Four Wheel Drive Control Module C281b Connector Terminals Specifications
G01635511Courtesy of FORD MOTOR CO.
