Transmission Selector Lever

  1. Remove the center console. For additional information, refer to BODY SYSTEM - INTERIOR .
  2. Remove the components in the order indicated in the following illustration.
  3. To install, reverse the removal procedure.

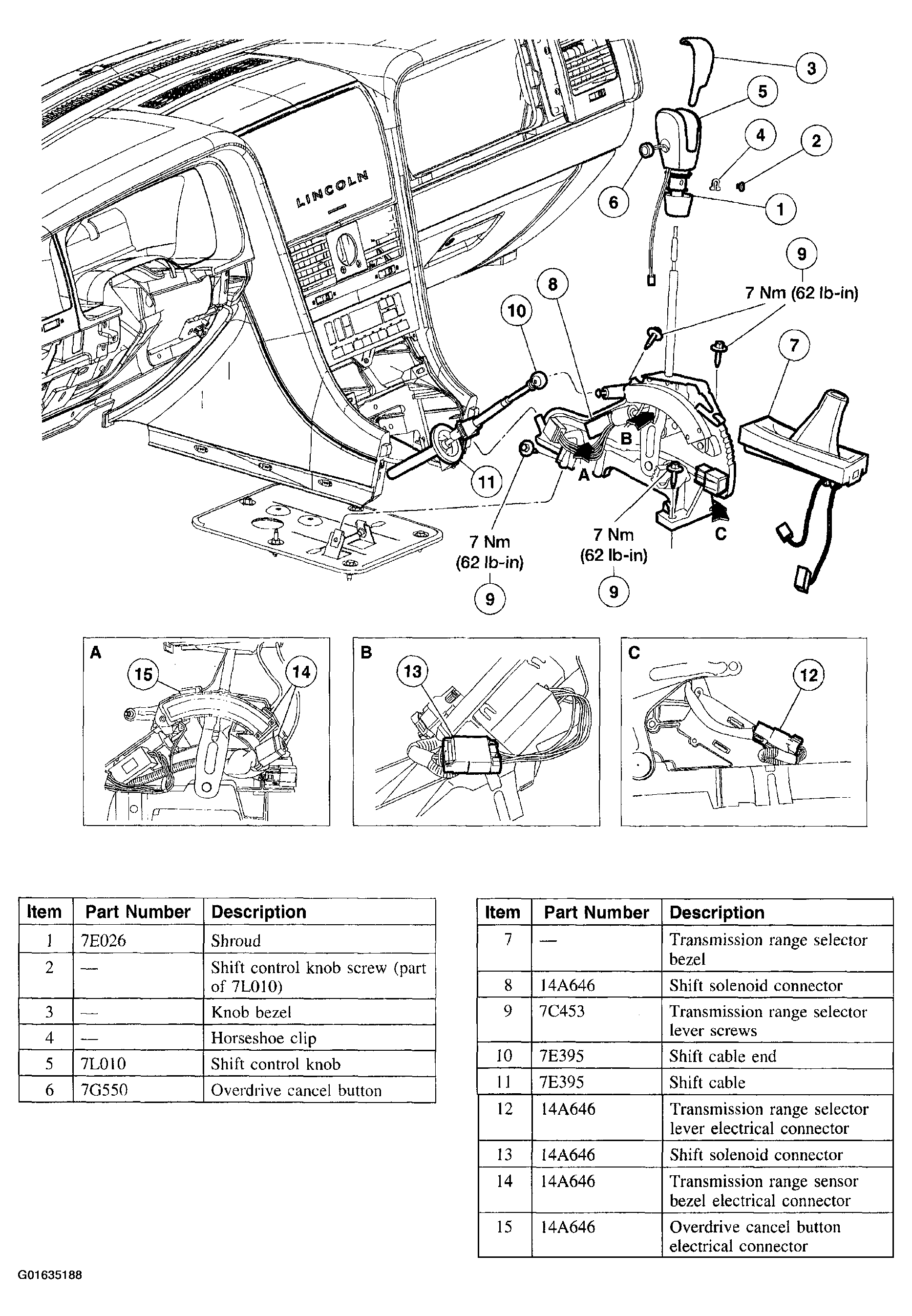

    Fig 1: Removal Sequence Of Transmission Selector Lever
    G01635188Courtesy of FORD MOTOR CO.
