Disassembly And Assembly Of Subassemblies: Piston: Assembly

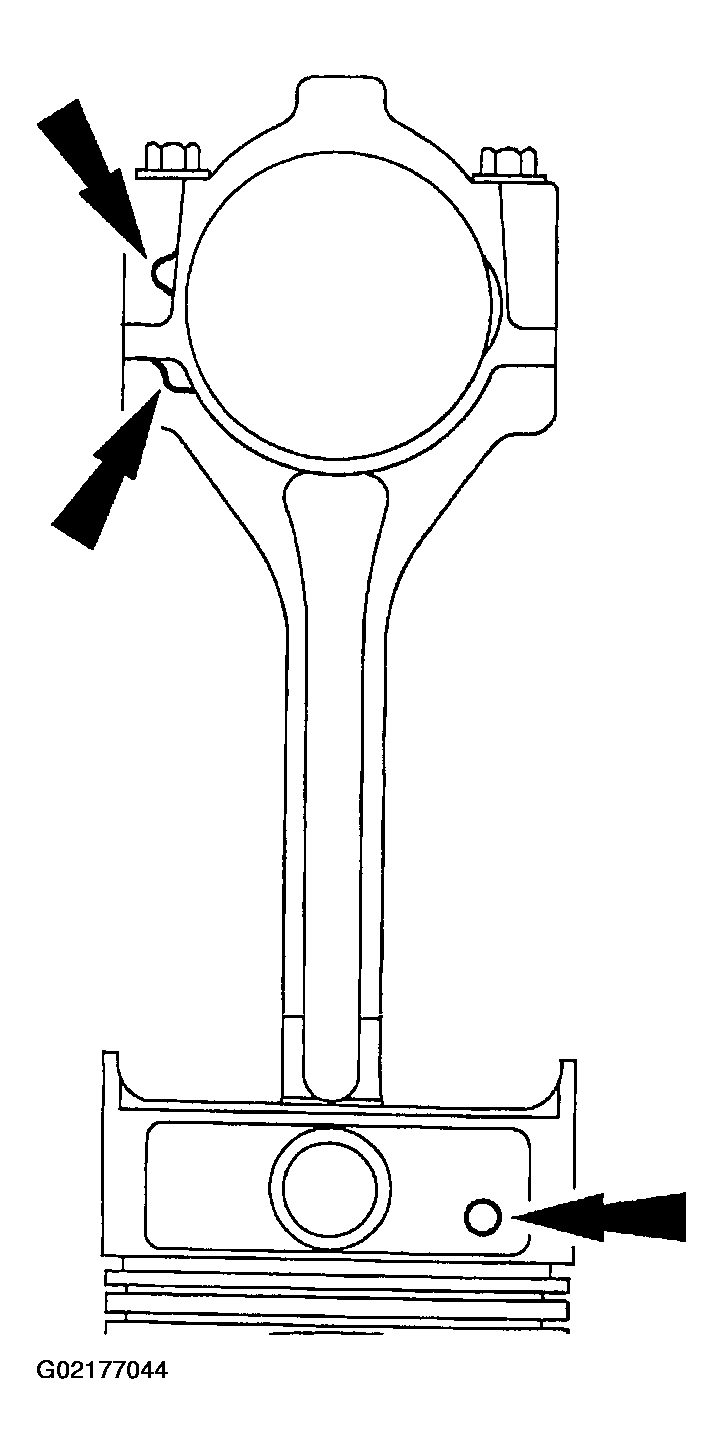

NOTE: Connecting rod must be installed into piston with identification markings toward front.

Fig 1: Positioning Connecting Rod In Piston

Courtesy of FORD MOTOR CO.

Position the connecting rod in the piston.
Lubricate the piston pin and pin bore with clean engine oil.

Fig 2: Lubricating Piston Pin And Pin Bore
Courtesy of FORD MOTOR CO.
Install the piston pin in the piston and connecting rod assembly.

Fig 3: Installing Piston Pin
Courtesy of FORD MOTOR CO.
Install the piston pin retaining clips in the piston.

Fig 4: Installing Piston Pin Retaining Clips
Courtesy of FORD MOTOR CO.
