Timing Drive Components: Removal

CAUTION: Since the engine is not free-wheeling, if the crankshaft (6303) or the camshafts (6250) are moved in any manner during removal and installation, the crankshaft and the camshafts must be re-synchronized.

Remove the engine front cover (6019). Refer to ENGINE FRONT COVER .
Remove the crankshaft sensor ring from the crankshaft.

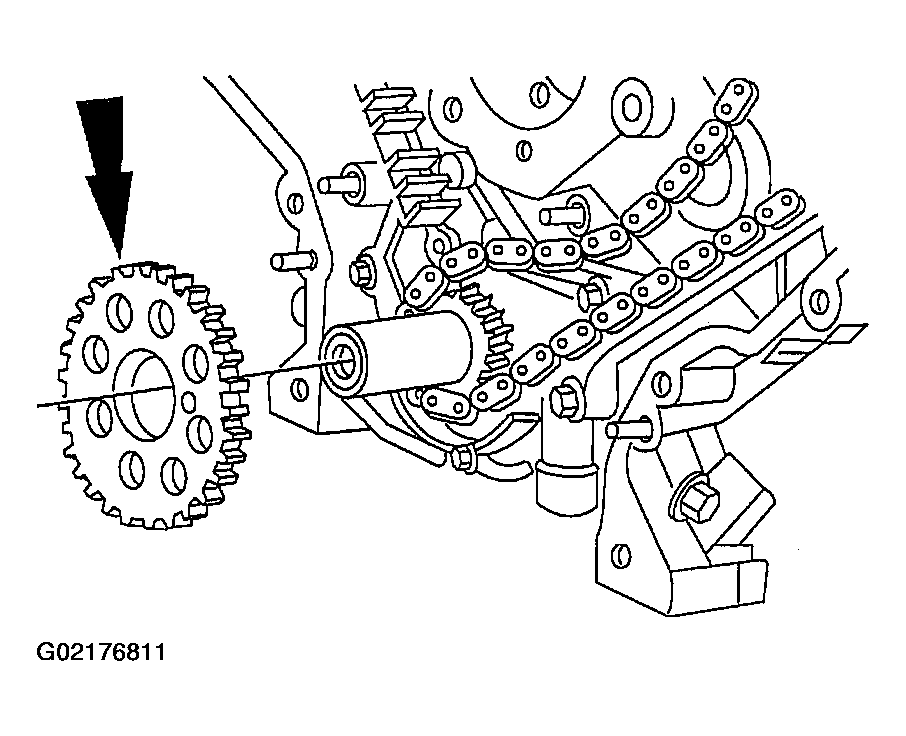

Fig 1: Removing Crankshaft Sensor Ring
Courtesy of FORD MOTOR CO.

CAUTION: Unless otherwise instructed, at no time when the timing chains (6268) are removed and the cylinder heads (6049) are installed is the crankshaft (6303) or the camshaft (6250) to be rotated. Severe piston (6108) and valve damage will occur.

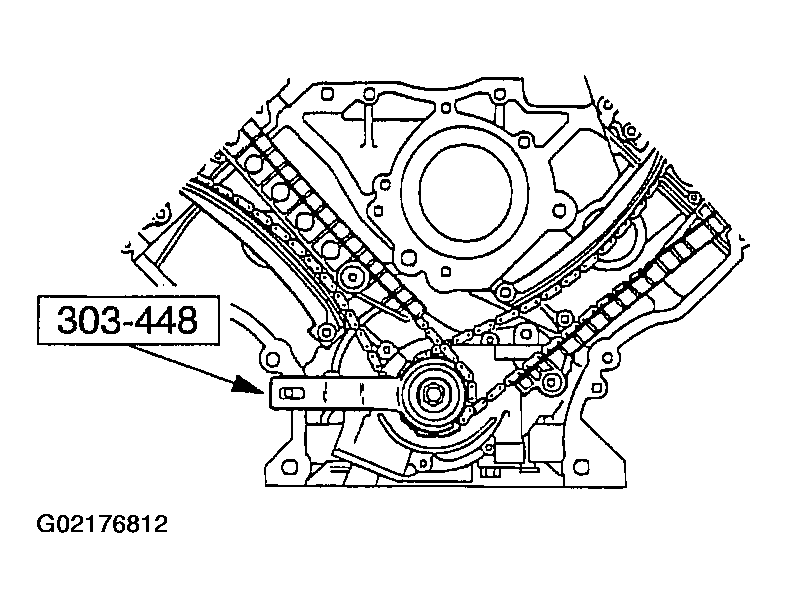

Fig 2: Identifying Crankshaft Positioning With Special Tool

Courtesy of FORD MOTOR CO.

Using the special tool, position the crankshaft as shown.
Install the special tool.

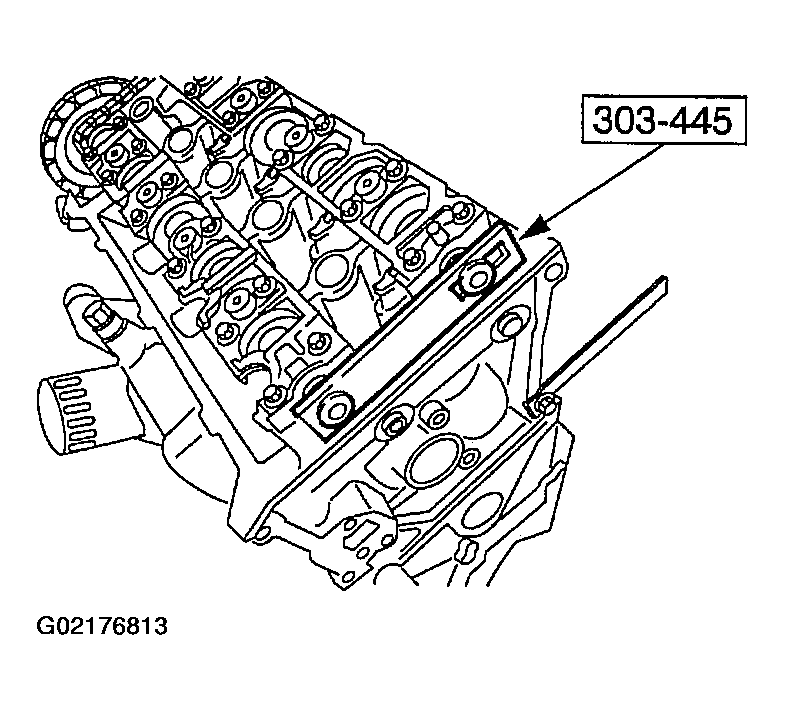

Fig 3: Installing Special Tool
Courtesy of FORD MOTOR CO.

NOTE: LH shown; RH similar.

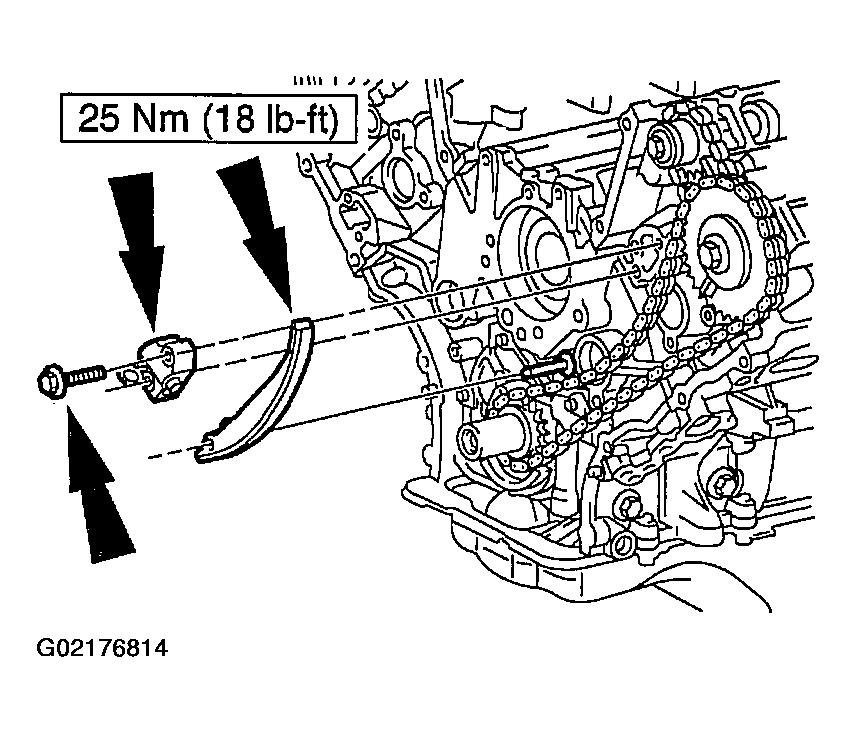

Fig 4: Removing Timing Chain Tensioner And Tensioner Arm

Courtesy of FORD MOTOR CO.

Remove the two bolts, the timing chain tensioner (6L266) and tensioner arm (6L253).

CAUTION: Unless otherwise instructed, at no time when the timing chains are removed and the cylinder heads are installed is the crankshaft or the camshaft to be rotated. Severe piston and valve damage will occur.

CAUTION: Do not remove the special tool from the camshafts.

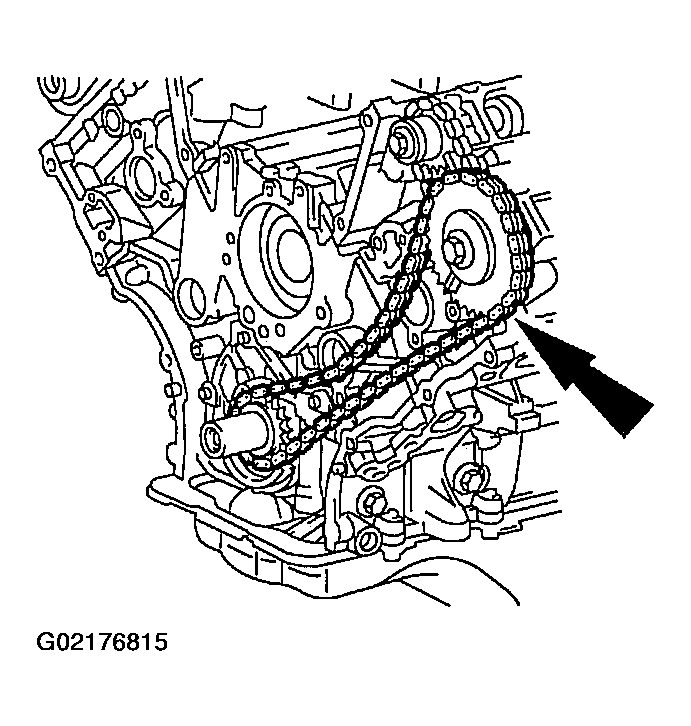

Fig 5: Removing LH And RH Timing Chains And Crankshaft Sprockets

Courtesy of FORD MOTOR CO.

Remove the LH and RH timing chains and the crankshaft sprockets.
- Remove the special tool from the crankshaft.
- Remove the timing chains from the camshaft sprockets.
- Remove the right and left timing chains and the crankshaft sprocket from the crankshaft.

CAUTION: The bolts are different lengths and must be returned to their original location.

NOTE: LH shown; RH similar.

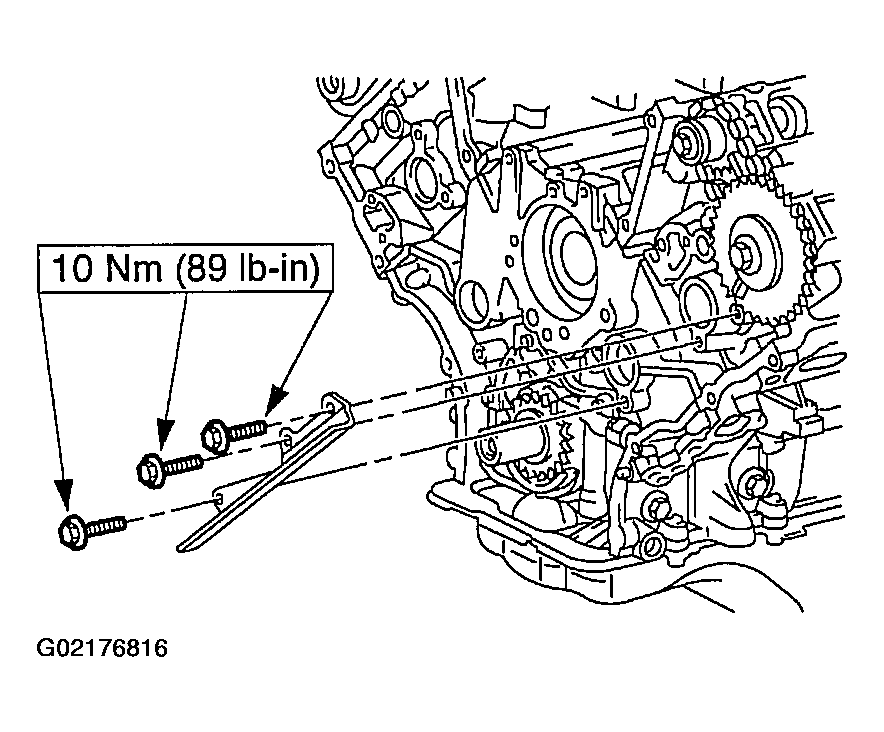

Fig 6: Removing Timing Chain Guides

Courtesy of FORD MOTOR CO.

Remove the bolts and the timing chain guides (6K297).
