Windshield Wiper: Notes

CAUTION: The windshield wiper system has an auto park feature. It is necessary to disconnect the battery.

Disconnect the battery ground cable. For additional information, Refer to BATTERY AND CHARGING SYSTEM .
Partially drain the engine cooling system. For additional information, Refer to ENGINE COOLING .
Remove the cowl panel grille. For additional information, Refer to COWL PANEL GRILLE .
Remove in the order indicated in the following table.

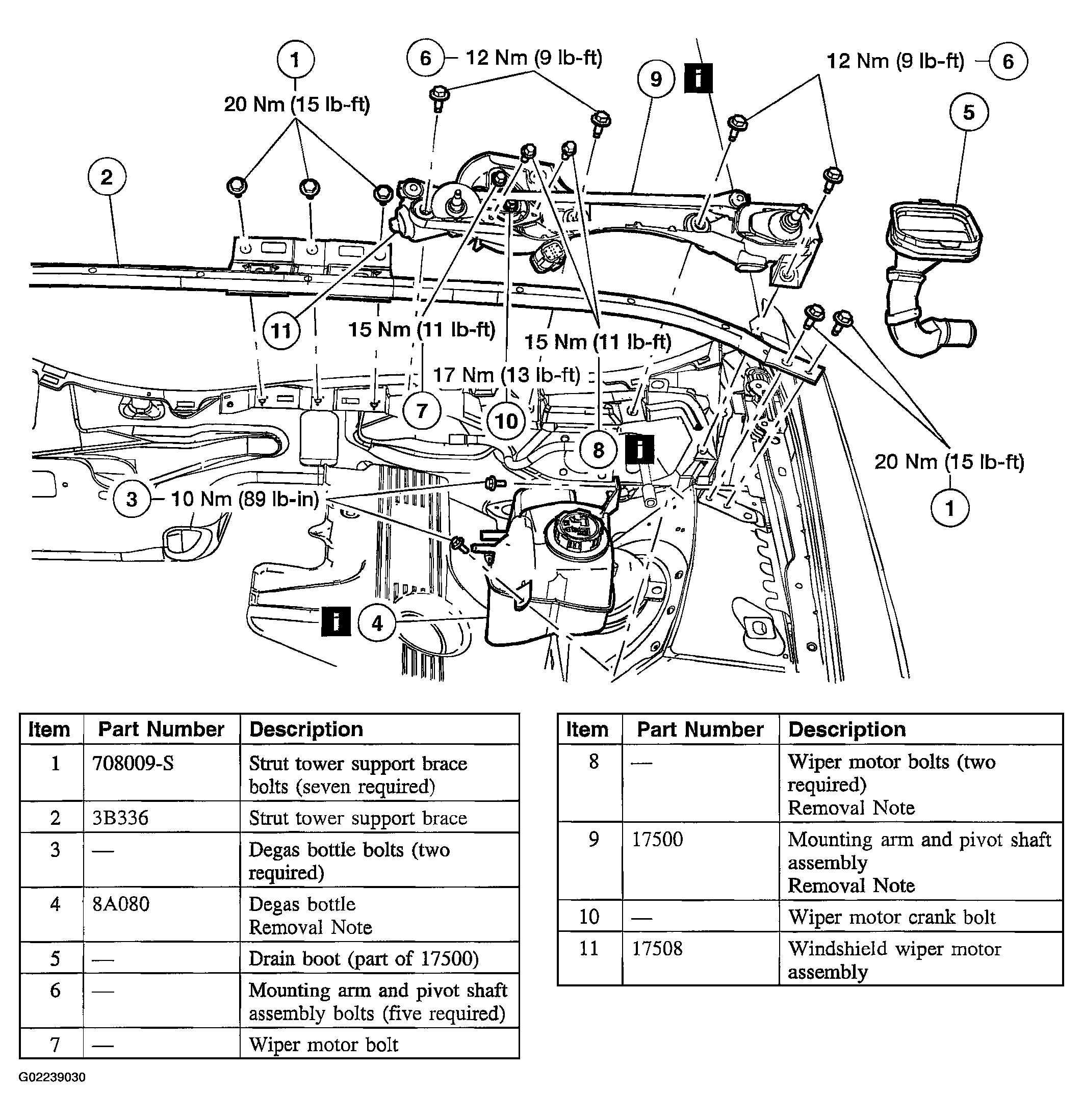

Fig 1: Identifying Windshield Wiper Components And Specifications
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
