Connector Views

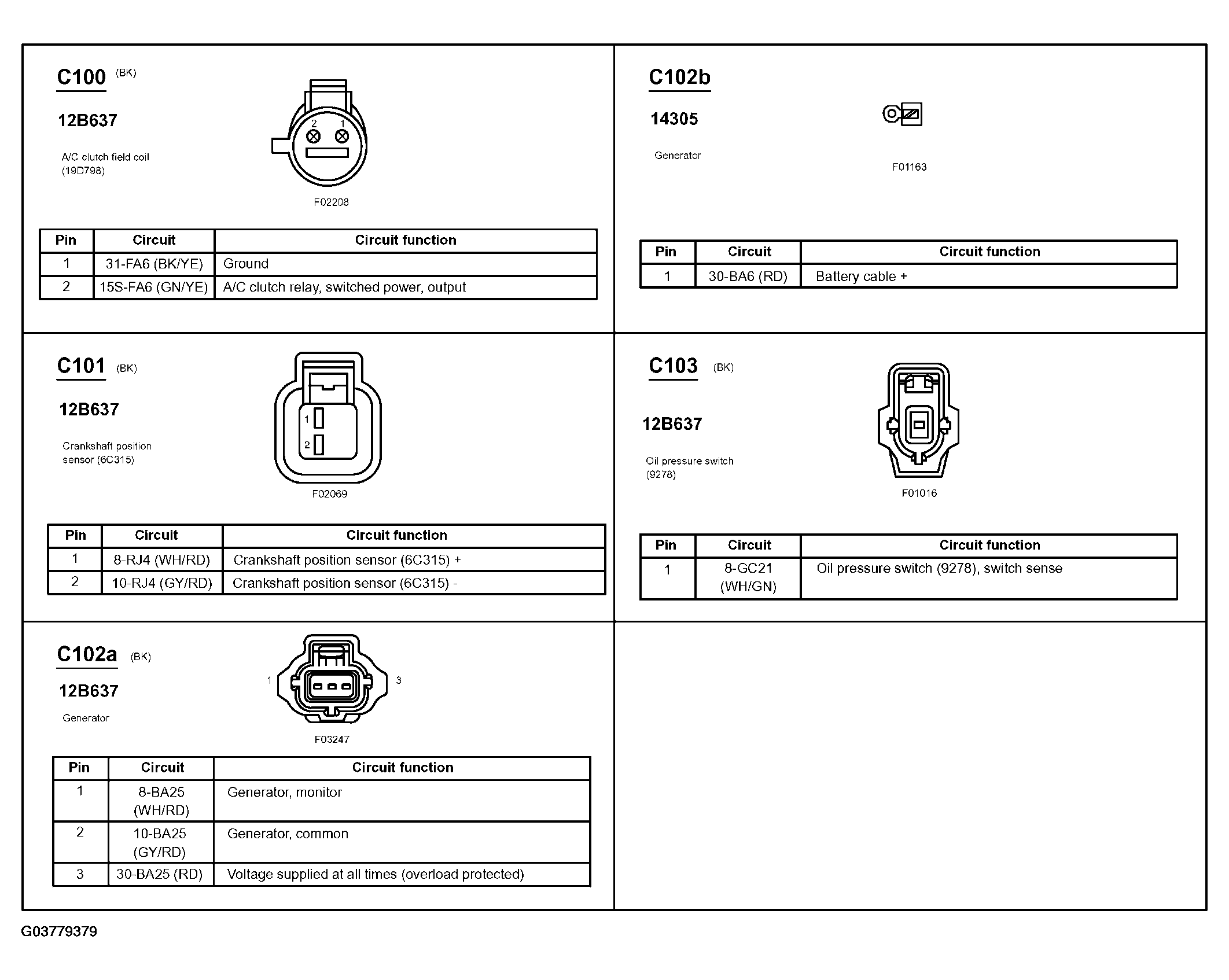

Fig 1: Identifying Connector C100, C101, C102a, C102b & C103

G03779379

Courtesy of FORD MOTOR CO.

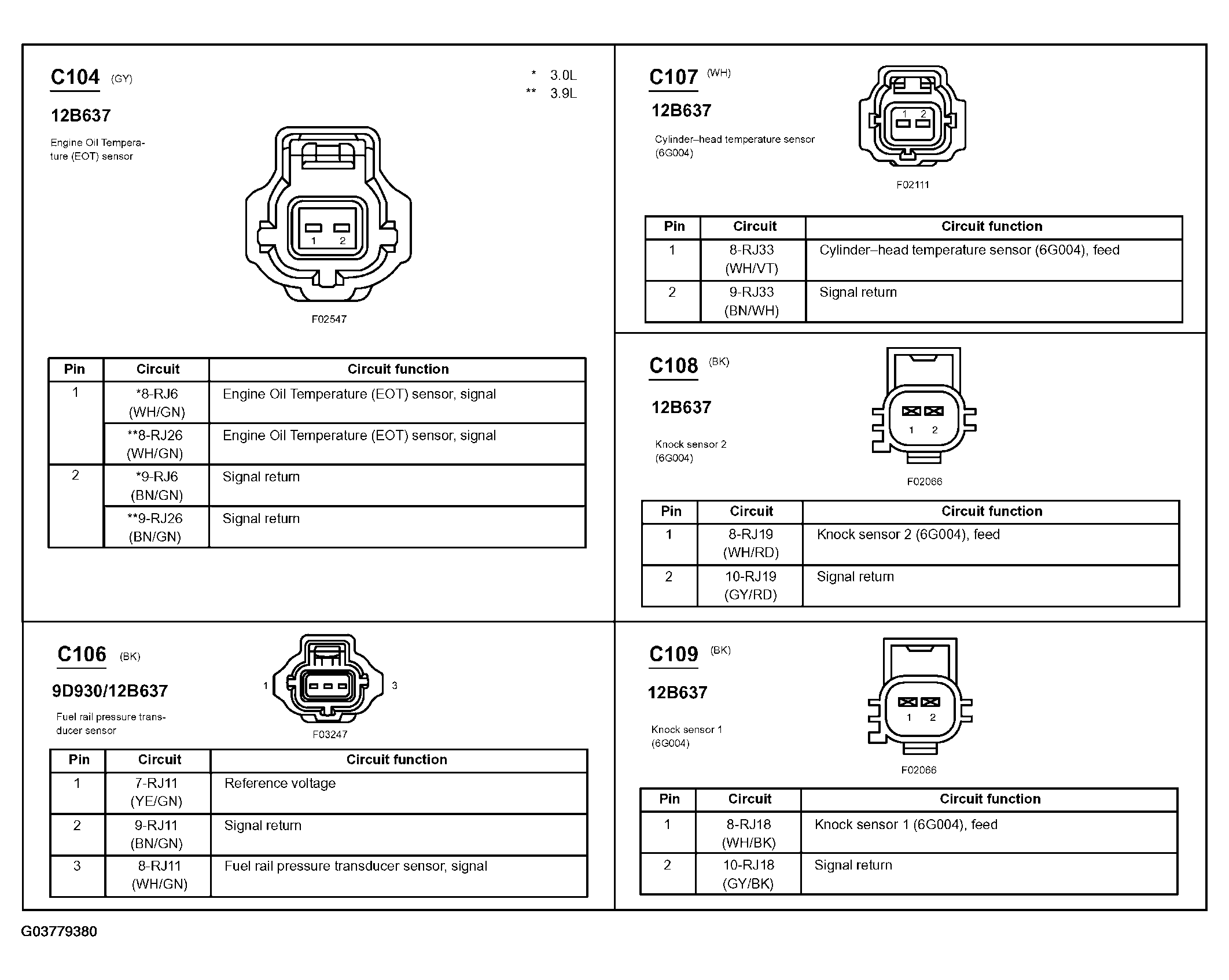

Fig 2: Identifying Connector C104, C106, C107, C108 & C109

G03779380

Courtesy of FORD MOTOR CO.

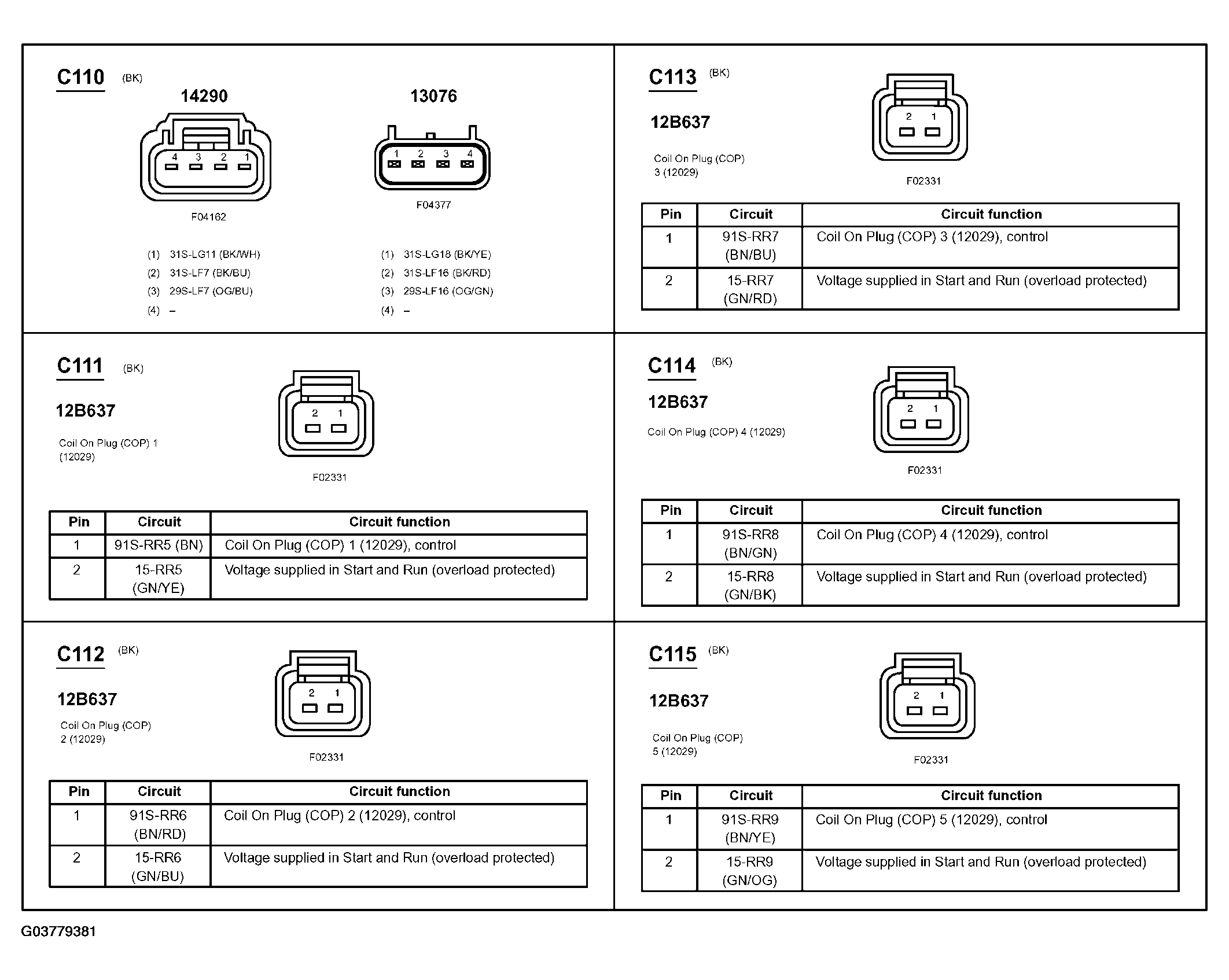

Fig 3: Identifying Connector C110, C111, C112, C113, C114 & C115

G03779381

Courtesy of FORD MOTOR CO.

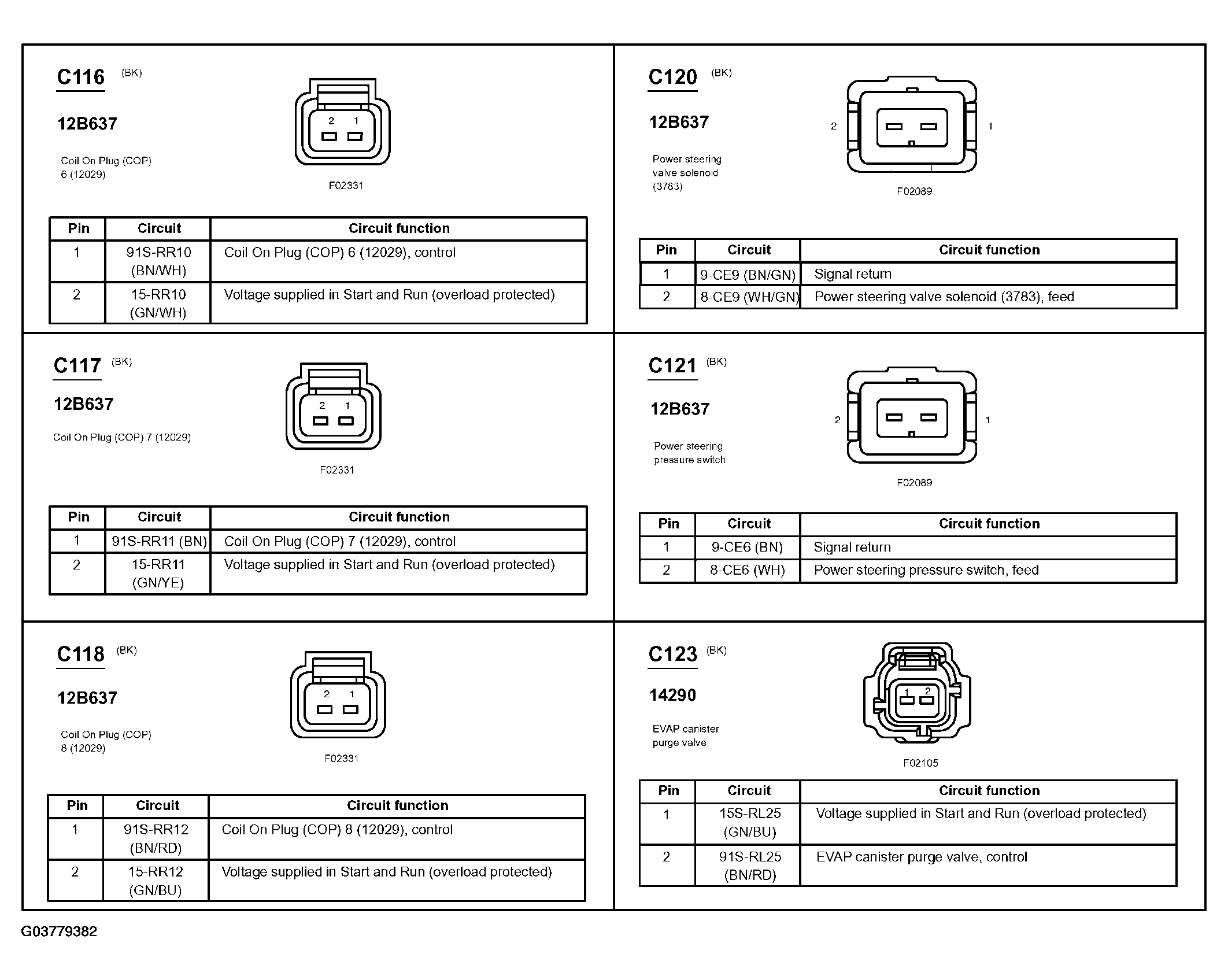

Fig 4: Identifying Connector C116, C117, C118, C120, C121 & C123

G03779382

Courtesy of FORD MOTOR CO.

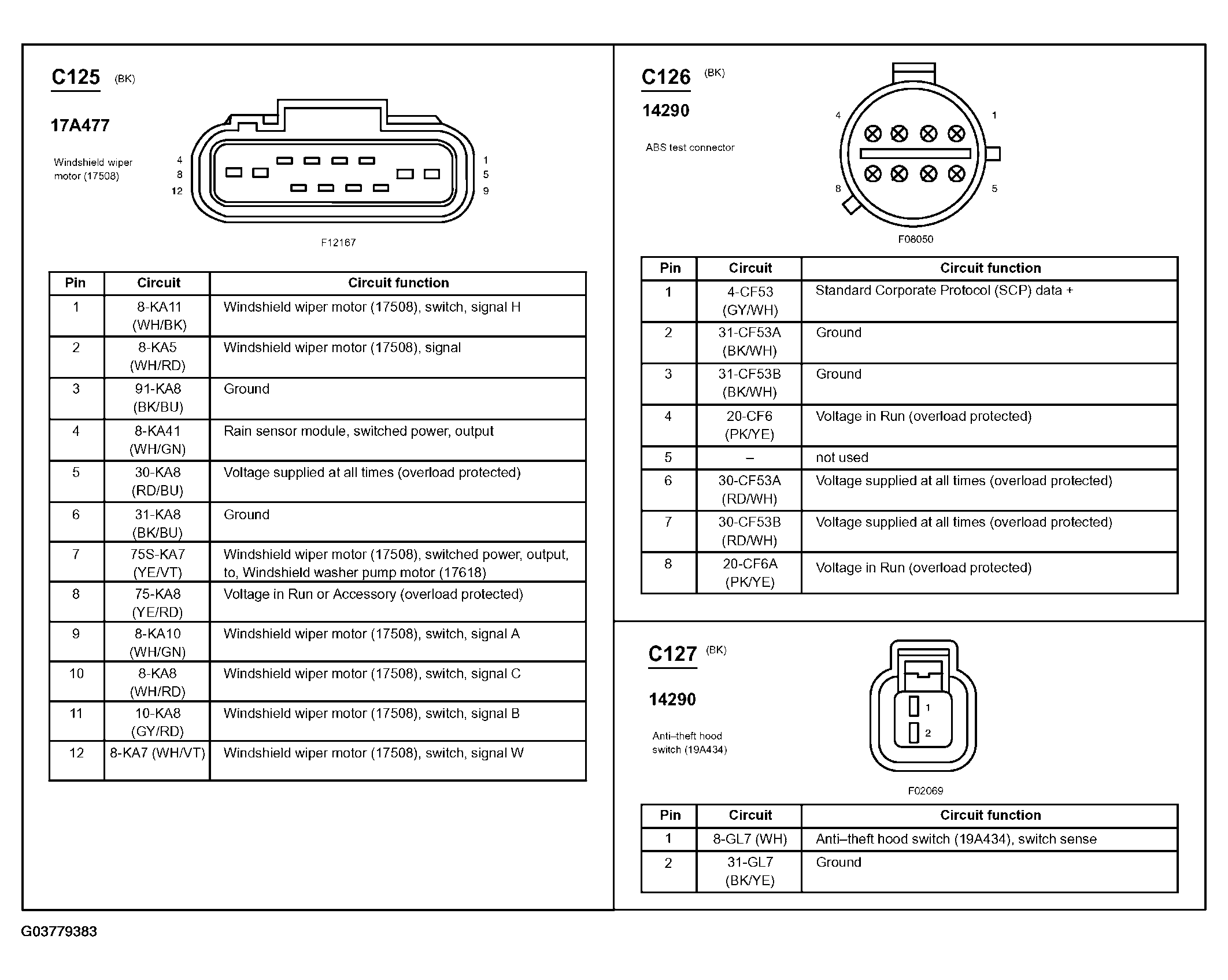

Fig 5: Identifying Connector C125, C126 & C127

G03779383

Courtesy of FORD MOTOR CO.

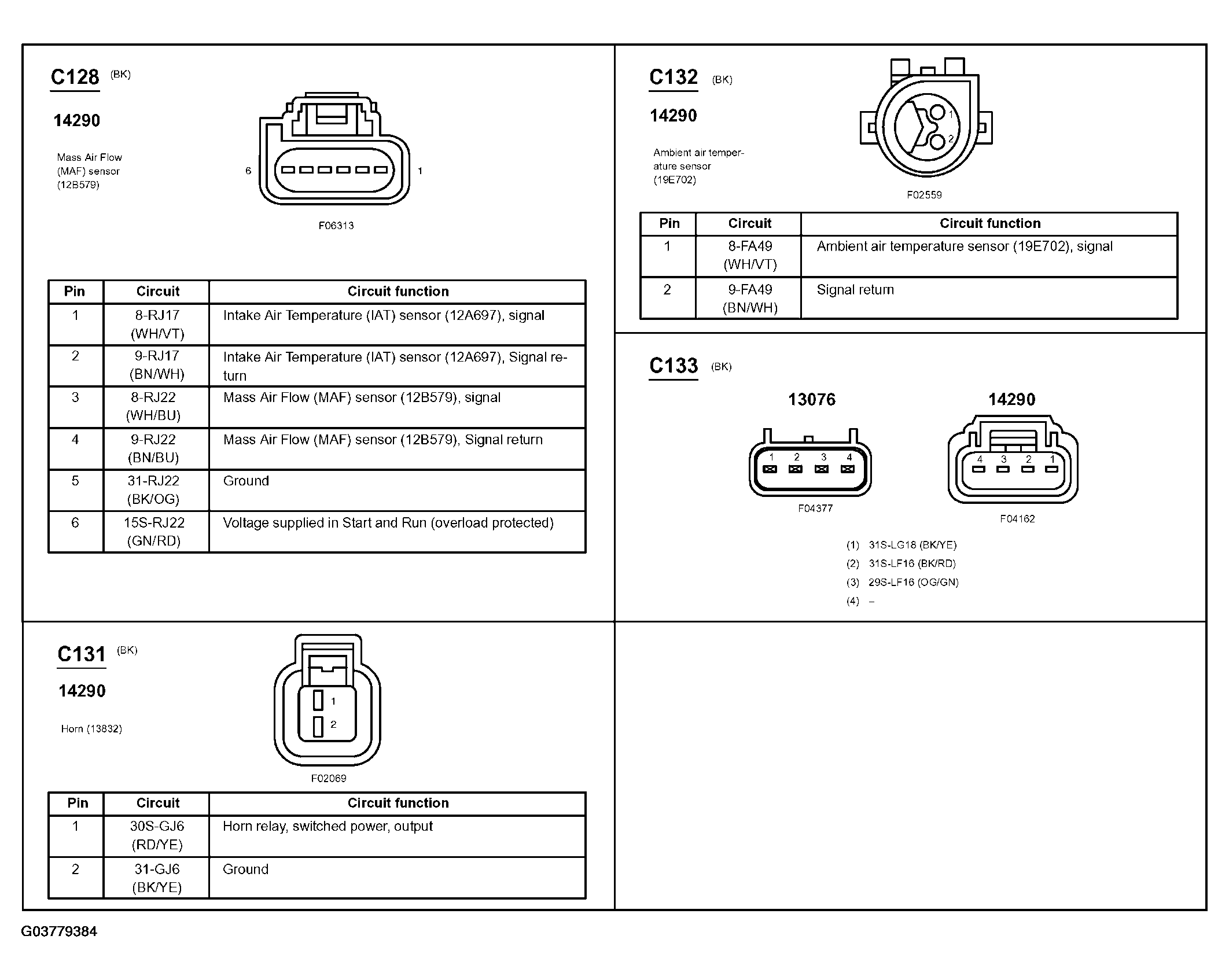

Fig 6: Identifying Connector C128, C131, C132 & C133

G03779384

Courtesy of FORD MOTOR CO.

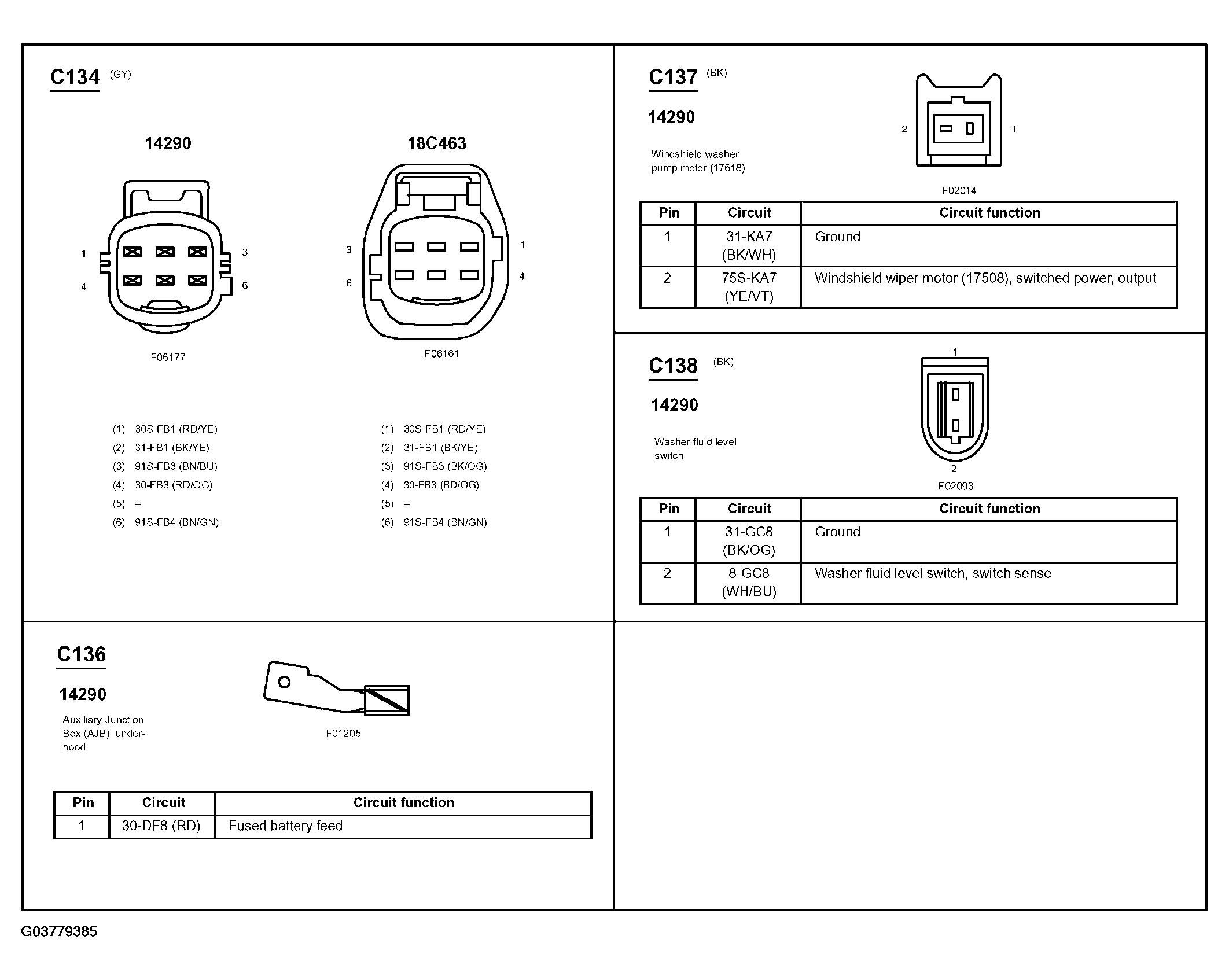

Fig 7: Identifying Connector C134, C136, C137 & C138

G03779385

Courtesy of FORD MOTOR CO.

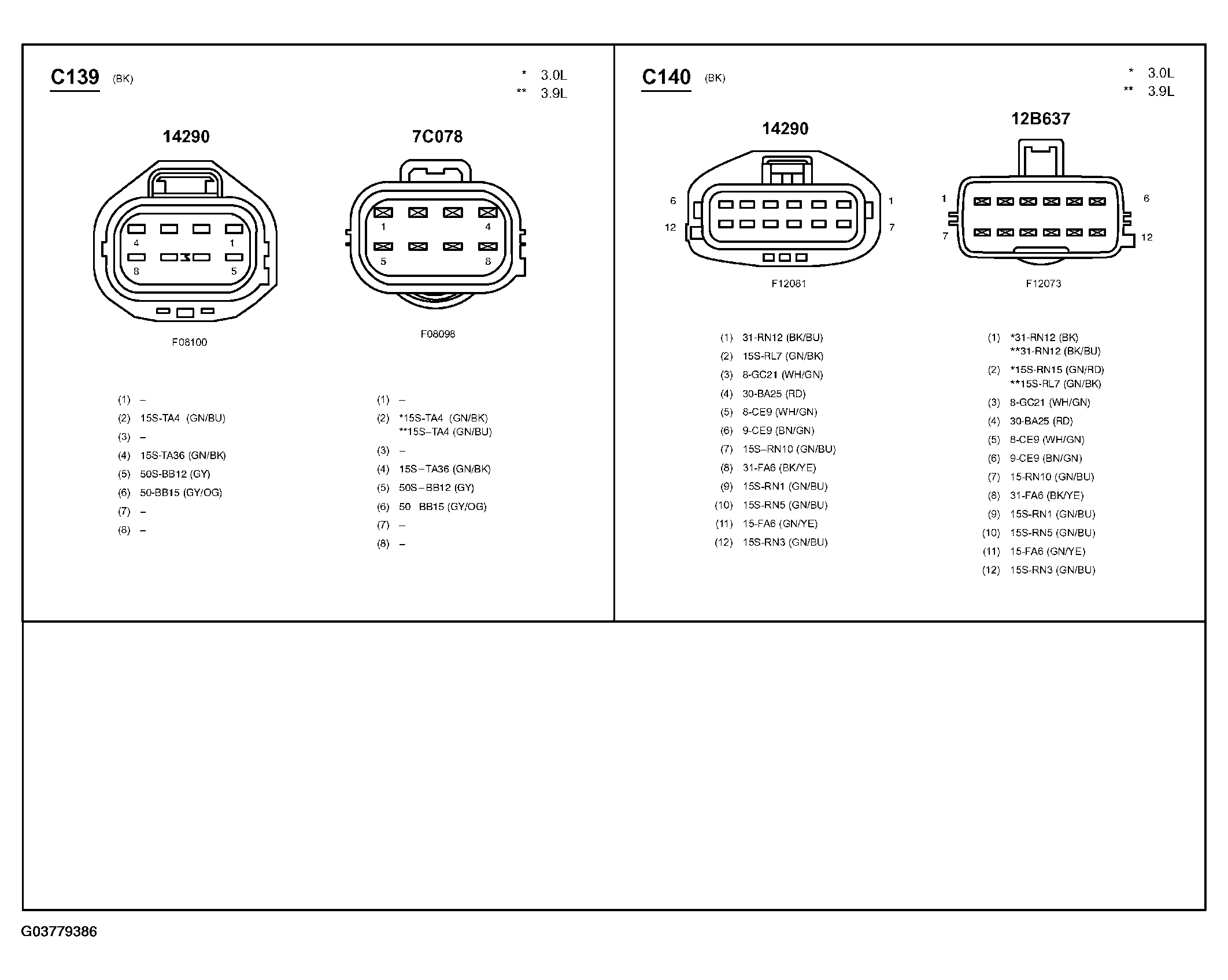

Fig 8: Identifying Connector C139 & C140

G03779386

Courtesy of FORD MOTOR CO.

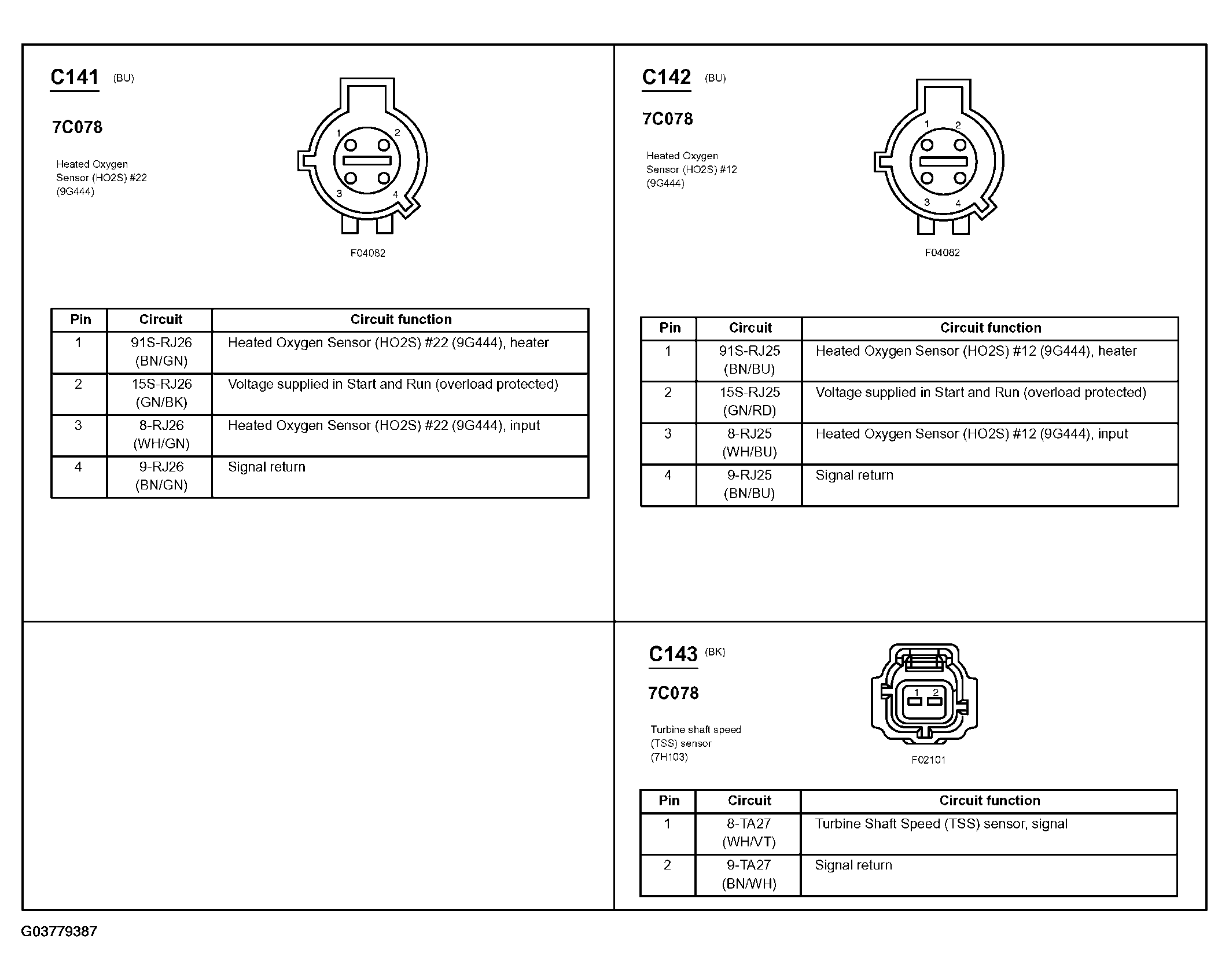

Fig 9: Identifying Connector C141, C142 & C143

G03779387

Courtesy of FORD MOTOR CO.

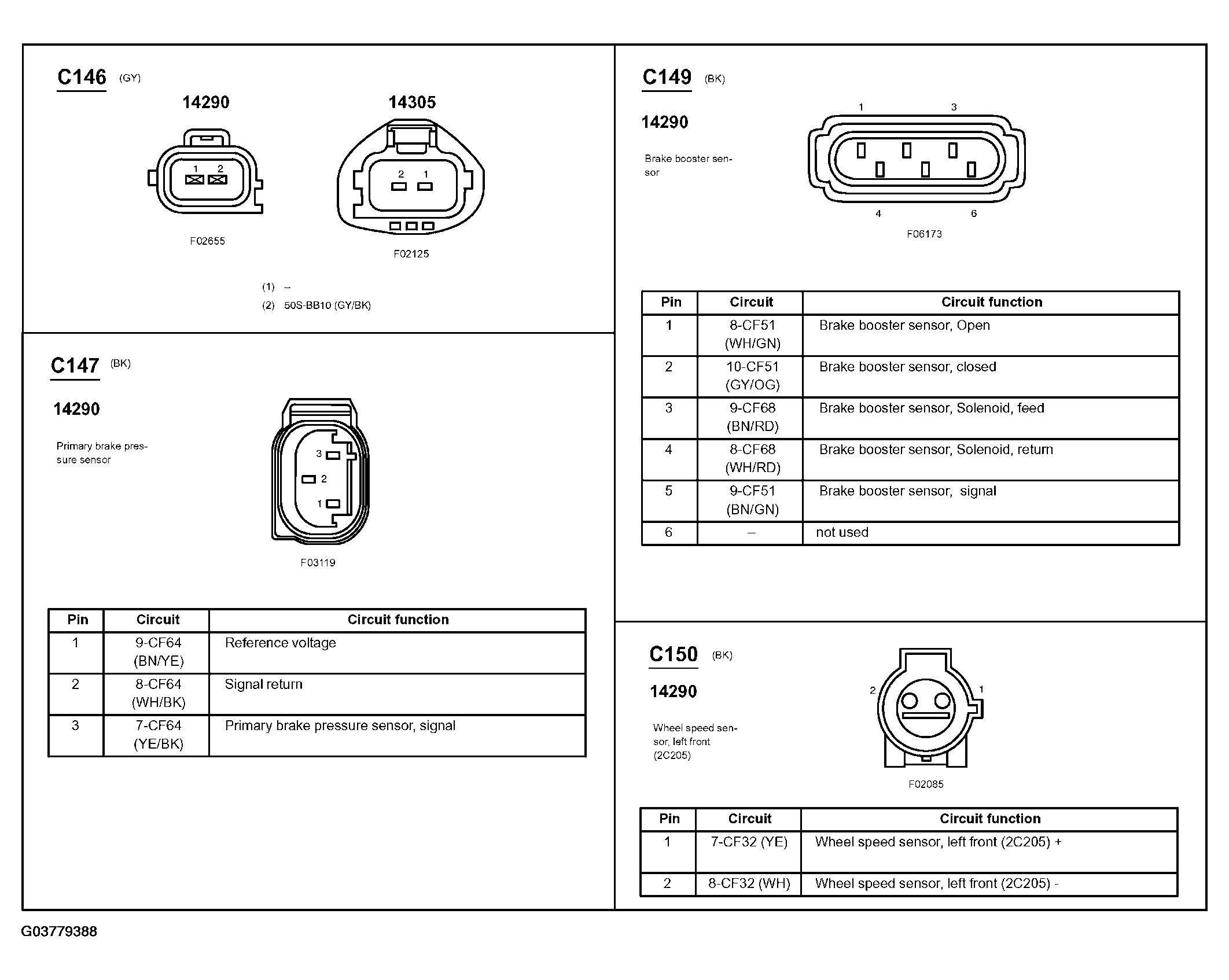

Fig 10: Identifying Connector C146, C147, C149 & C150

G03779388

Courtesy of FORD MOTOR CO.

Fig 11: Fog Lamp, Left Front Connector End View (C152)

G03779389

Courtesy of FORD MOTOR CO.

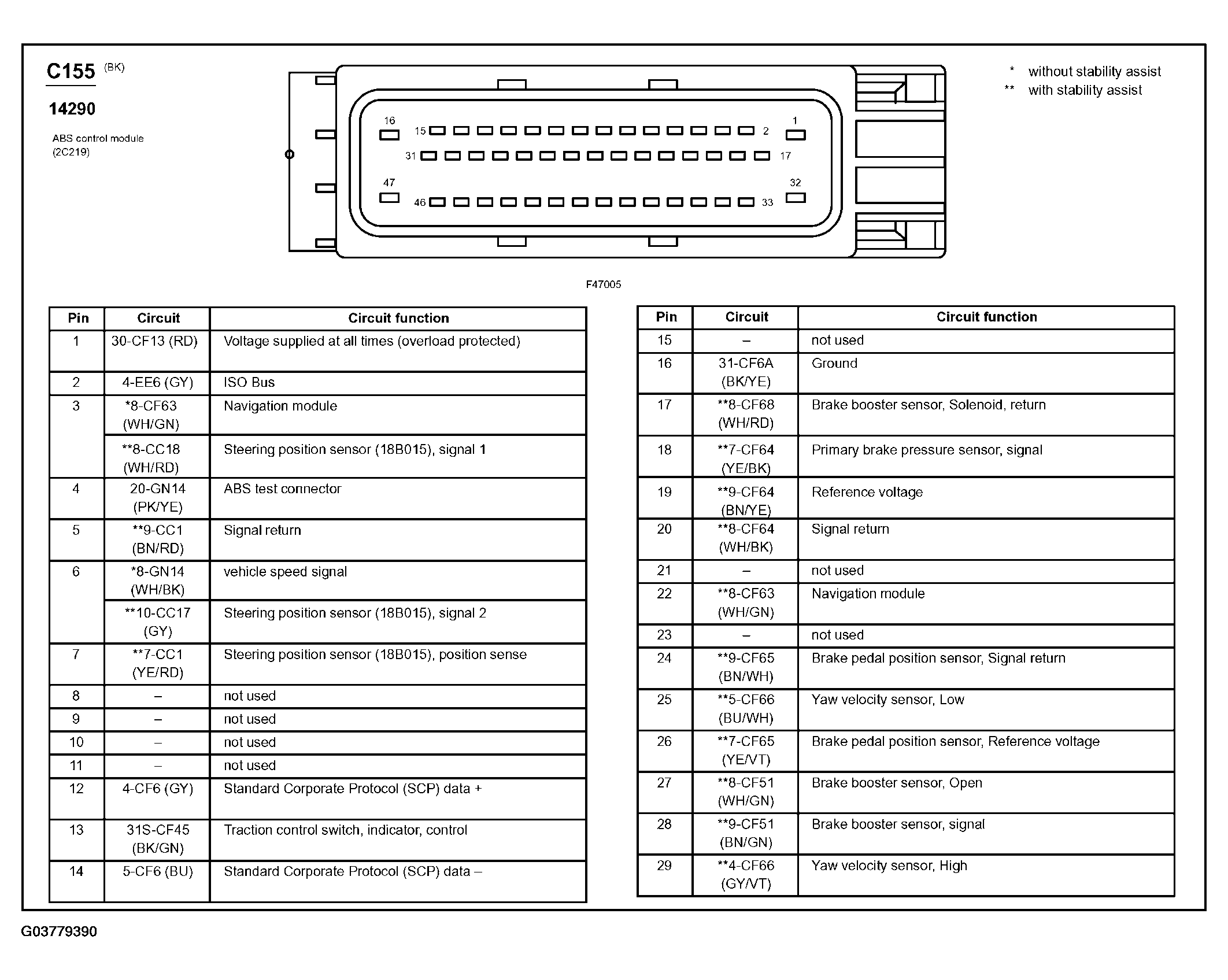

Fig 12: ABS Control Module Connector End View (C155) (1 Of 2)

G03779390

Courtesy of FORD MOTOR CO.

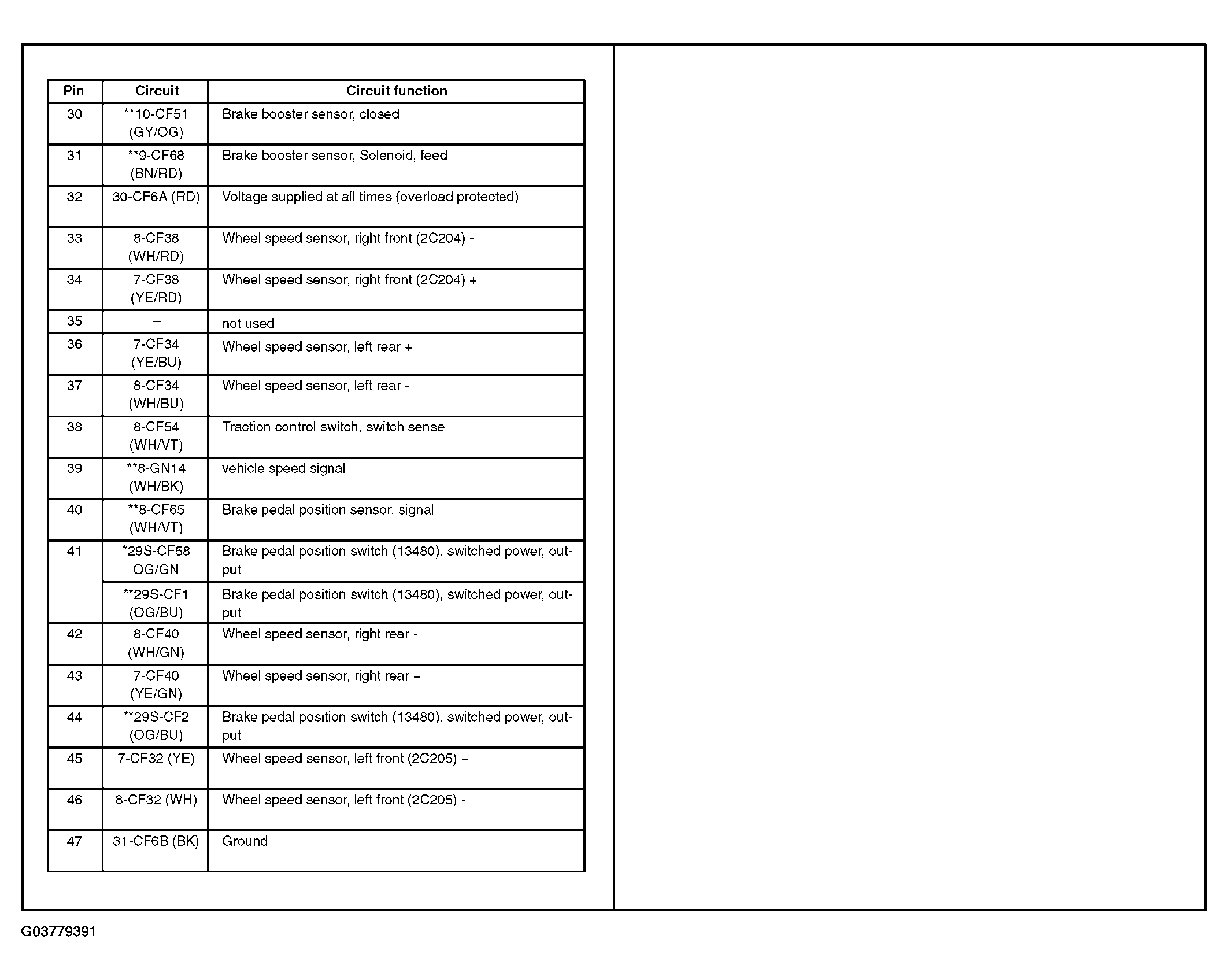

Fig 13: ABS Control Module Connector End View (C155) (2 Of 2)

G03779391

Courtesy of FORD MOTOR CO.

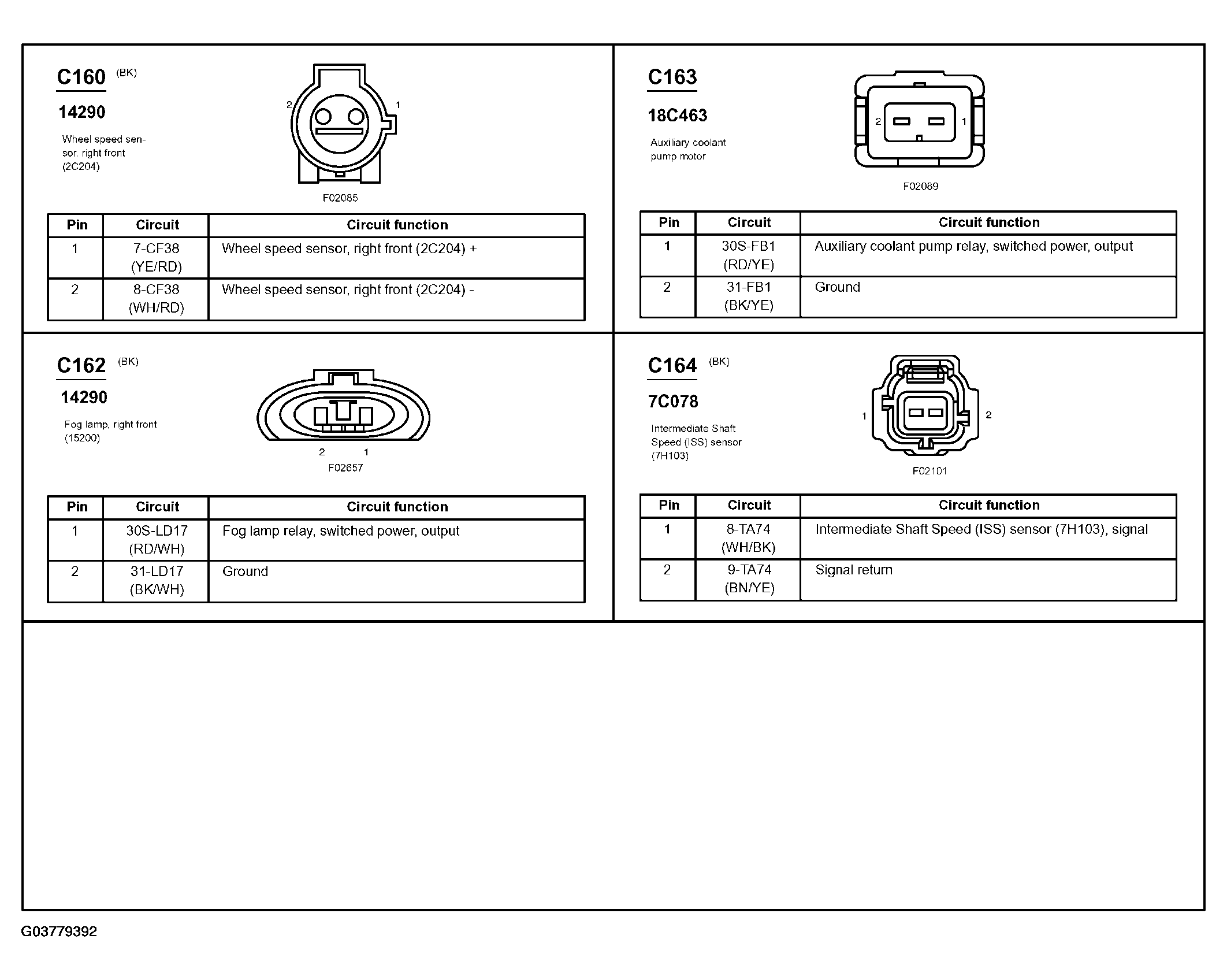

Fig 14: Identifying Connector C160, C162, C163 & C164

G03779392

Courtesy of FORD MOTOR CO.

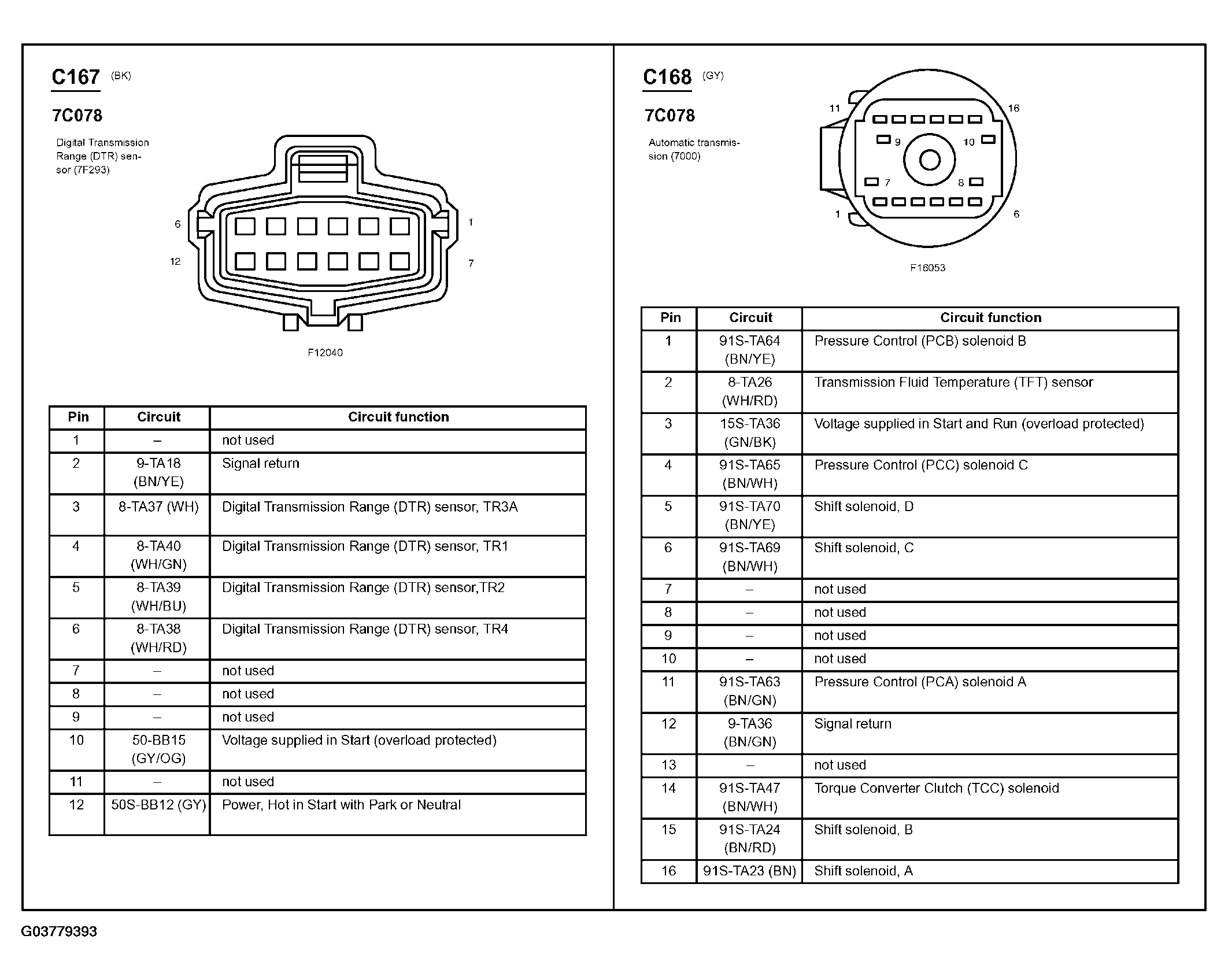

Fig 15: Identifying Connector C167 & C168

G03779393

Courtesy of FORD MOTOR CO.

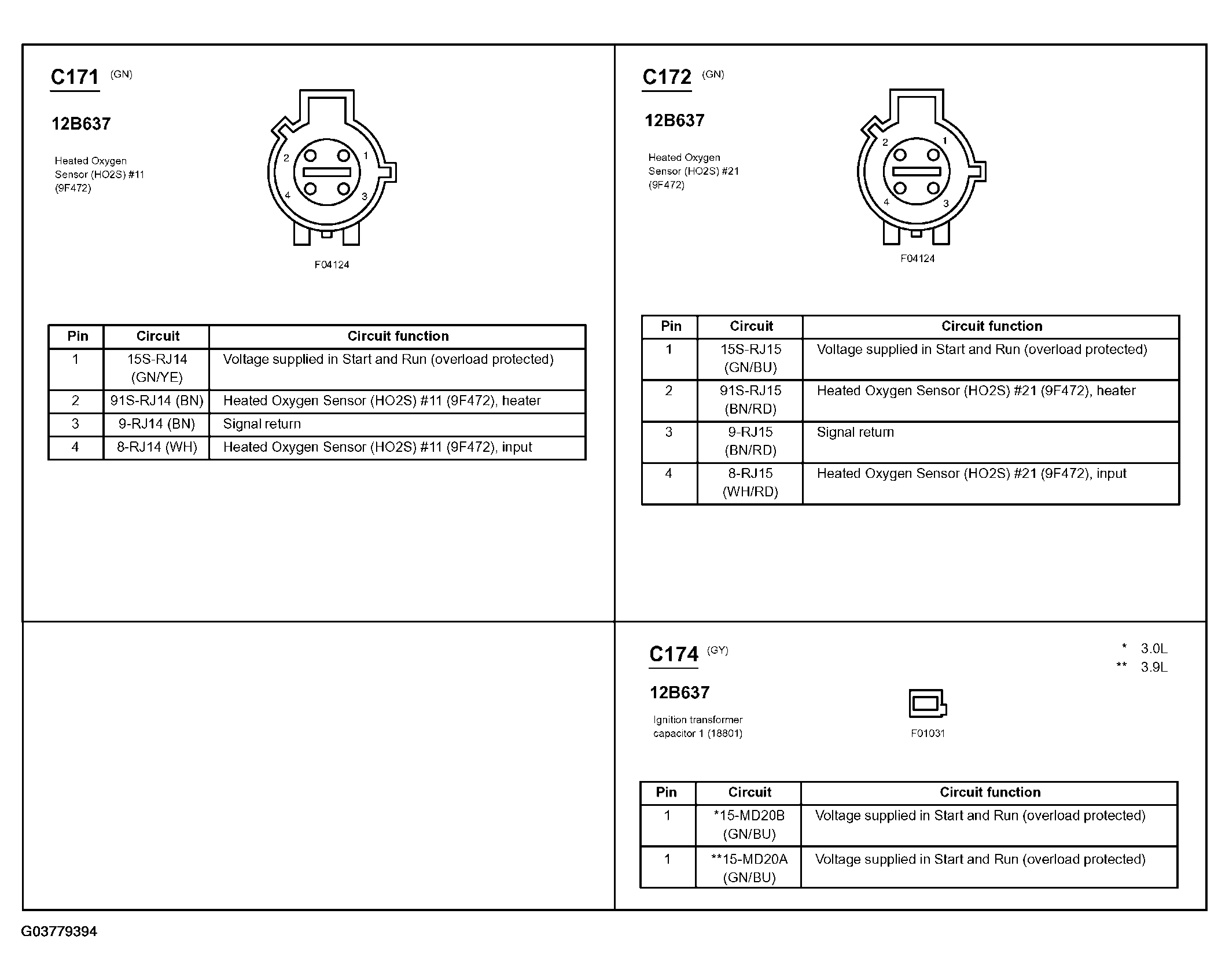

Fig 16: Identifying Connector C171, C172 & C174

G03779394

Courtesy of FORD MOTOR CO.

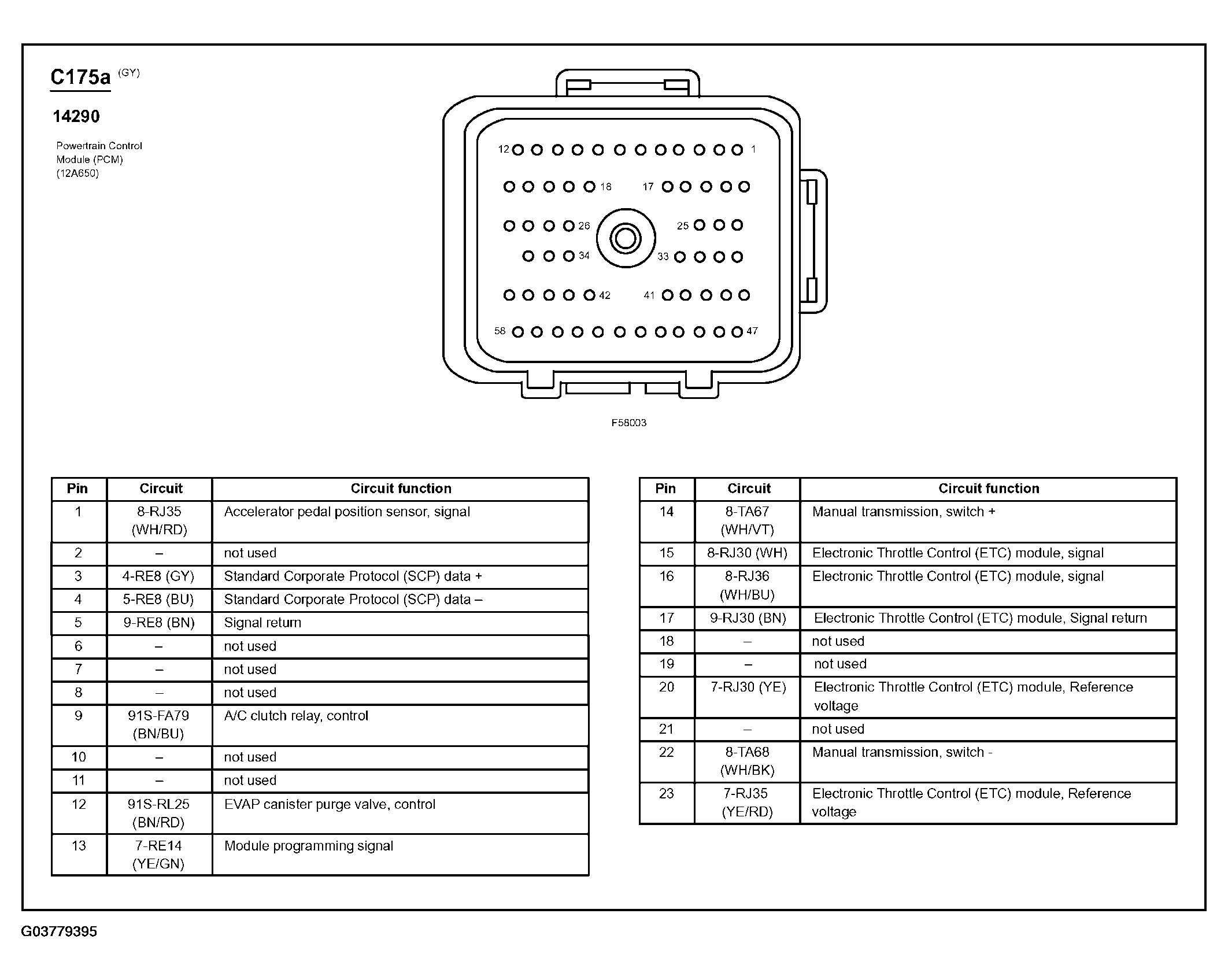

Fig 17: Powertrain Control Module (PCM) Connector End View (C175a) (1 Of 2)

G03779395

Courtesy of FORD MOTOR CO.

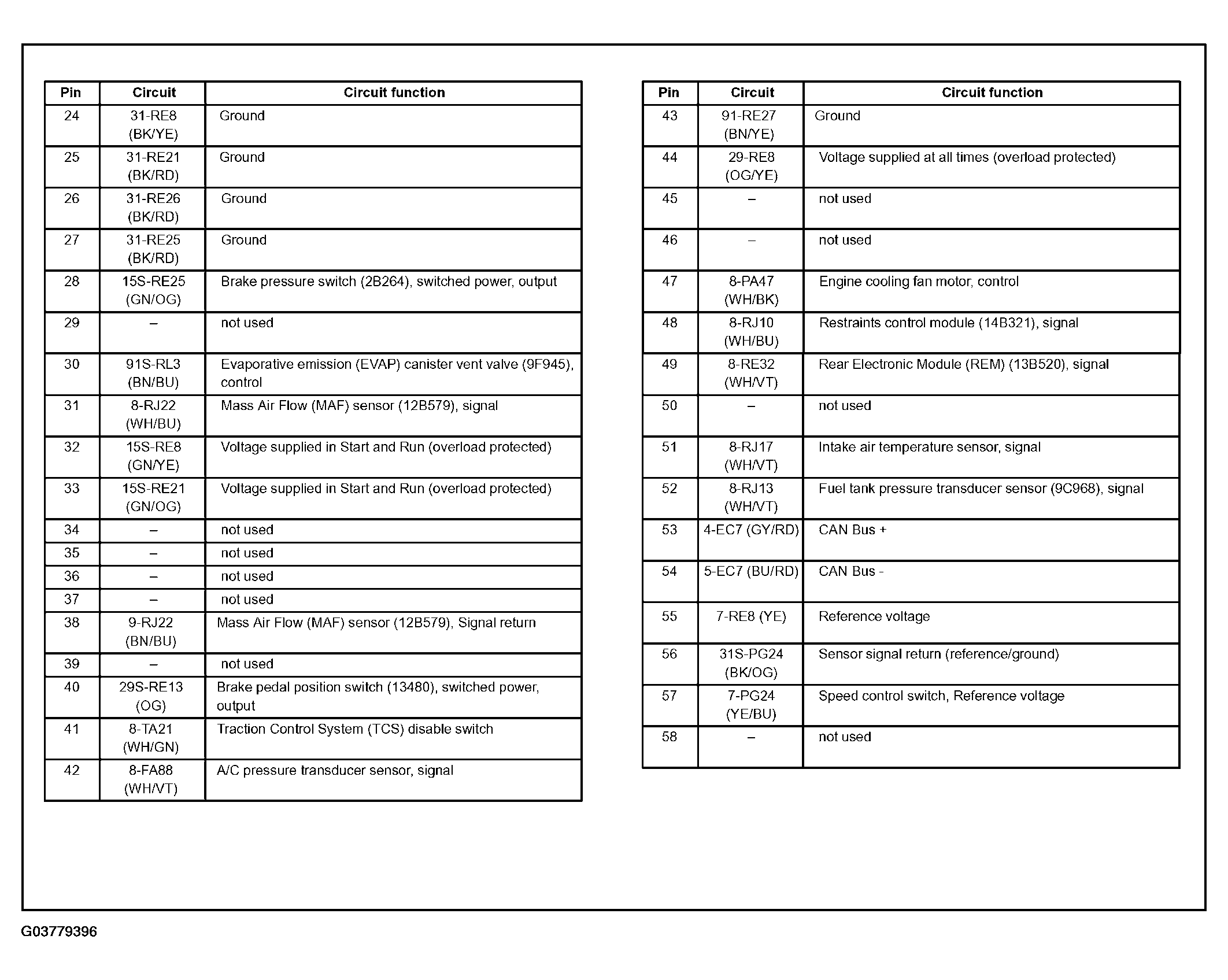

Fig 18: Powertrain Control Module (PCM) Connector End View (C175a) (2 Of 2)

G03779396

Courtesy of FORD MOTOR CO.

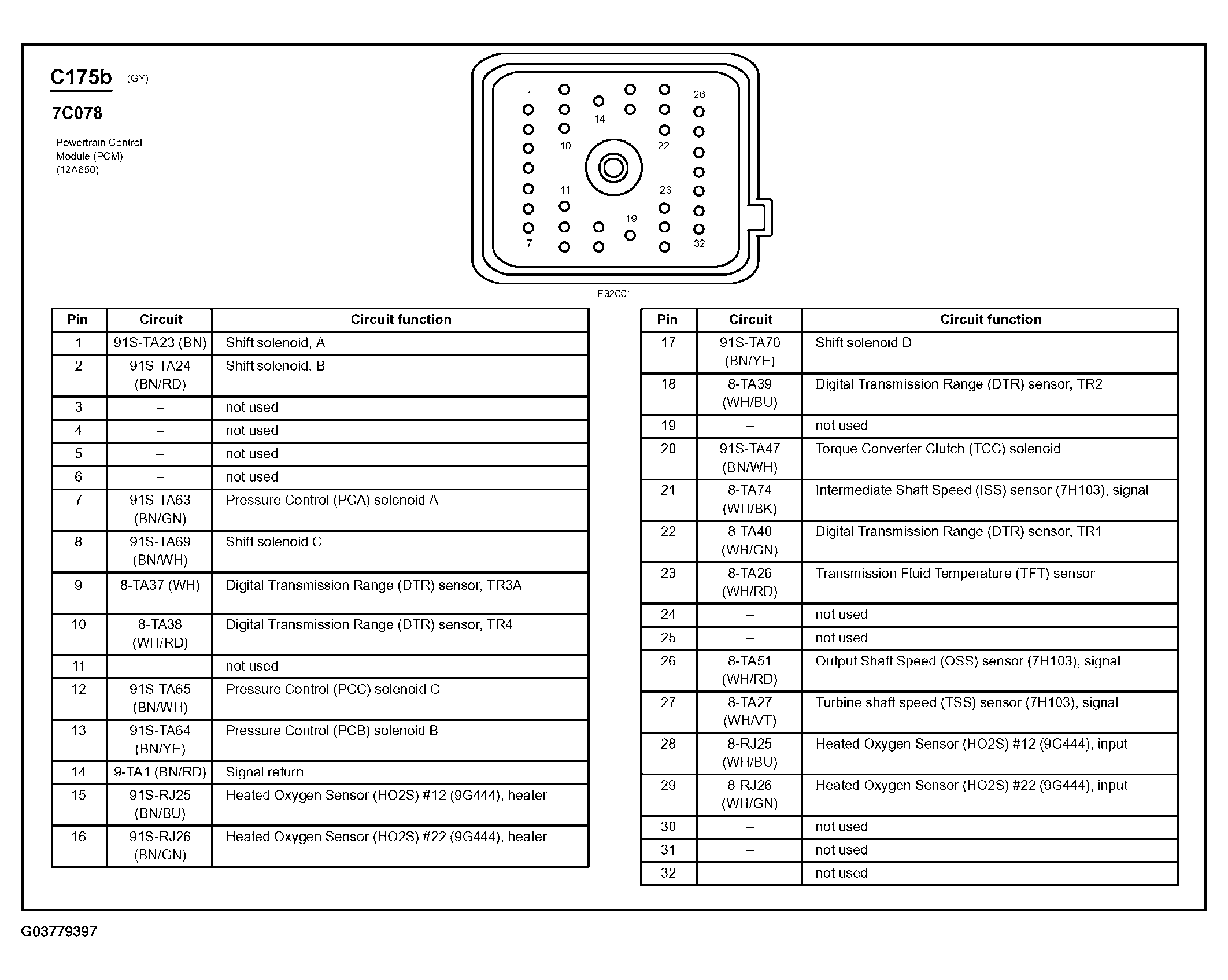

Fig 19: Powertrain Control Module (PCM) Connector End View (C175b)

G03779397

Courtesy of FORD MOTOR CO.

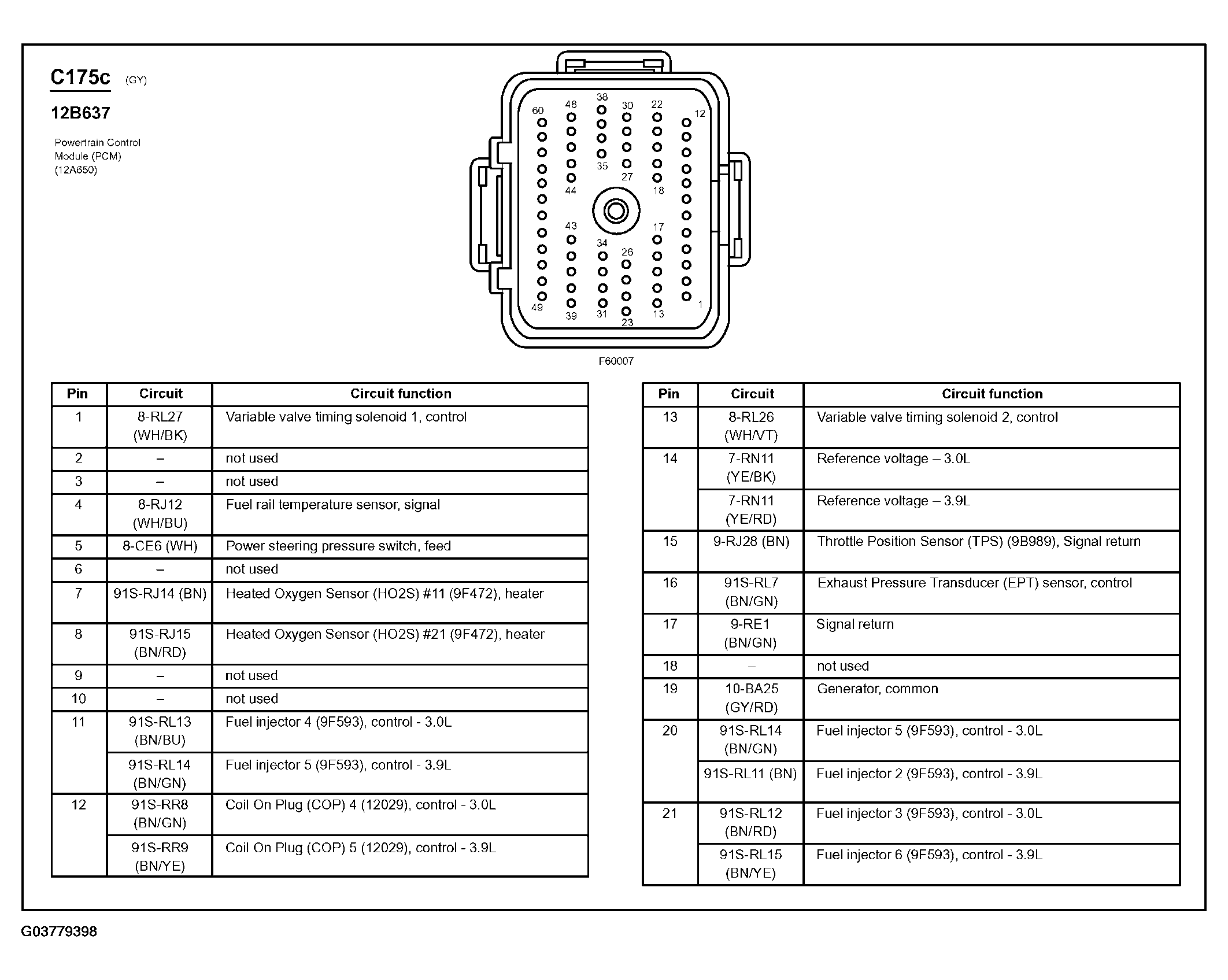

Fig 20: Powertrain Control Module (PCM) Connector End View (C175c) (1 Of 3)

G03779398

Courtesy of FORD MOTOR CO.

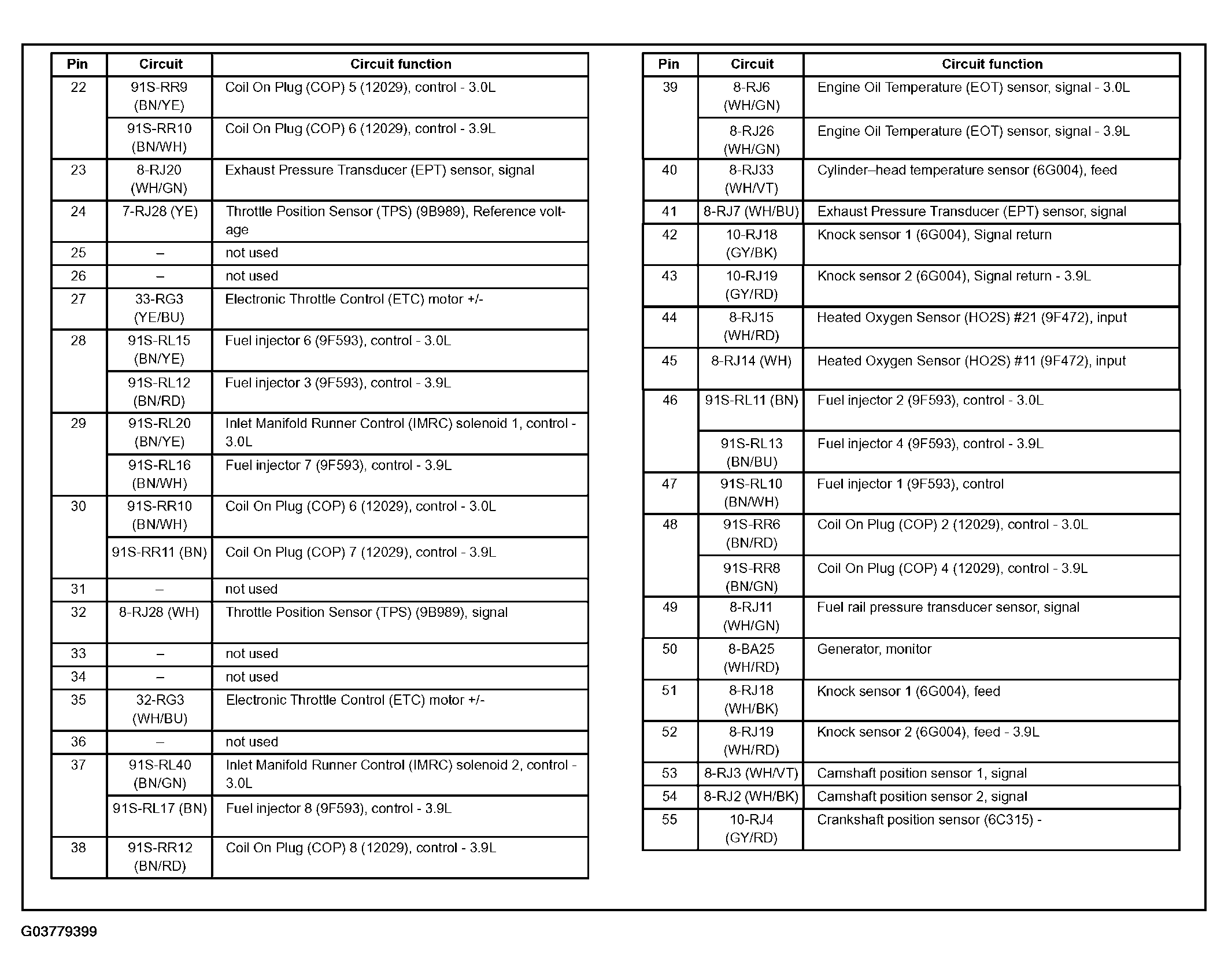

Fig 21: Powertrain Control Module (PCM) Connector End View (C175c) (2 Of 3)

G03779399

Courtesy of FORD MOTOR CO.

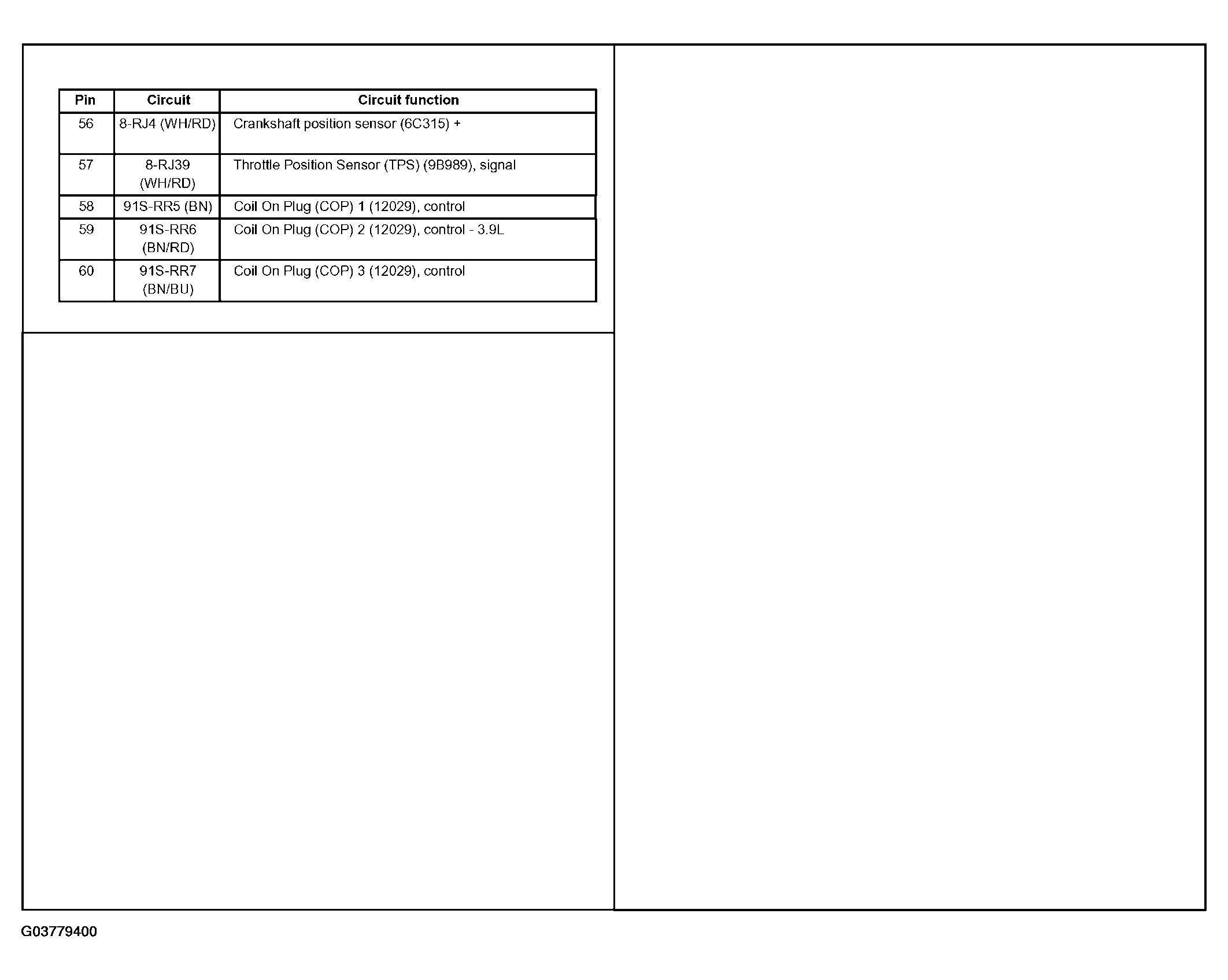

Fig 22: Powertrain Control Module (PCM) Connector End View (C175c) (3 Of 3)

G03779400

Courtesy of FORD MOTOR CO.

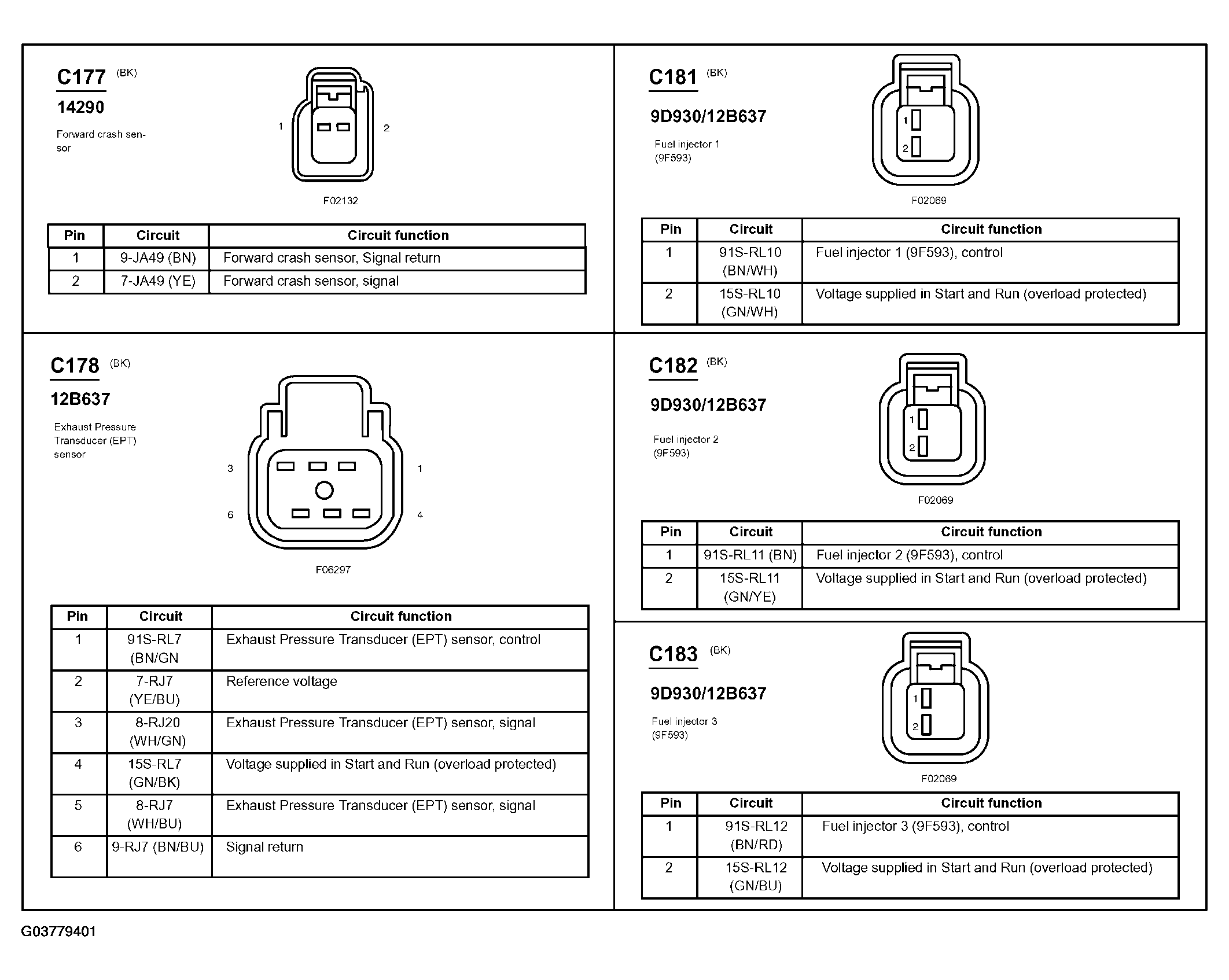

Fig 23: Identifying Connector C177, C178, C181, C182 & C183

G03779401

Courtesy of FORD MOTOR CO.

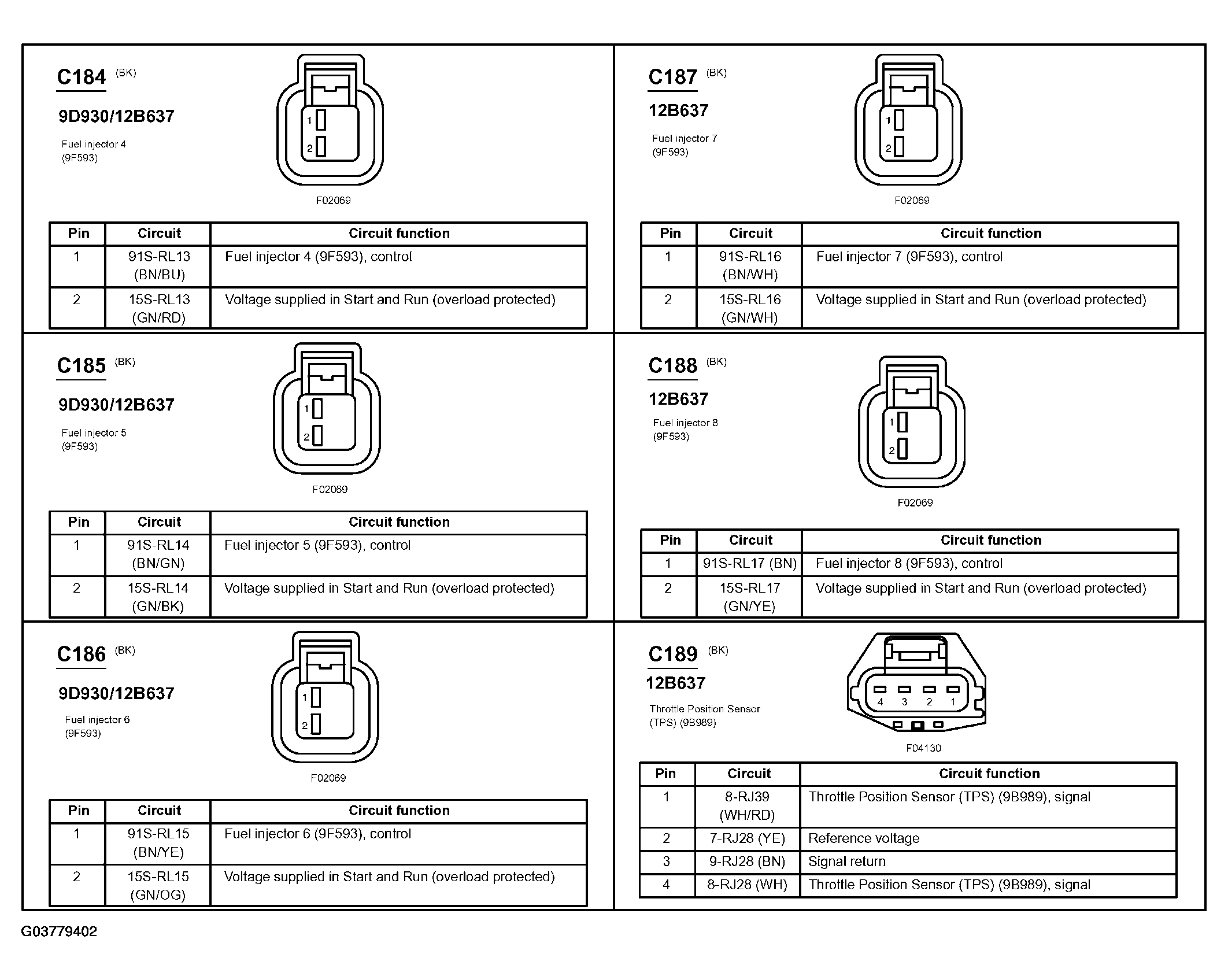

Fig 24: Identifying Connector C184, C185, C186, C187, C188 & C189

G03779402

Courtesy of FORD MOTOR CO.

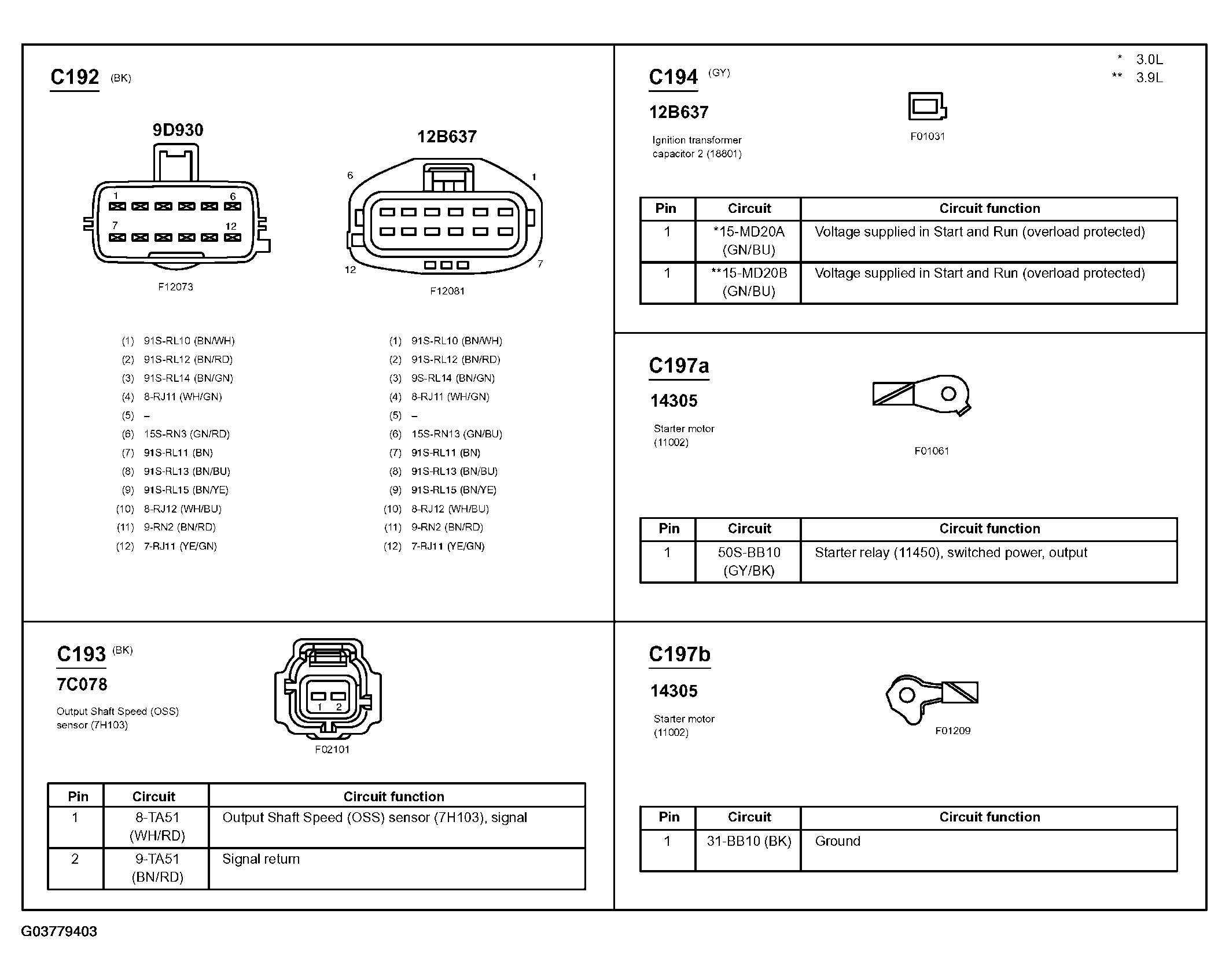

Fig 25: Identifying Connector C192, C193, C194, C197a & C197b

G03779403

Courtesy of FORD MOTOR CO.

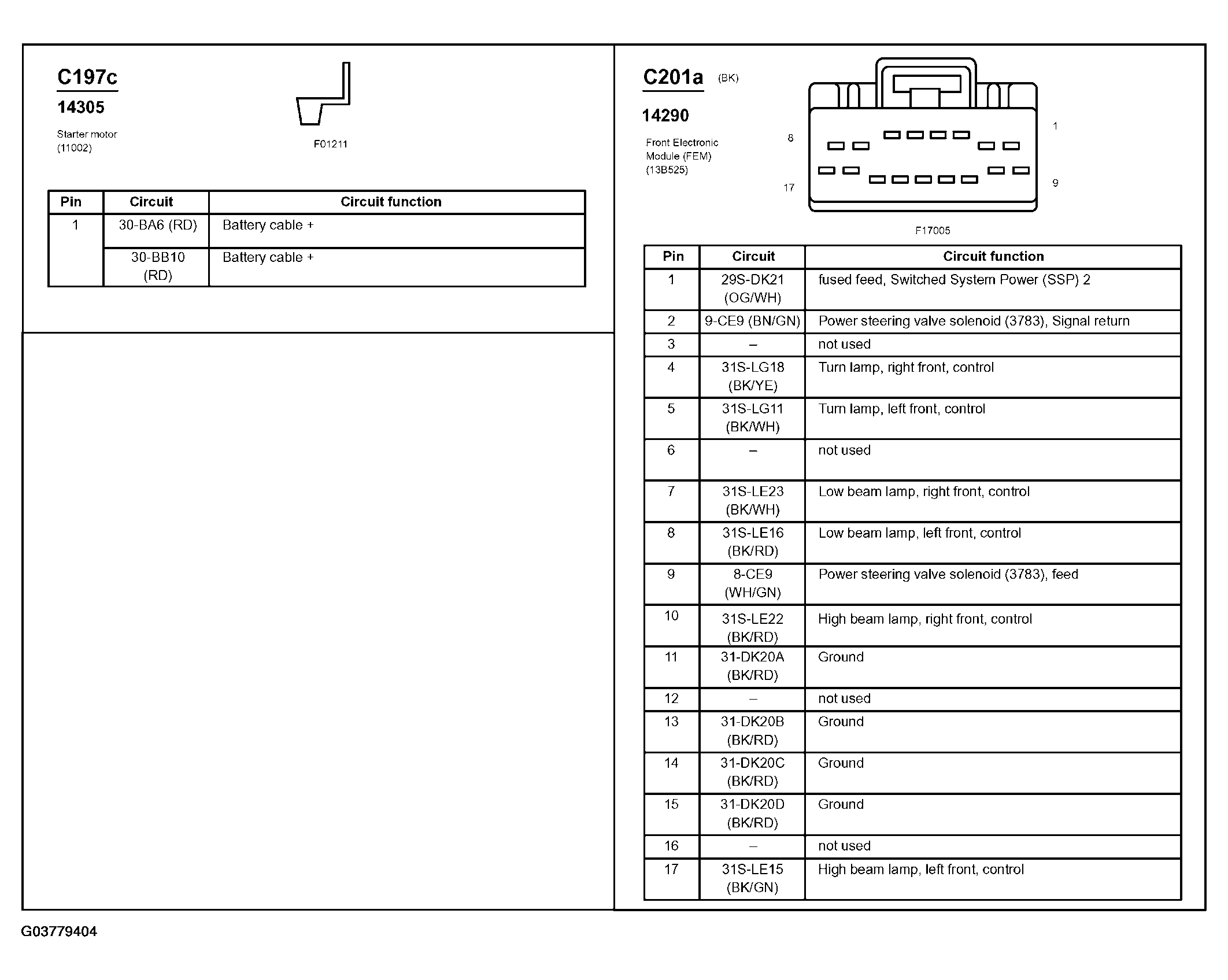

Fig 26: Identifying Connector C197c & C201a

G03779404

Courtesy of FORD MOTOR CO.

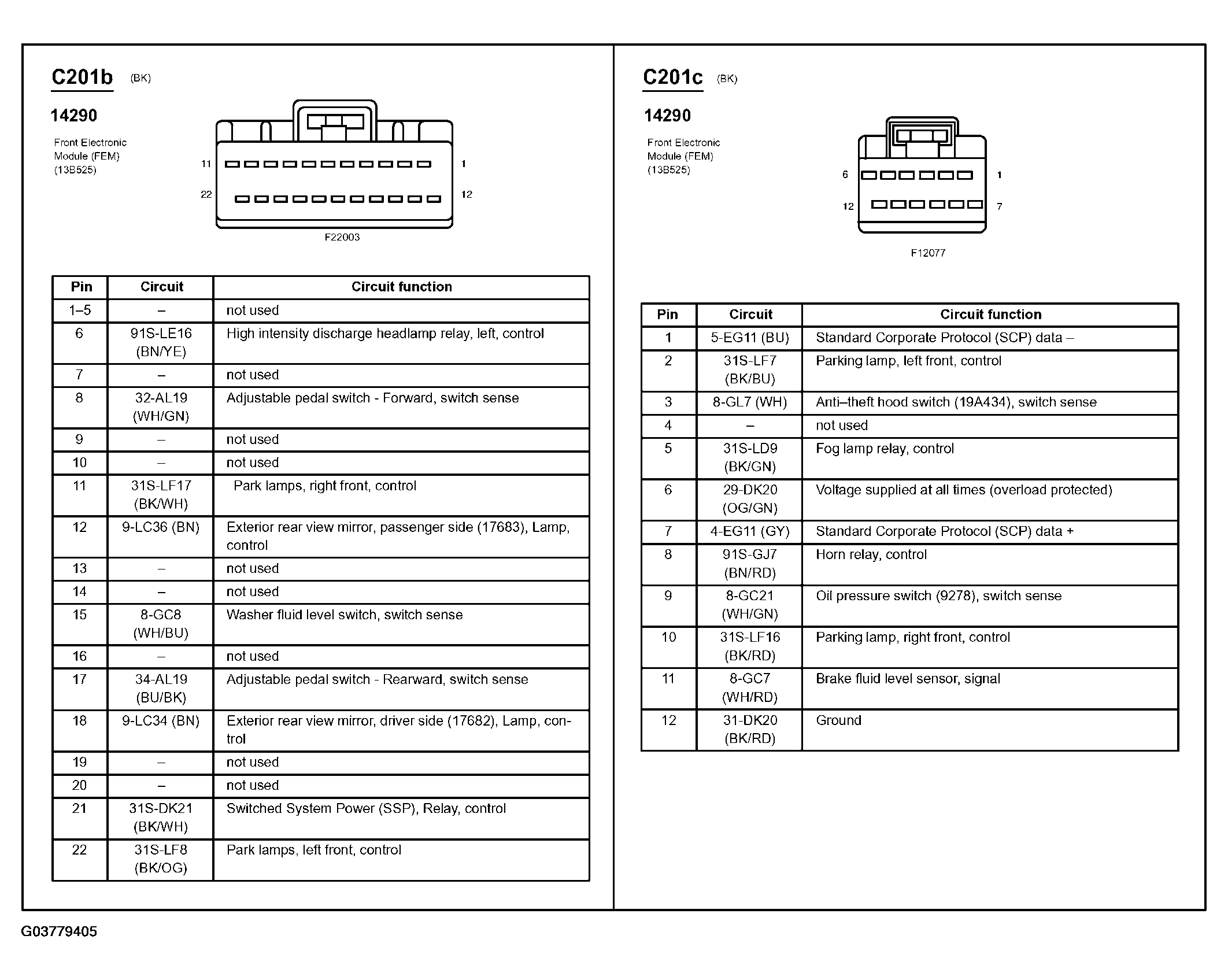

Fig 27: Identifying Connector C201b & C201c

G03779405

Courtesy of FORD MOTOR CO.

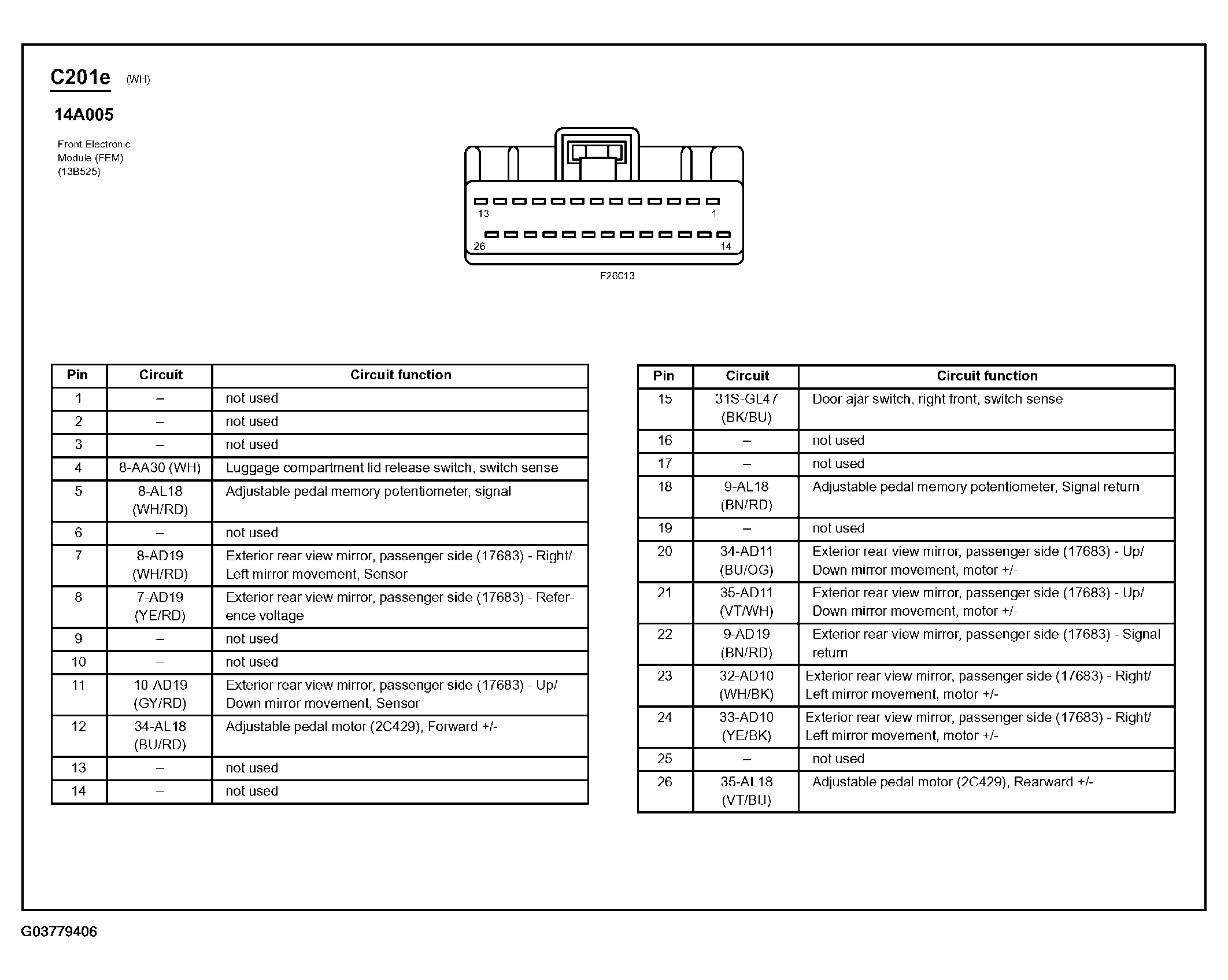

Fig 28: Front Electronic Module (FEM) Connector End View (C201e)

G03779406

Courtesy of FORD MOTOR CO.

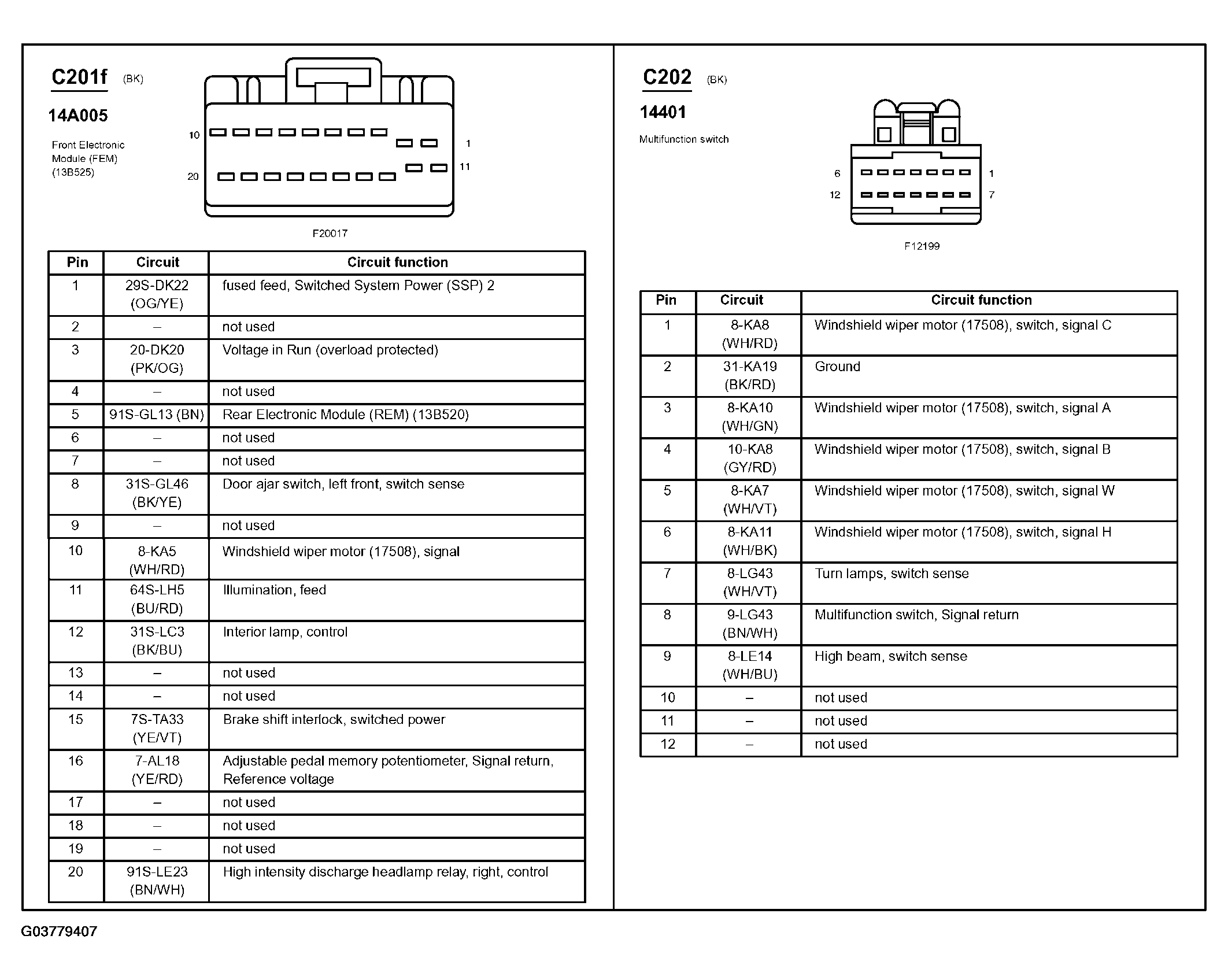

Fig 29: Identifying Connector C201f & C202

G03779407

Courtesy of FORD MOTOR CO.

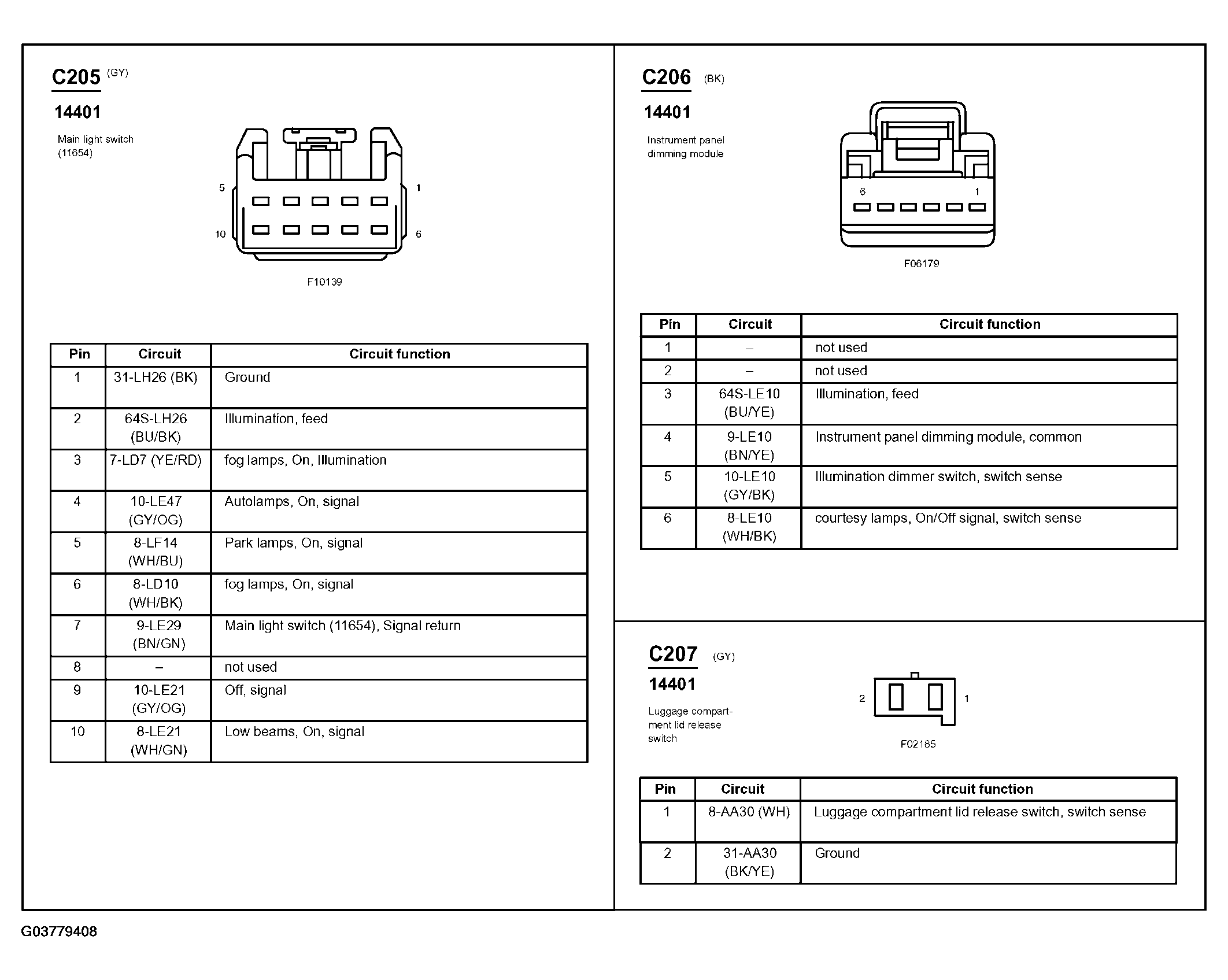

Fig 30: Identifying Connector C205, C206 & C207

G03779408

Courtesy of FORD MOTOR CO.

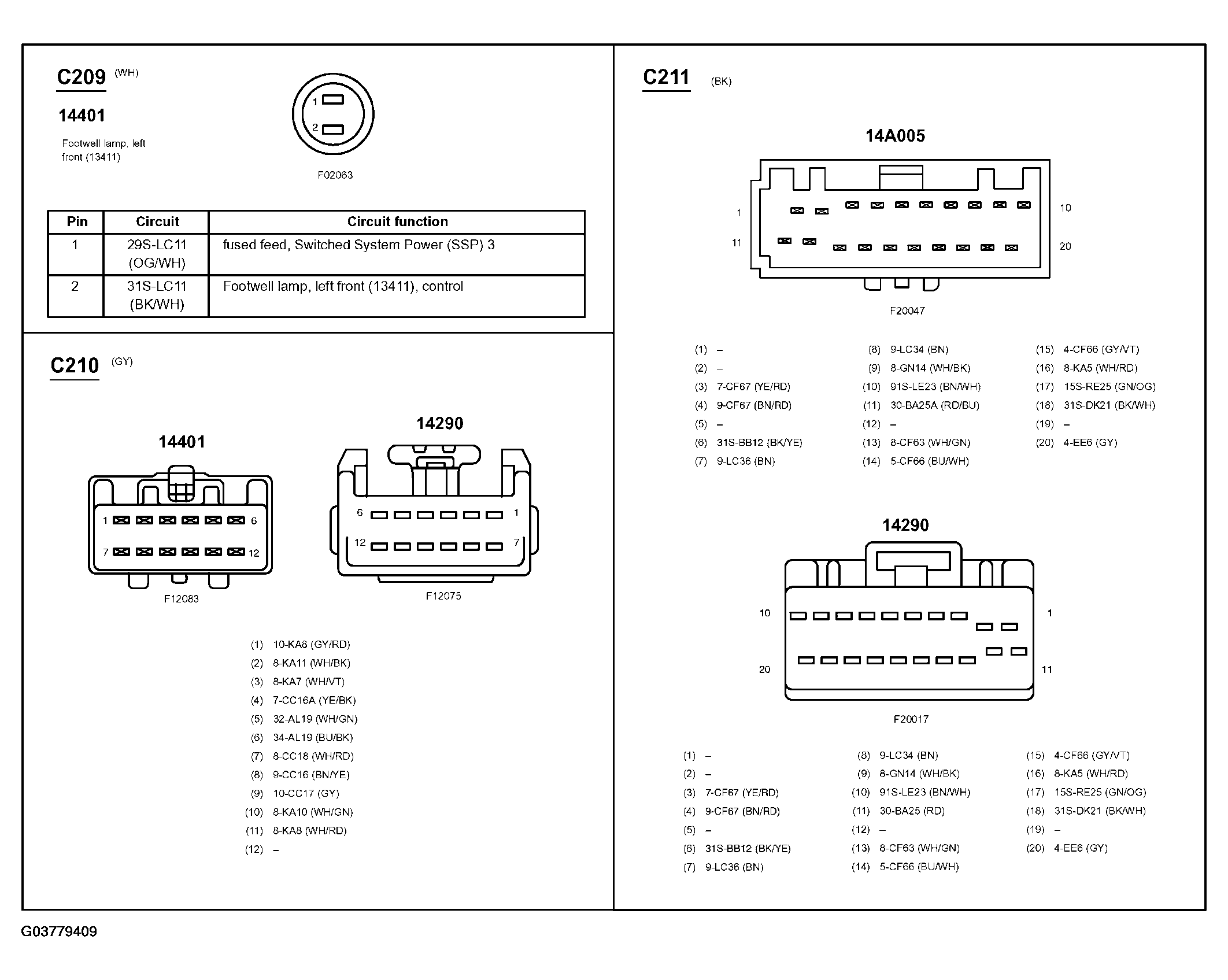

Fig 31: Identifying Connector C209, C210 & C211

G03779409

Courtesy of FORD MOTOR CO.

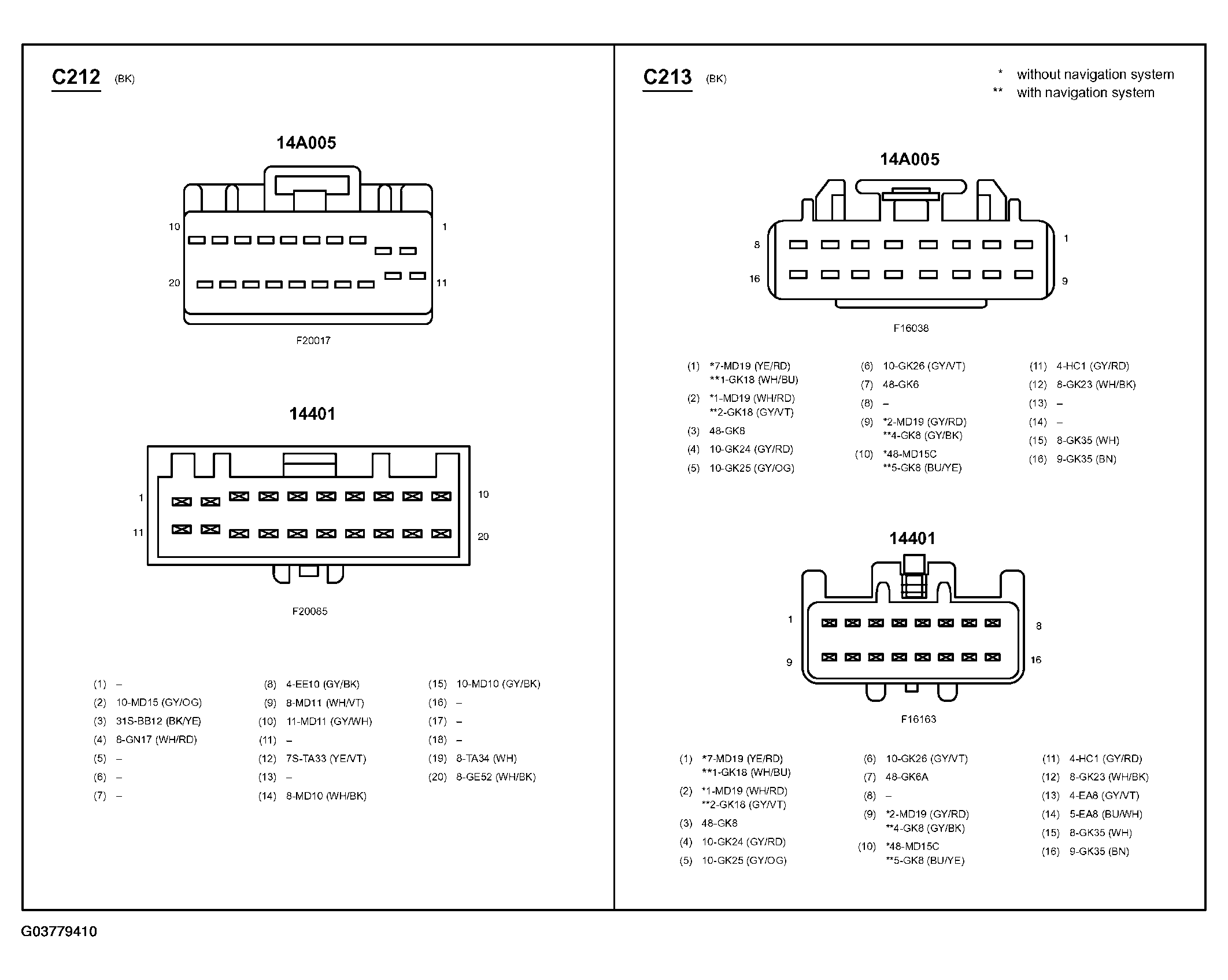

Fig 32: Identifying Connector C212 & C213

G03779410

Courtesy of FORD MOTOR CO.

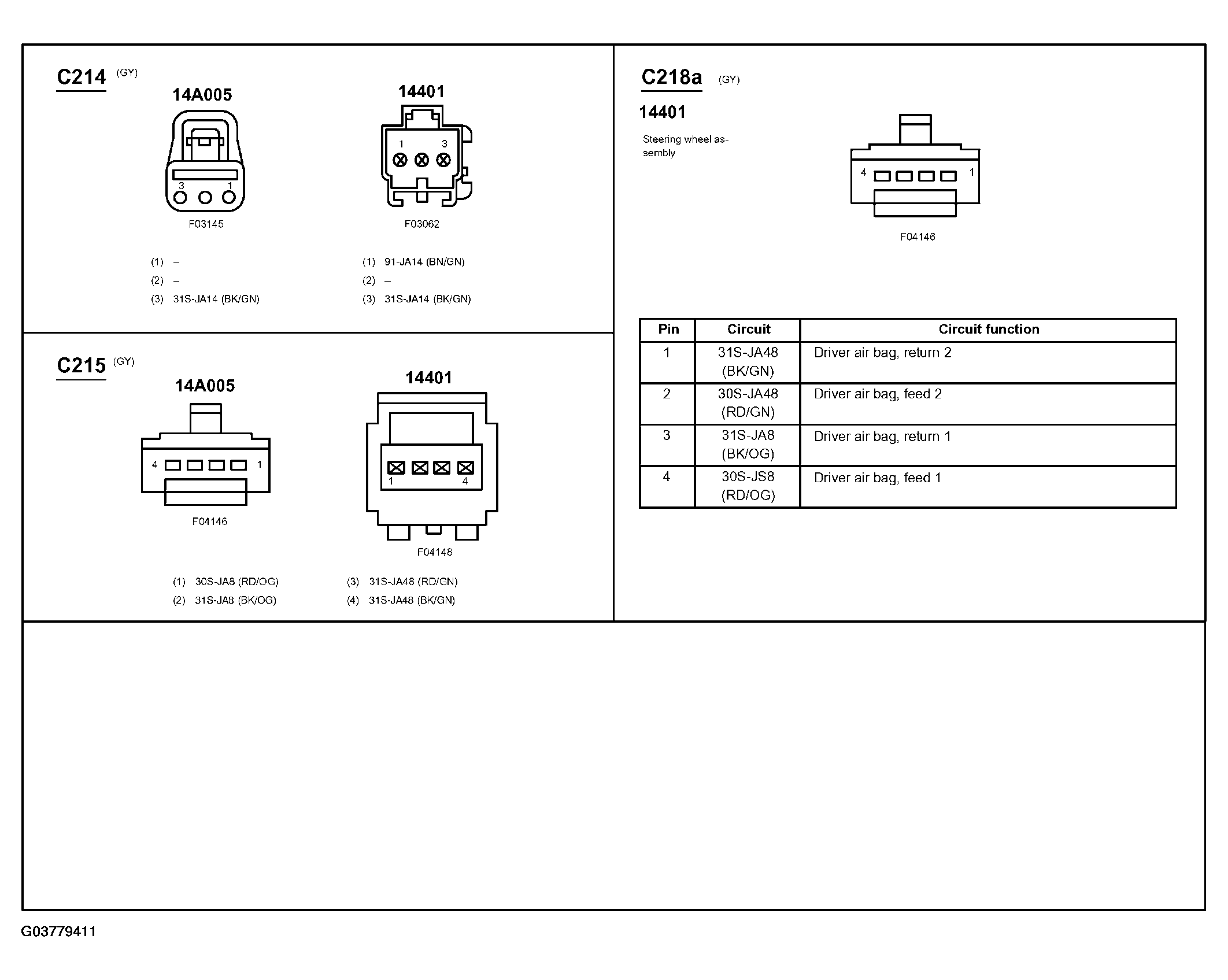

Fig 33: Identifying Connector C214, C215 & C218a

G03779411

Courtesy of FORD MOTOR CO.

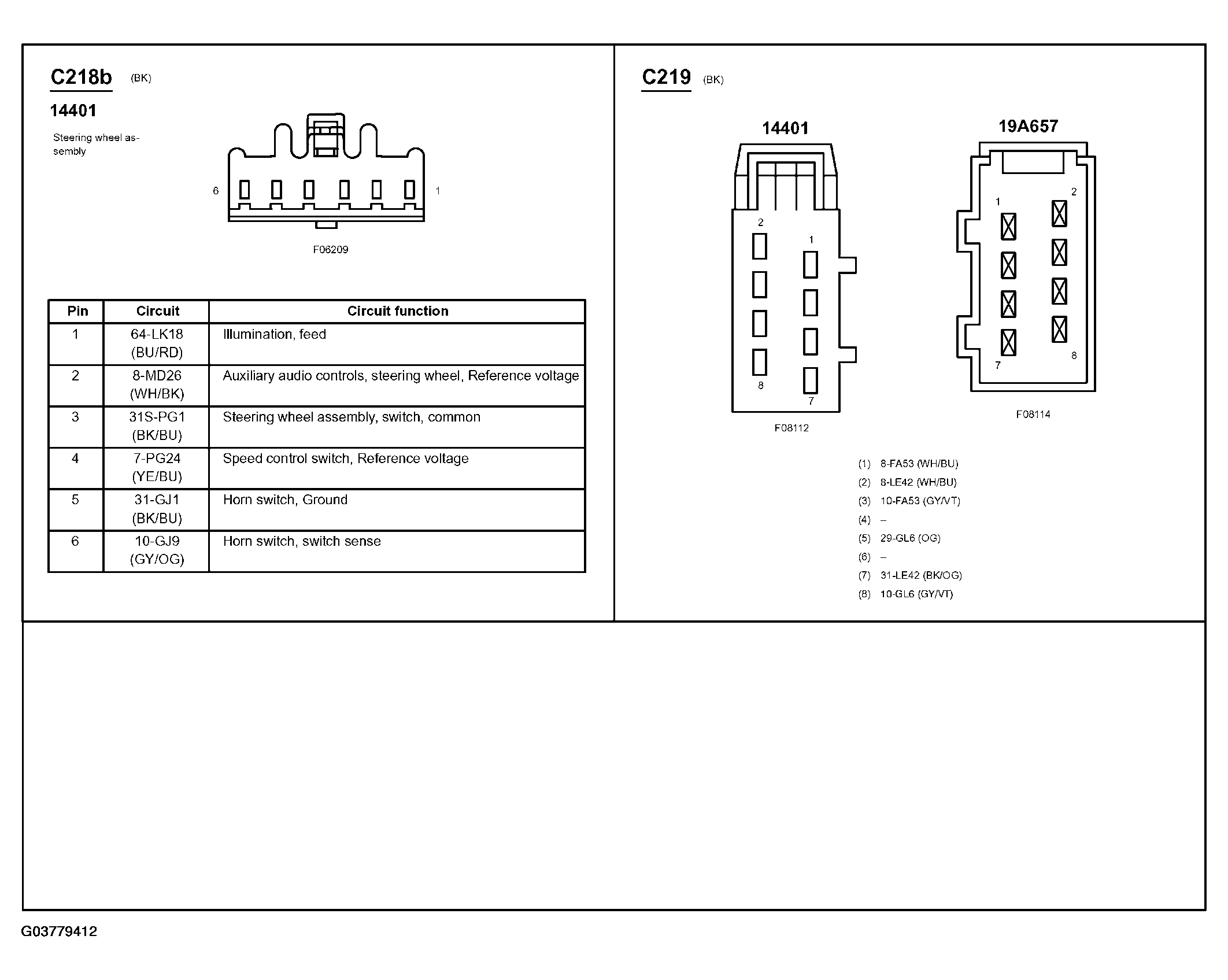

Fig 34: Identifying Connector C218b & C219

G03779412

Courtesy of FORD MOTOR CO.

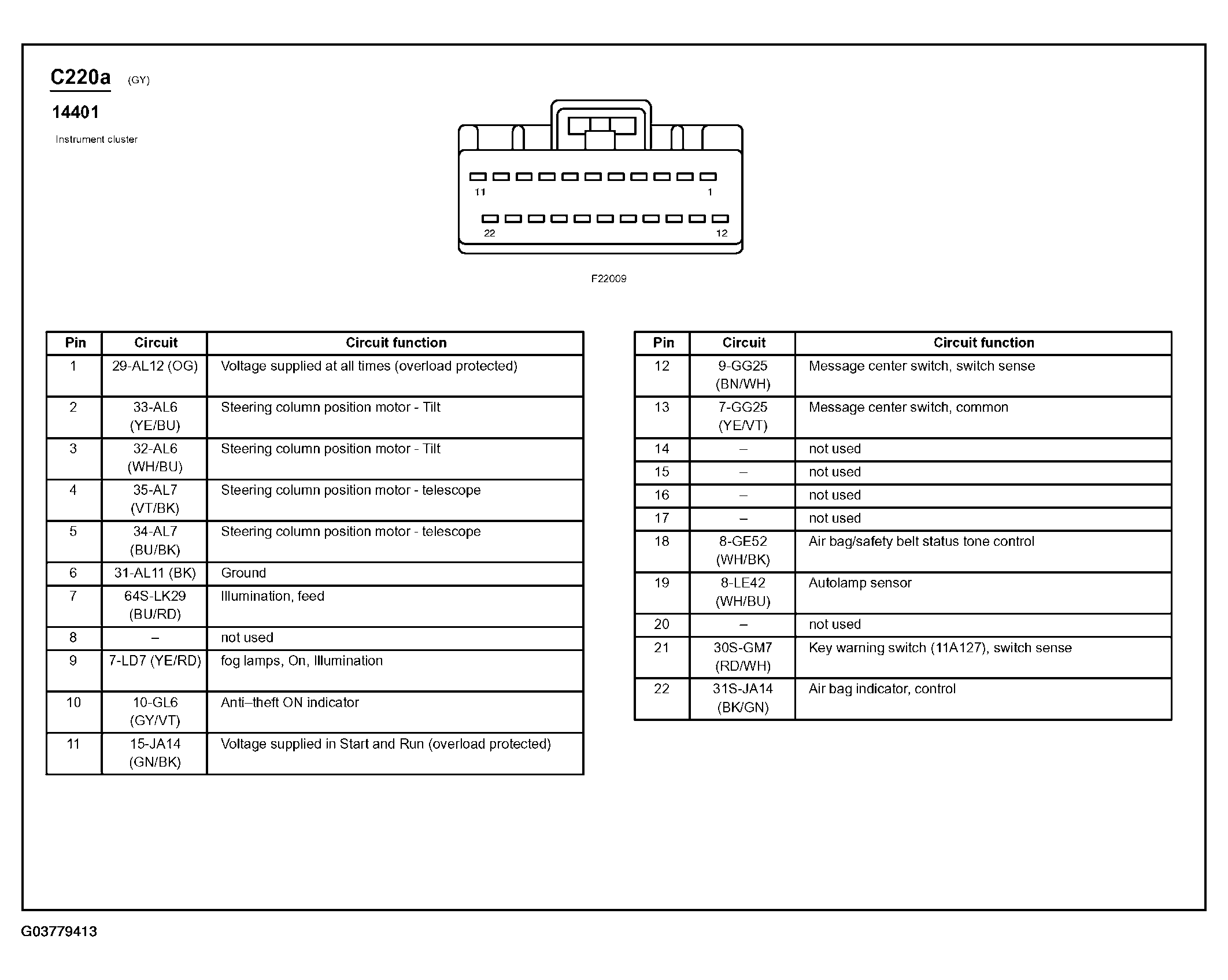

Fig 35: Instrument Cluster Connector End View (C220a)

G03779413

Courtesy of FORD MOTOR CO.

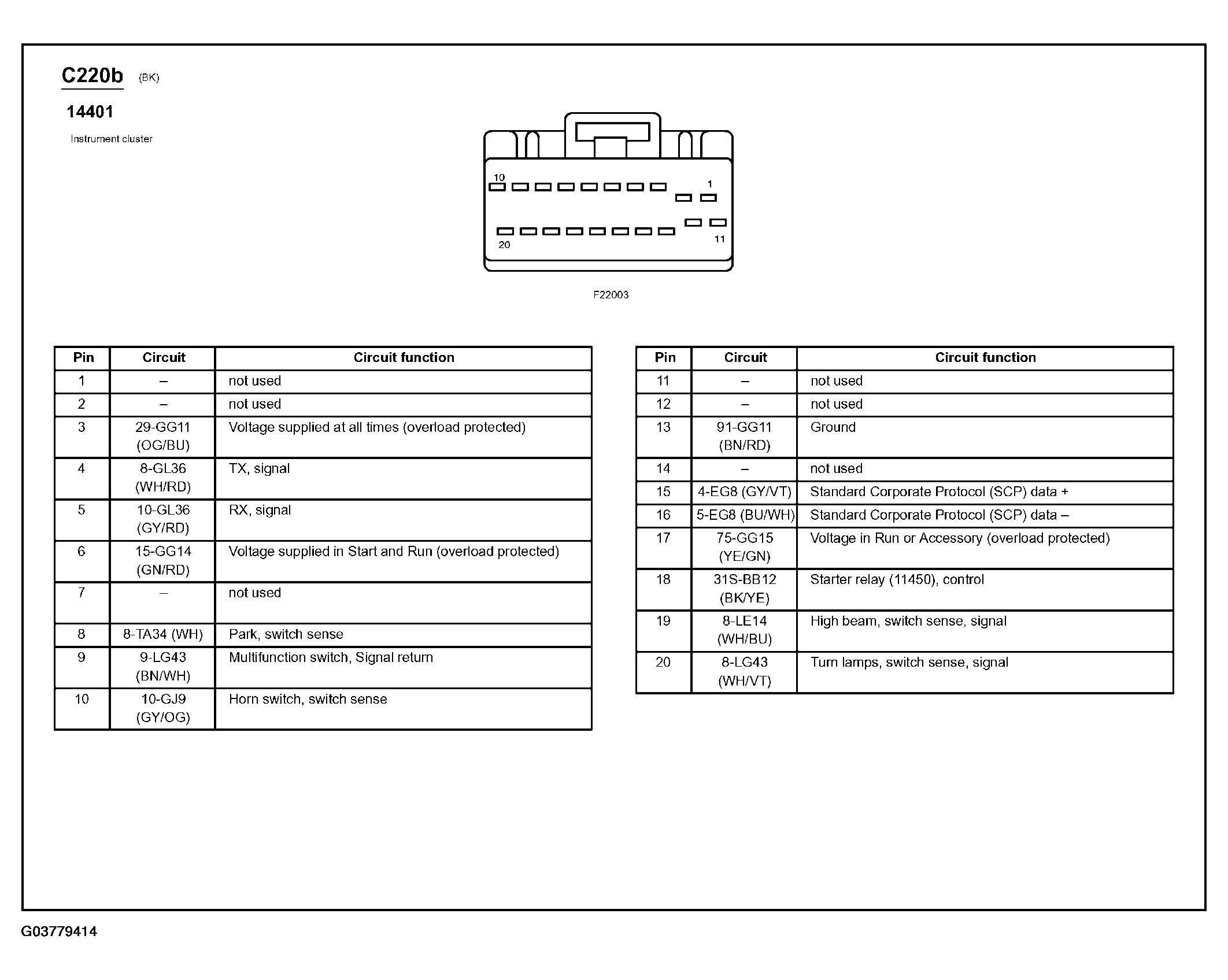

Fig 36: Instrument Cluster Connector End View (C220b)

G03779414

Courtesy of FORD MOTOR CO.

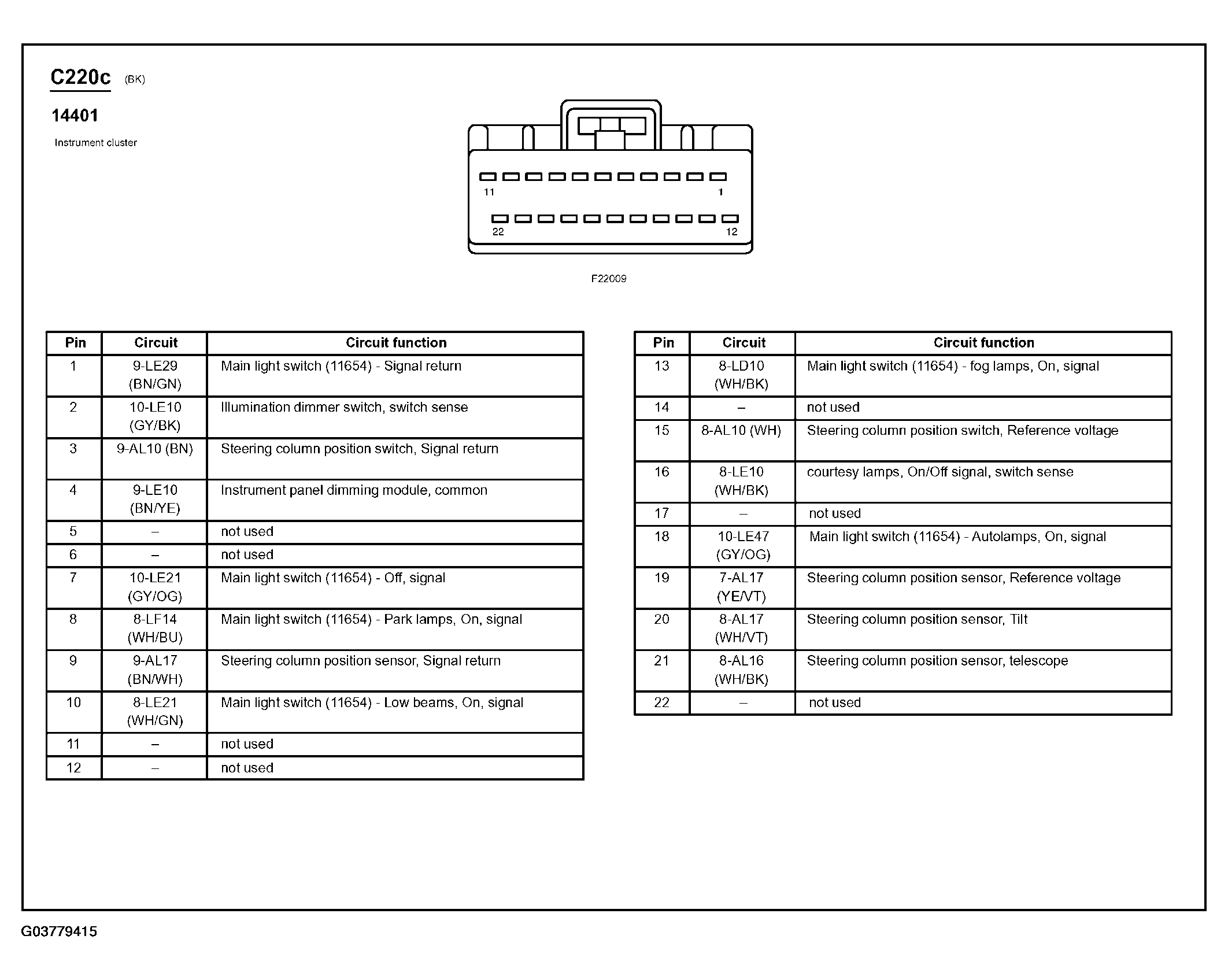

Fig 37: Instrument Cluster Connector End View (C220c)

G03779415

Courtesy of FORD MOTOR CO.

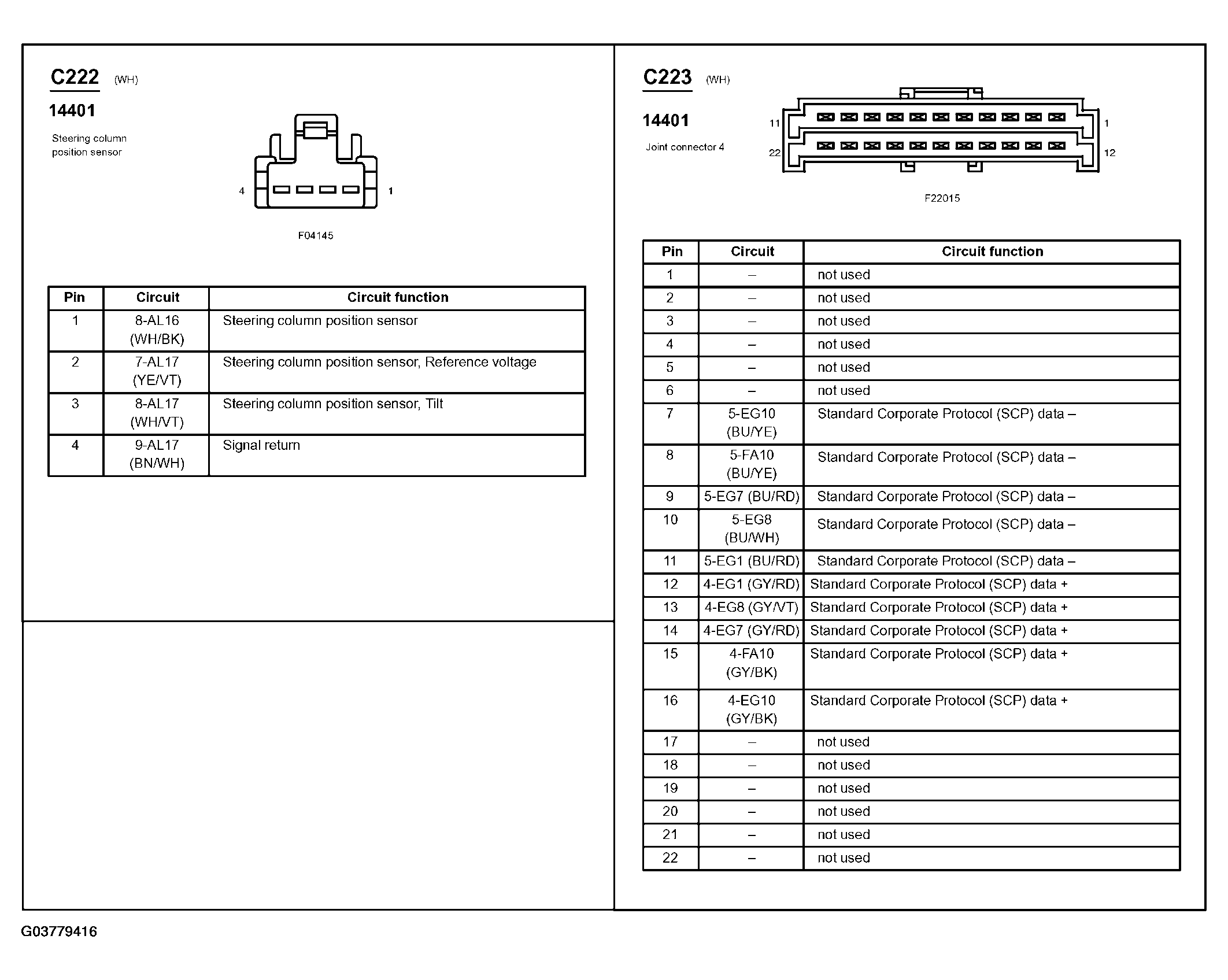

Fig 38: Identifying Connector C222 & C223

G03779416

Courtesy of FORD MOTOR CO.

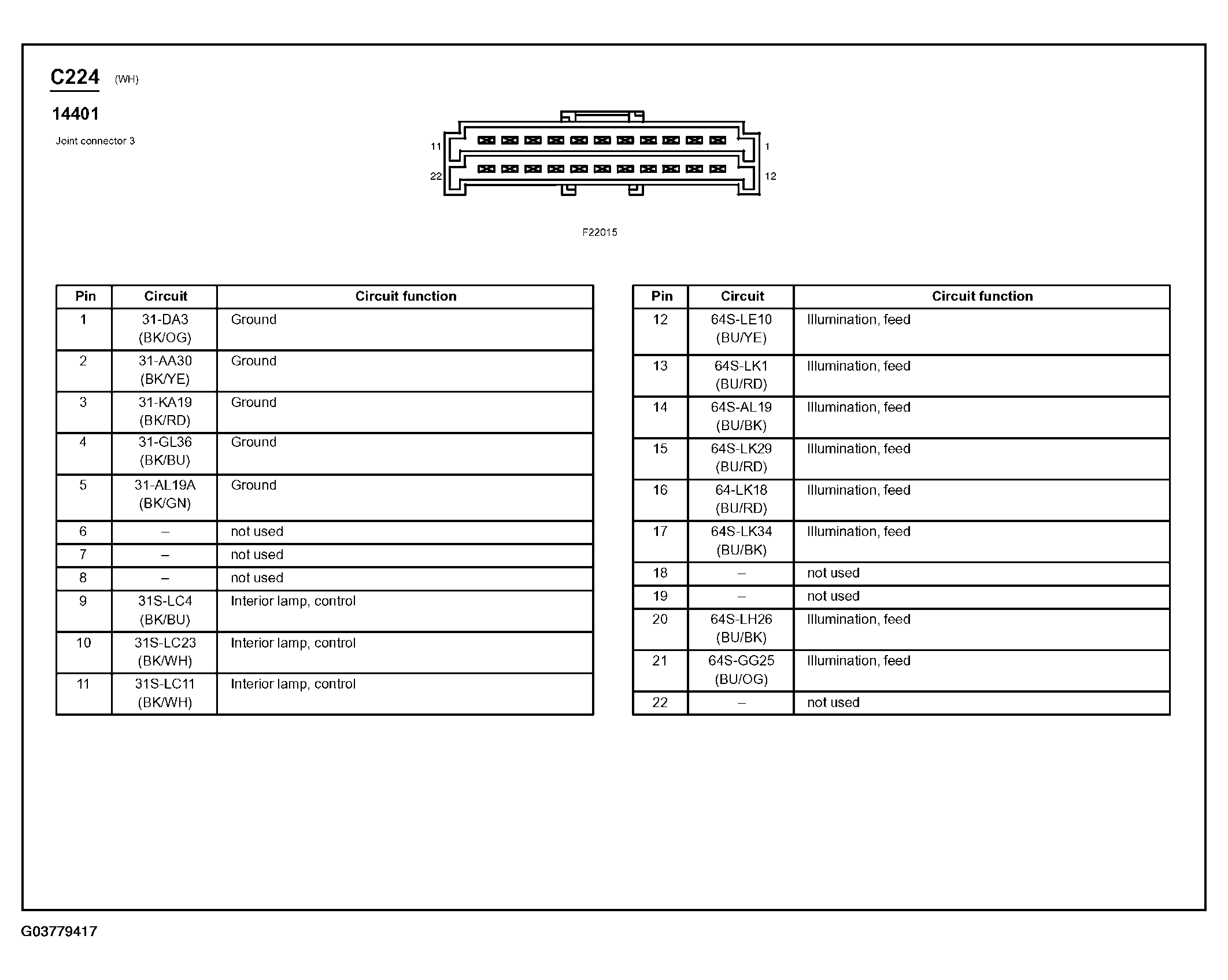

Fig 39: Joint Connector 3 Connector End View (C224)

G03779417

Courtesy of FORD MOTOR CO.

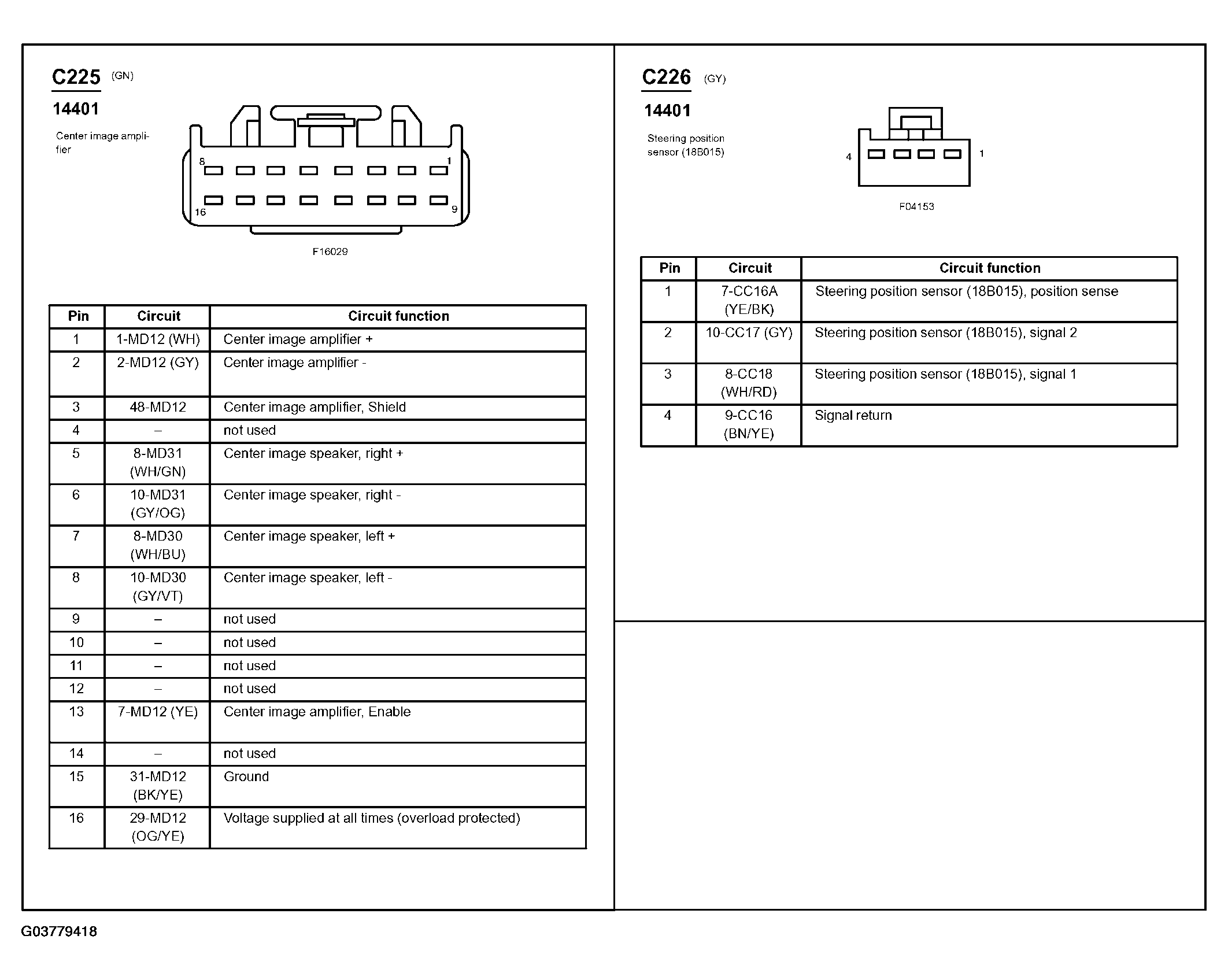

Fig 40: Identifying Connector C225 & C226

G03779418

Courtesy of FORD MOTOR CO.

Fig 41: Steering Column Position Motor Connector End View (C227)

G03779419

Courtesy of FORD MOTOR CO.

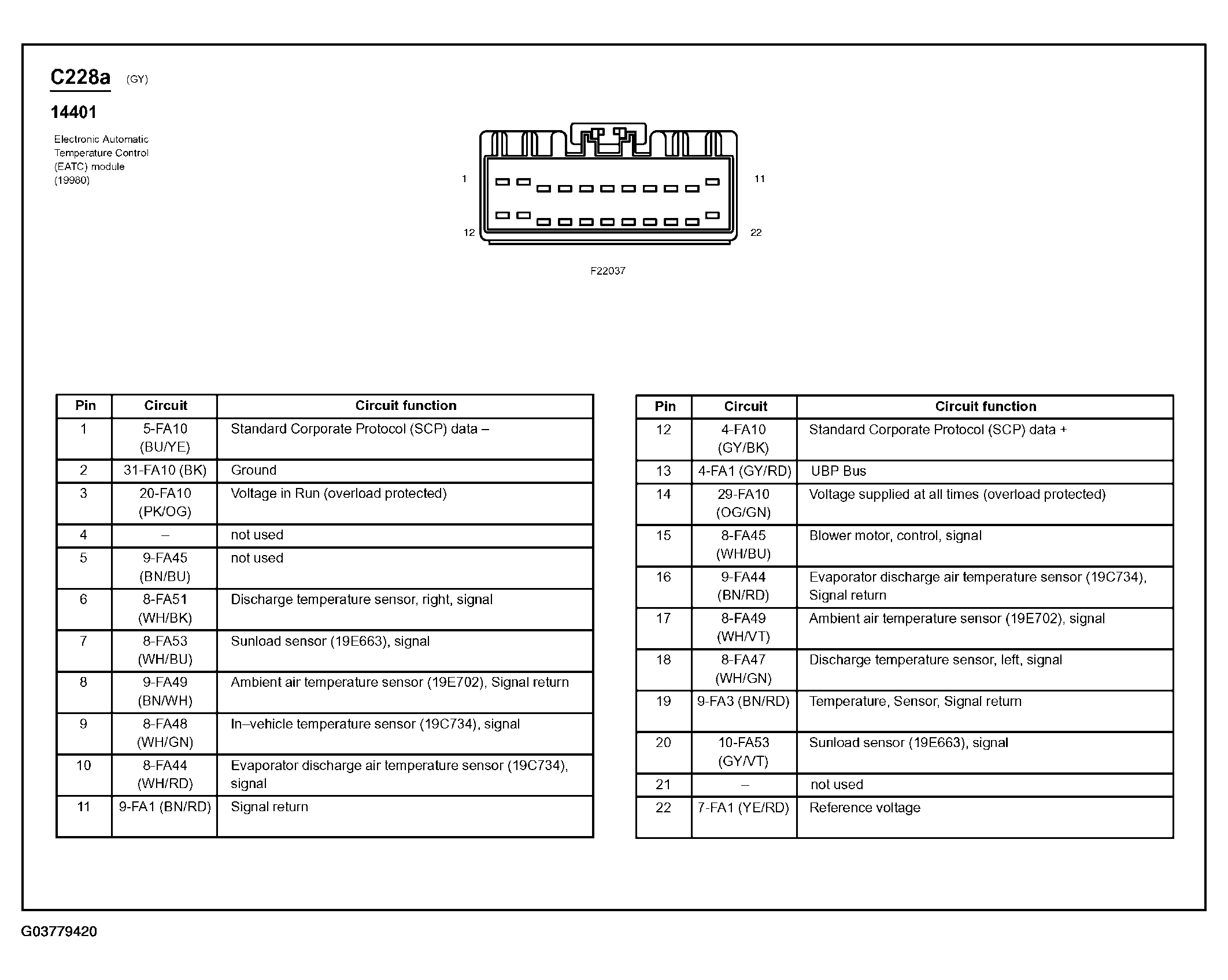

Fig 42: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)

G03779420

Courtesy of FORD MOTOR CO.

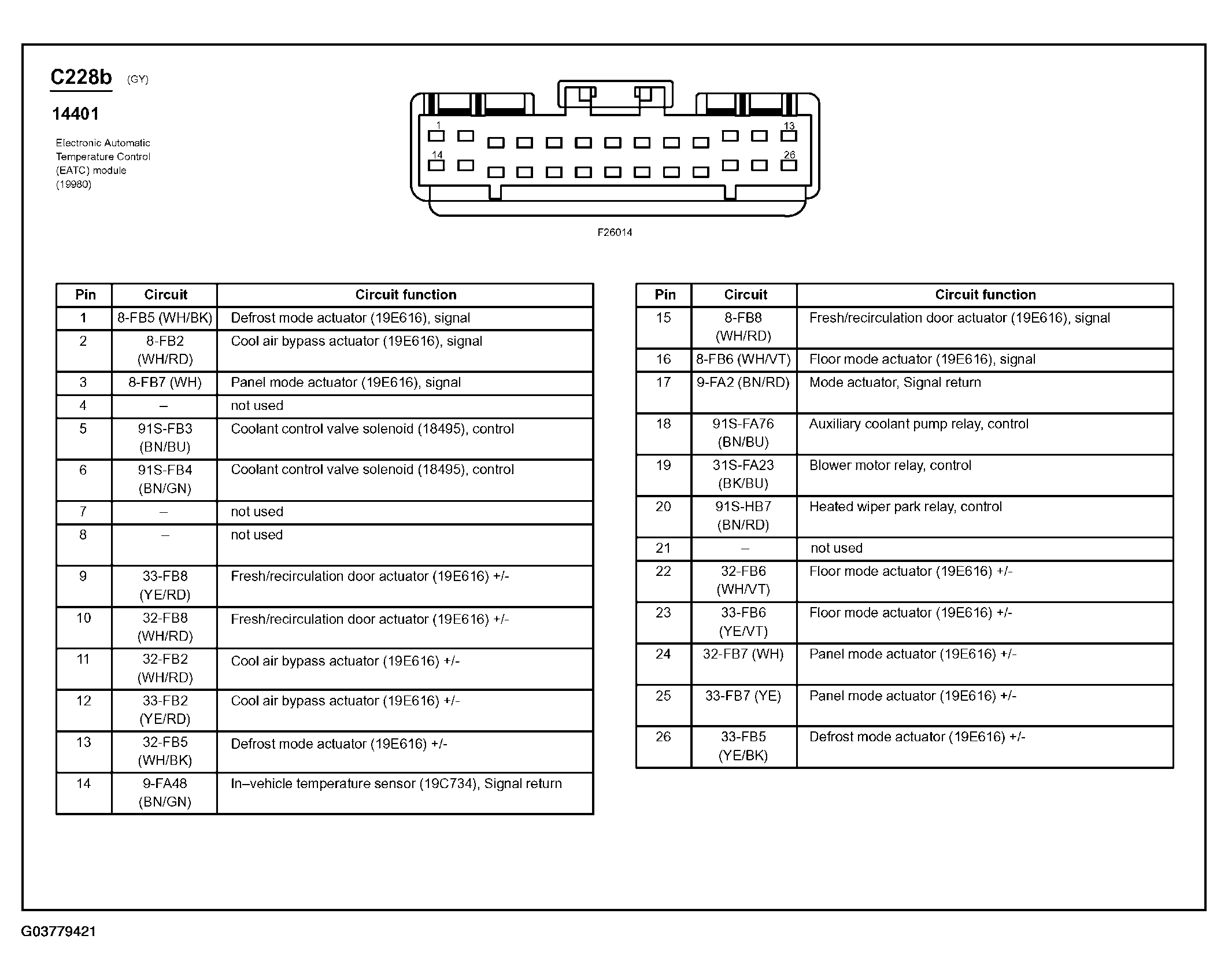

Fig 43: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)

G03779421

Courtesy of FORD MOTOR CO.

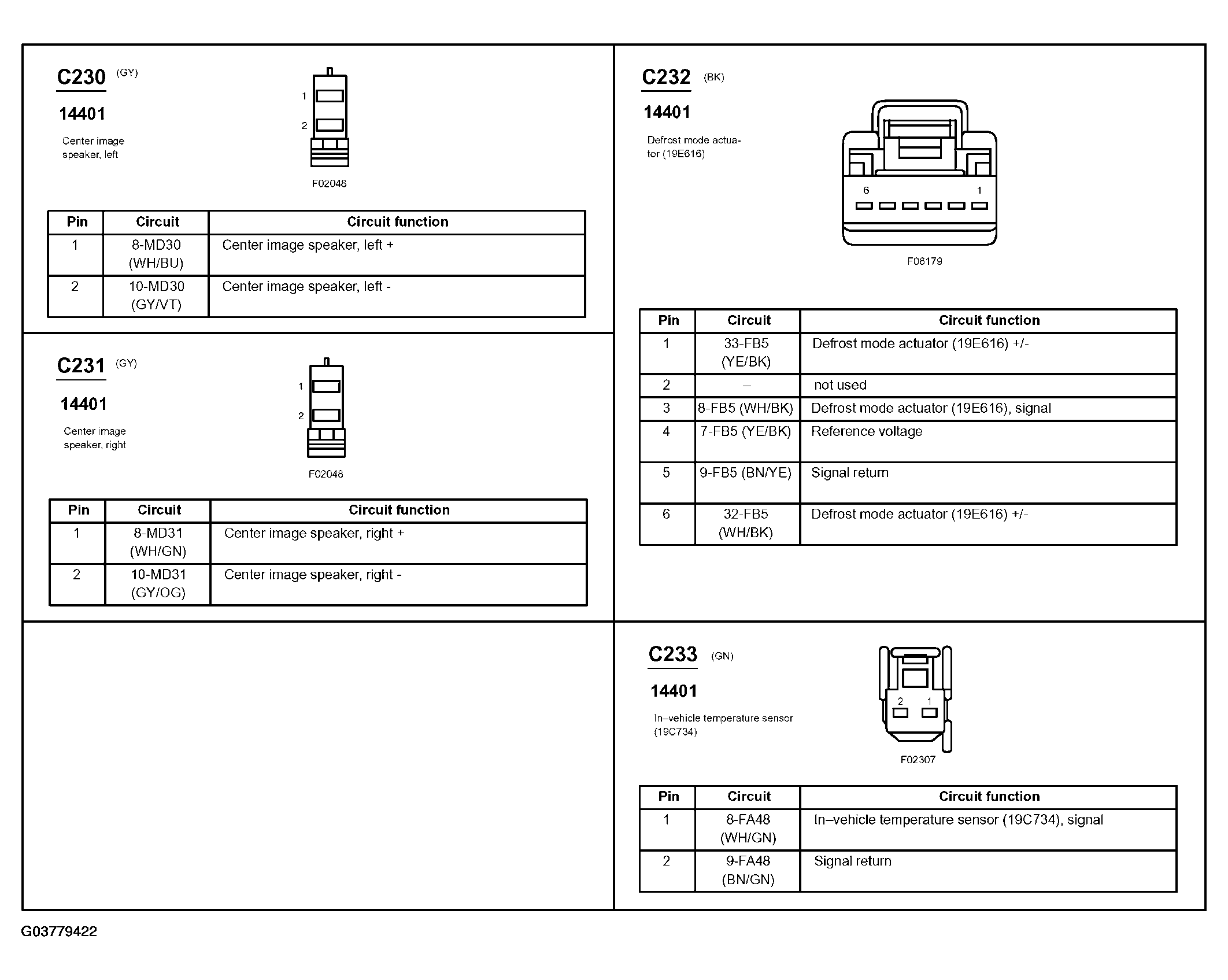

Fig 44: Identifying Connector C230, C231, C232 & C233

G03779422

Courtesy of FORD MOTOR CO.

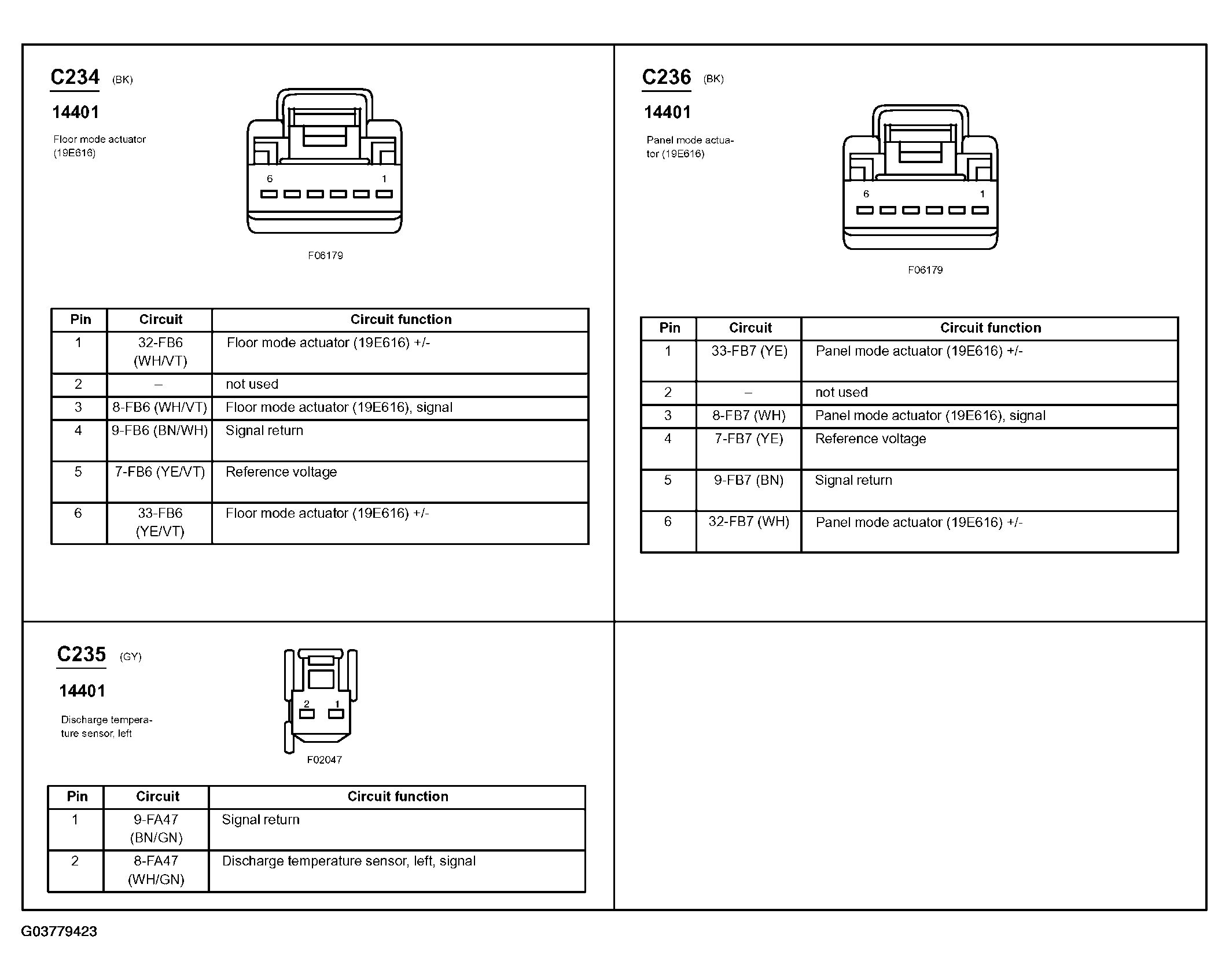

Fig 45: Identifying Connector C234, C235 & C236

G03779423

Courtesy of FORD MOTOR CO.

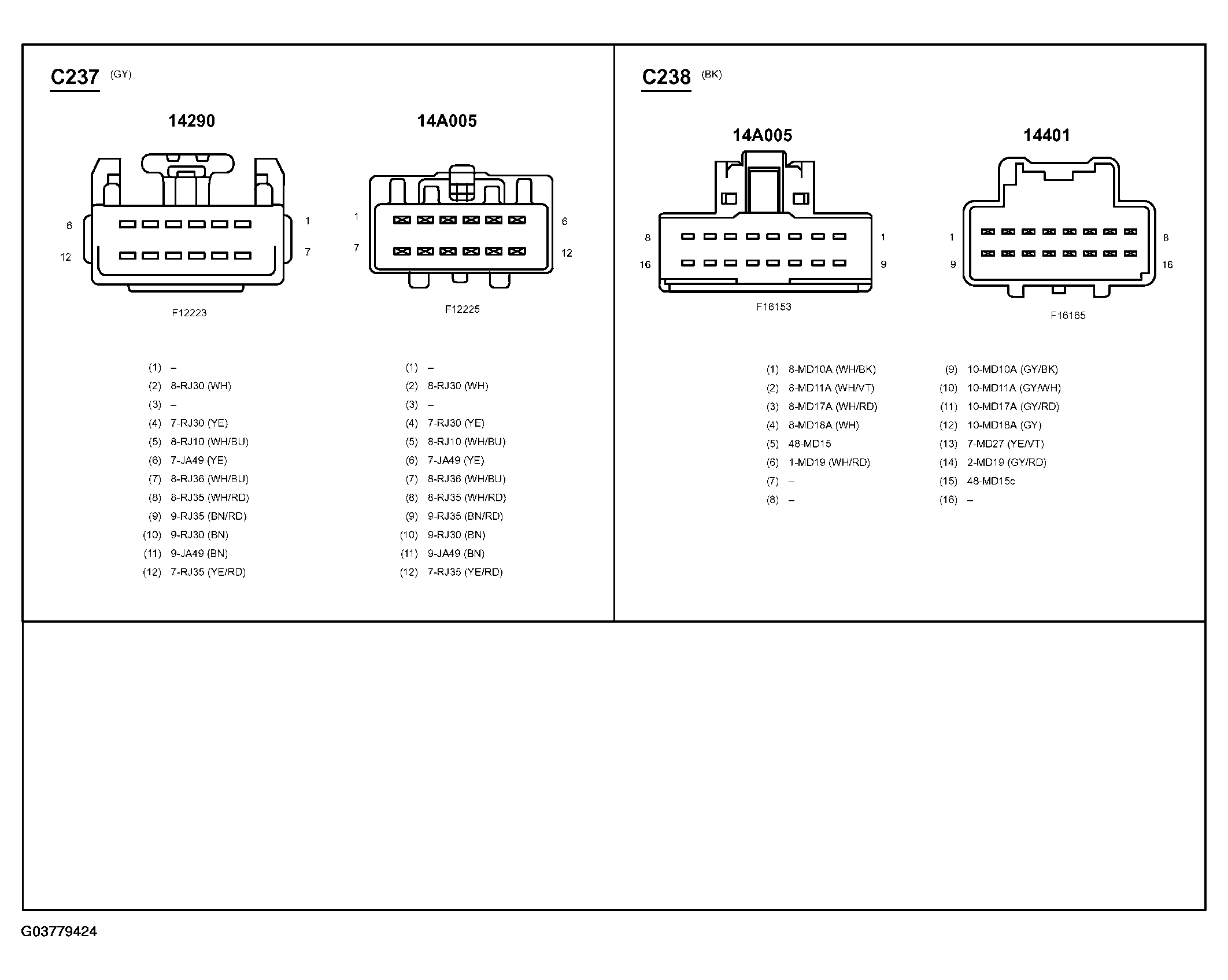

Fig 46: Identifying Connector C237 & C238

G03779424

Courtesy of FORD MOTOR CO.

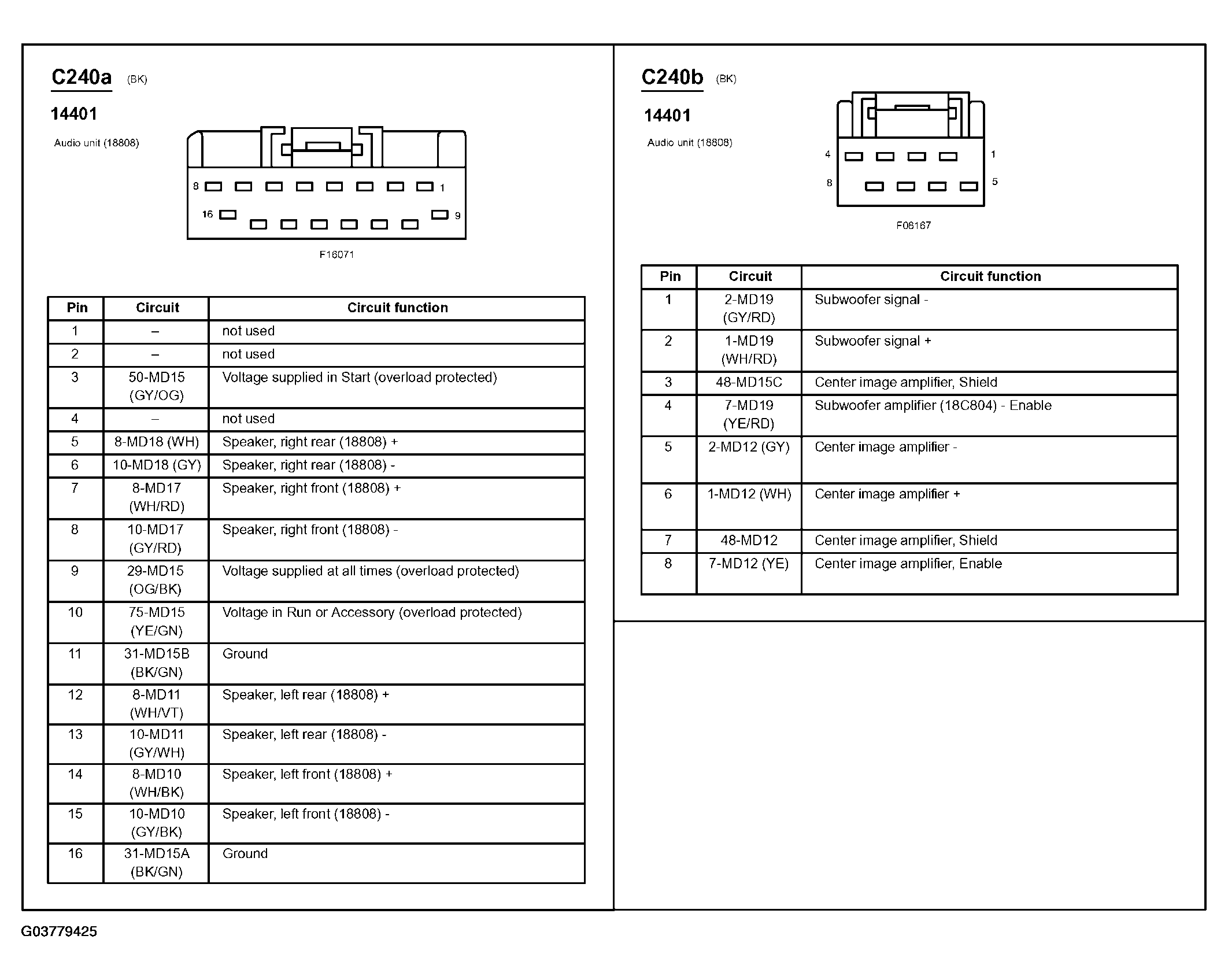

Fig 47: Identifying Connector C240a & C240b

G03779425

Courtesy of FORD MOTOR CO.

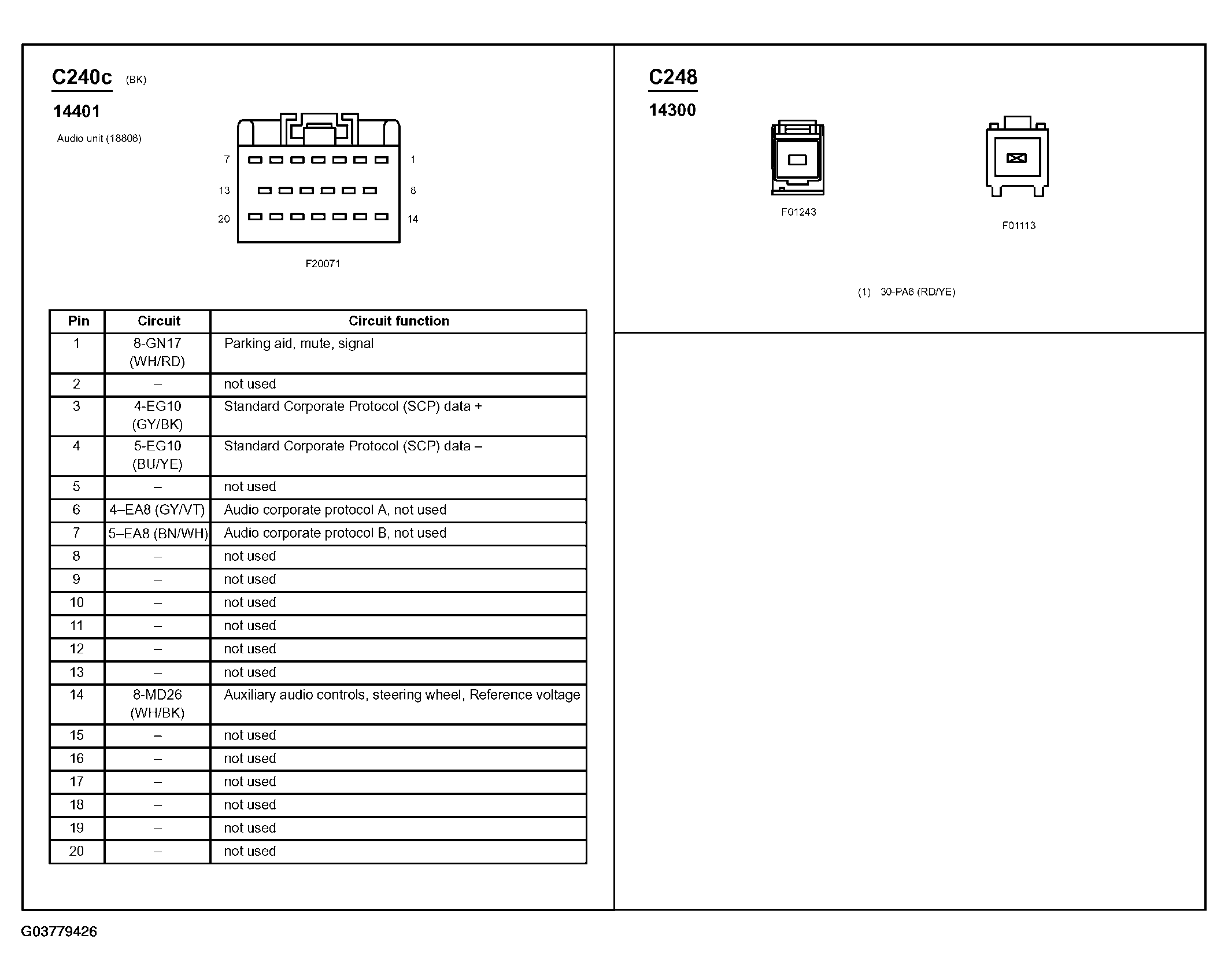

Fig 48: Identifying Connector C240c & C248

G03779426

Courtesy of FORD MOTOR CO.

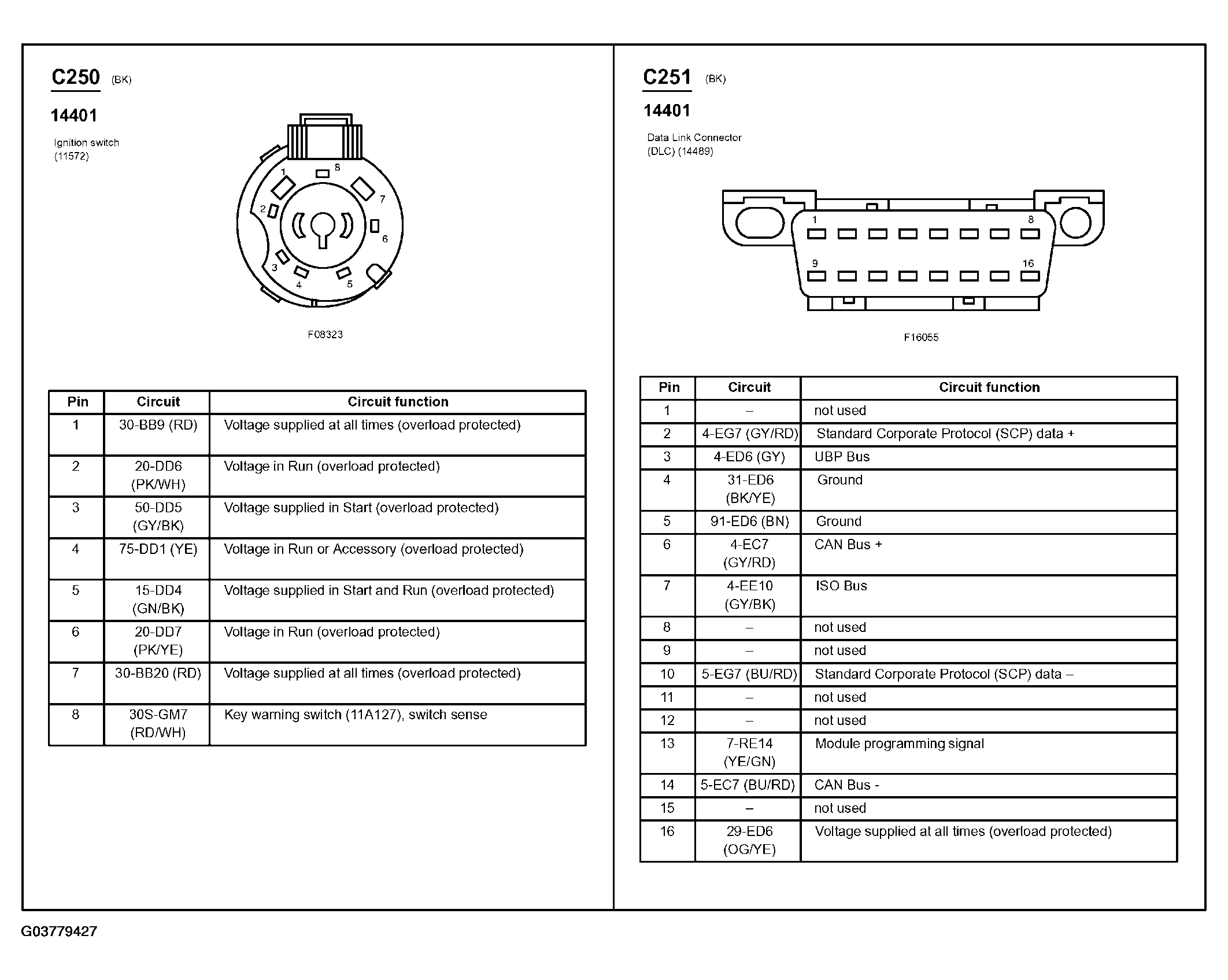

Fig 49: Identifying Connector C250 & C251

G03779427

Courtesy of FORD MOTOR CO.

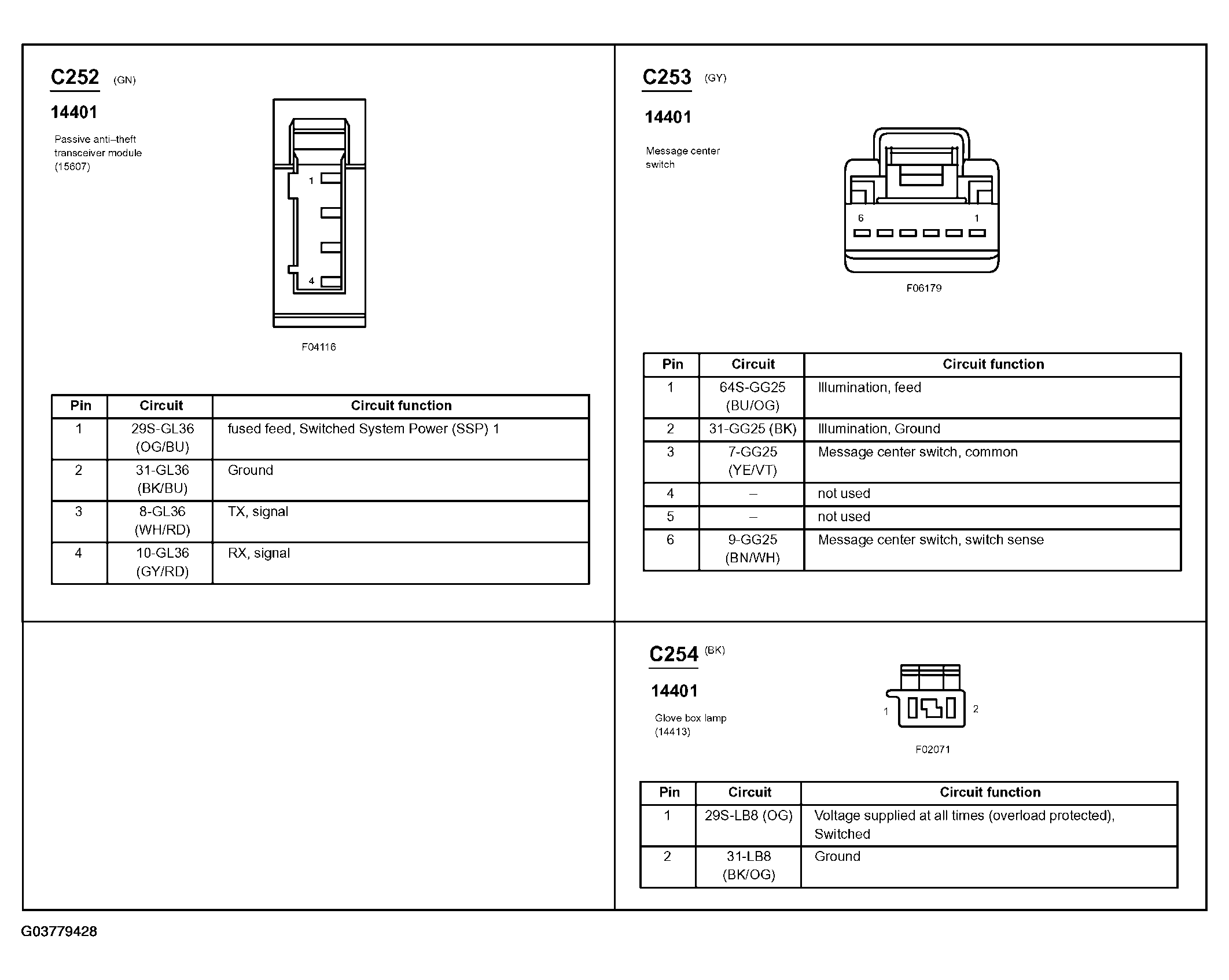

Fig 50: Identifying Connector C252, C253 & C254

G03779428

Courtesy of FORD MOTOR CO.

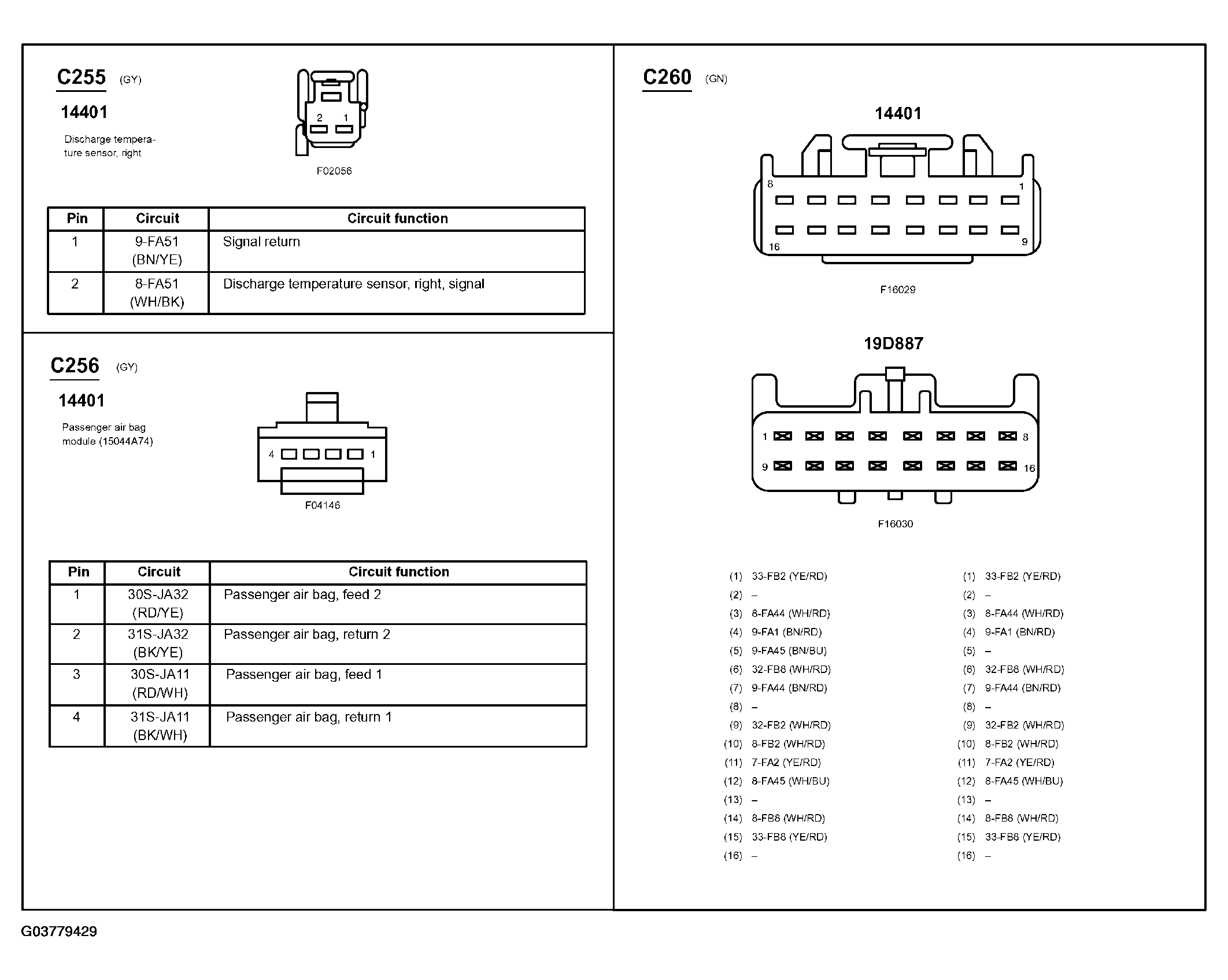

Fig 51: Identifying Connector C255, C256 & C260

G03779429

Courtesy of FORD MOTOR CO.

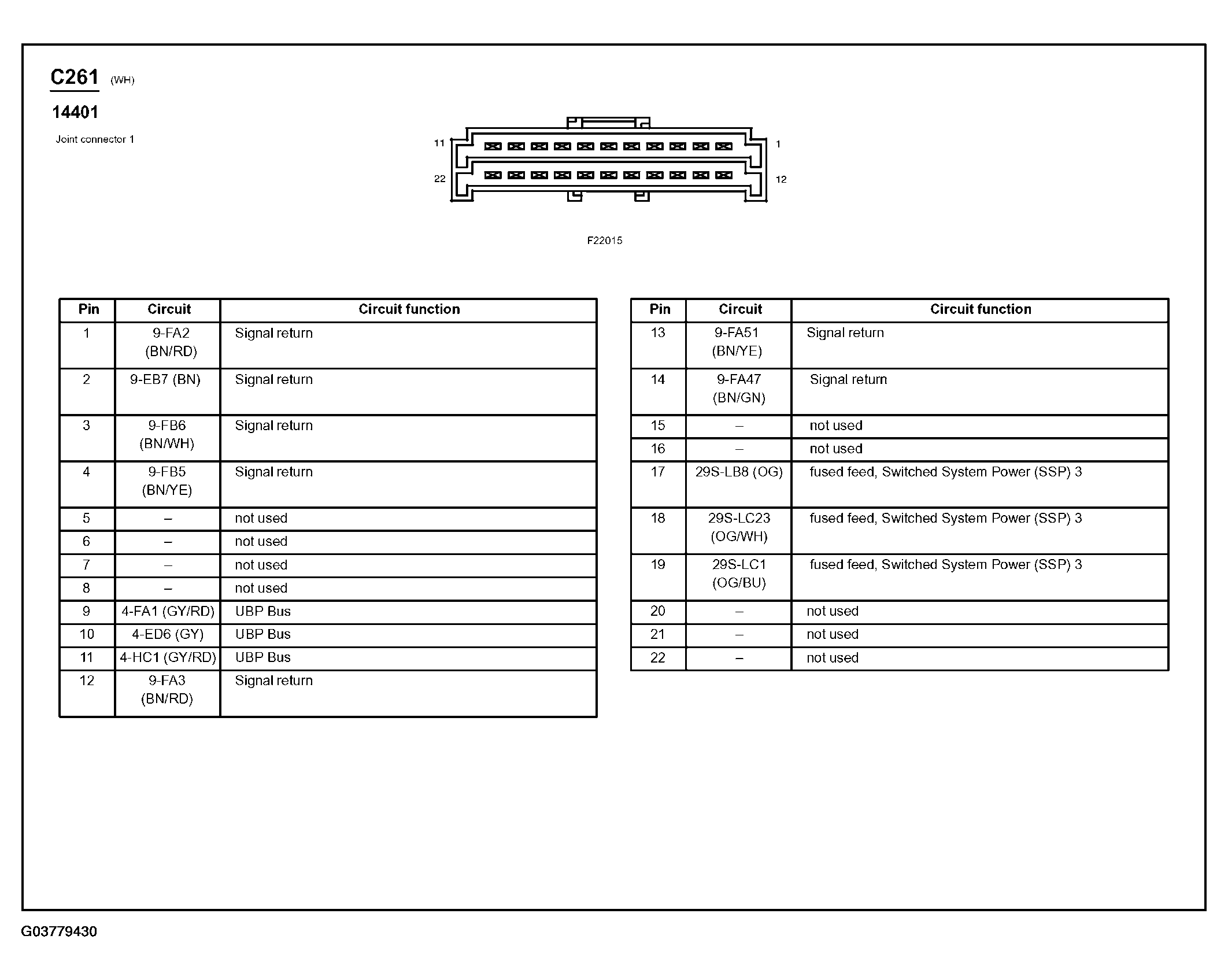

Fig 52: Joint Connector 1 Connector End View (C261)

G03779430

Courtesy of FORD MOTOR CO.

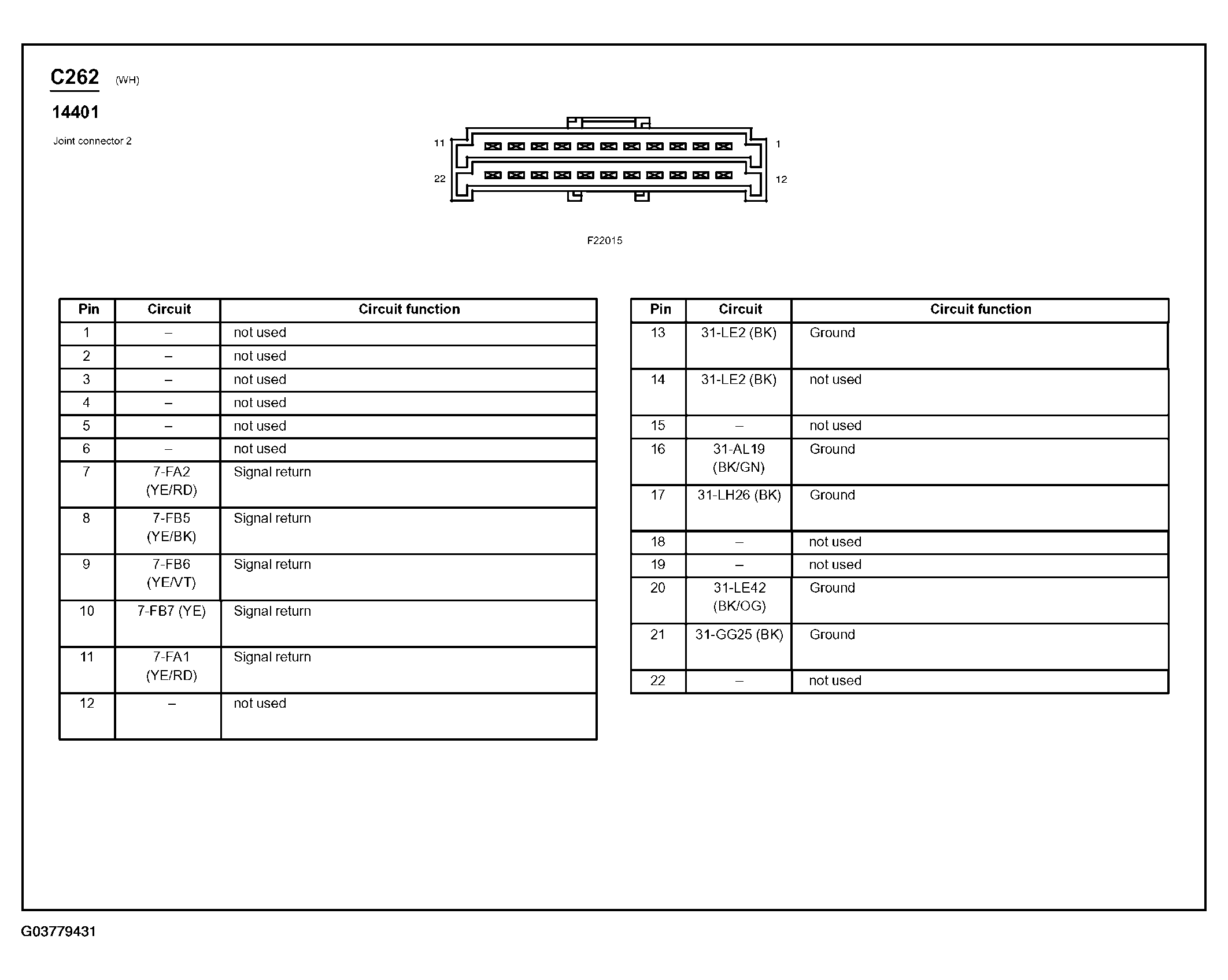

Fig 53: Joint Connector 2 Connector End View (C262)

G03779431

Courtesy of FORD MOTOR CO.

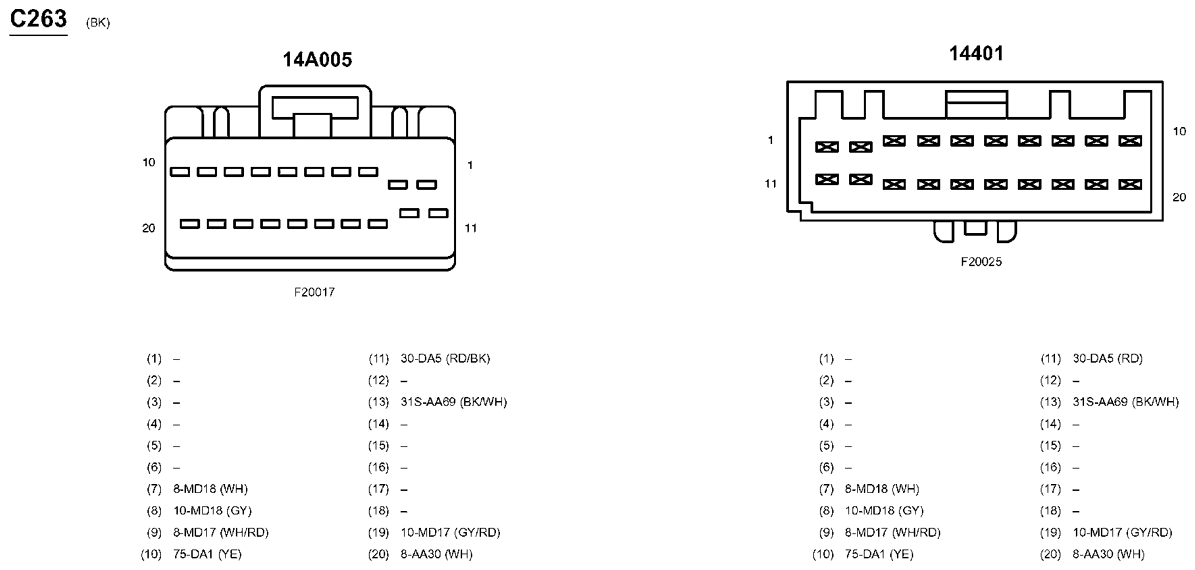

Fig 54: Inline Connector End View (C263)

G03779432

Courtesy of FORD MOTOR CO.

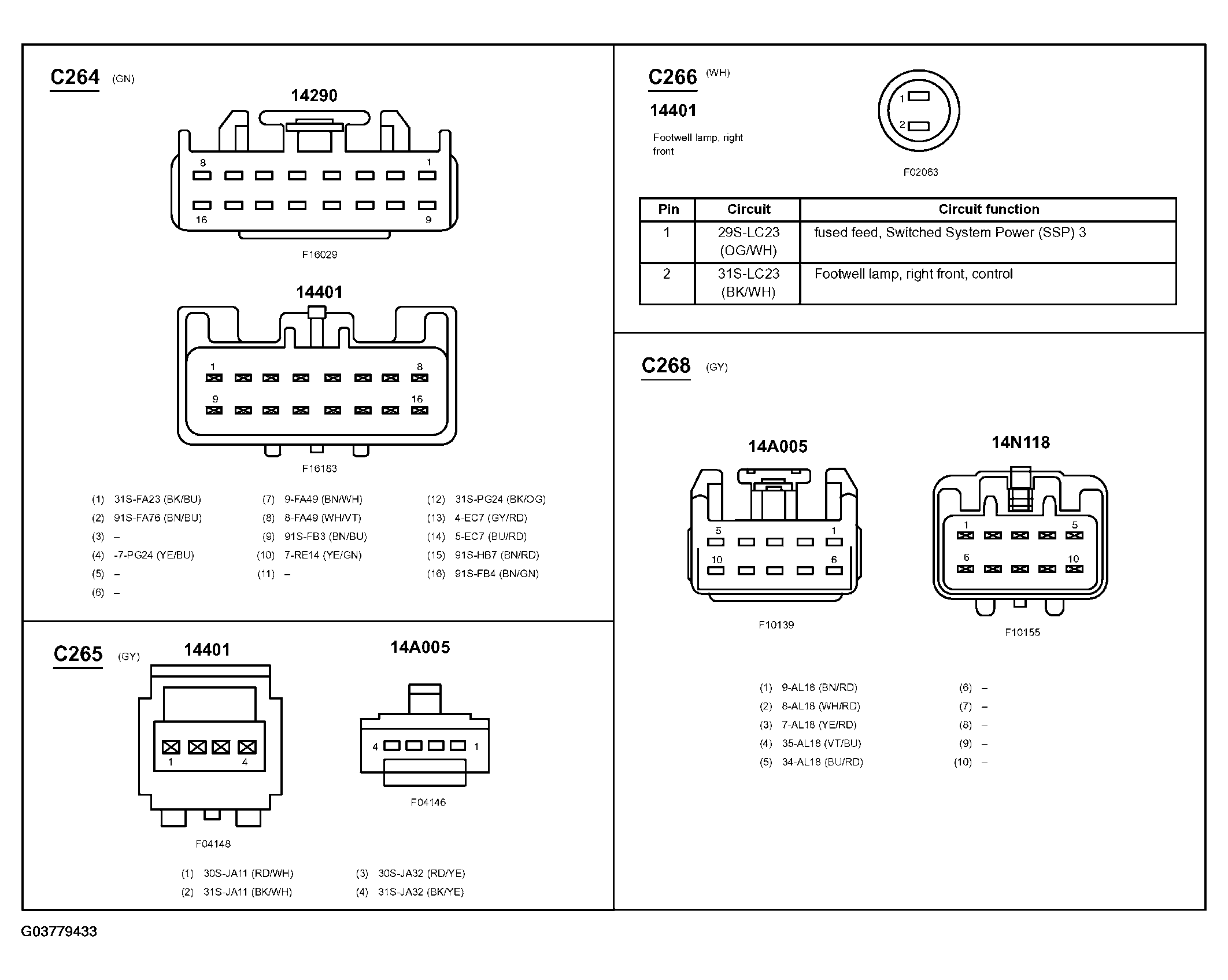

Fig 55: Identifying Connector C264, C265, C266 & C268

G03779433

Courtesy of FORD MOTOR CO.

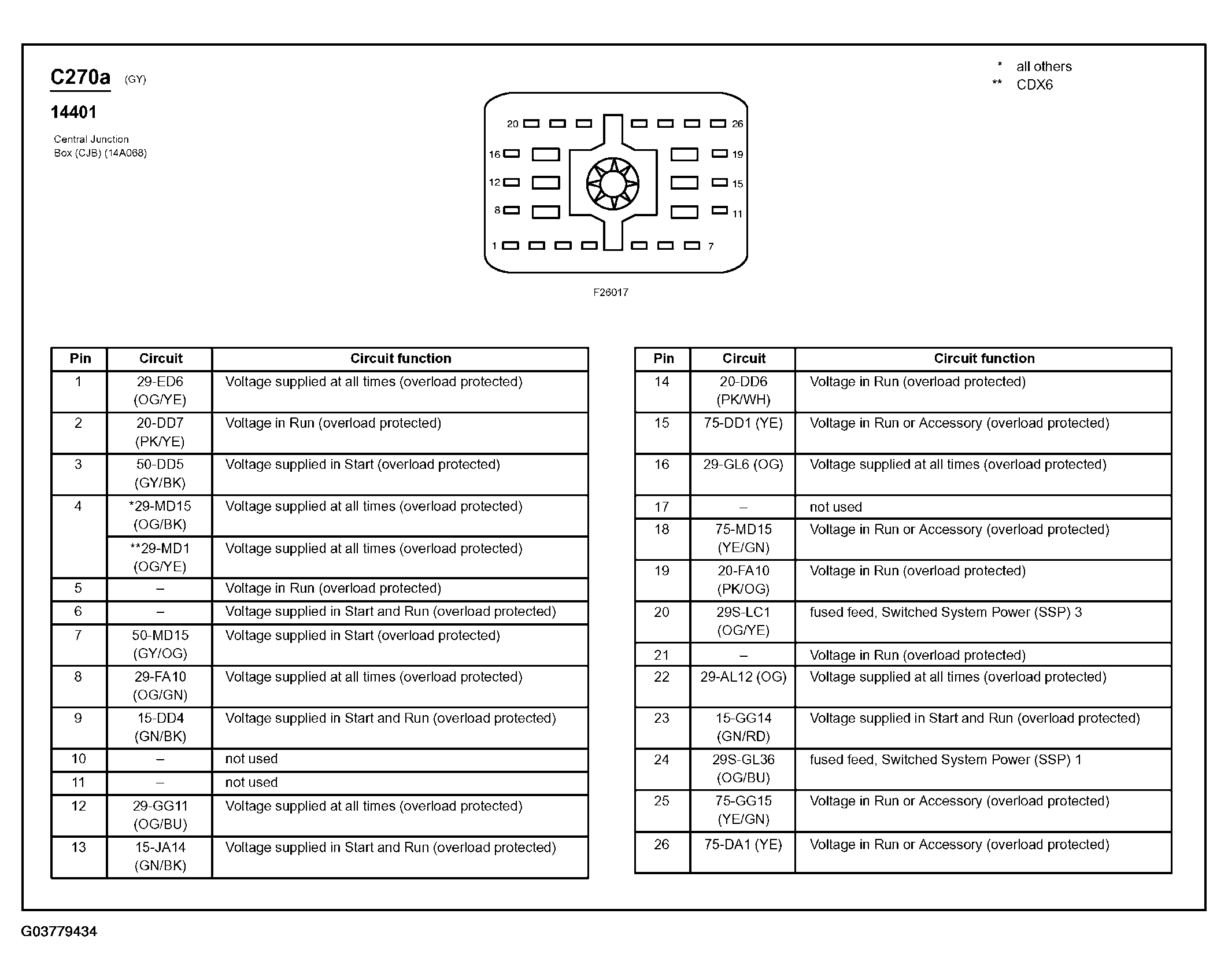

Fig 56: Central Junction Box (CJB) Connector End View (C270a)

G03779434

Courtesy of FORD MOTOR CO.

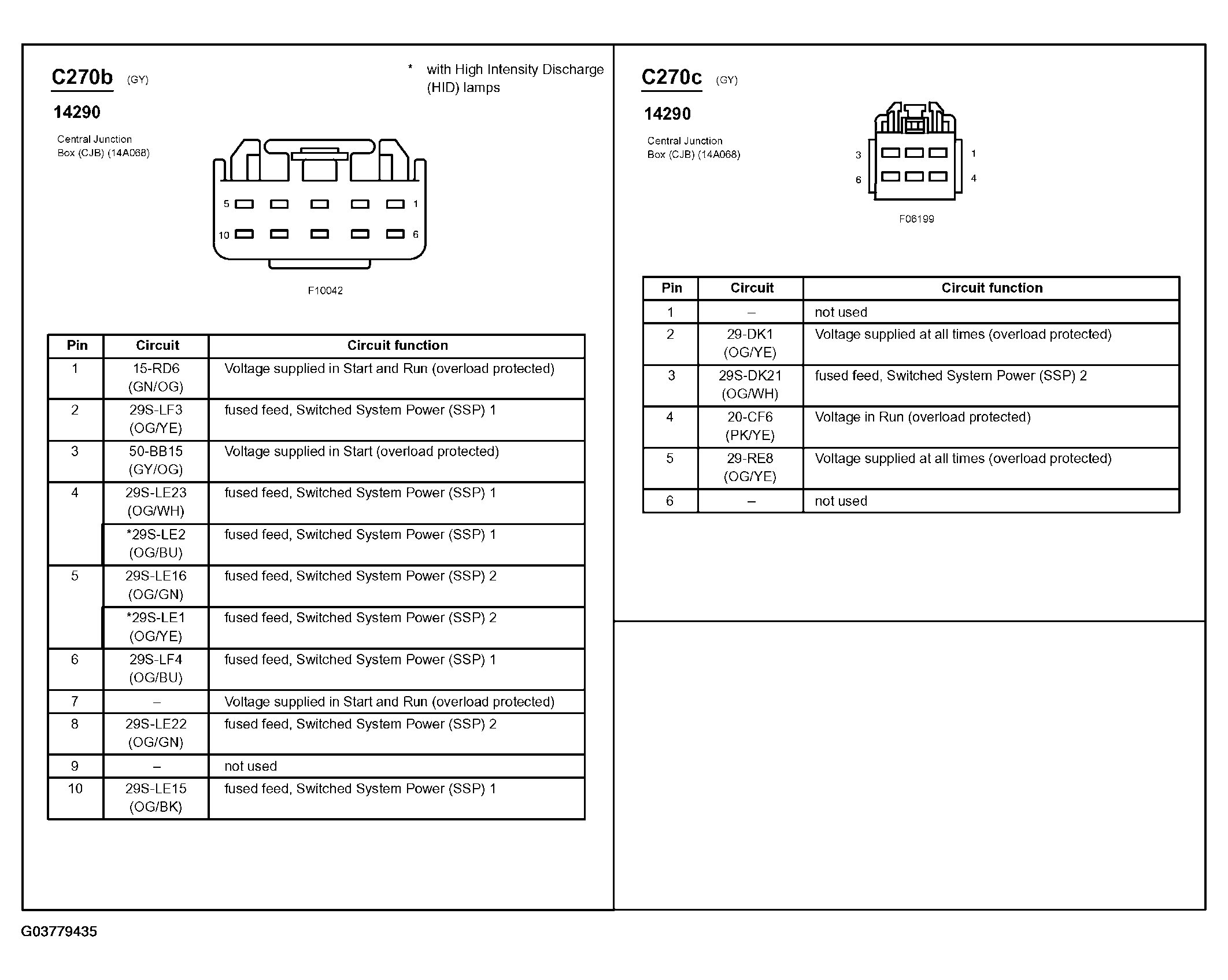

Fig 57: Identifying Connector C270b & C270c

G03779435

Courtesy of FORD MOTOR CO.

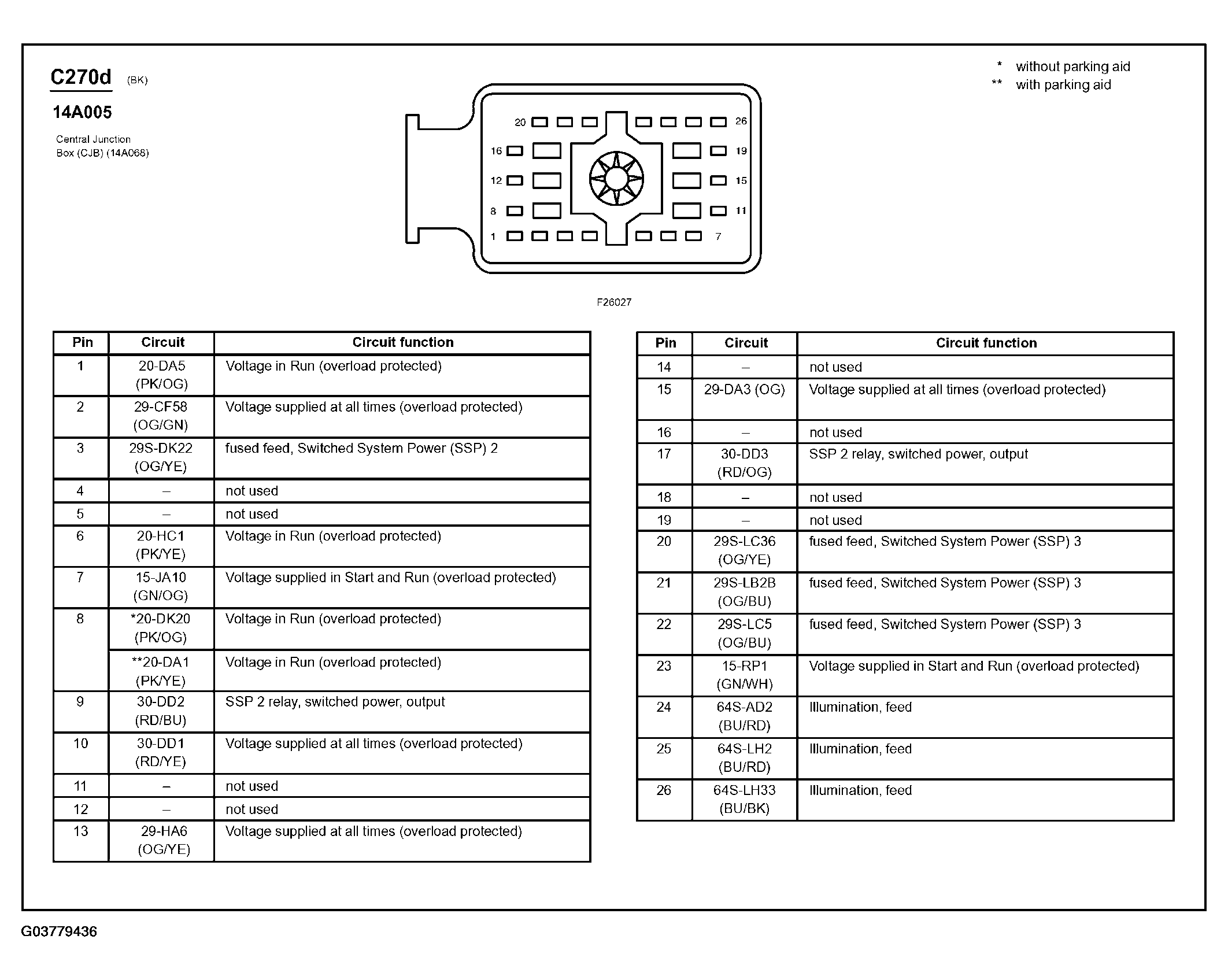

Fig 58: Central Junction Box (CJB) Connector End View (C270d)

G03779436

Courtesy of FORD MOTOR CO.

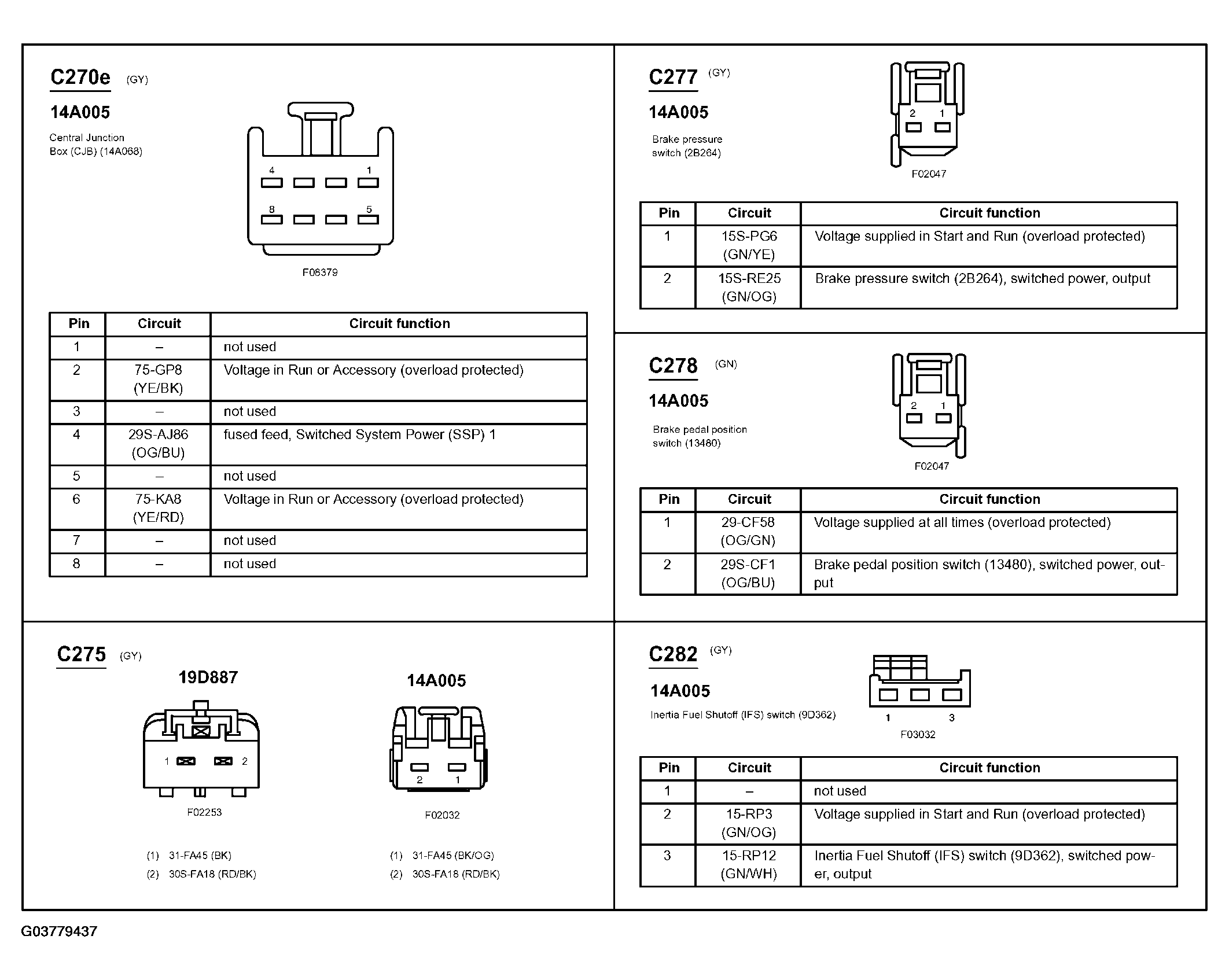

Fig 59: Identifying Connector C270e, C275, C277, C278 & C282

G03779437

Courtesy of FORD MOTOR CO.

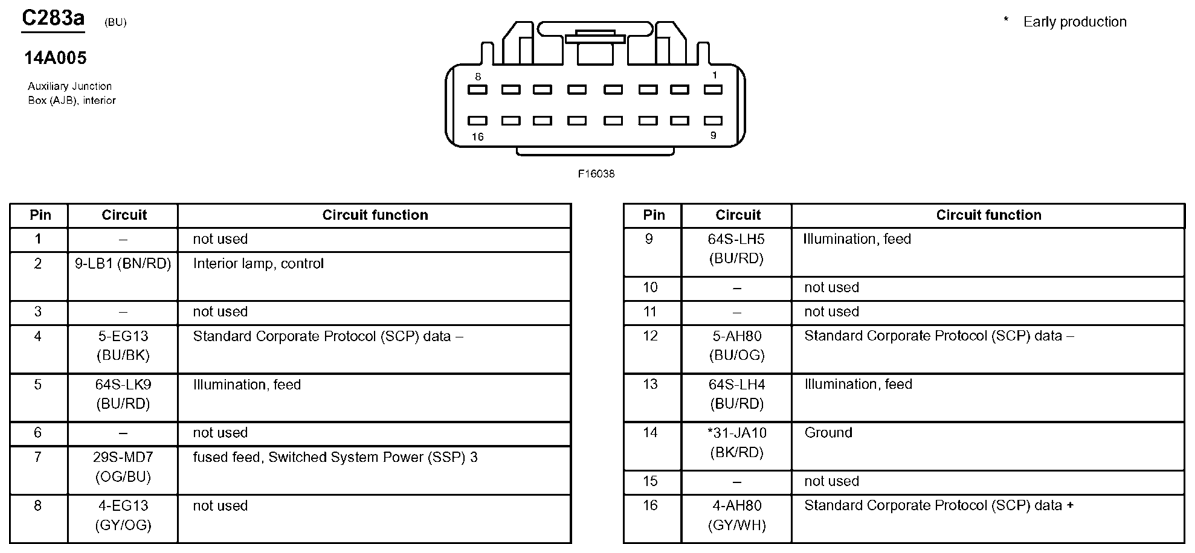

Fig 60: Auxiliary Junction Box (AJB), Interior Connector End View (C283a)

G03779438

Courtesy of FORD MOTOR CO.

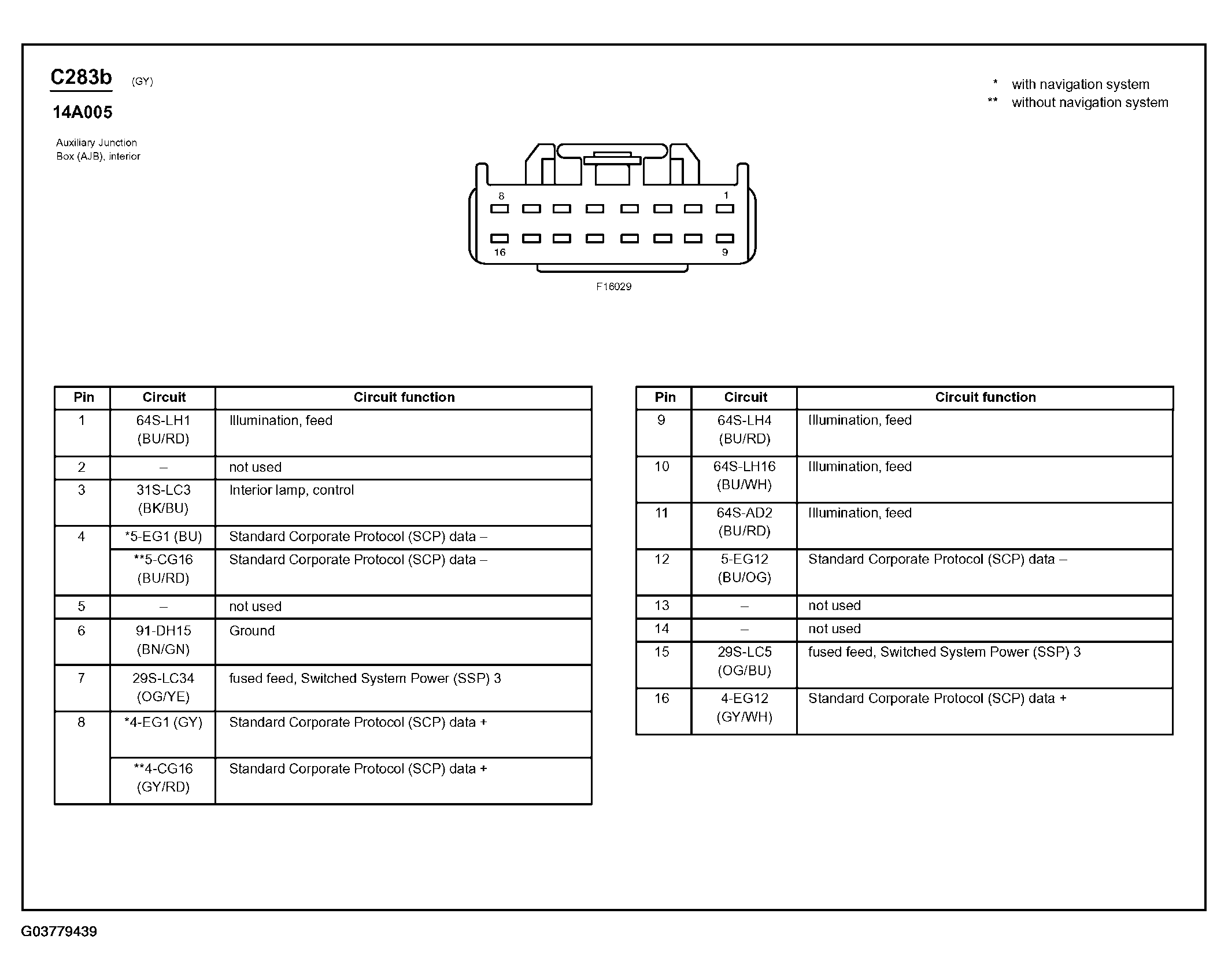

Fig 61: Auxiliary Junction Box (AJB), Interior Connector End View (C283b)

G03779439

Courtesy of FORD MOTOR CO.

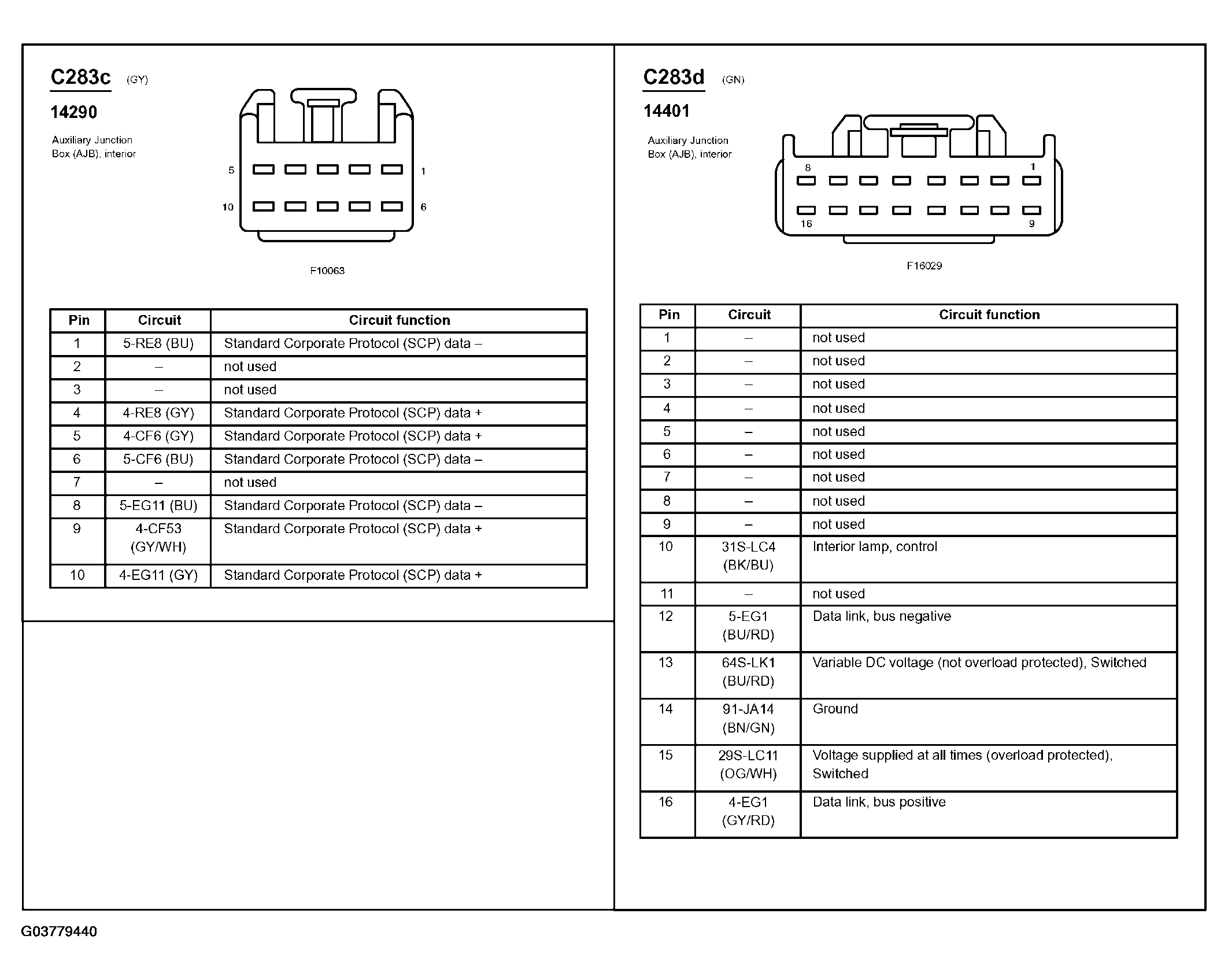

Fig 62: Identifying Connector C283c & C283d

G03779440

Courtesy of FORD MOTOR CO.

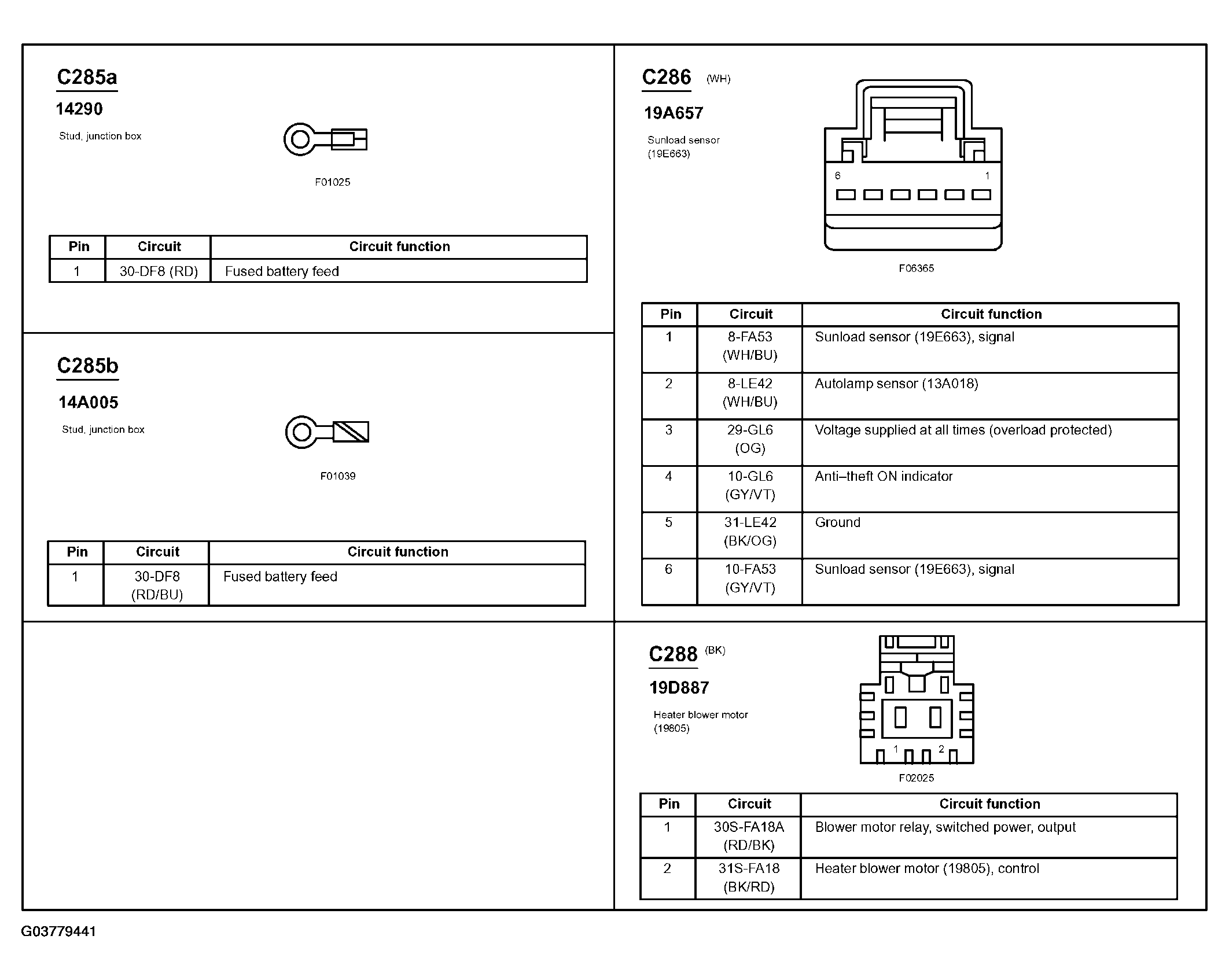

Fig 63: Identifying Connector C285a, C285b, C286 & C288

G03779441

Courtesy of FORD MOTOR CO.

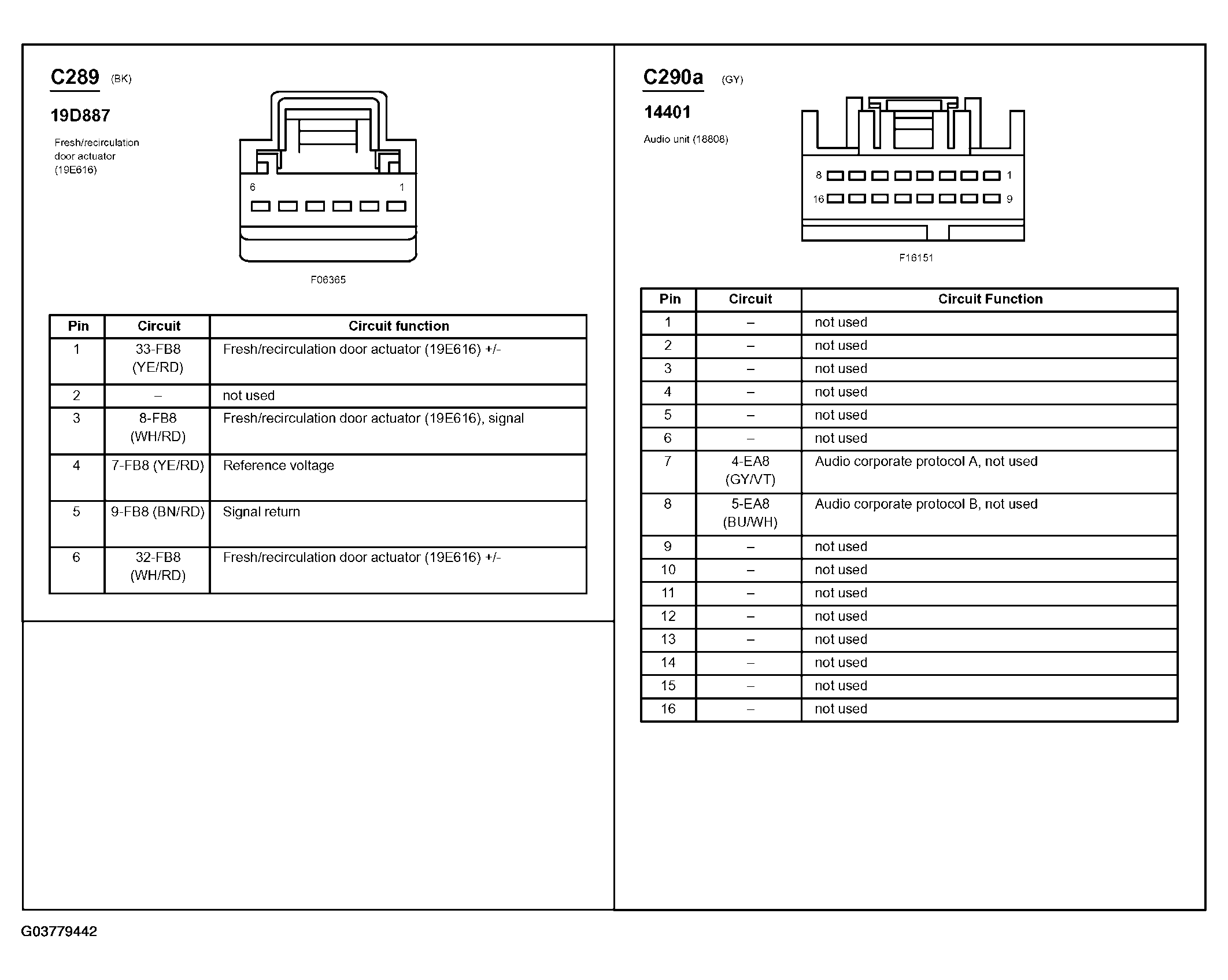

Fig 64: Identifying Connector C289 & C290a

G03779442

Courtesy of FORD MOTOR CO.

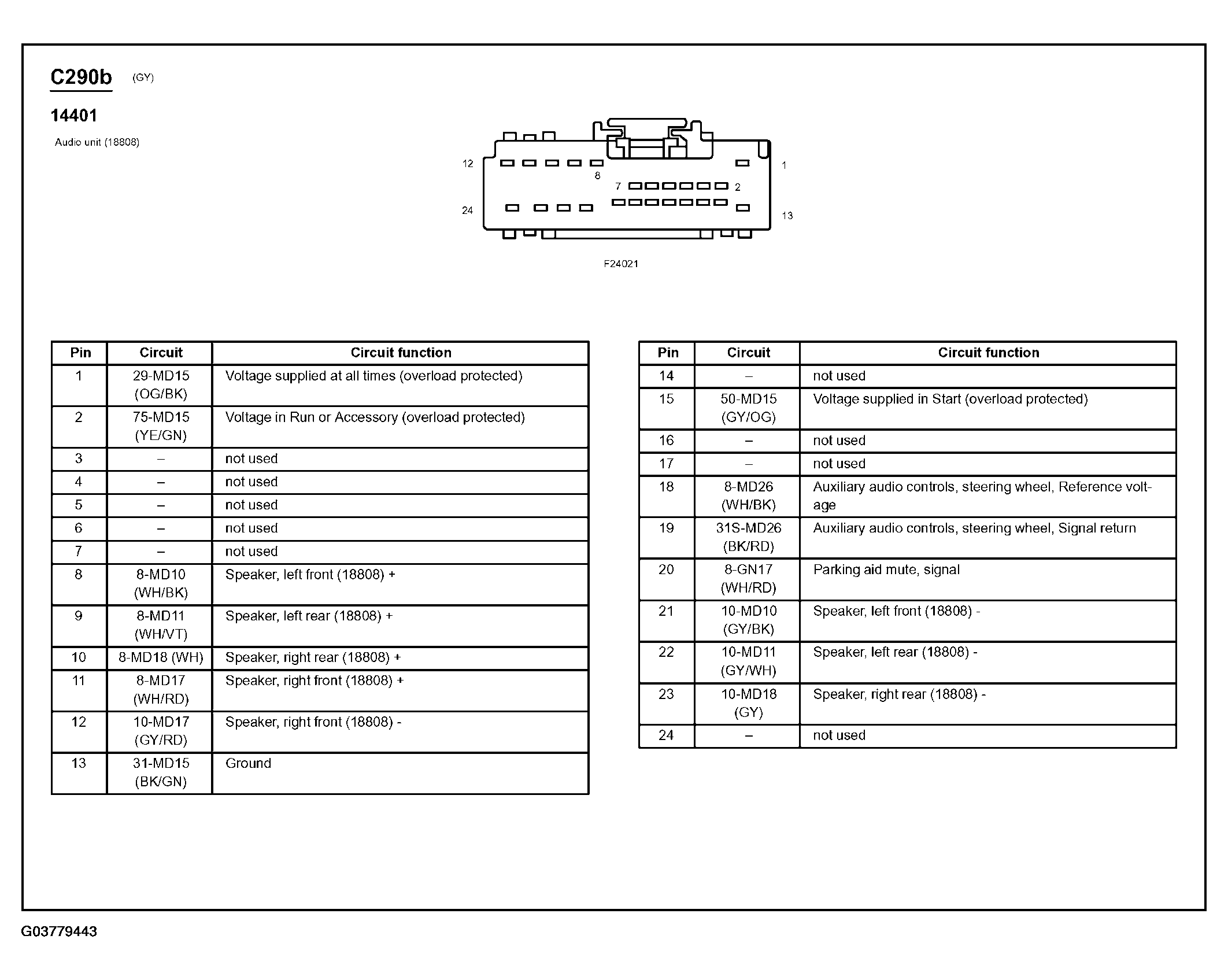

Fig 65: Audio Unit Connector End View (C290b)

G03779443

Courtesy of FORD MOTOR CO.

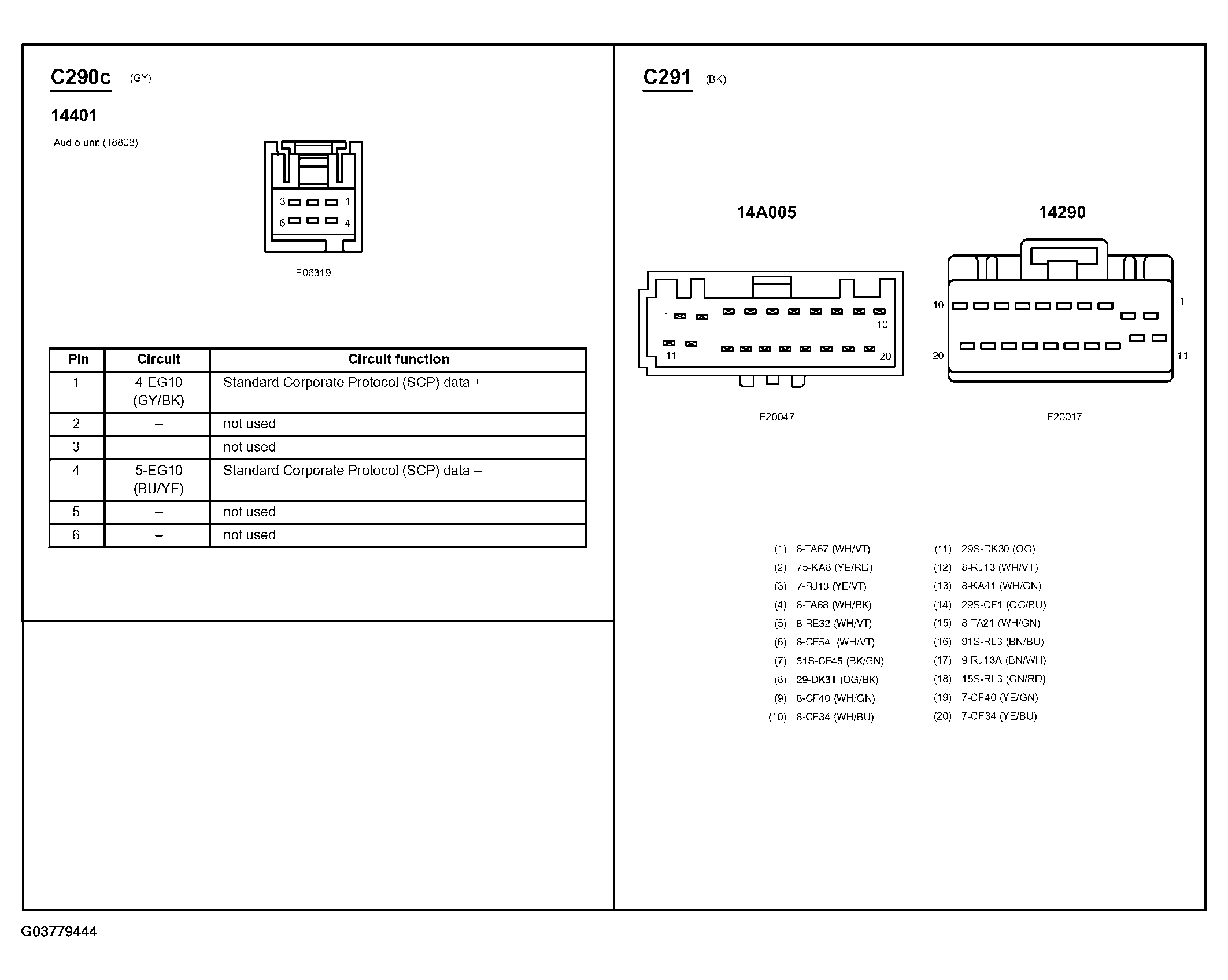

Fig 66: Identifying Connector C290c & C291

G03779444

Courtesy of FORD MOTOR CO.

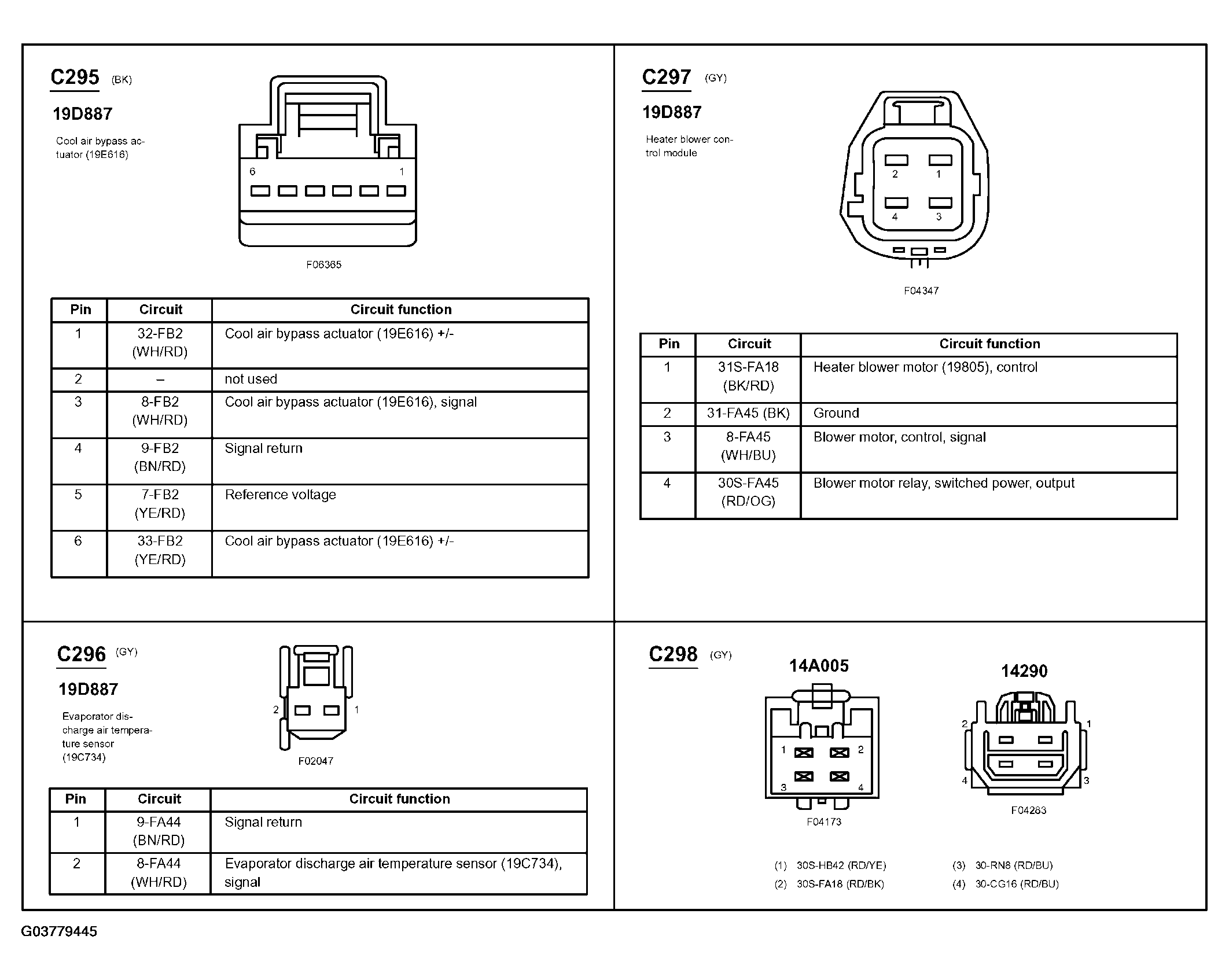

Fig 67: Identifying Connector C295, C296, C297 & C298

G03779445

Courtesy of FORD MOTOR CO.

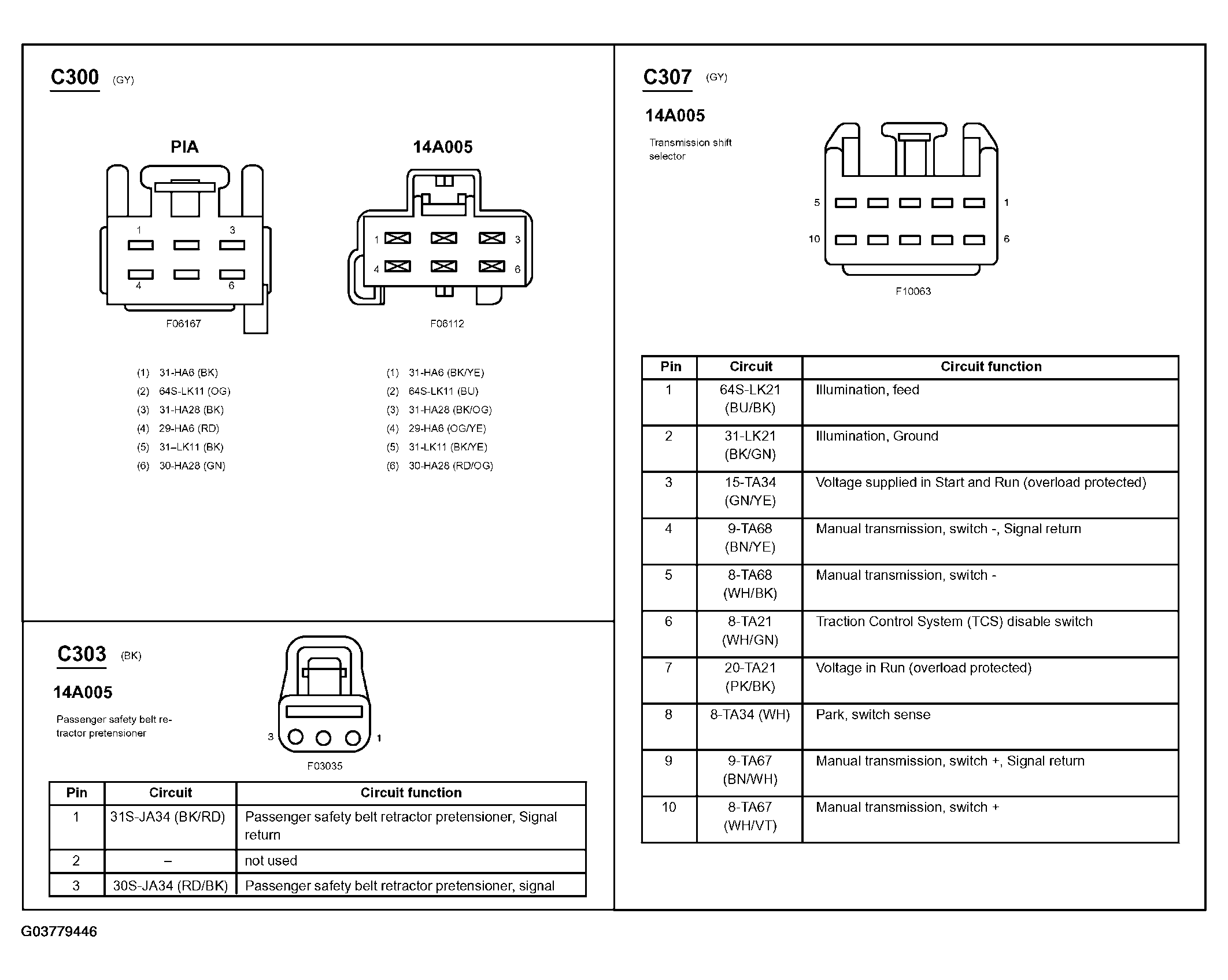

Fig 68: Identifying Connector C300, C303 & C307

G03779446

Courtesy of FORD MOTOR CO.

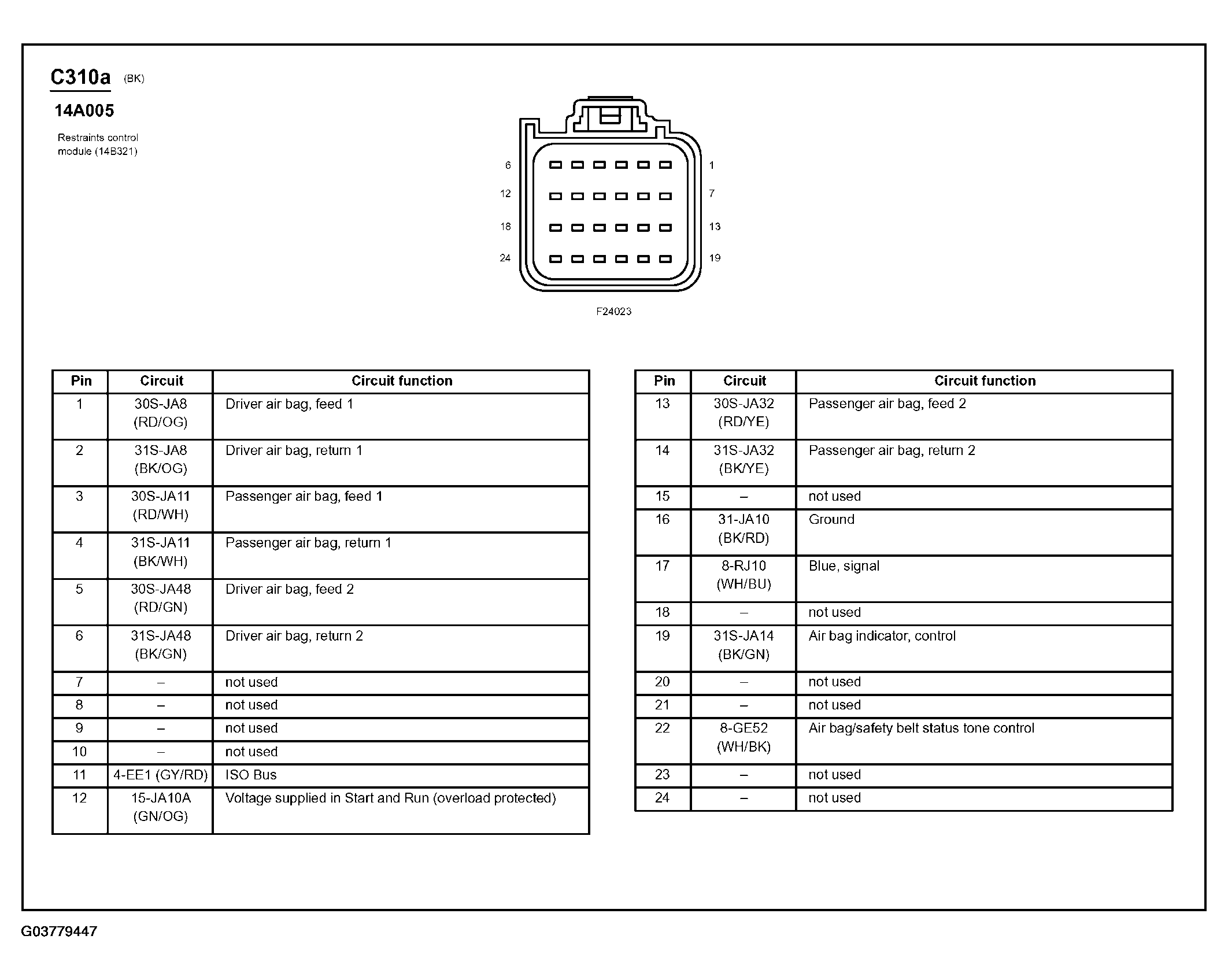

Fig 69: Restraints Control Module Connector End View (C310a)

G03779447

Courtesy of FORD MOTOR CO.

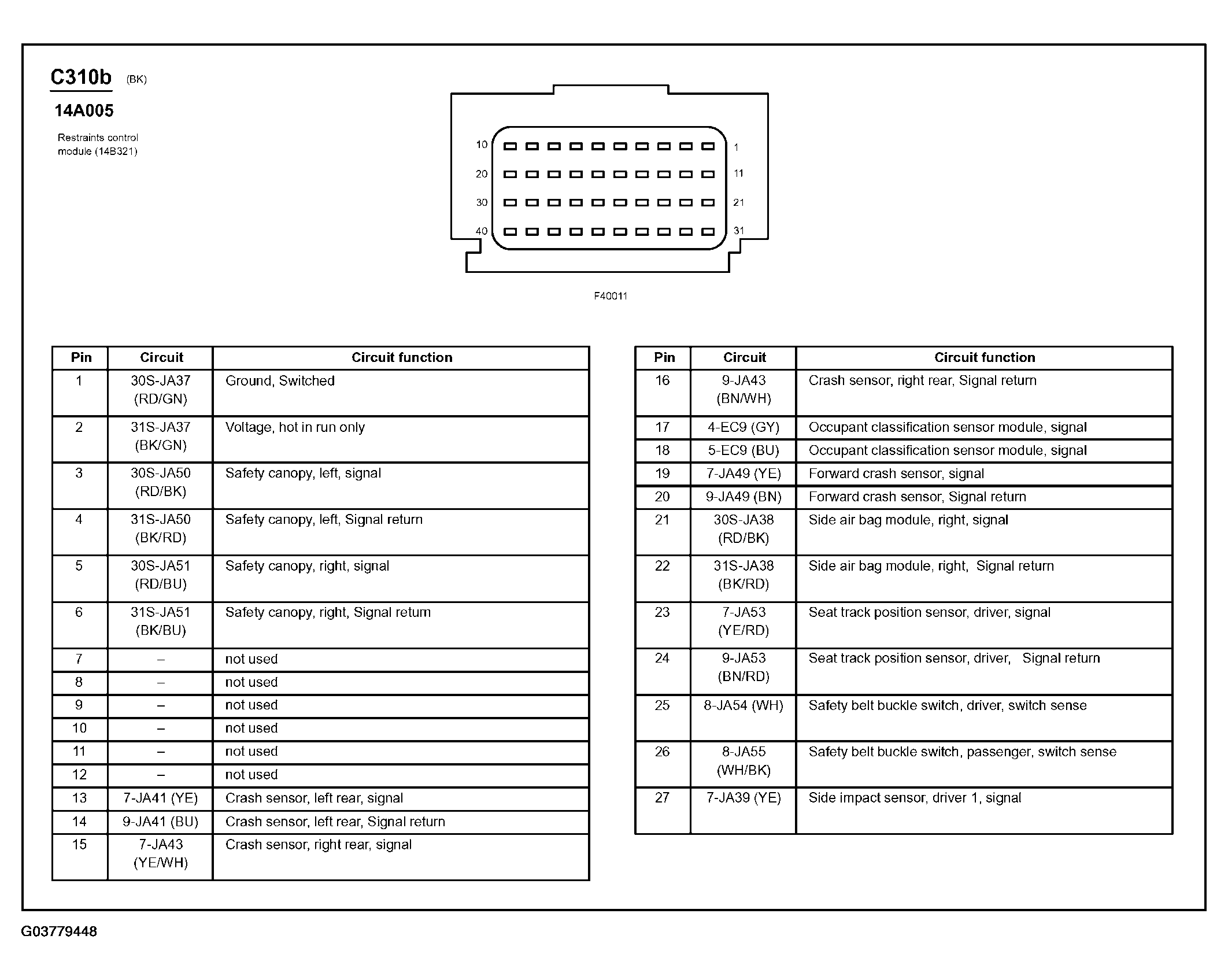

Fig 70: Restraints Control Module Connector End View (C310b) (1 Of 2)

G03779448

Courtesy of FORD MOTOR CO.

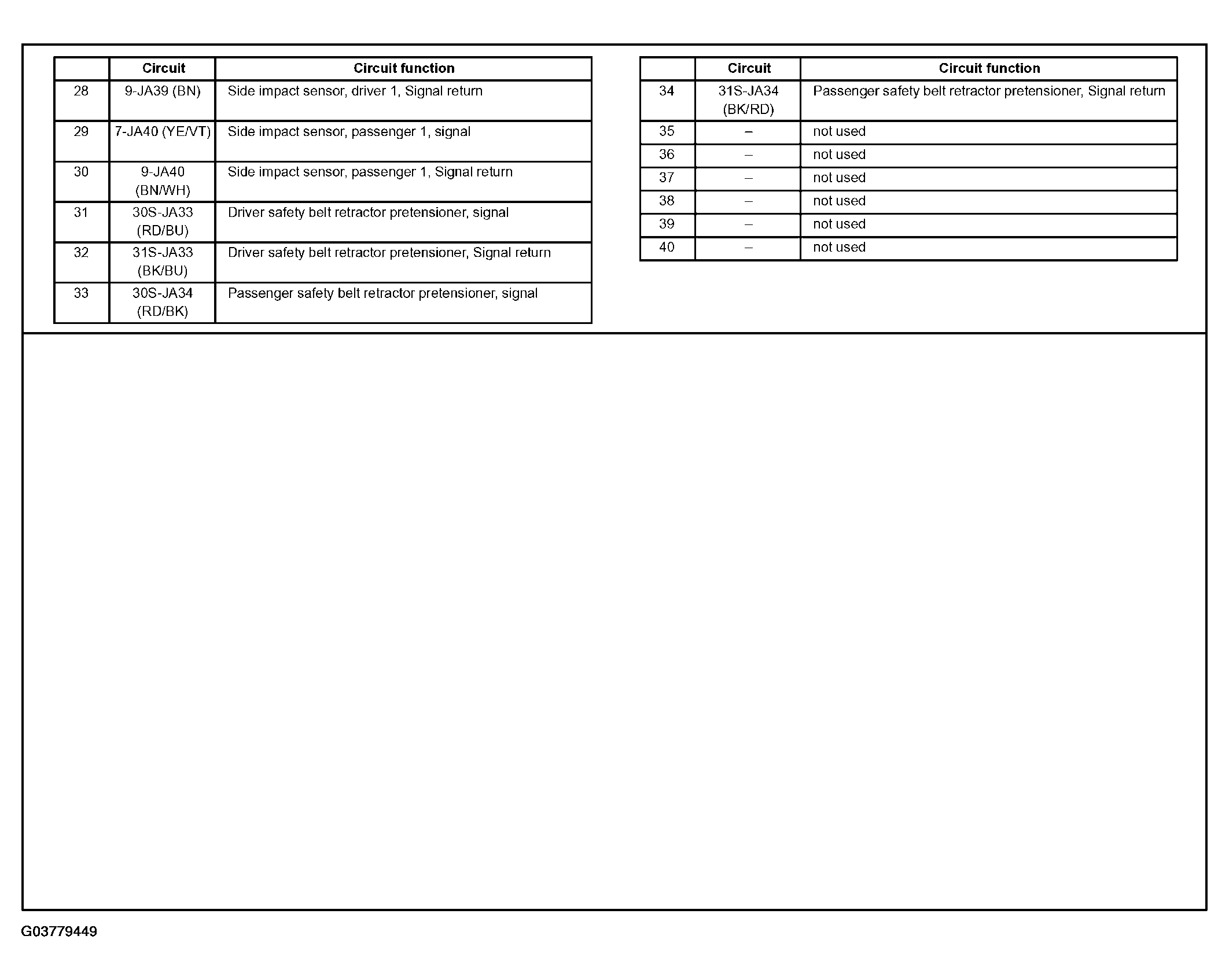

Fig 71: Restraints Control Module Connector End View (C310b) (2 Of 2)

G03779449

Courtesy of FORD MOTOR CO.

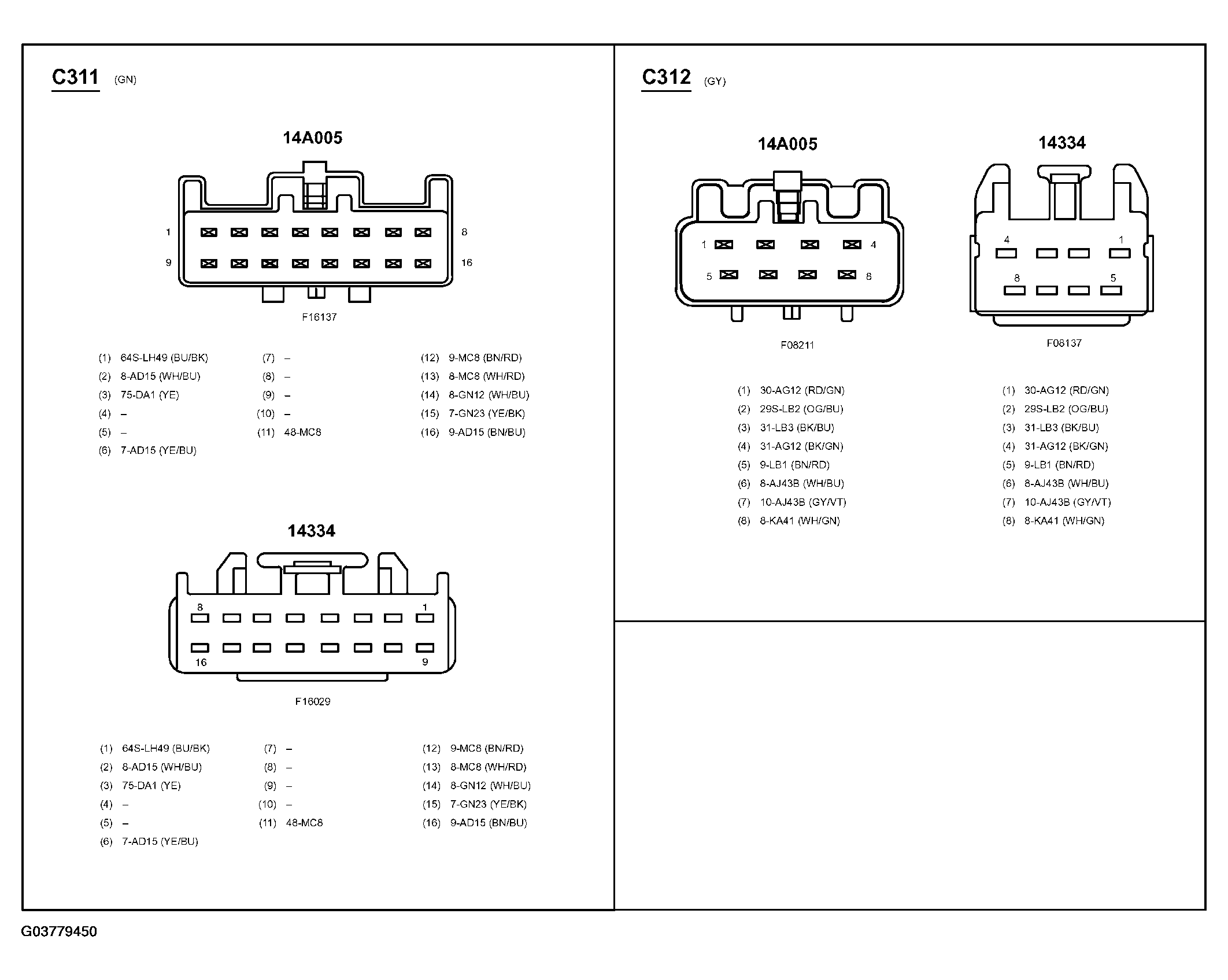

Fig 72: Identifying Connector C311 & C312

G03779450

Courtesy of FORD MOTOR CO.

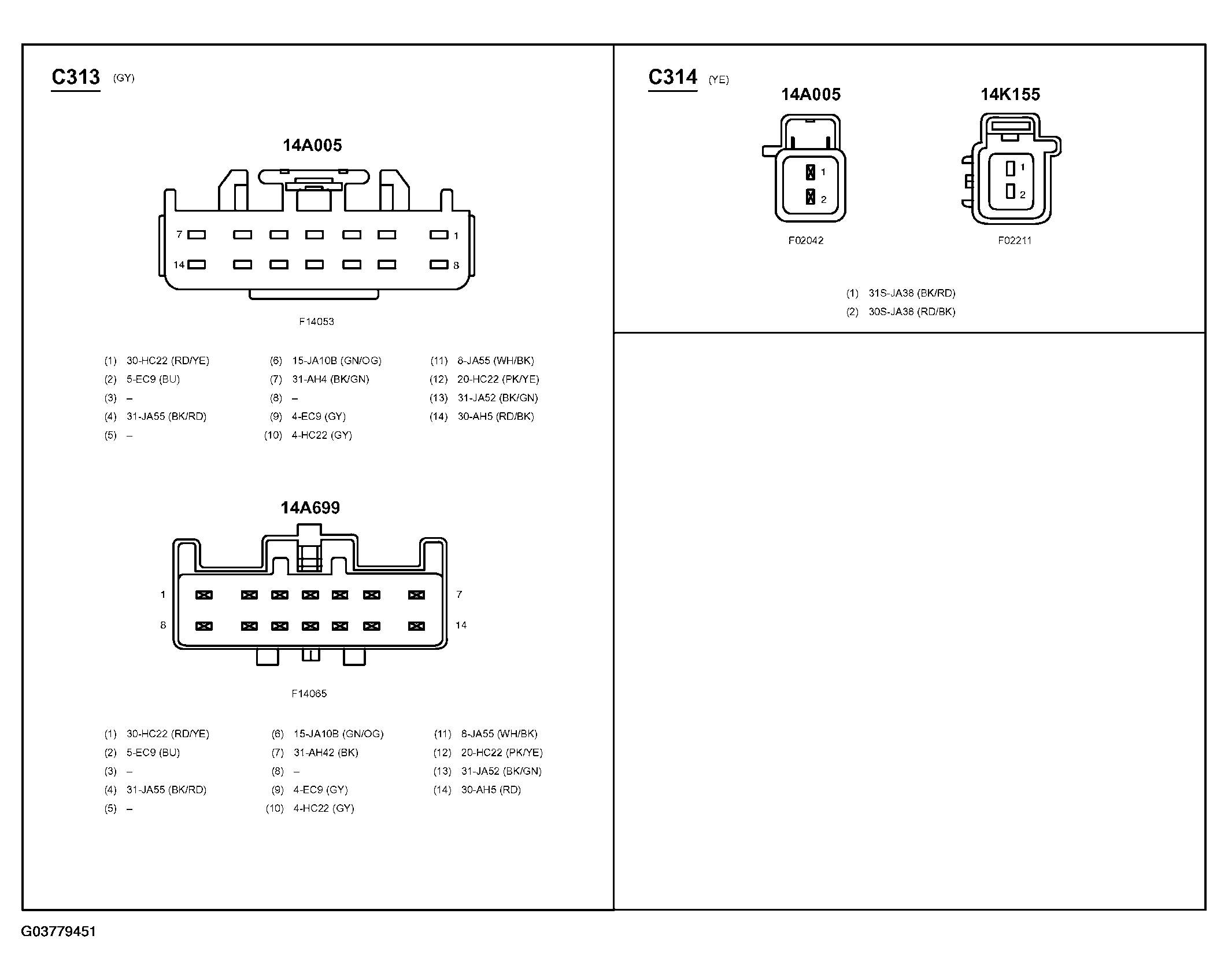

Fig 73: Identifying Connector C313 & C314

G03779451

Courtesy of FORD MOTOR CO.

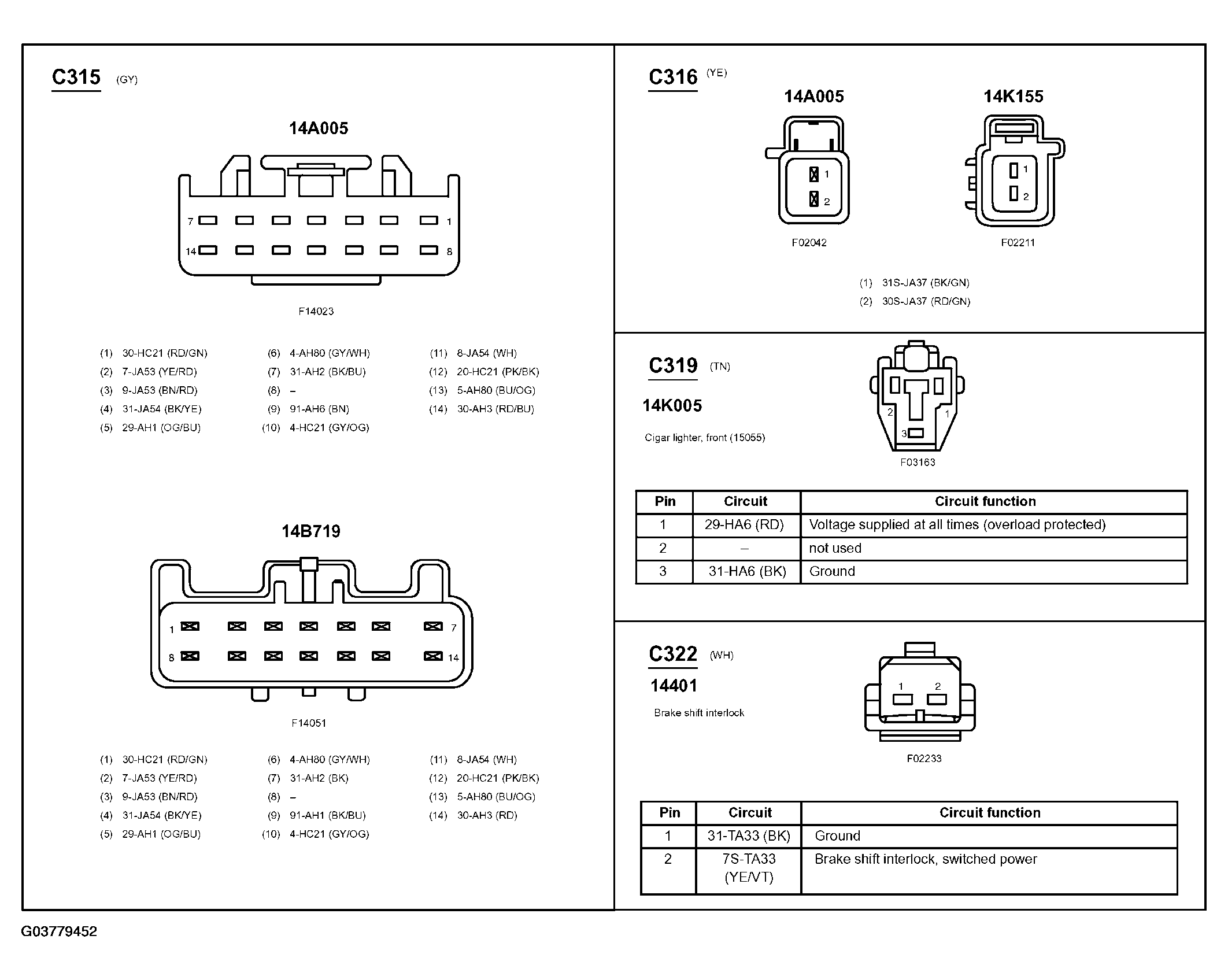

Fig 74: Identifying Connector C315, C316, C319 & C322

G03779452

Courtesy of FORD MOTOR CO.

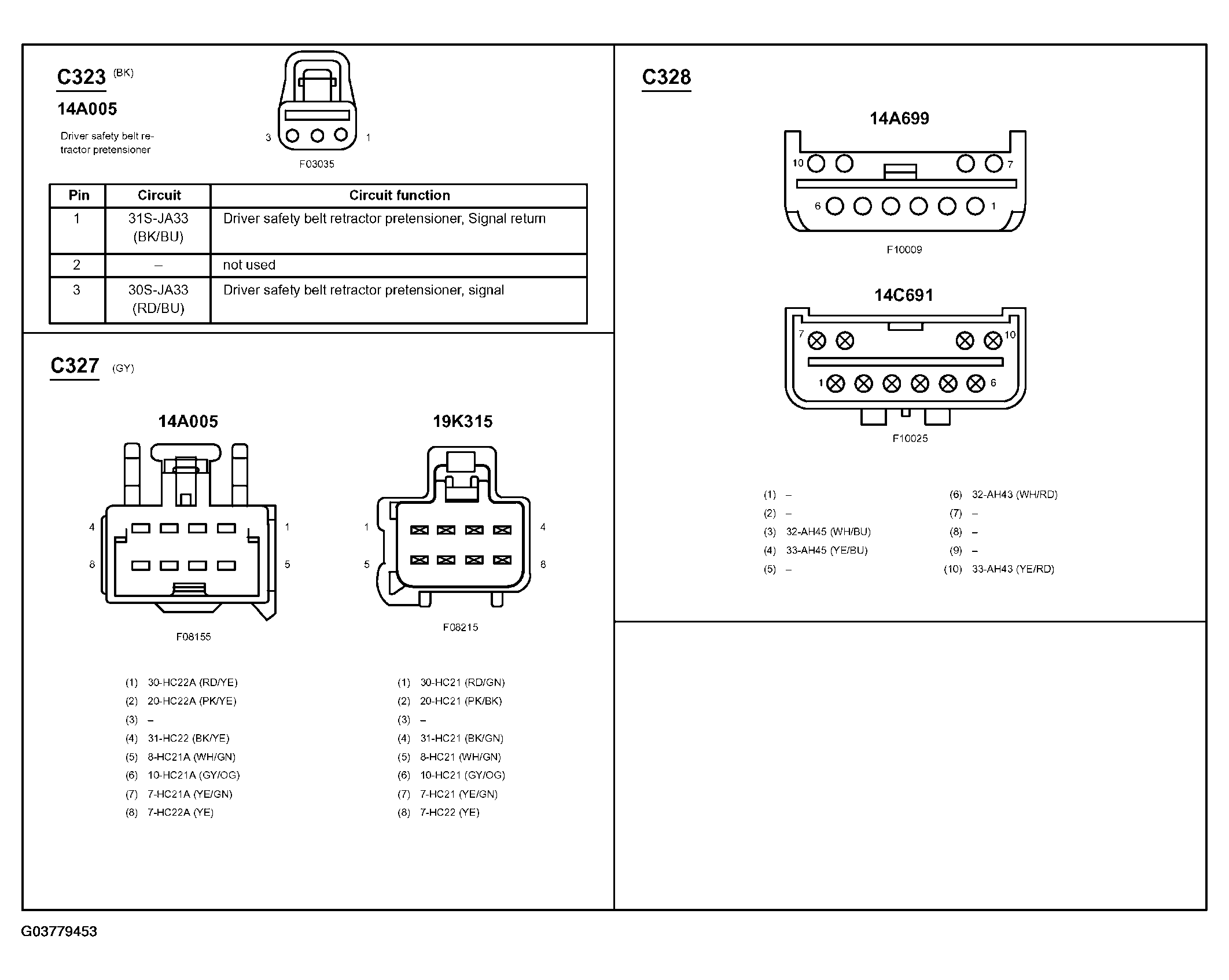

Fig 75: Identifying Connector C323, C327 & C328

G03779453

Courtesy of FORD MOTOR CO.

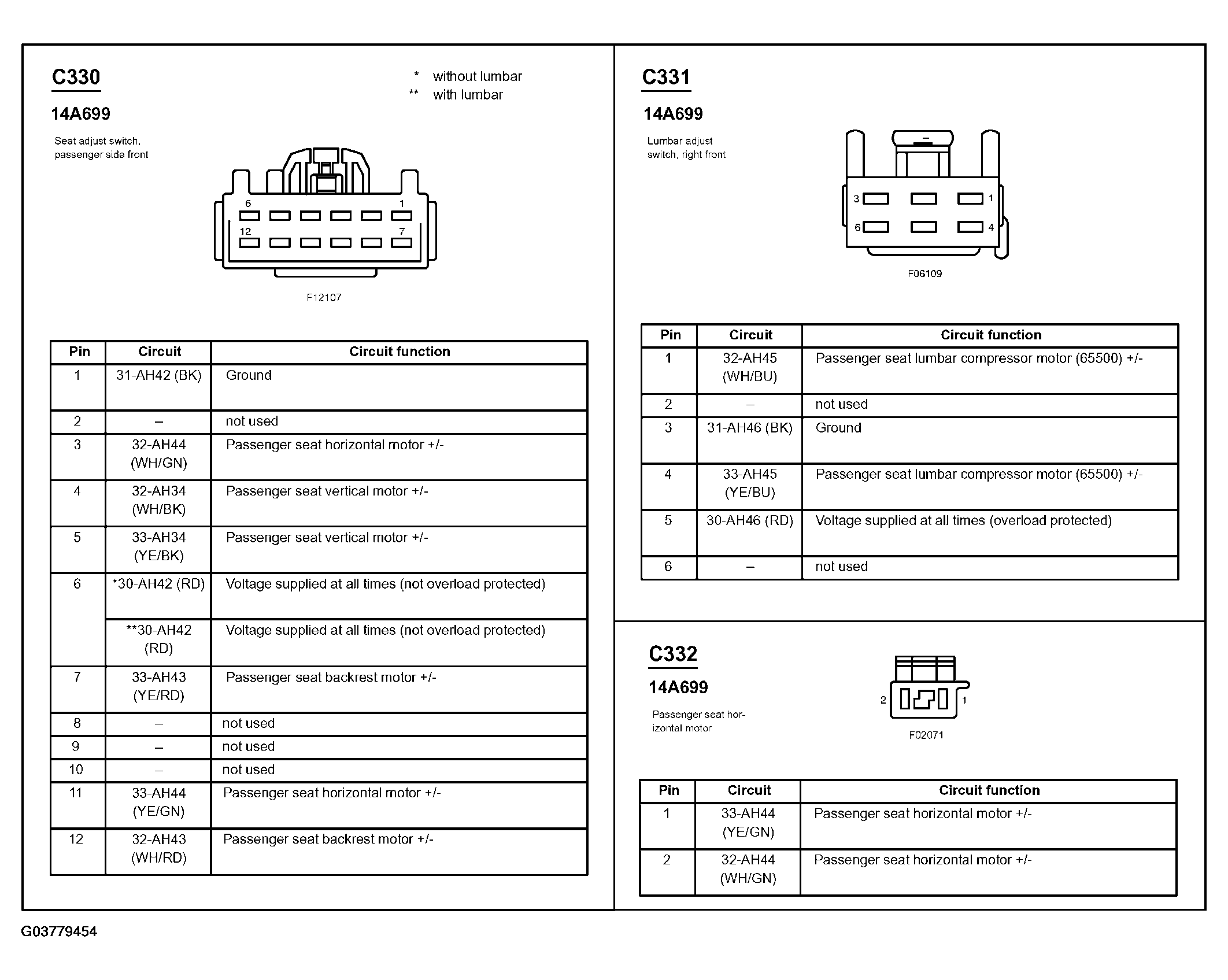

Fig 76: Identifying Connector C330, C331 & C332

G03779454

Courtesy of FORD MOTOR CO.

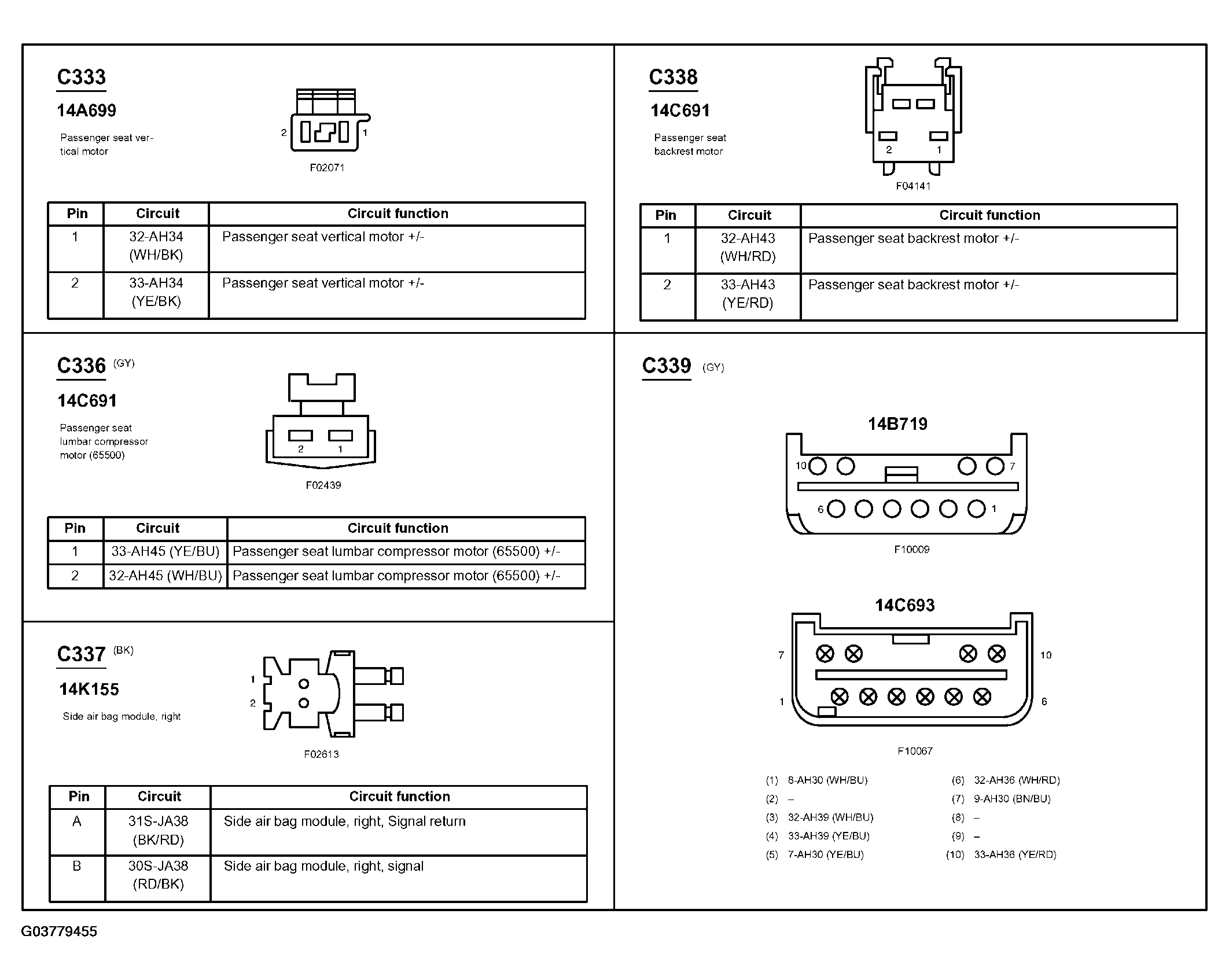

Fig 77: Identifying Connector C333, C336, C337, C338 & C339

G03779455

Courtesy of FORD MOTOR CO.

Fig 78: Inline Connector End View (C340)

G03779456

Courtesy of FORD MOTOR CO.

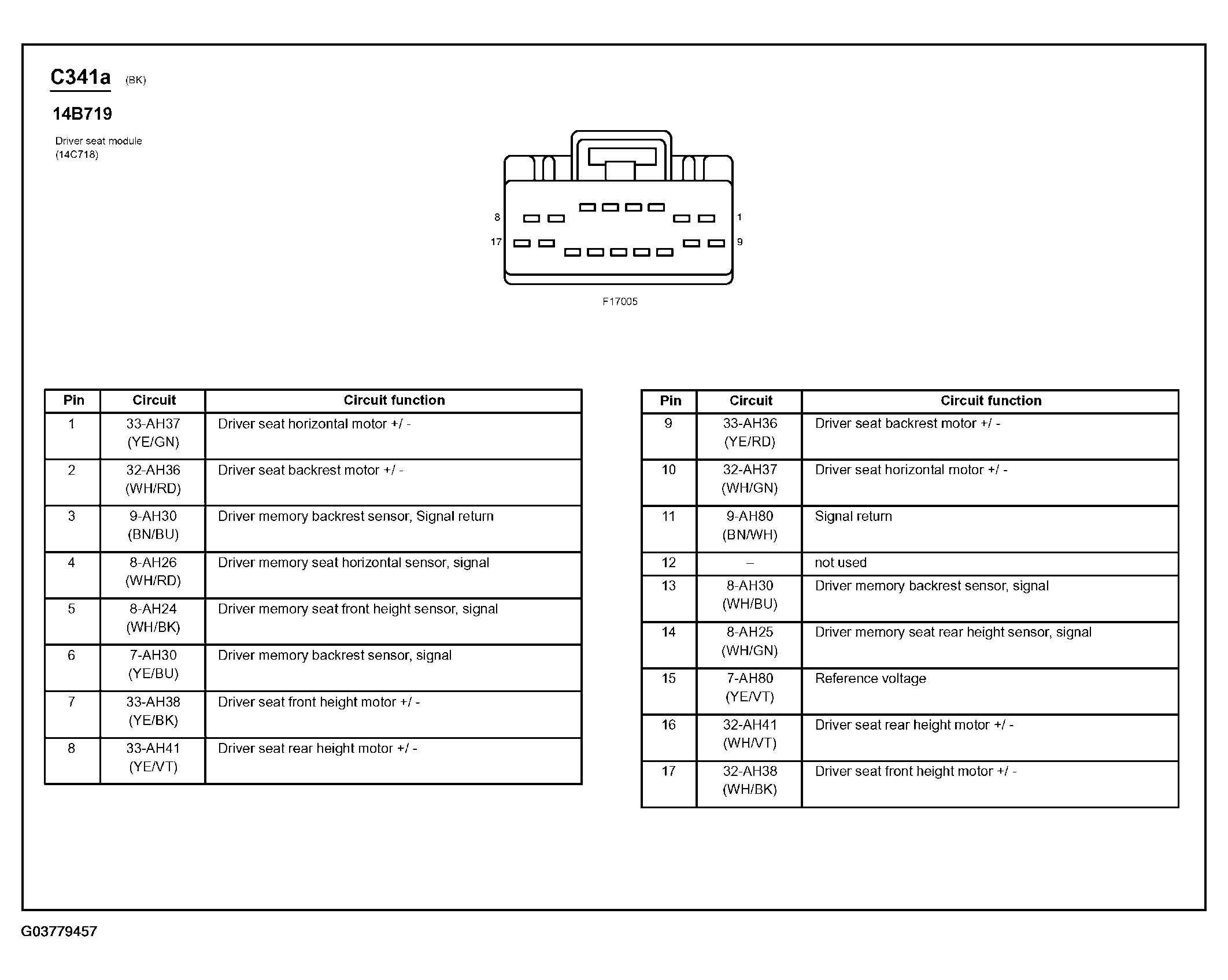

Fig 79: Driver Seat Module Connector End View (C341a)

G03779457

Courtesy of FORD MOTOR CO.

Fig 80: Driver Seat Module Connector End View (C341b)

G03779458

Courtesy of FORD MOTOR CO.

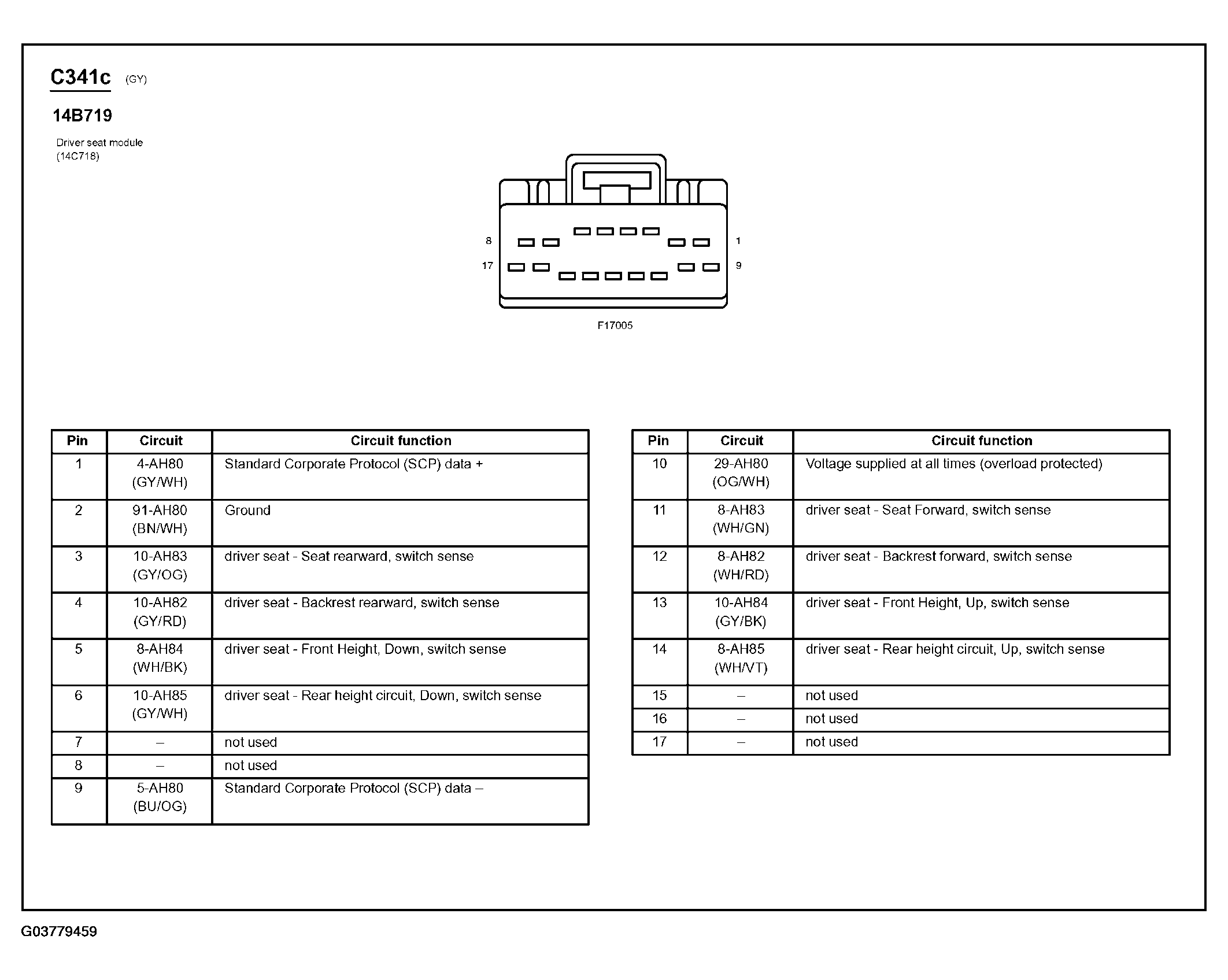

Fig 81: Driver Seat Module Connector End View (C341c)

G03779459

Courtesy of FORD MOTOR CO.

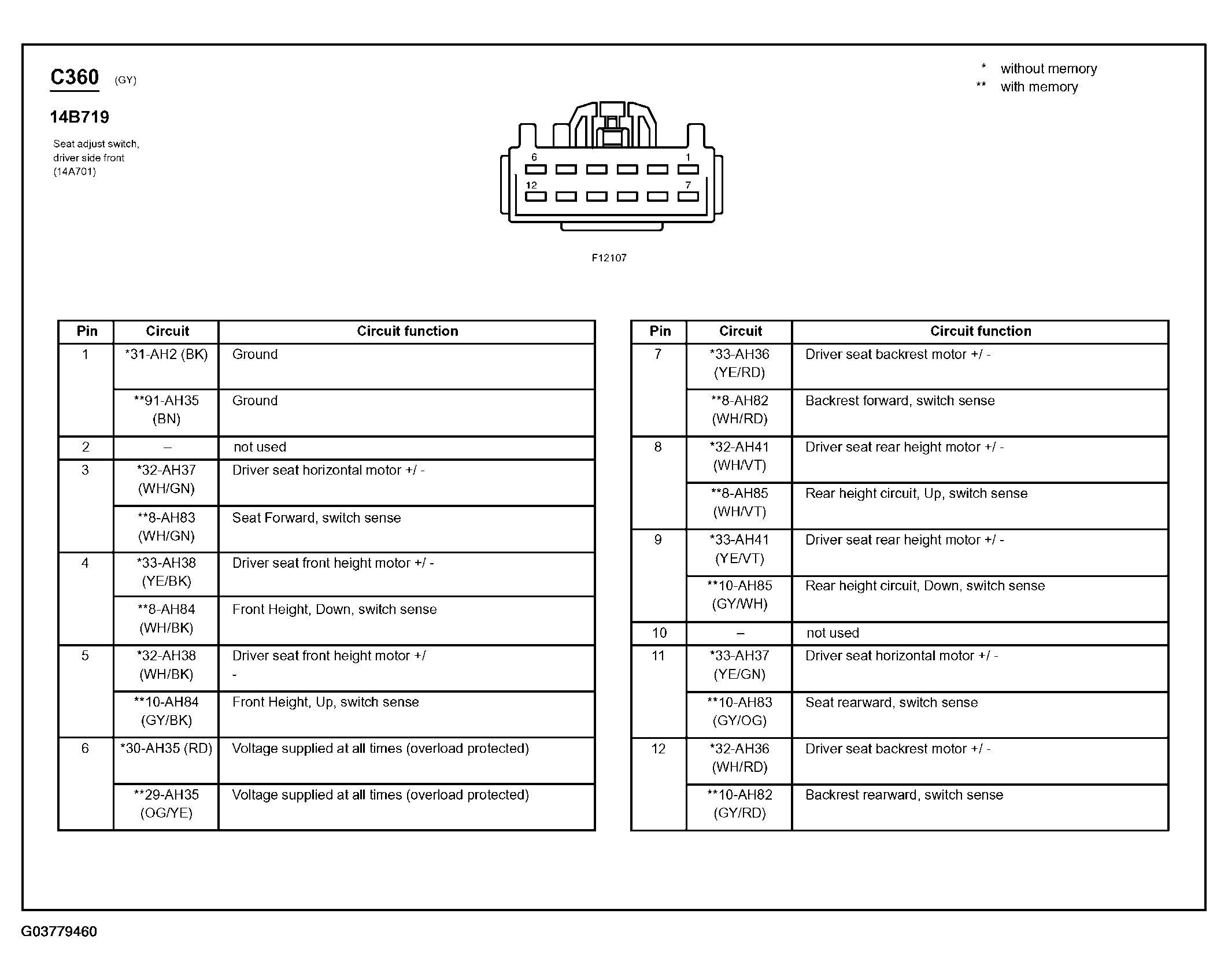

Fig 82: Seat Adjust Switch, Driver Side Front Connector End View (C360)

G03779460

Courtesy of FORD MOTOR CO.

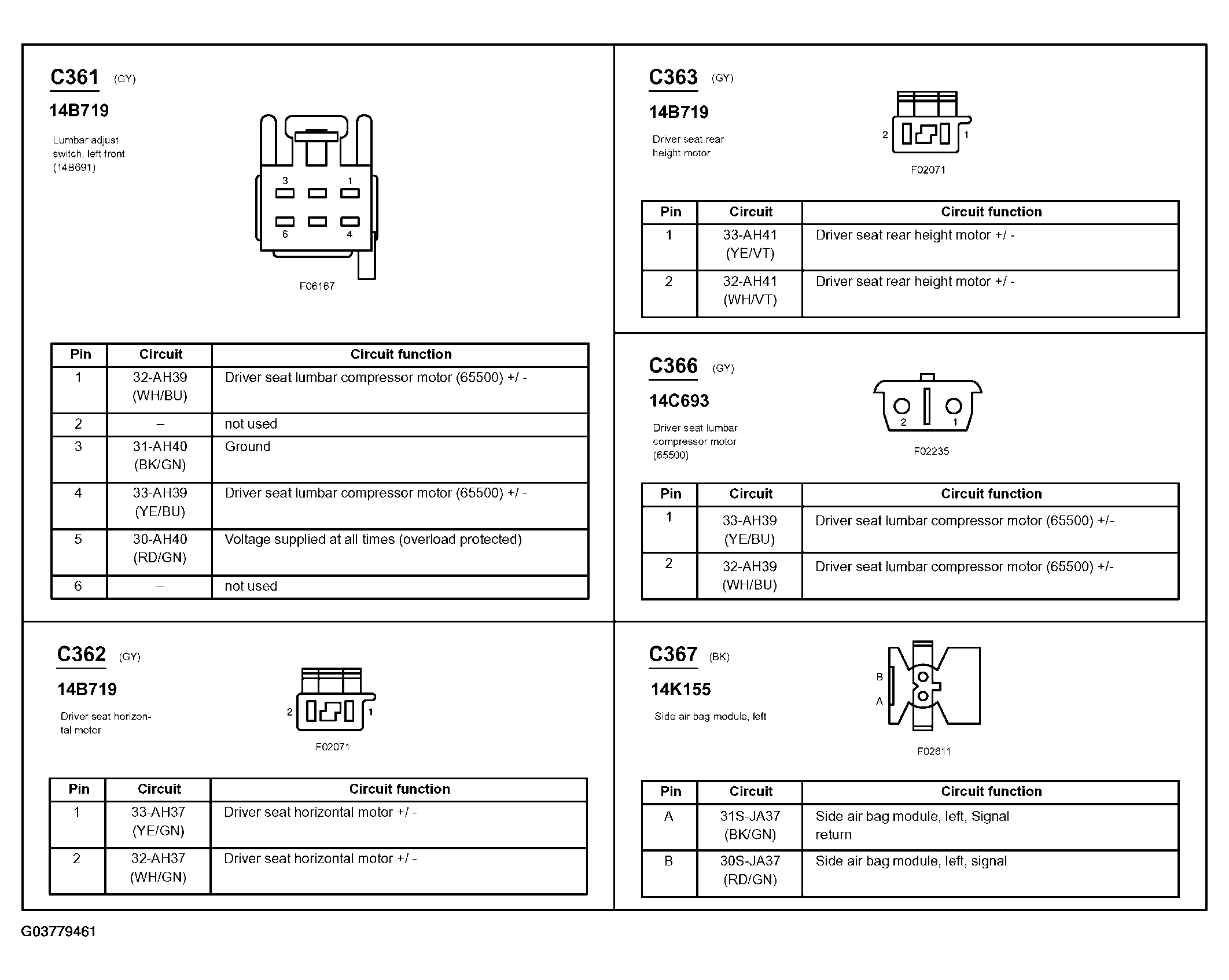

Fig 83: Identifying Connector C361, C362, C363, C366 & C367

G03779461

Courtesy of FORD MOTOR CO.

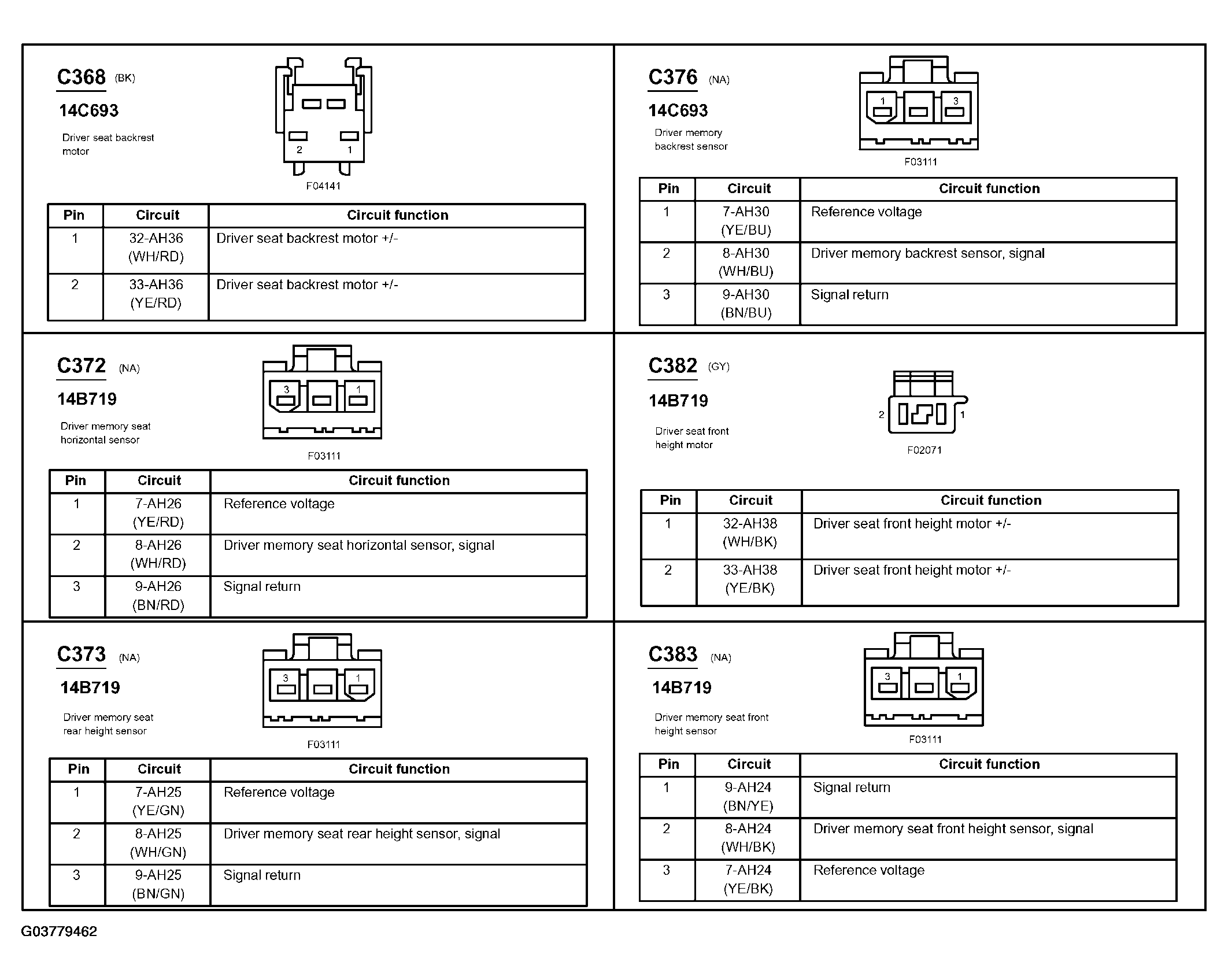

Fig 84: Identifying Connector C368, C372, C373, C376, C382 & C383

G03779462

Courtesy of FORD MOTOR CO.

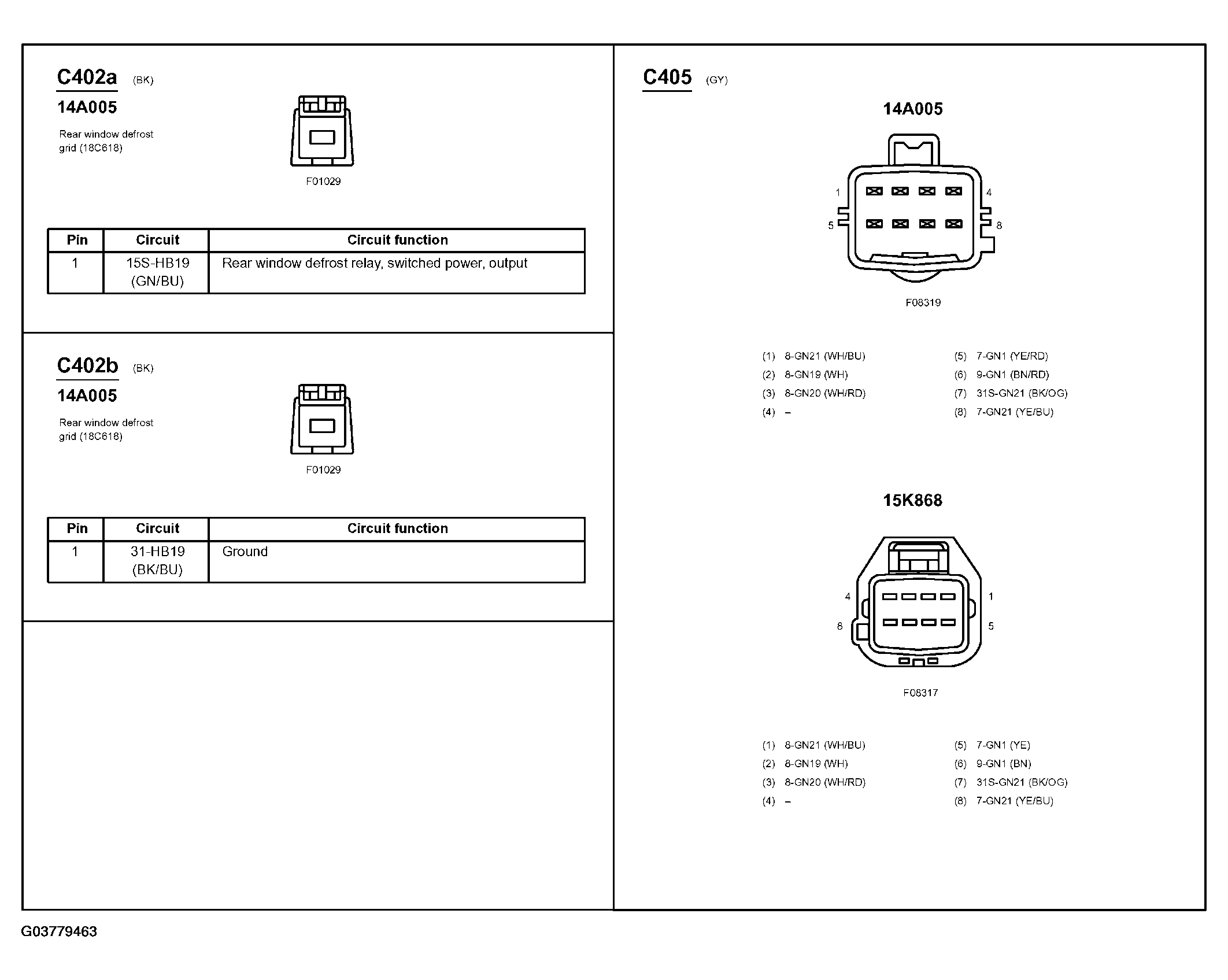

Fig 85: Identifying Connector C402a, C402b & C405

G03779463

Courtesy of FORD MOTOR CO.

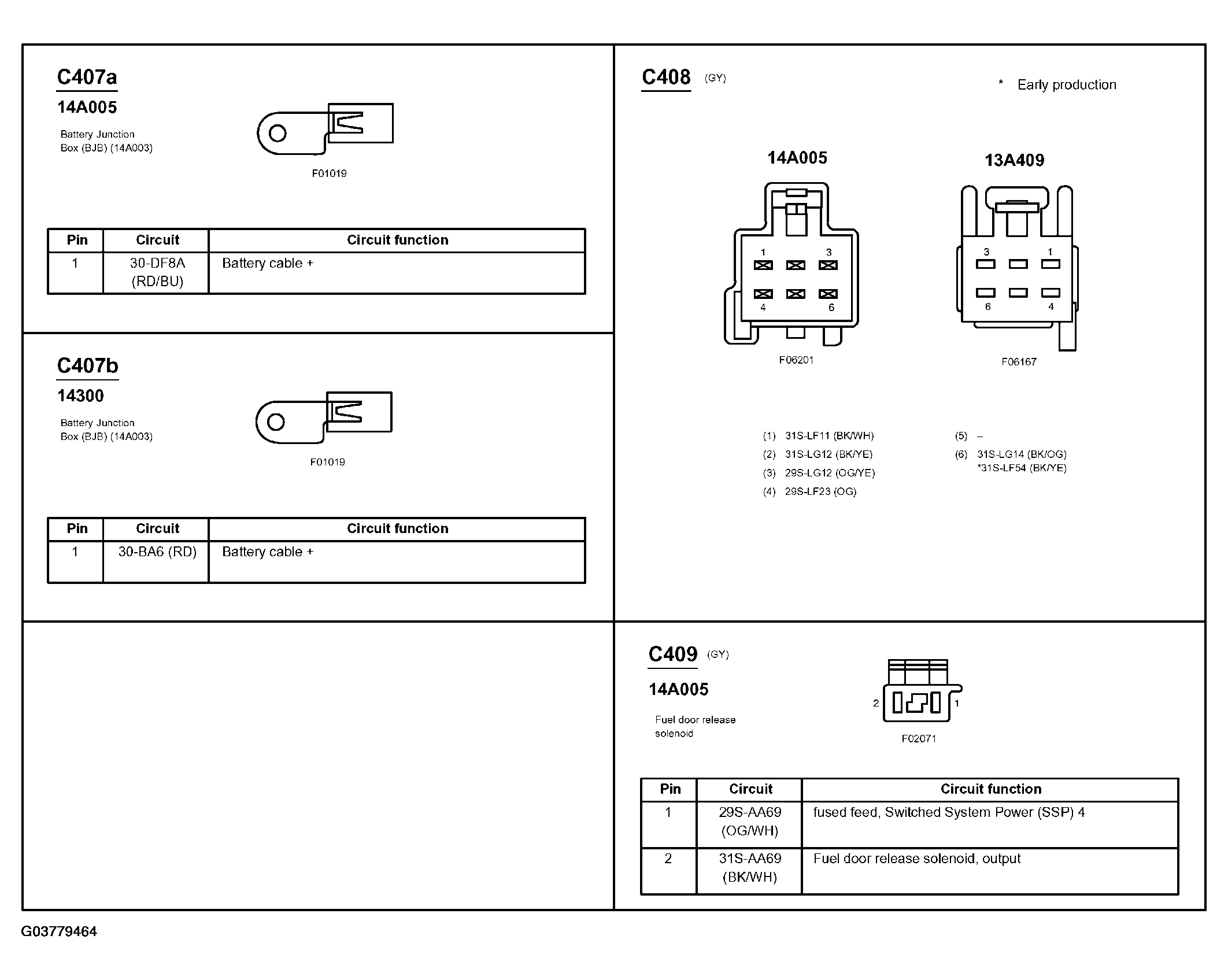

Fig 86: Identifying Connector C407a, C407b, C408 & C409

G03779464

Courtesy of FORD MOTOR CO.

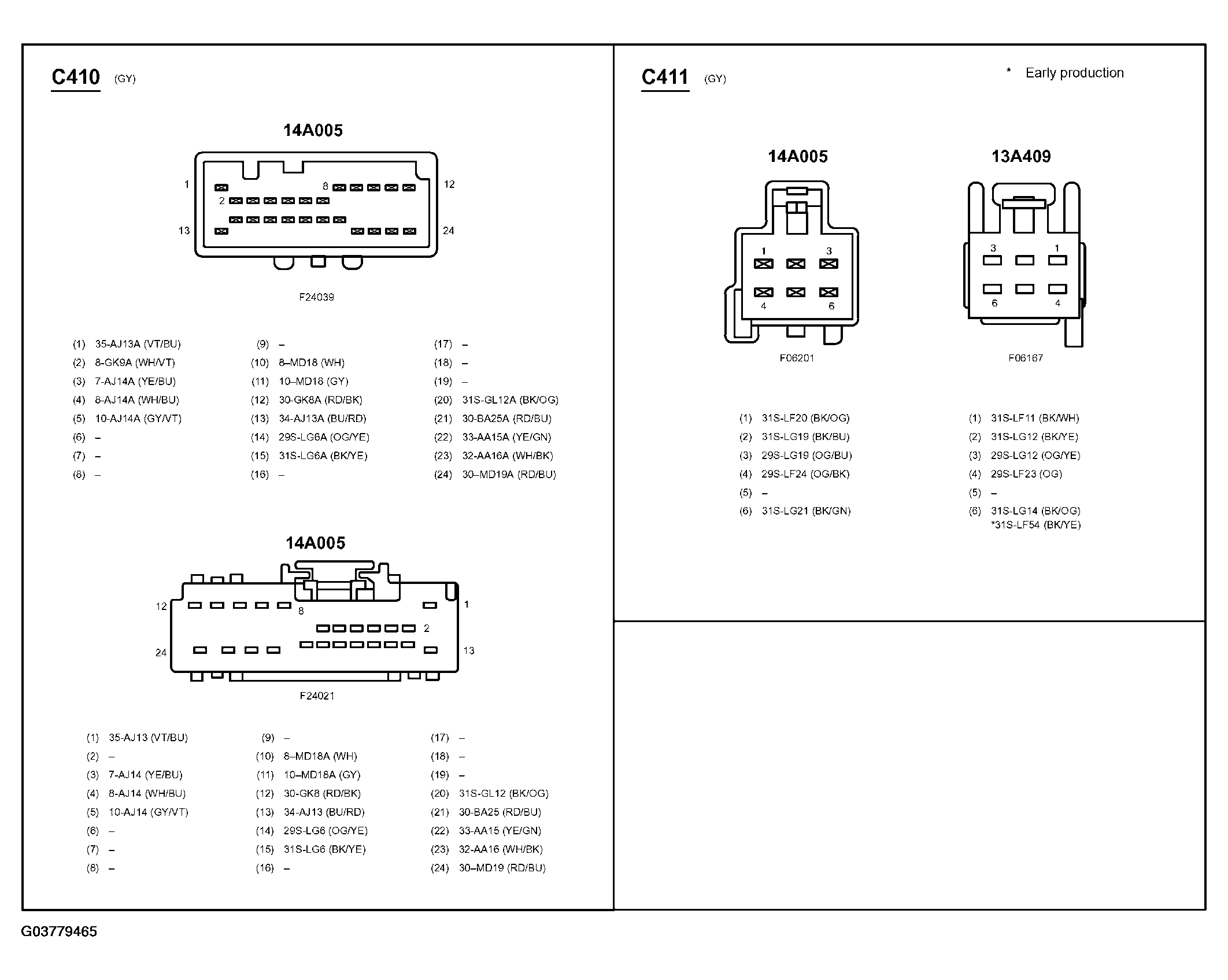

Fig 87: Identifying Connector C410 & C411

G03779465

Courtesy of FORD MOTOR CO.

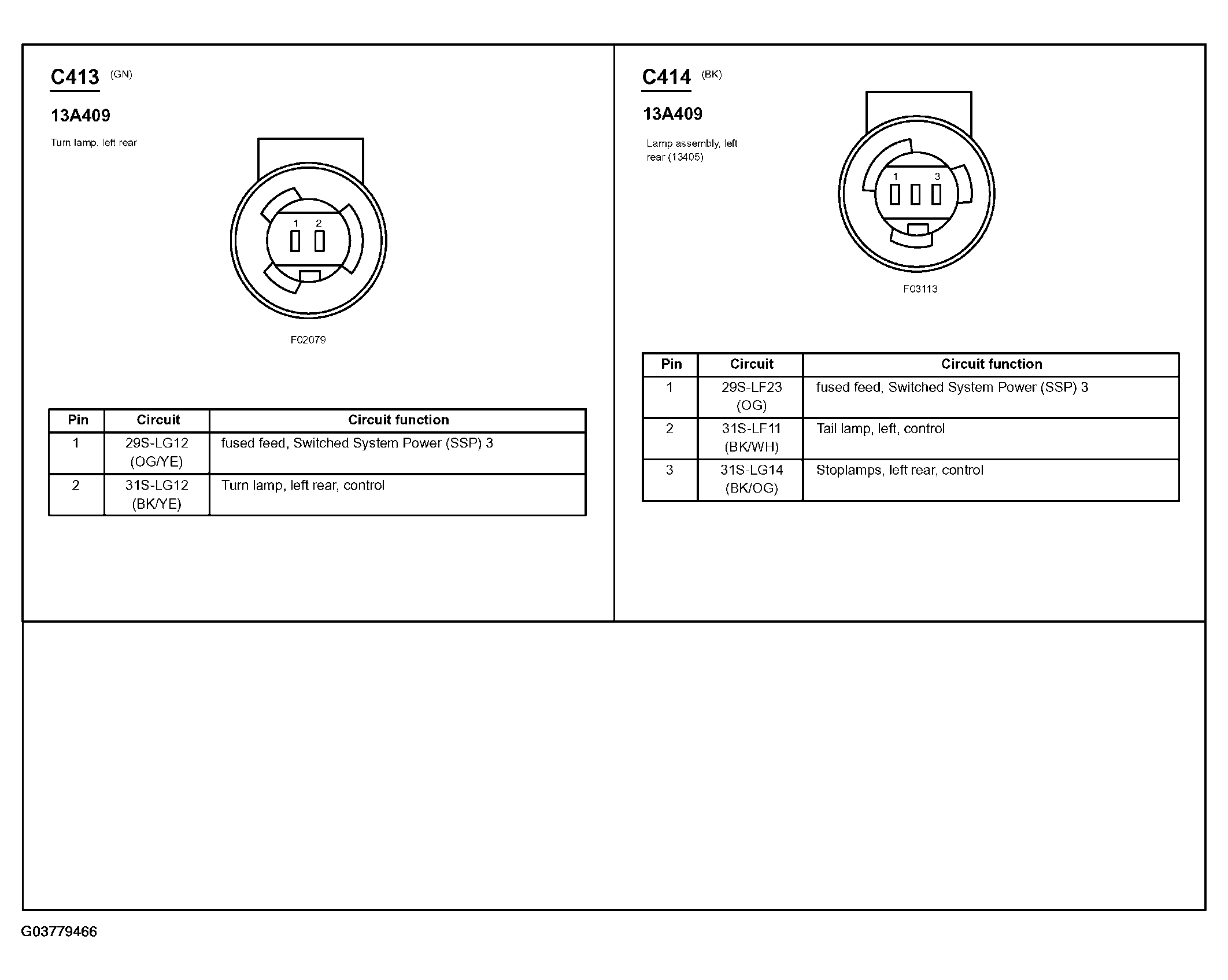

Fig 88: Identifying Connector C413 & C414

G03779466

Courtesy of FORD MOTOR CO.

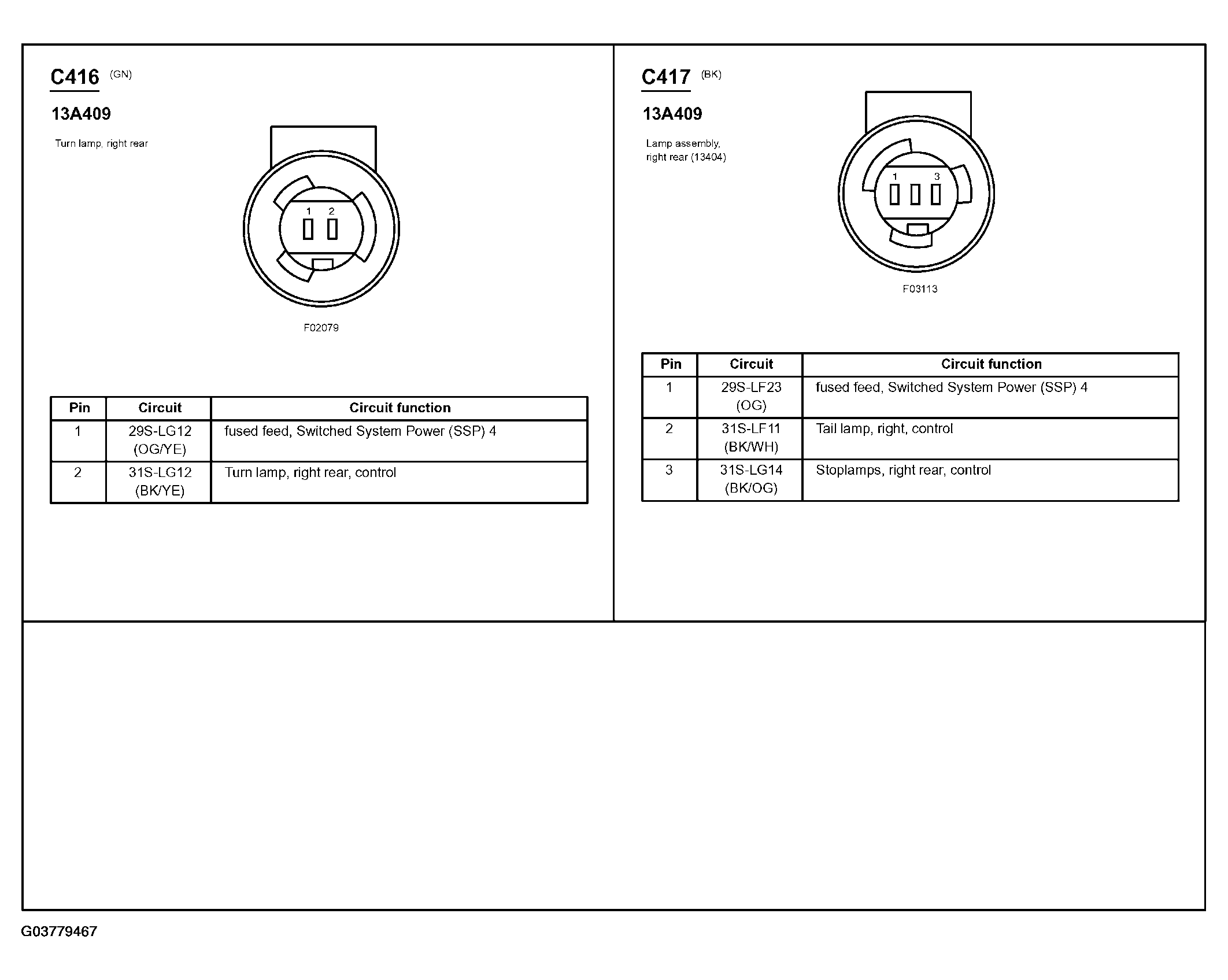

Fig 89: Identifying Connector C416 & C417

G03779467

Courtesy of FORD MOTOR CO.

Fig 90: Rear Electronic Module (REM) Connector End View (C420a)

G03779468

Courtesy of FORD MOTOR CO.

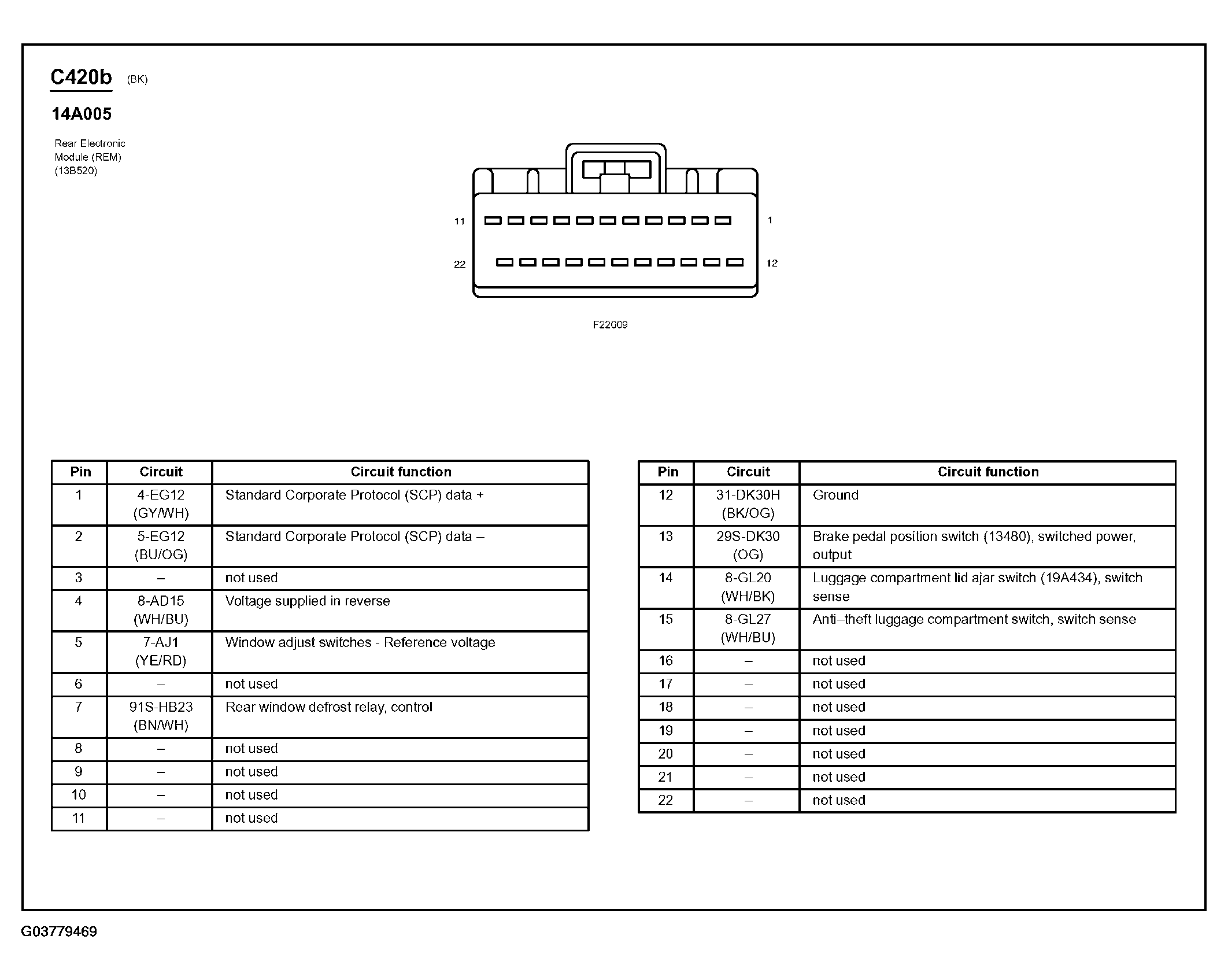

Fig 91: Rear Electronic Module (REM) Connector End View (C420b)

G03779469

Courtesy of FORD MOTOR CO.

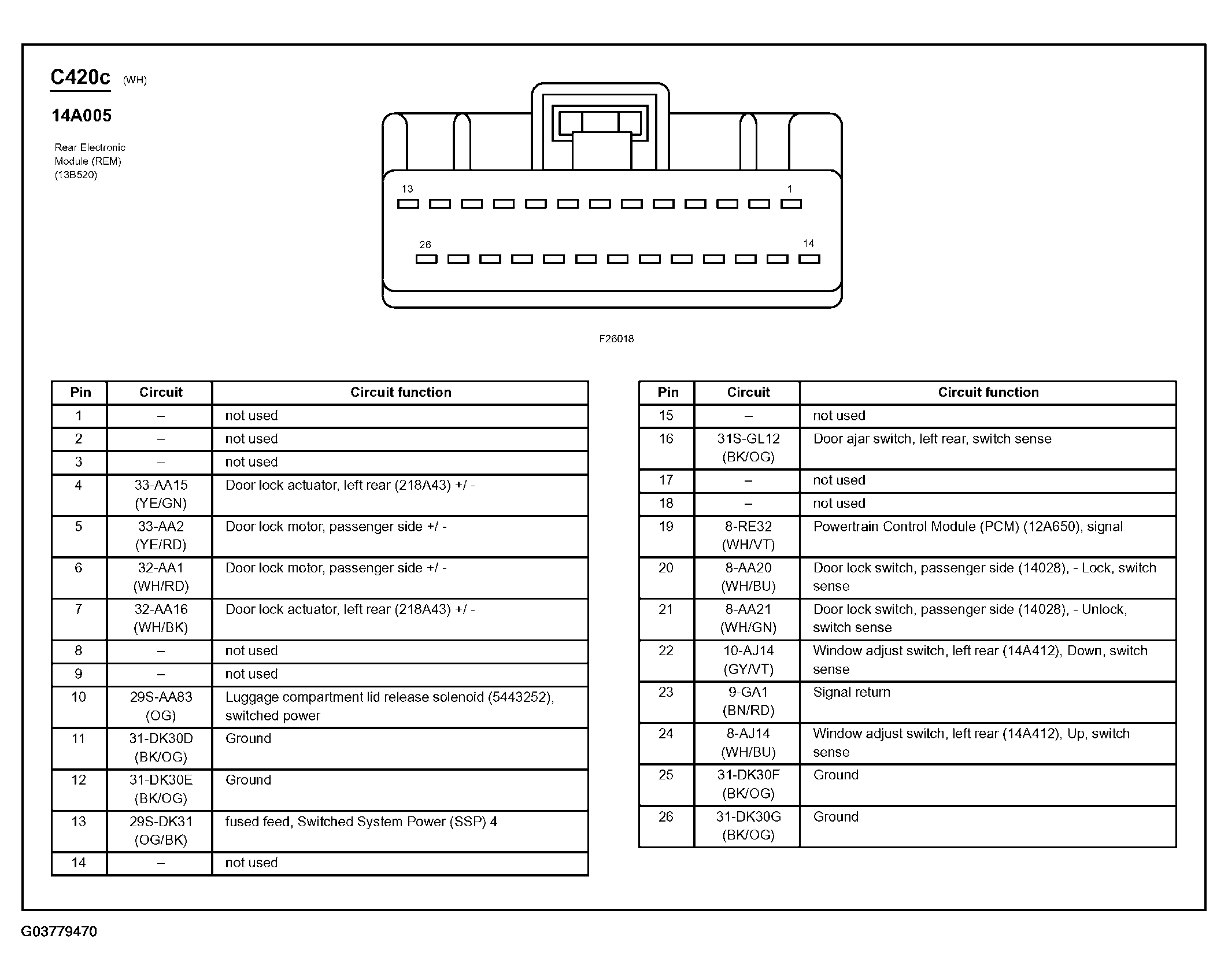

Fig 92: Rear Electronic Module (REM) Connector End View (C420c)

G03779470

Courtesy of FORD MOTOR CO.

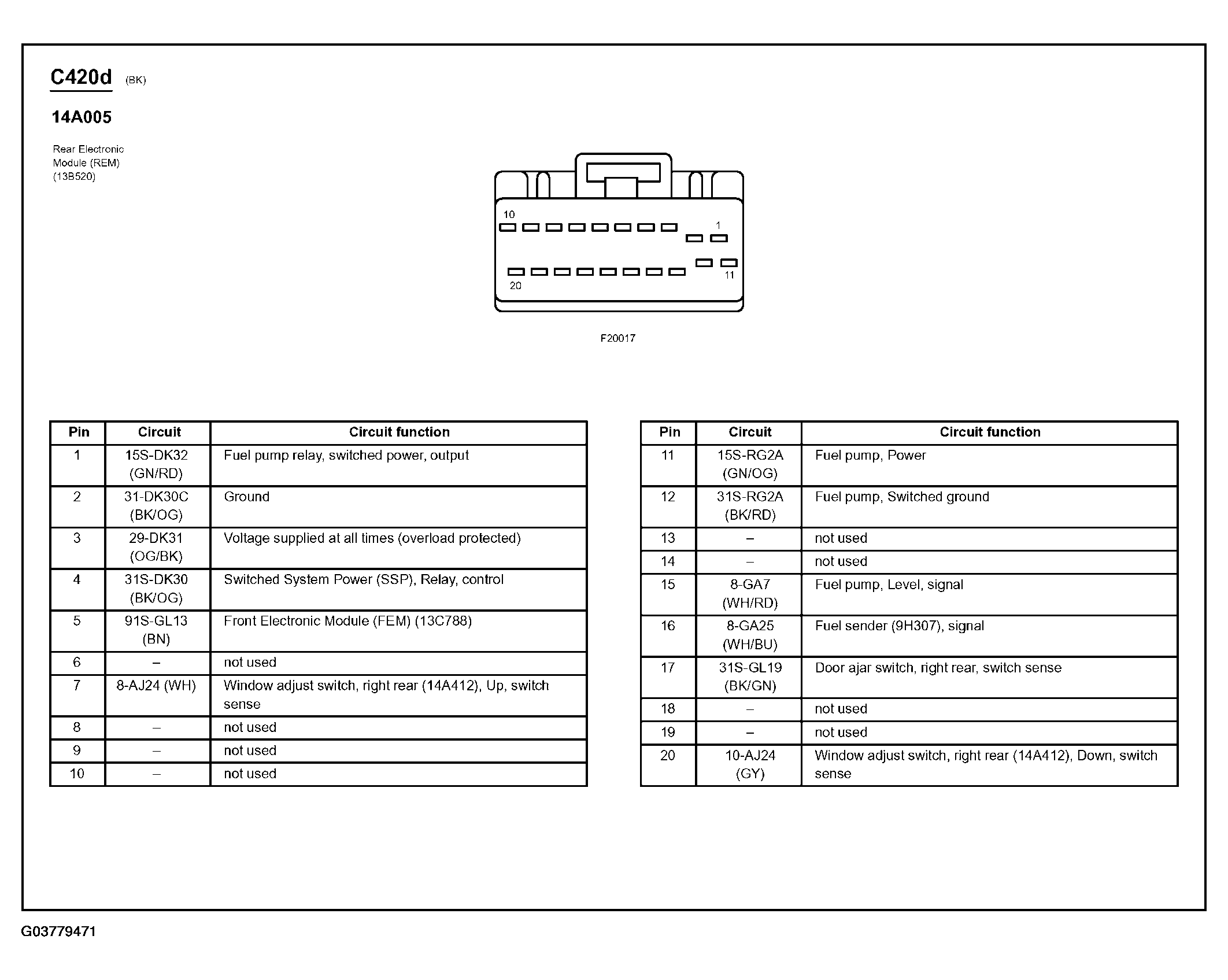

Fig 93: Rear Electronic Module (REM) Connector End View (C420d)

G03779471

Courtesy of FORD MOTOR CO.

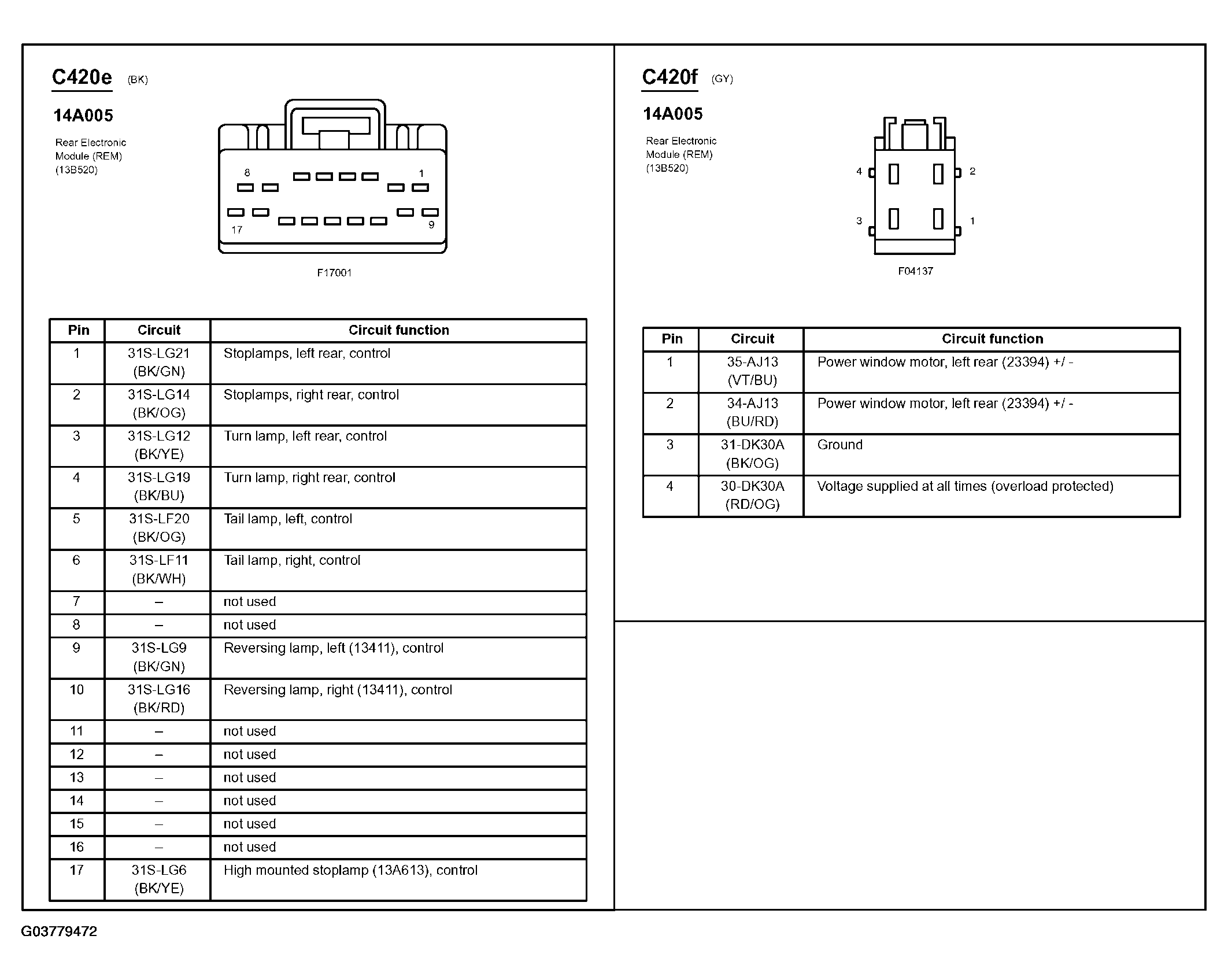

Fig 94: Identifying Connector C420e & C420f

G03779472

Courtesy of FORD MOTOR CO.

Fig 95: Identifying Connector C420g & C427

G03779473

Courtesy of FORD MOTOR CO.

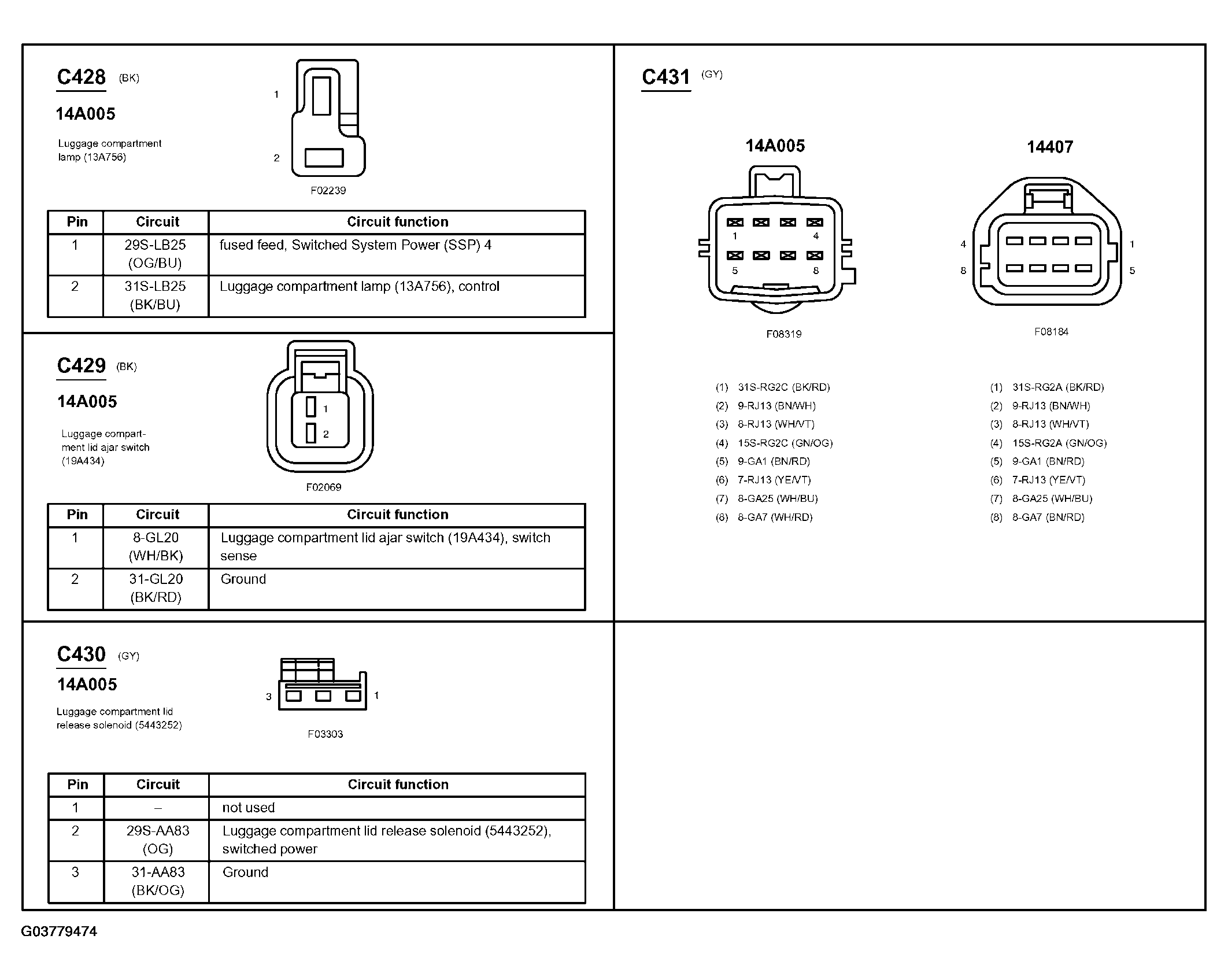

Fig 96: Identifying Connector C428, C429, C430 & C431

G03779474

Courtesy of FORD MOTOR CO.

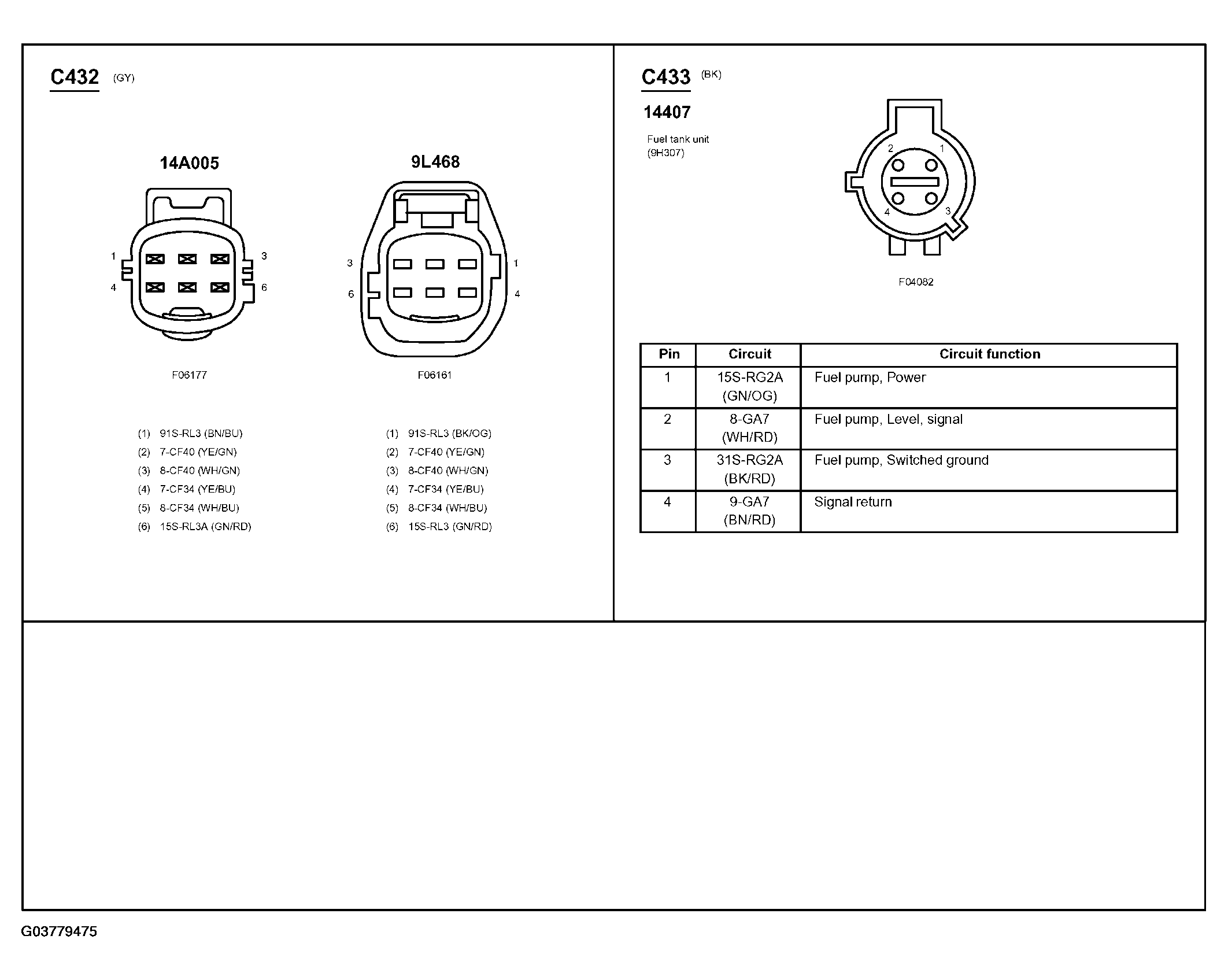

Fig 97: Identifying Connector C432 & C433

G03779475

Courtesy of FORD MOTOR CO.

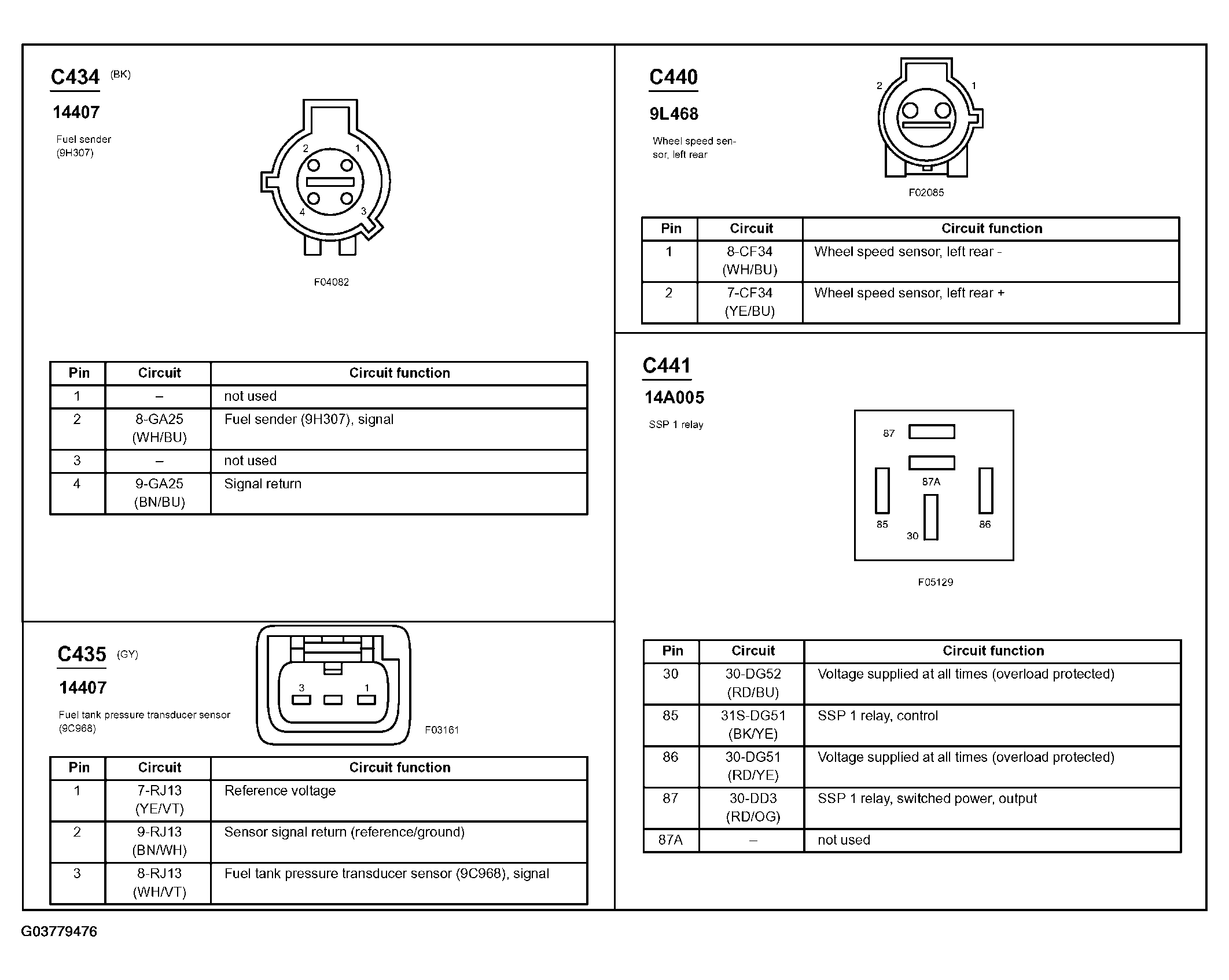

Fig 98: Identifying Connector C434, C435, C440 & C441

G03779476

Courtesy of FORD MOTOR CO.

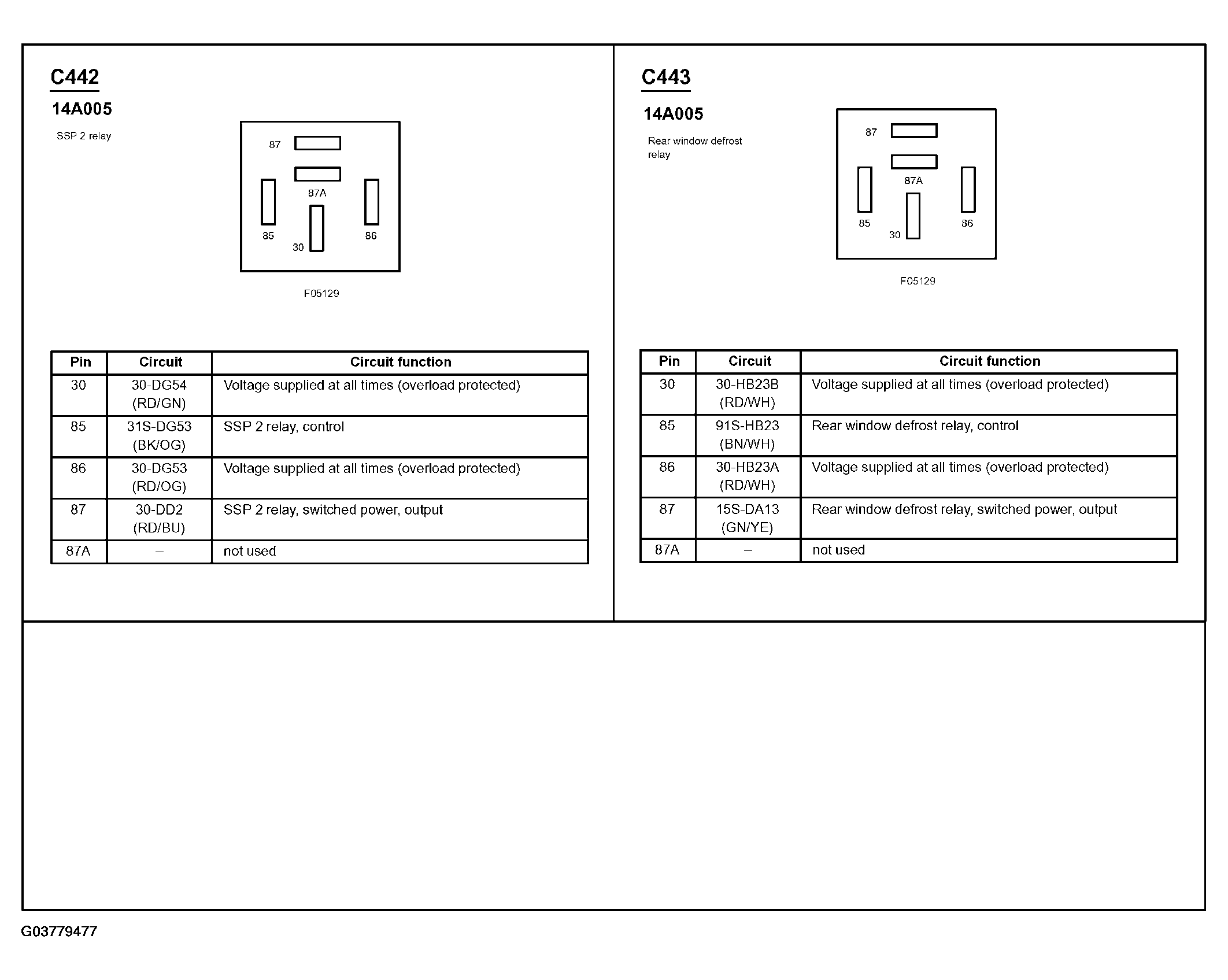

Fig 99: Identifying Connector C442 & C443

G03779477

Courtesy of FORD MOTOR CO.

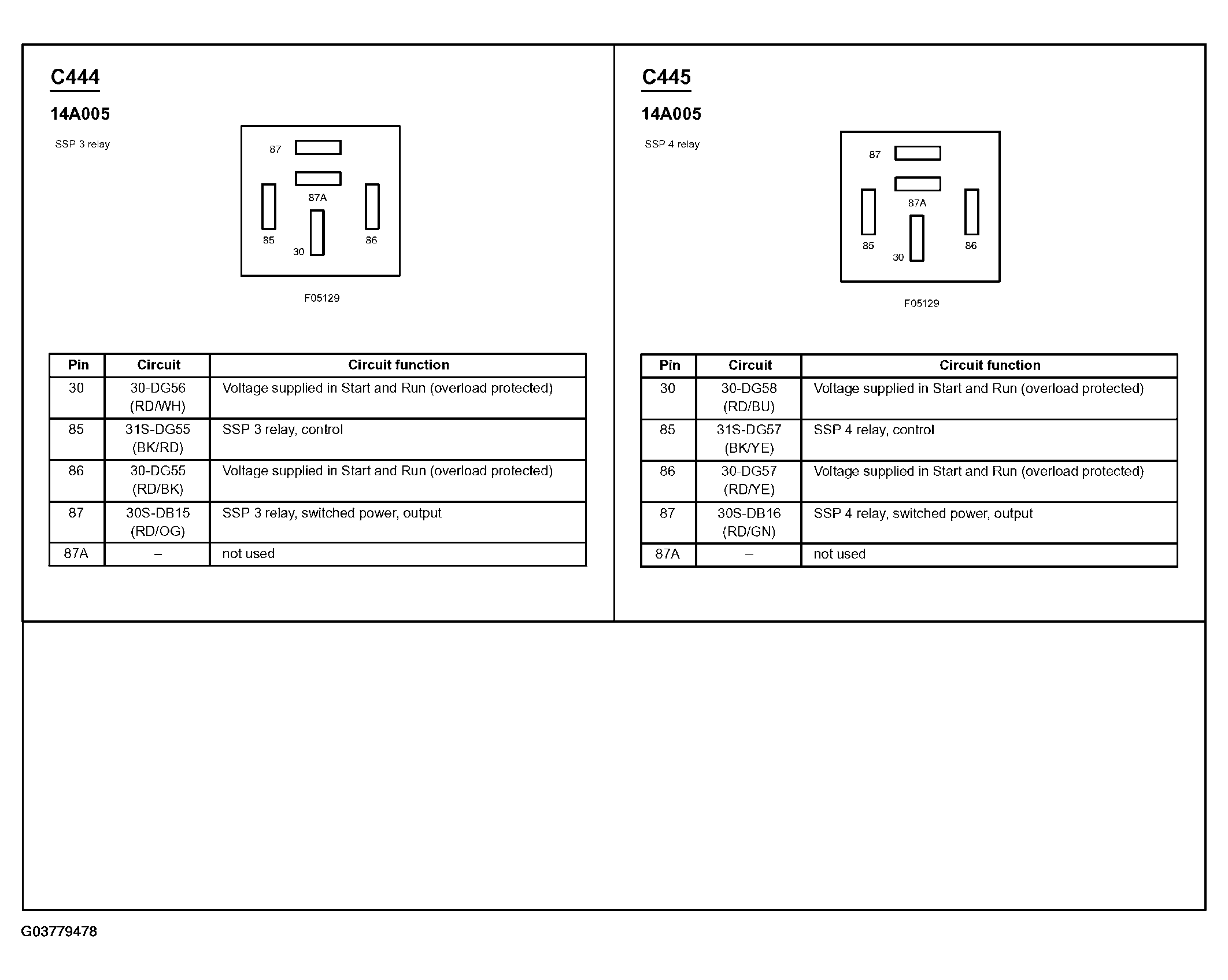

Fig 100: Identifying Connector C444 & C445

G03779478

Courtesy of FORD MOTOR CO.

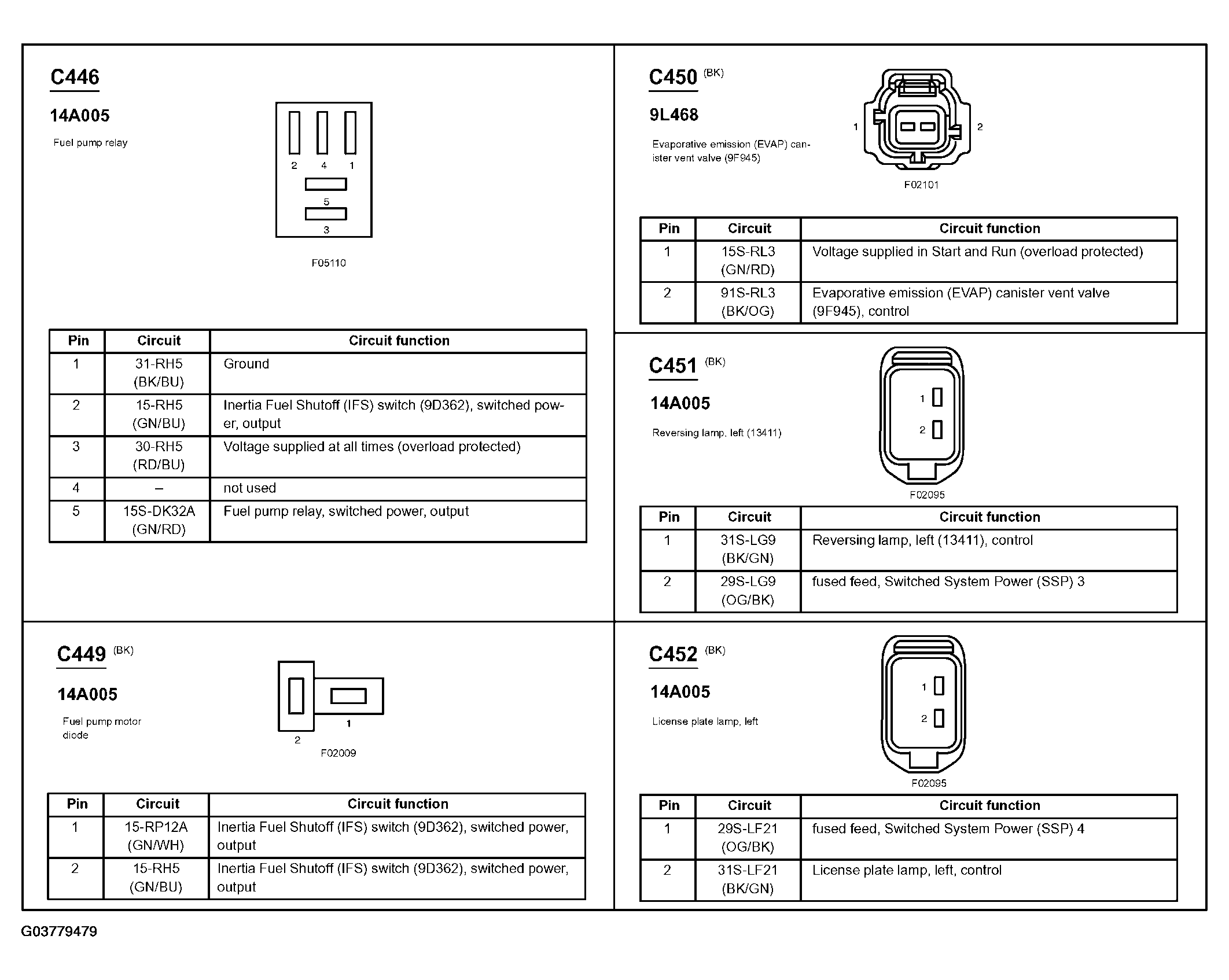

Fig 101: Identifying Connector C446, C449, C450, C451 & C452

G03779479

Courtesy of FORD MOTOR CO.

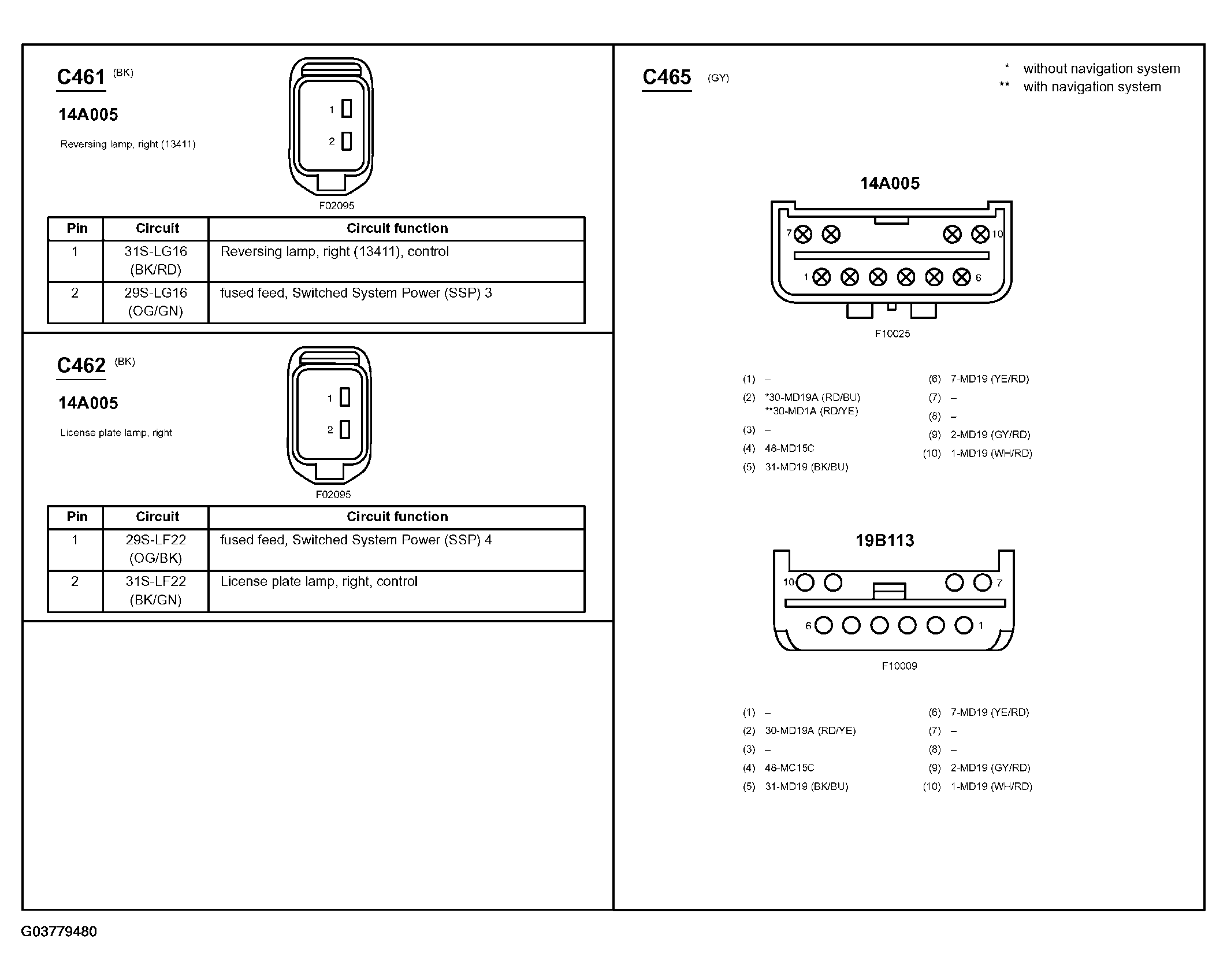

Fig 102: Identifying Connector C461, C462 & C465

G03779480

Courtesy of FORD MOTOR CO.

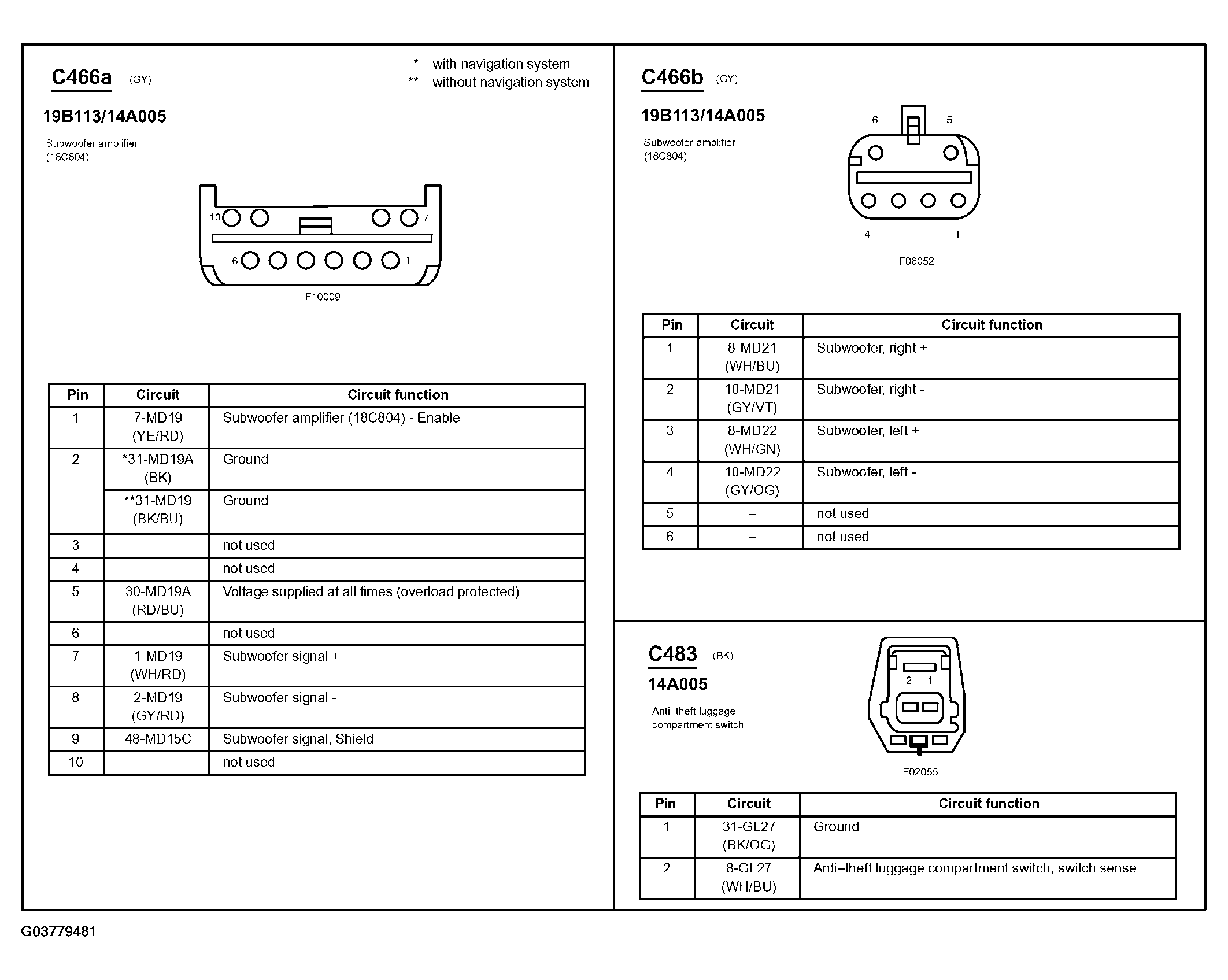

Fig 103: Identifying Connector C466a, C466b & C483

G03779481

Courtesy of FORD MOTOR CO.

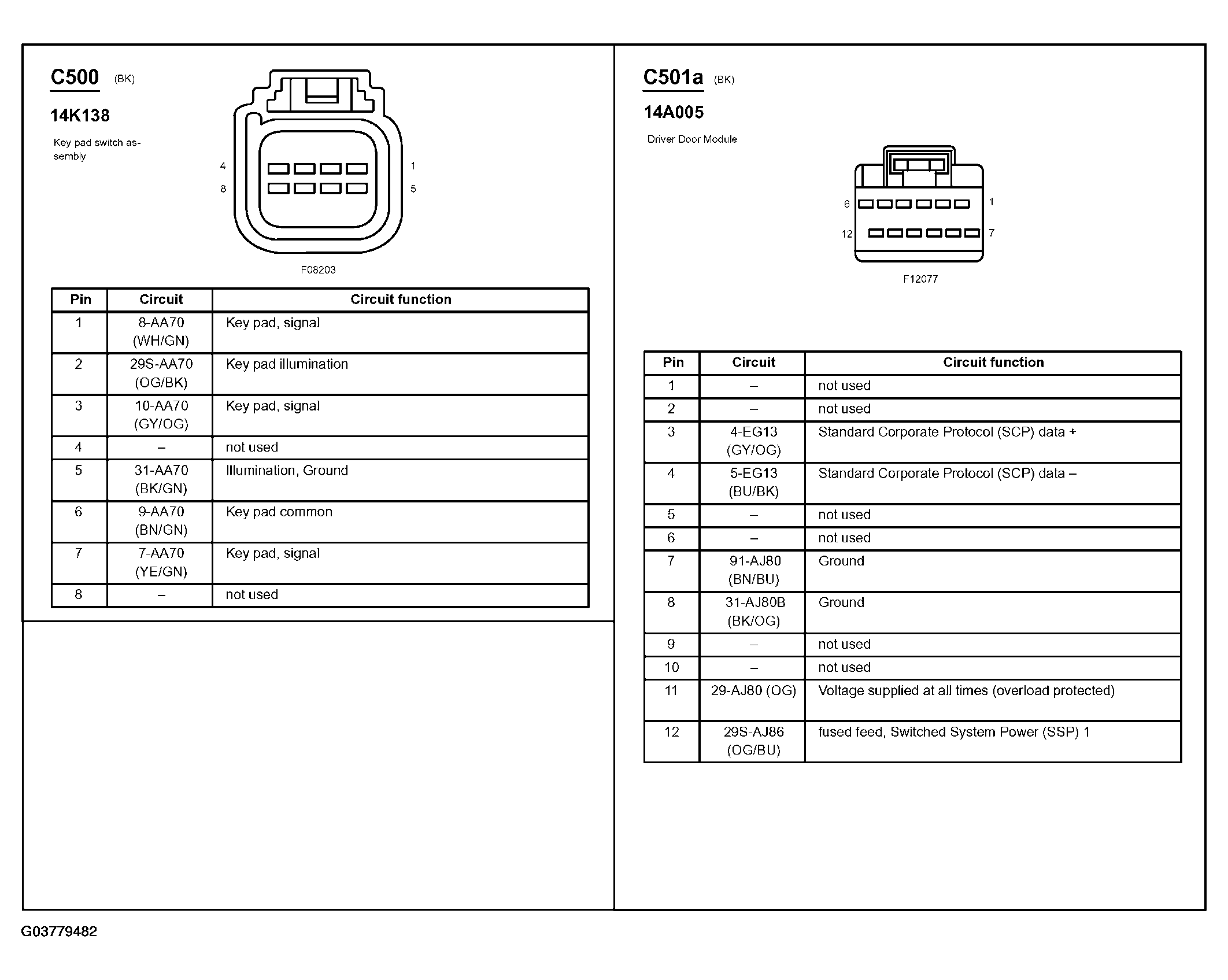

Fig 104: Identifying Connector C500 & C501a

G03779482

Courtesy of FORD MOTOR CO.

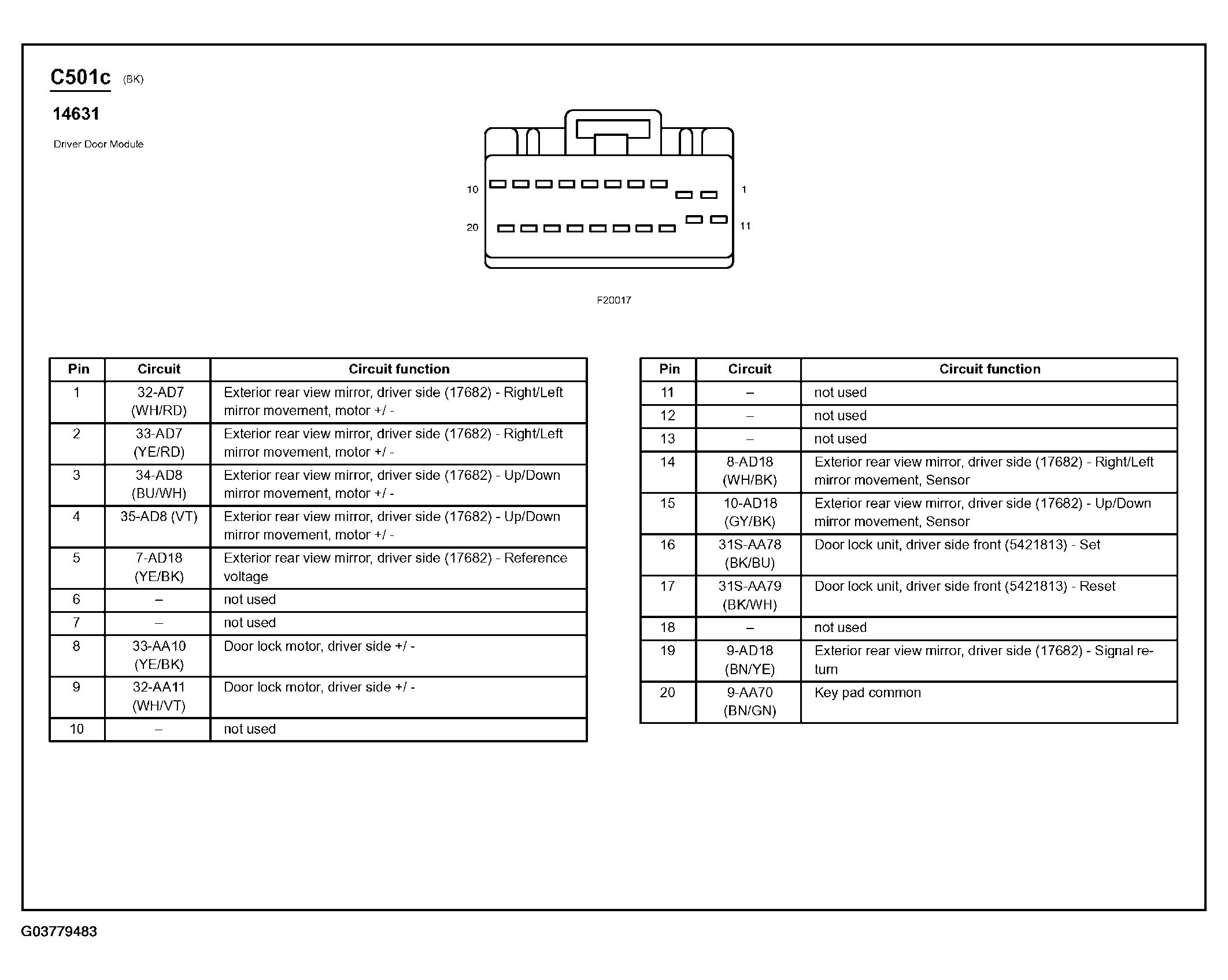

Fig 105: Driver Door Module Connector End View (C501c)

G03779483

Courtesy of FORD MOTOR CO.

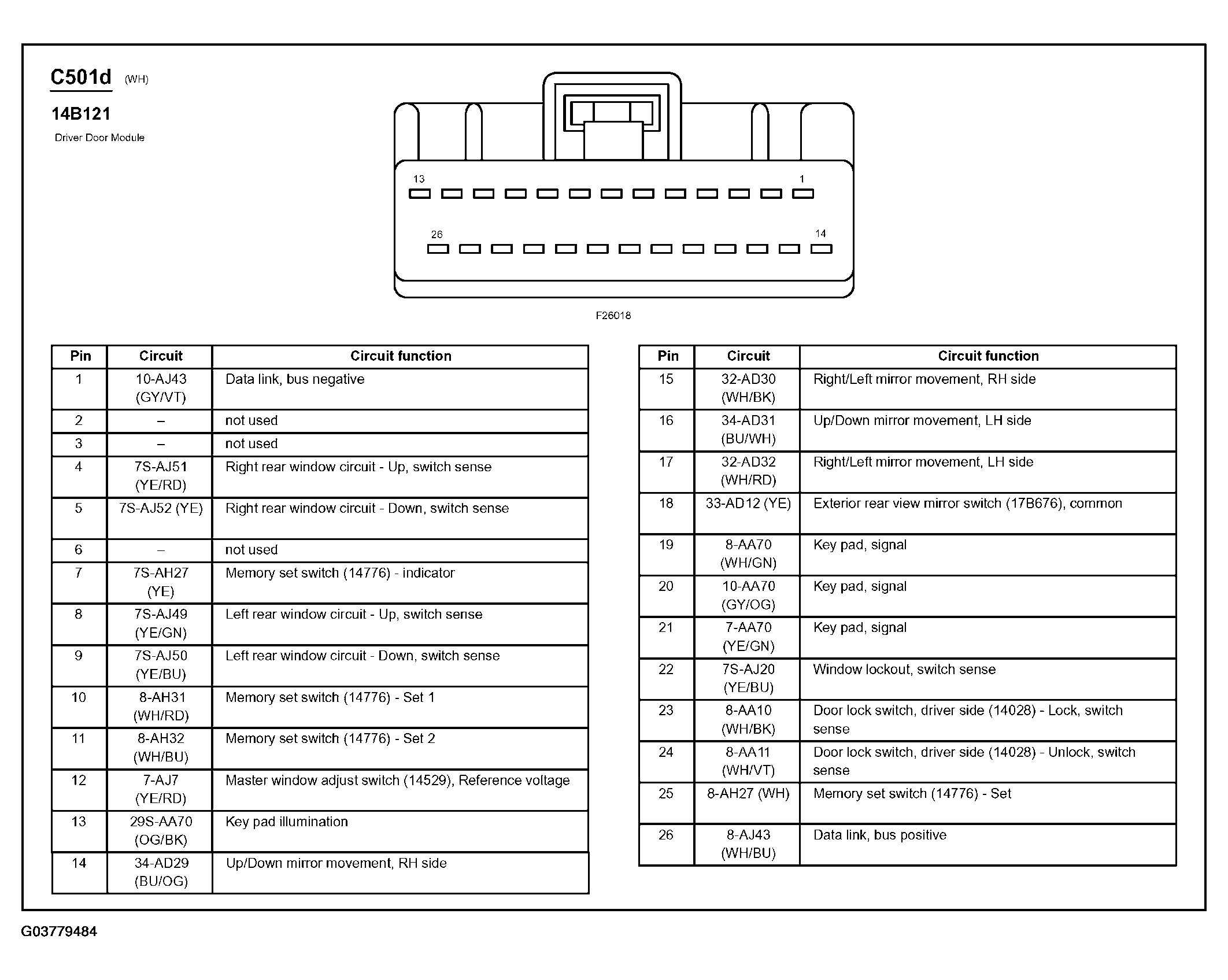

Fig 106: Driver Door Module Connector End View (C501d)

G03779484

Courtesy of FORD MOTOR CO.

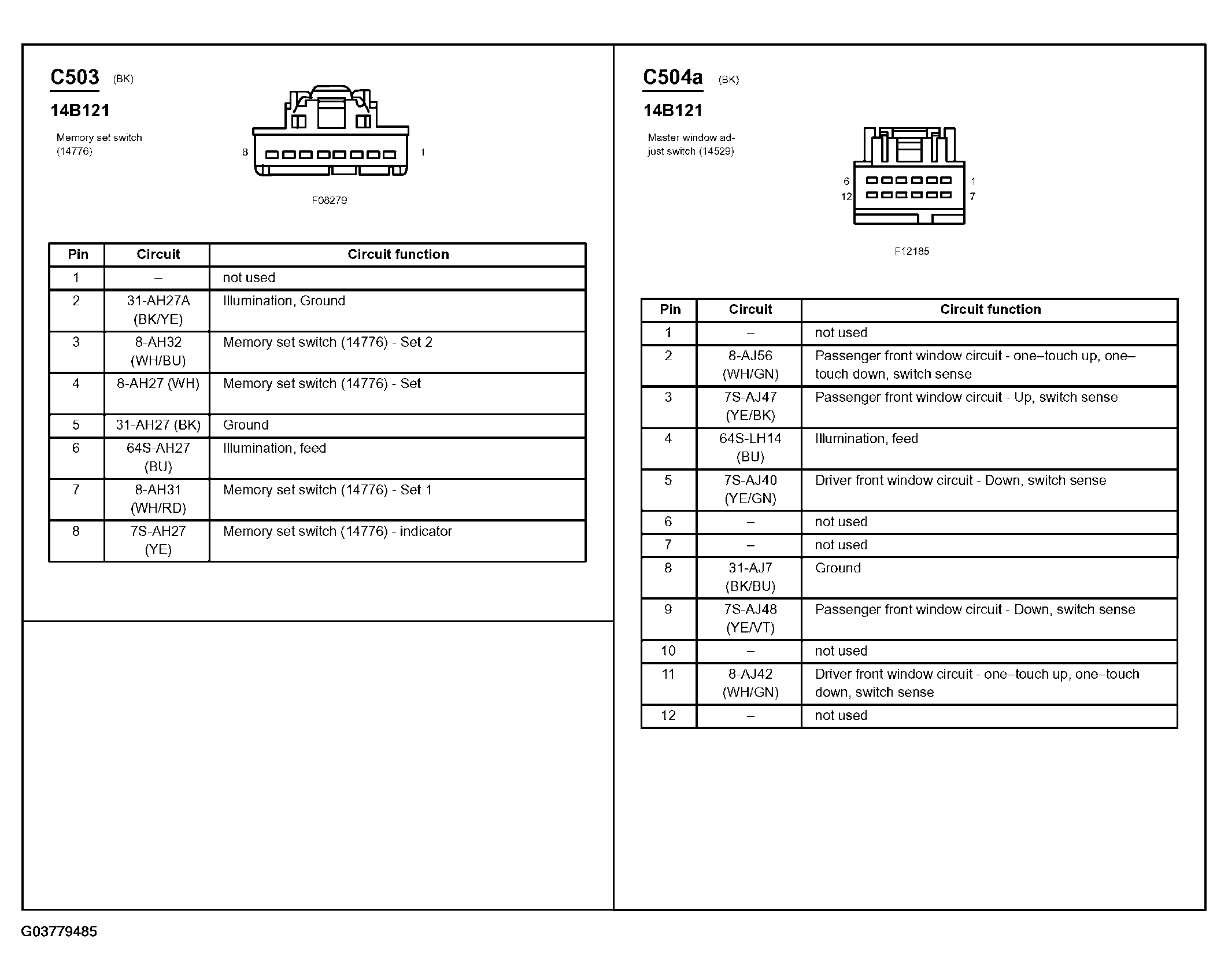

Fig 107: Identifying Connector C503 & C504a

G03779485

Courtesy of FORD MOTOR CO.

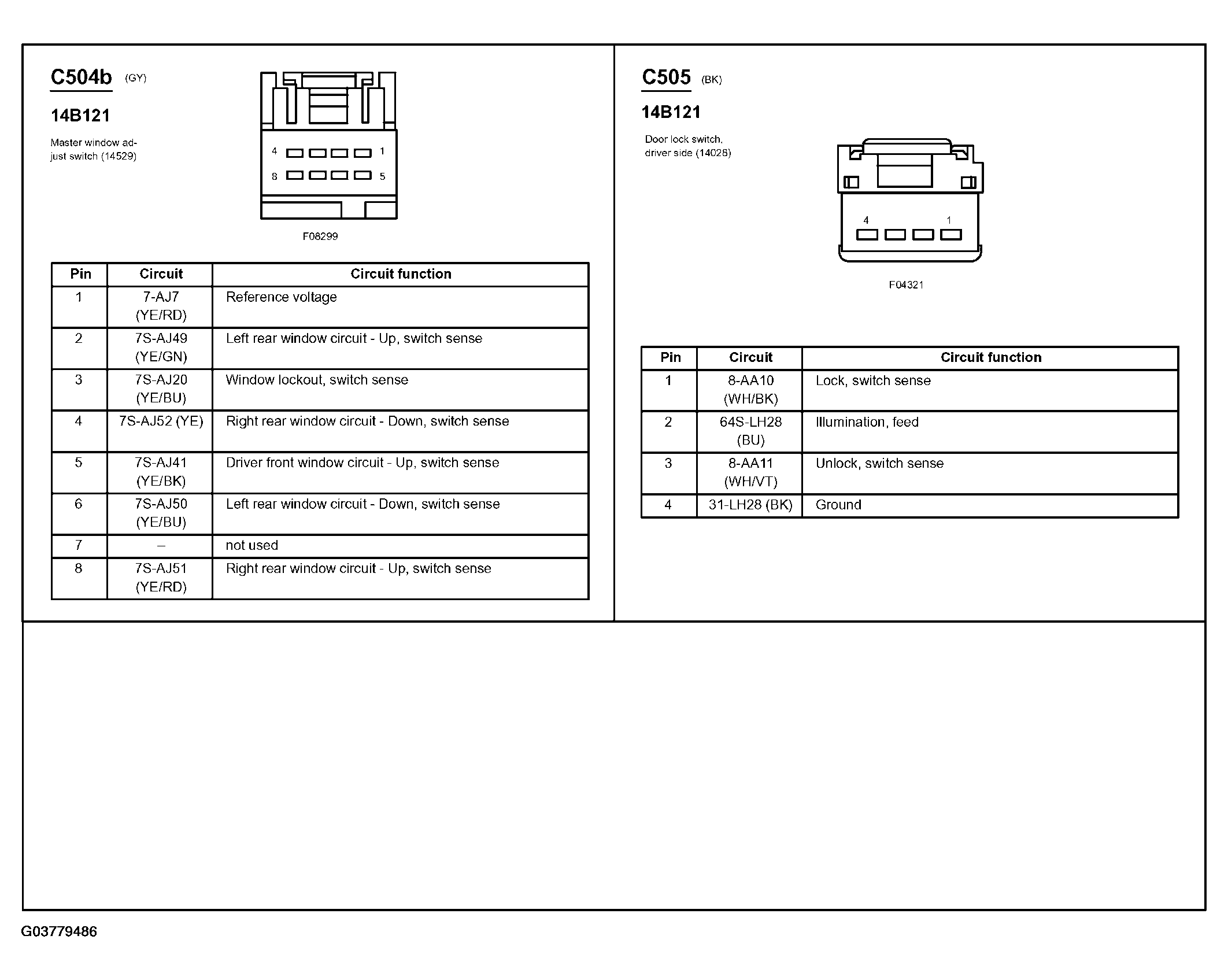

Fig 108: Identifying Connector C504b & C505

G03779486

Courtesy of FORD MOTOR CO.

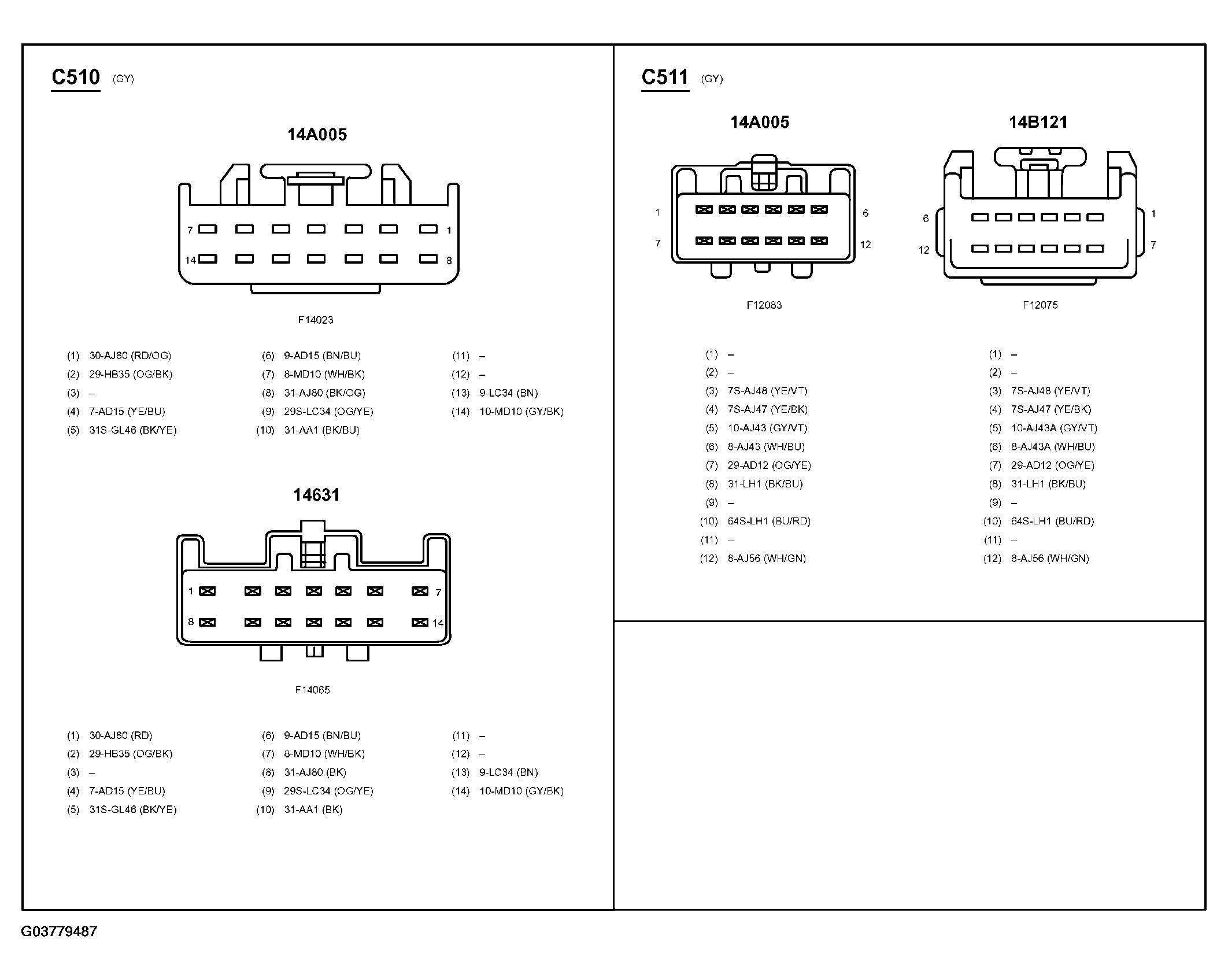

Fig 109: Identifying Connector C510 & C511

G03779487

Courtesy of FORD MOTOR CO.

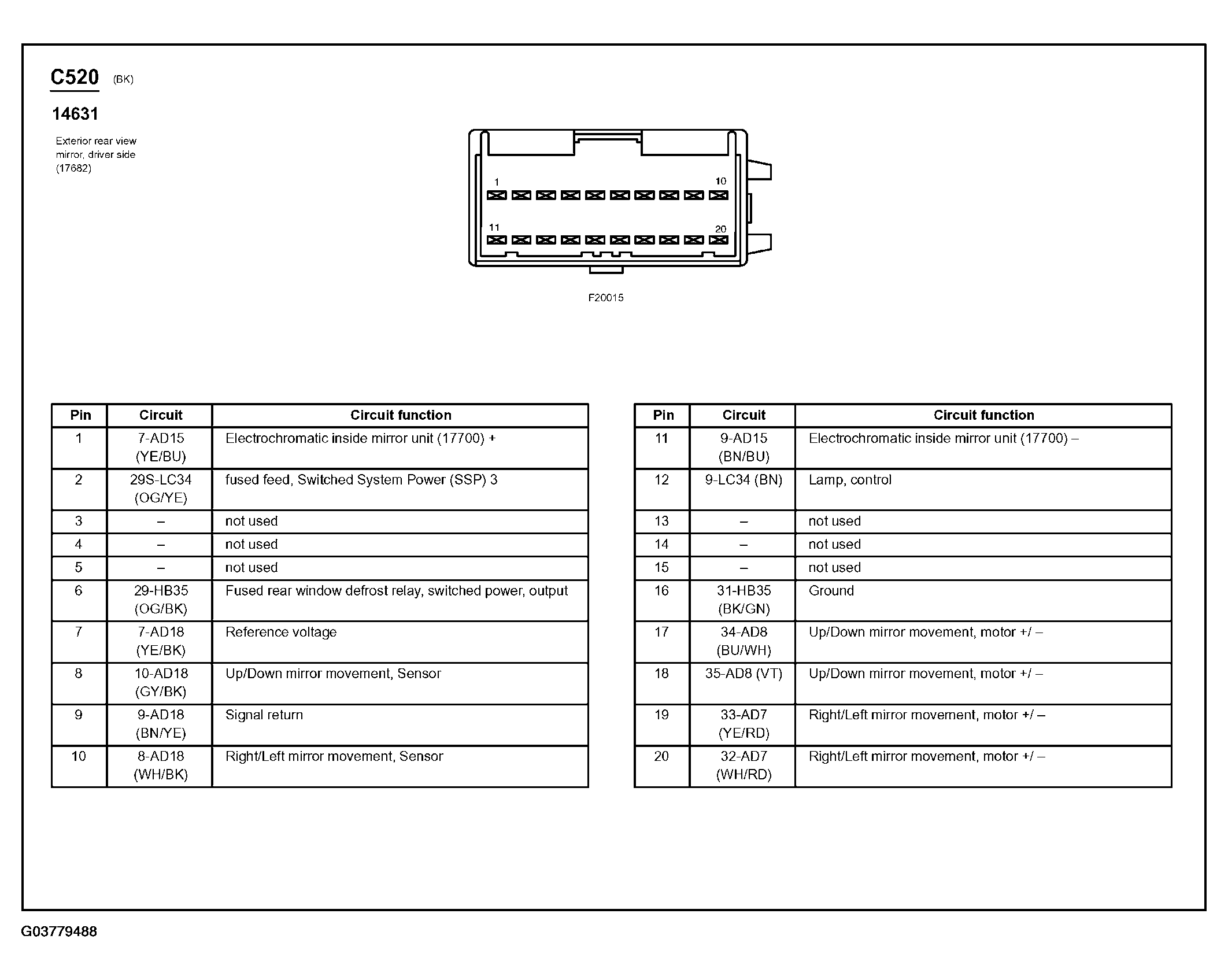

Fig 110: Exterior Rear View Mirror, Driver Side Connector End View (C520)

G03779488

Courtesy of FORD MOTOR CO.

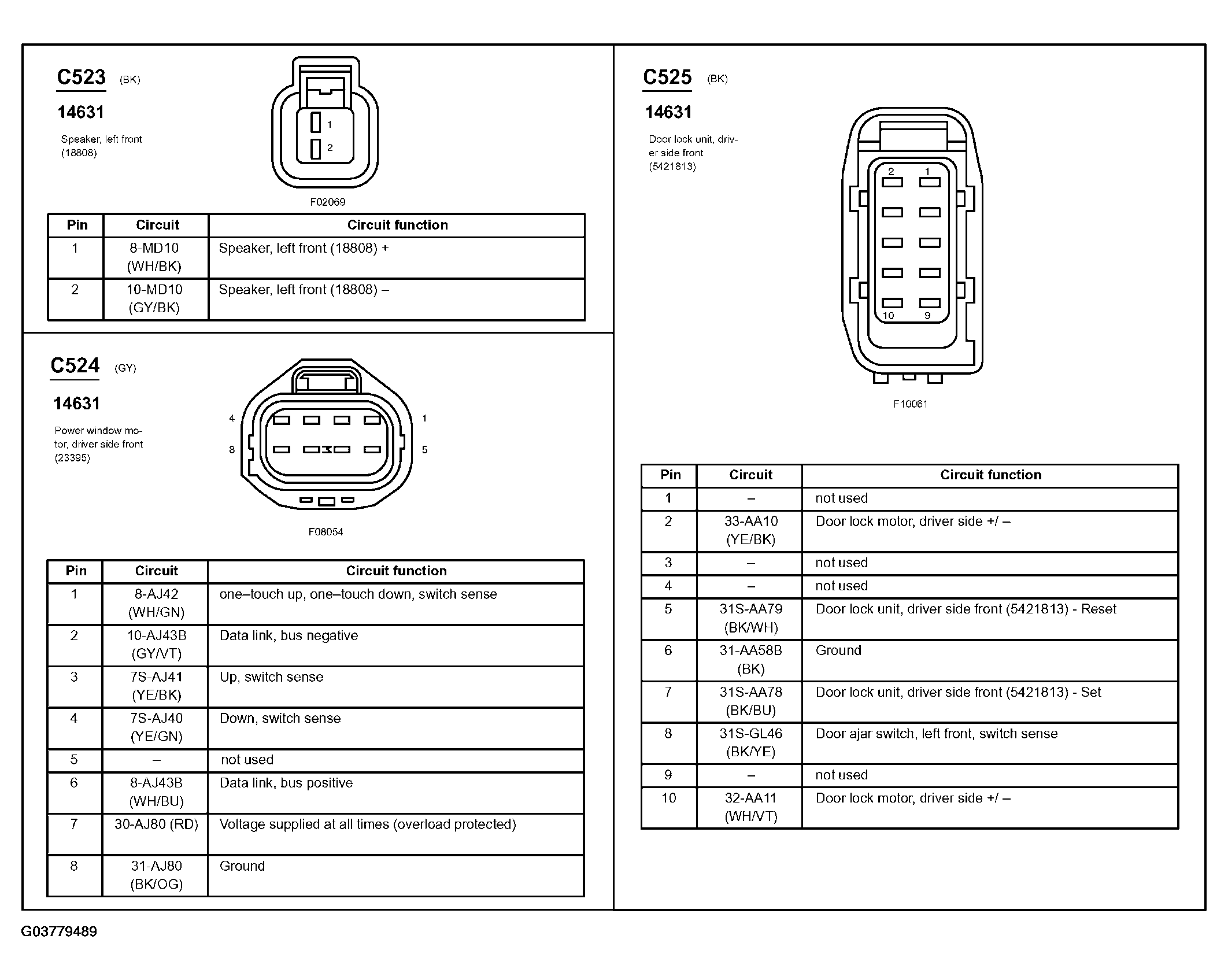

Fig 111: Identifying Connector C523, C524 & C525

G03779489

Courtesy of FORD MOTOR CO.

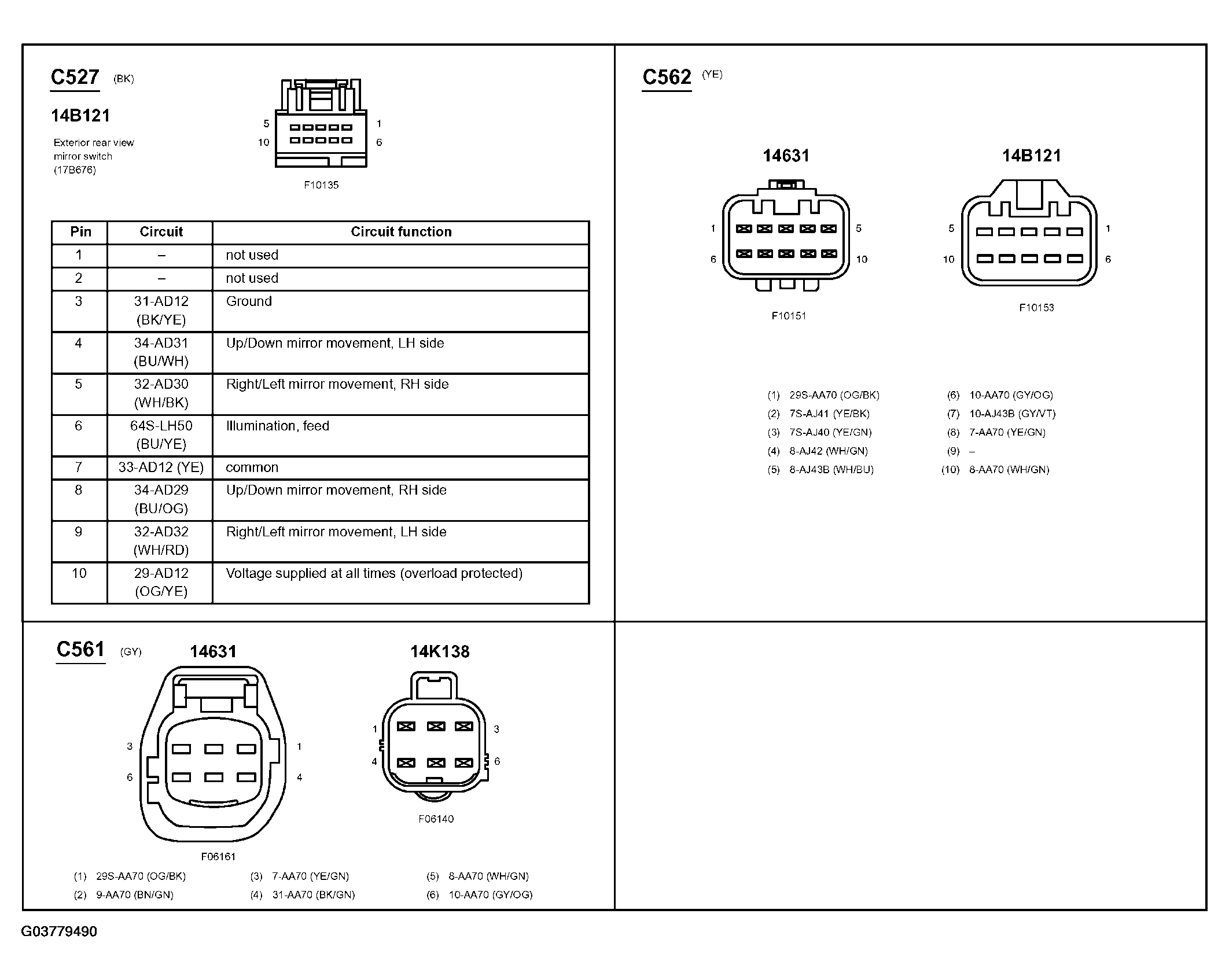

Fig 112: Identifying Connector C527, C561 & C562

G03779490

Courtesy of FORD MOTOR CO.

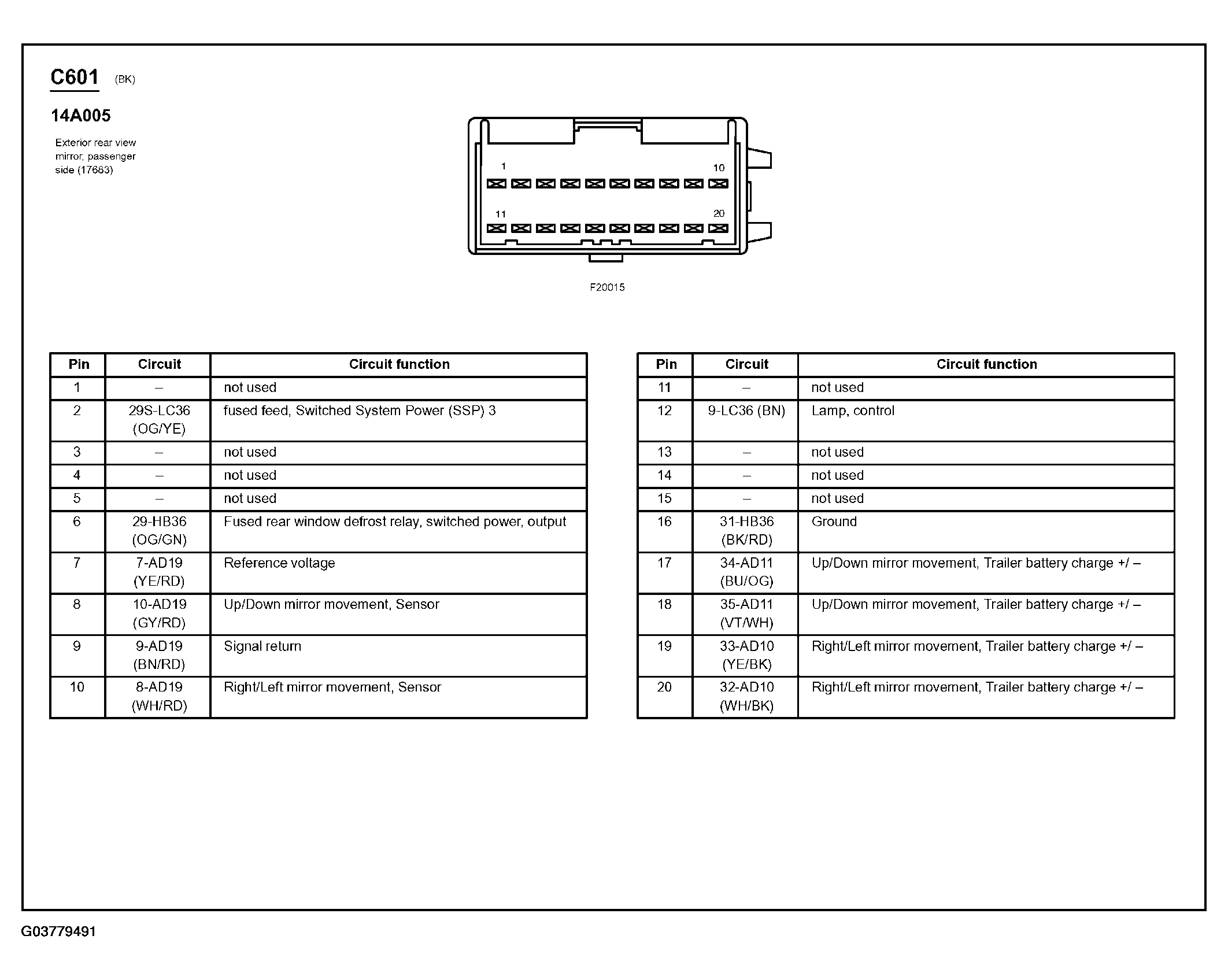

Fig 113: Exterior Rear View Mirror, Driver Side Connector End View (C601)

G03779491

Courtesy of FORD MOTOR CO.

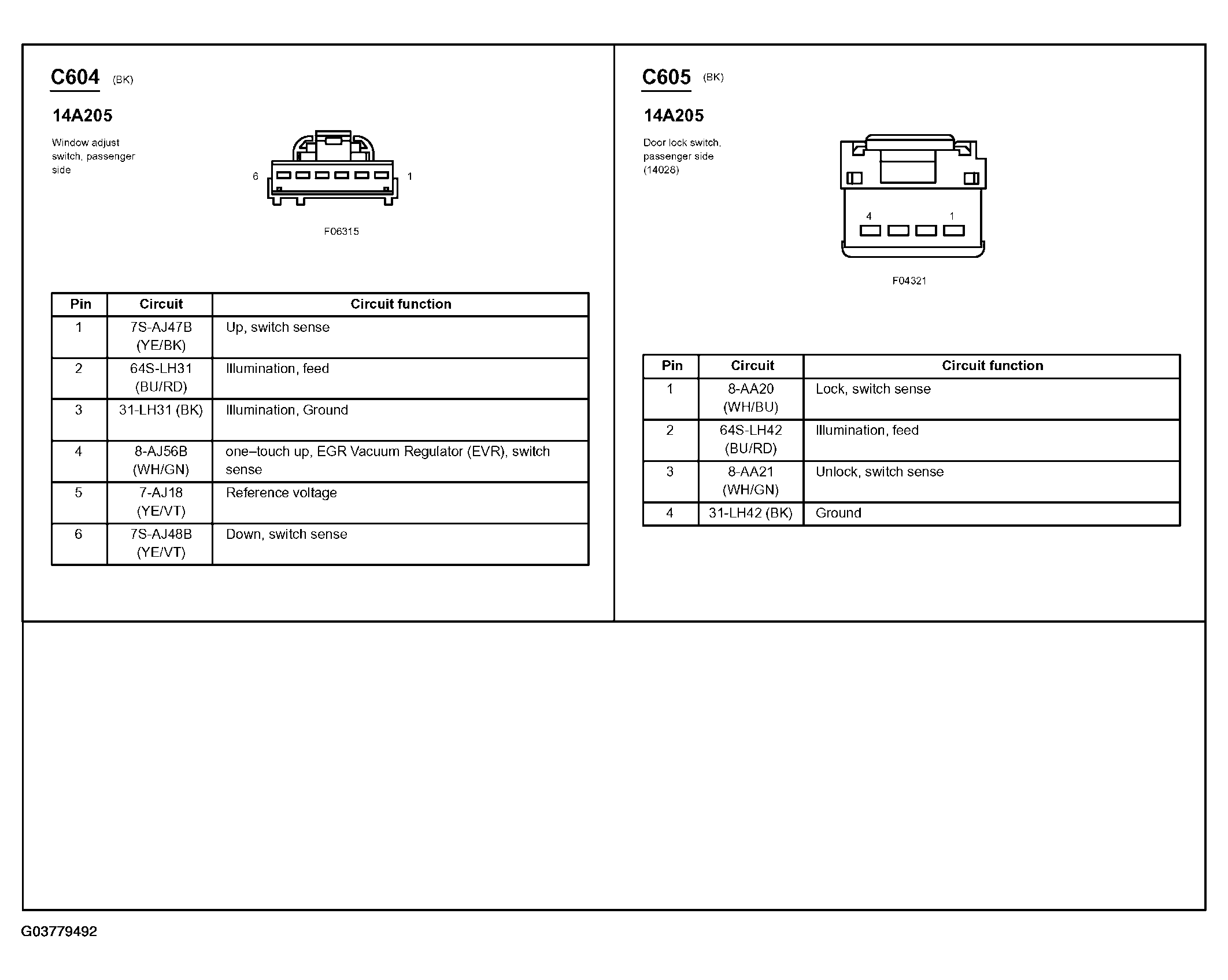

Fig 114: Identifying Connector C604 & C605

G03779492

Courtesy of FORD MOTOR CO.

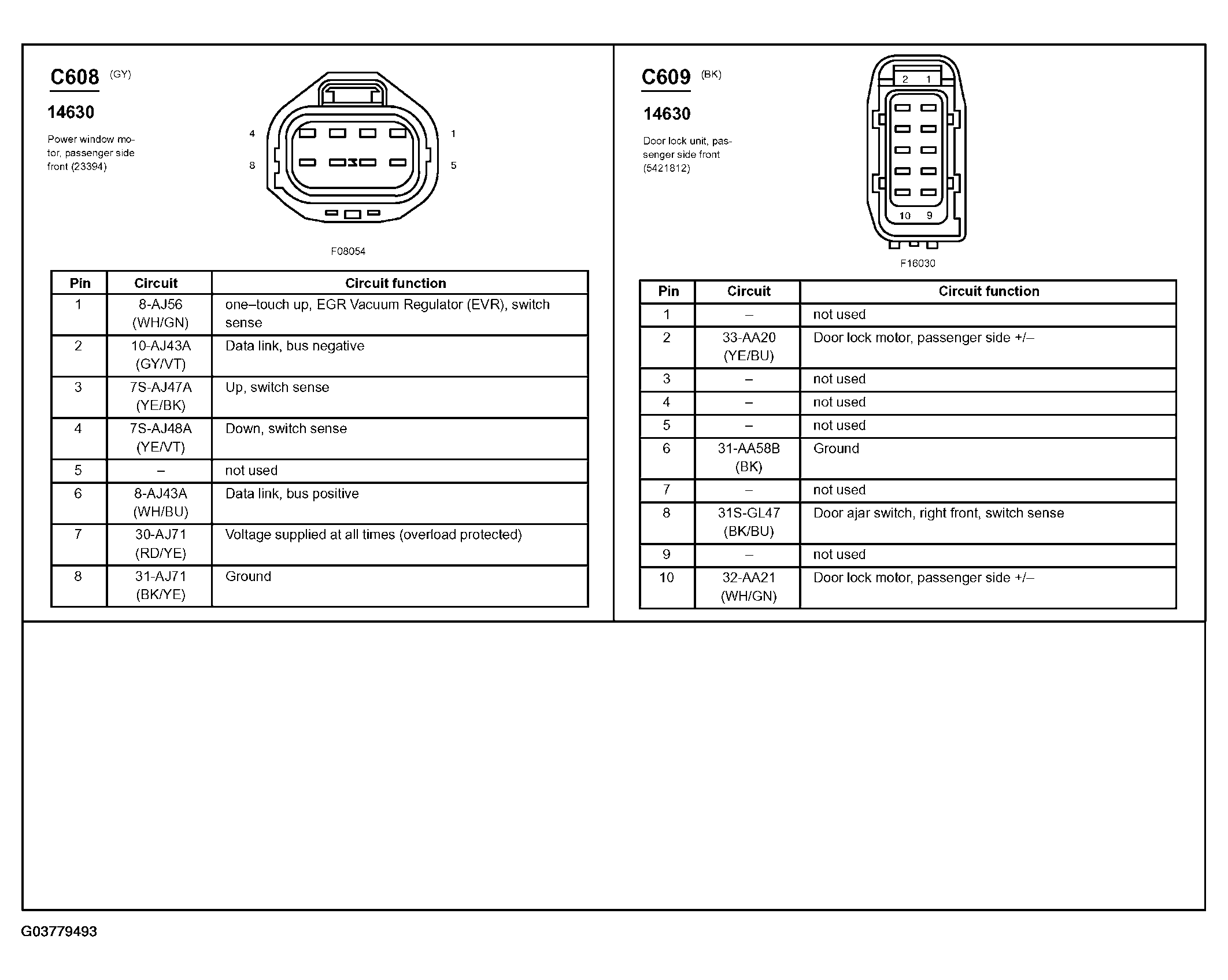

Fig 115: Identifying Connector C608 & C609

G03779493

Courtesy of FORD MOTOR CO.

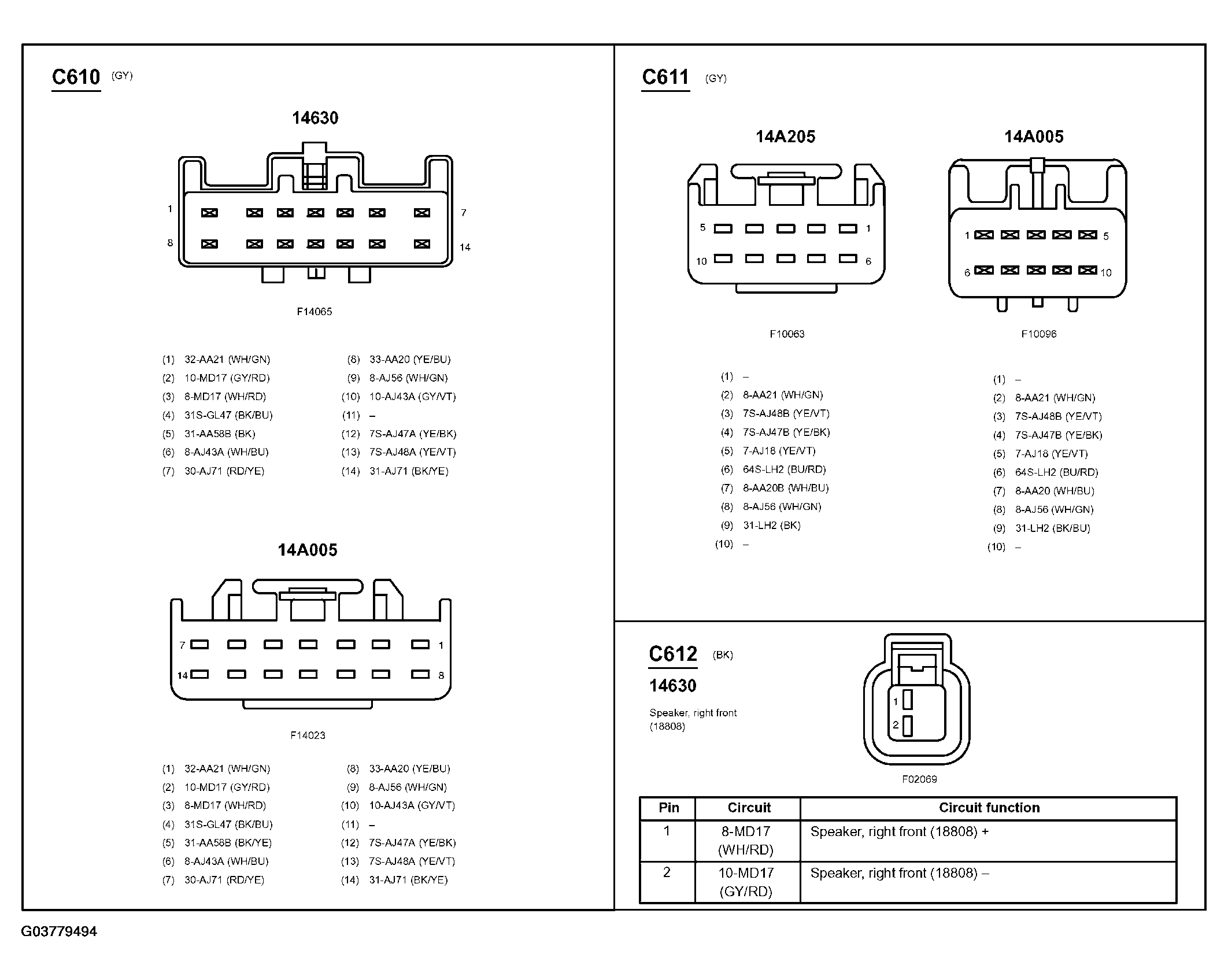

Fig 116: Identifying Connector C610, C611 & C612

G03779494

Courtesy of FORD MOTOR CO.

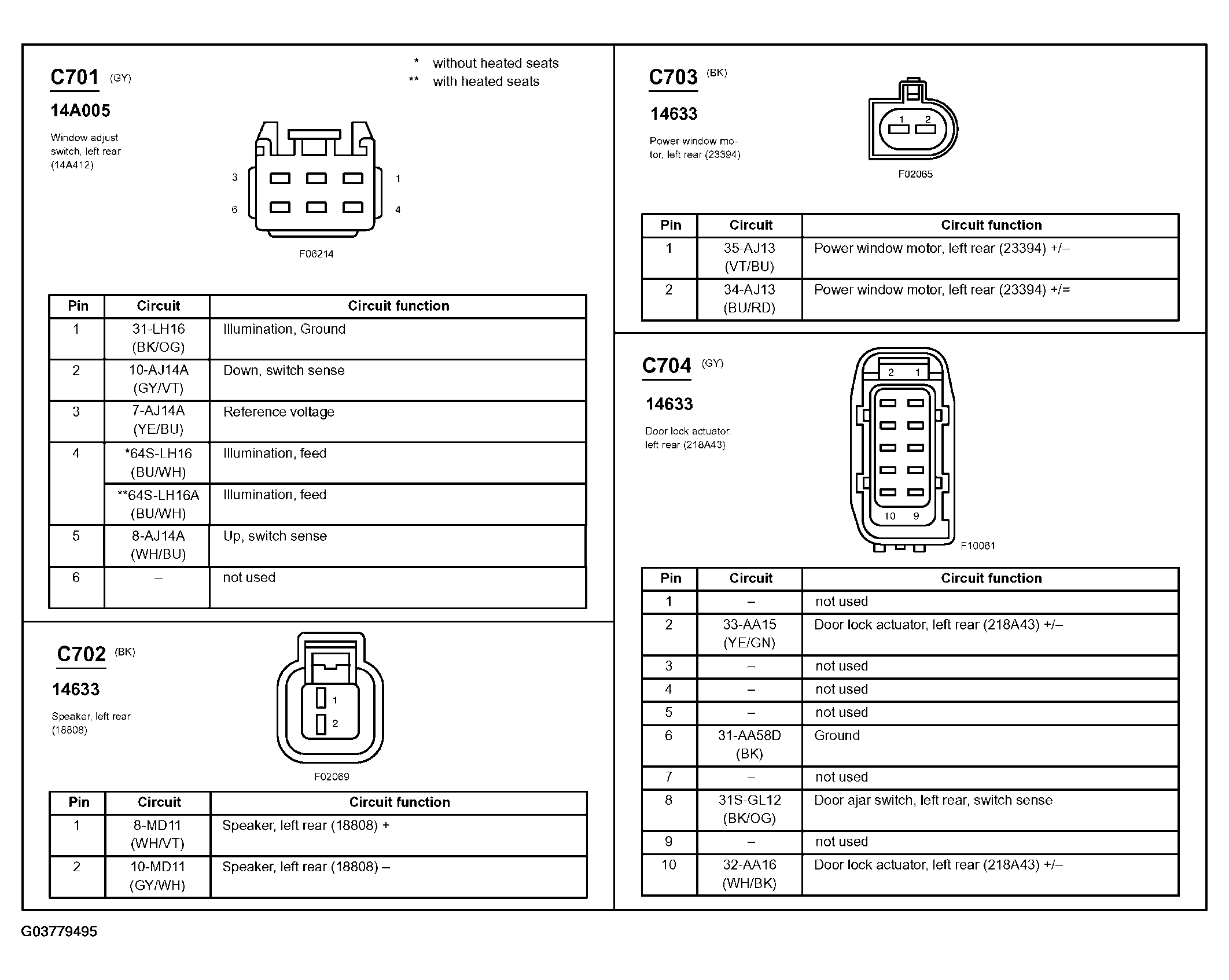

Fig 117: Identifying Connector C701, C702, C703 & C704

G03779495

Courtesy of FORD MOTOR CO.

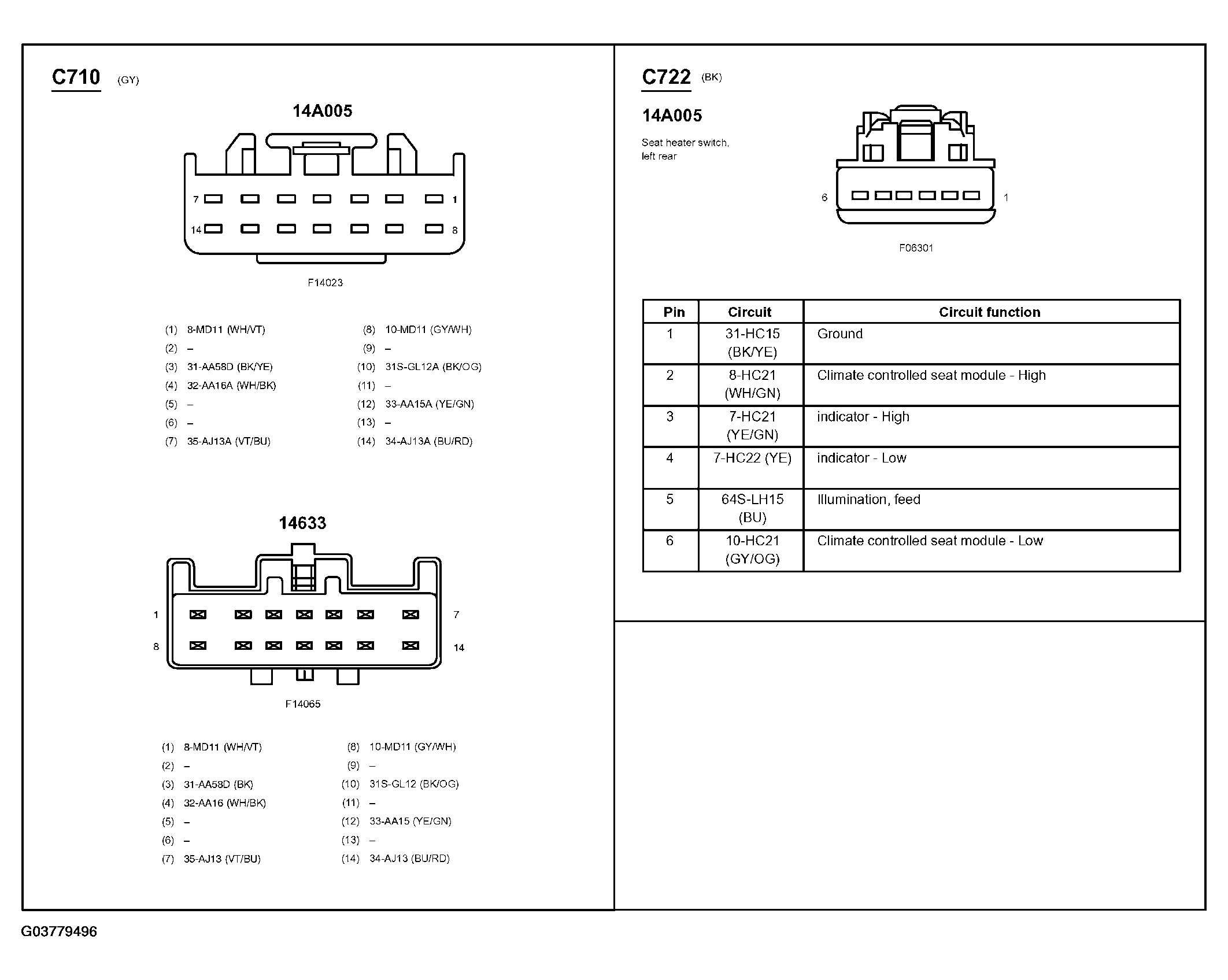

Fig 118: Identifying Connector C710 & C722

G03779496

Courtesy of FORD MOTOR CO.

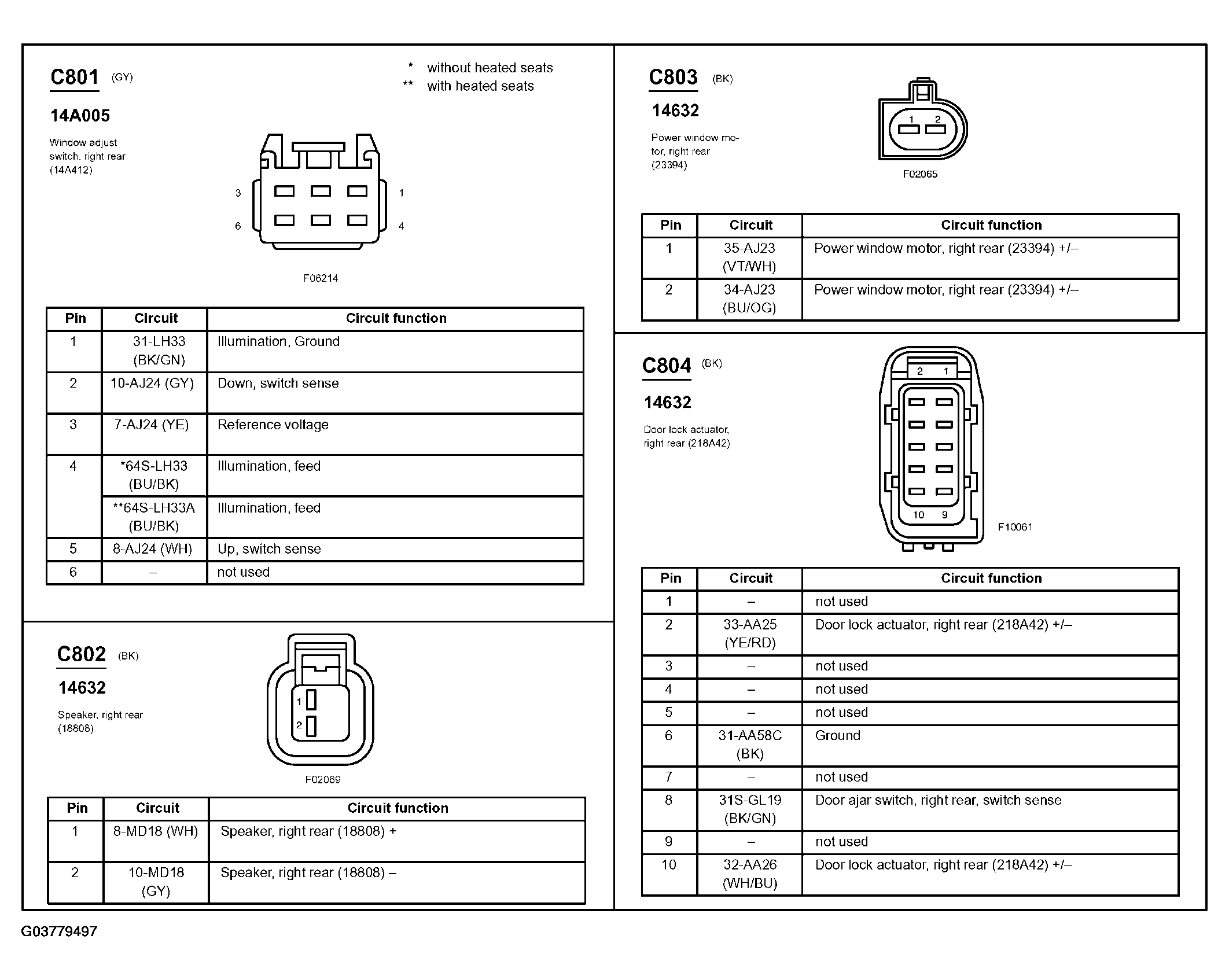

Fig 119: Identifying Connector C801, C802, C803 & C804

G03779497

Courtesy of FORD MOTOR CO.

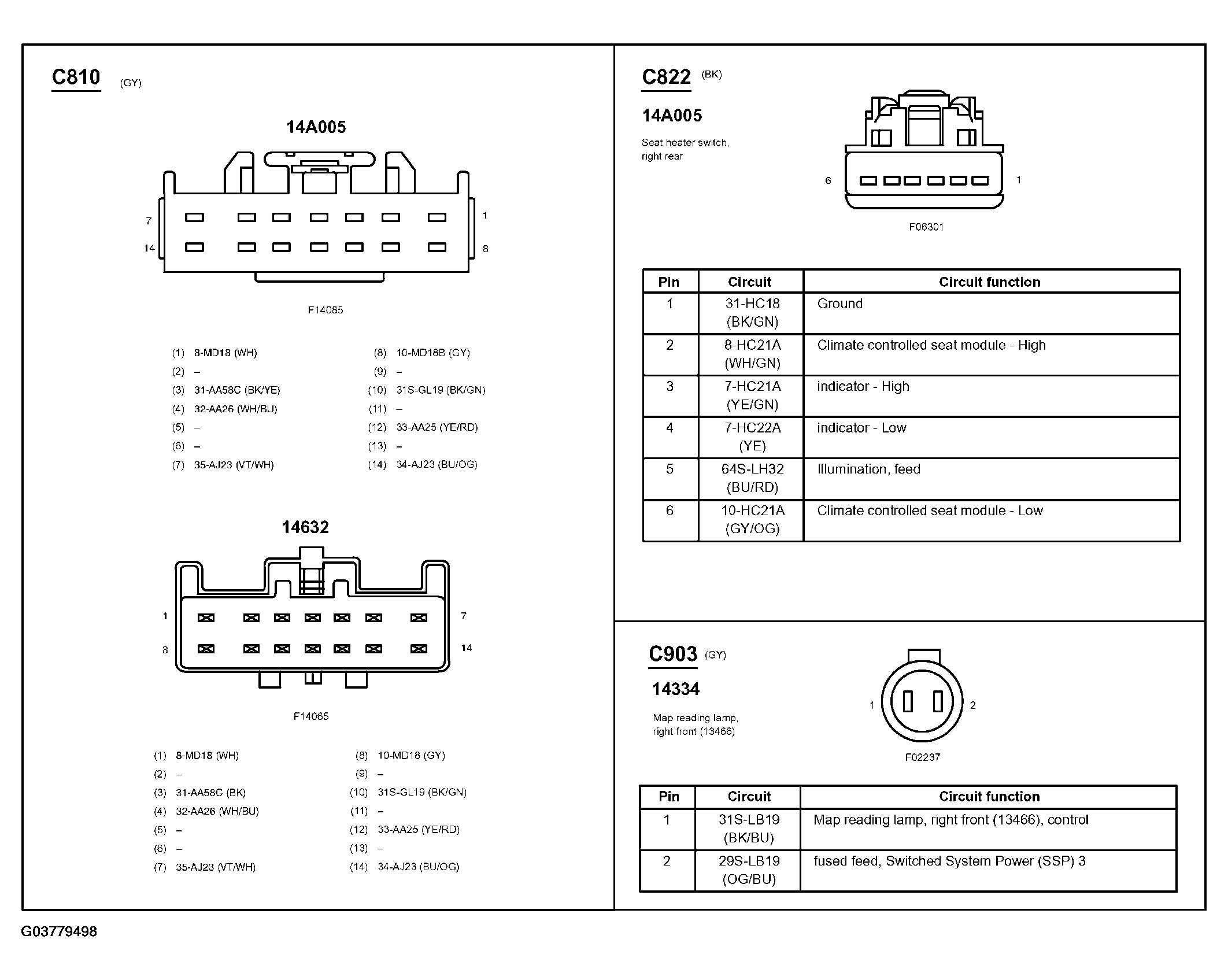

Fig 120: Identifying Connector C810, C822 & C903

G03779498

Courtesy of FORD MOTOR CO.

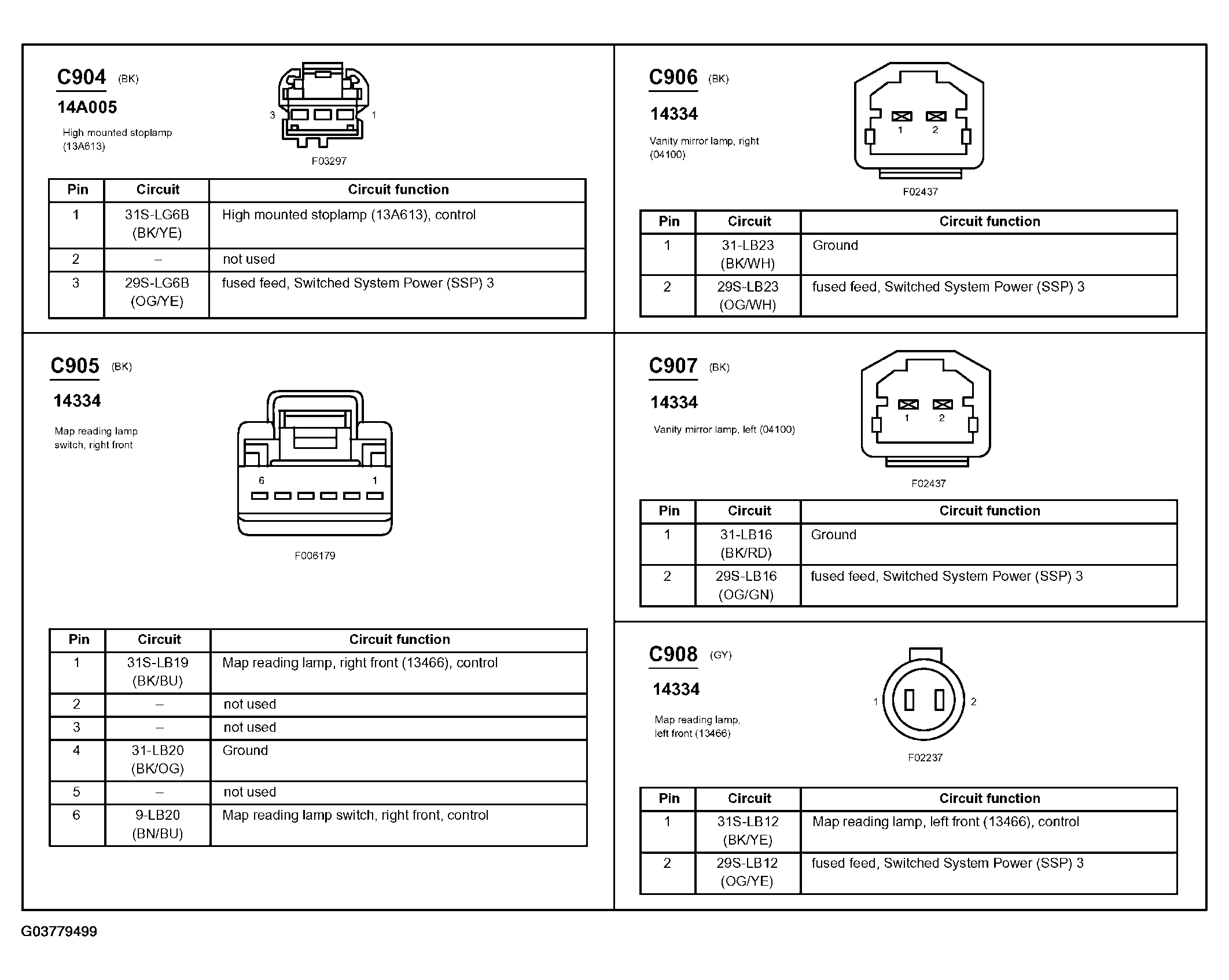

Fig 121: Identifying Connector C904, C905, C906, C907 & C908

G03779499

Courtesy of FORD MOTOR CO.

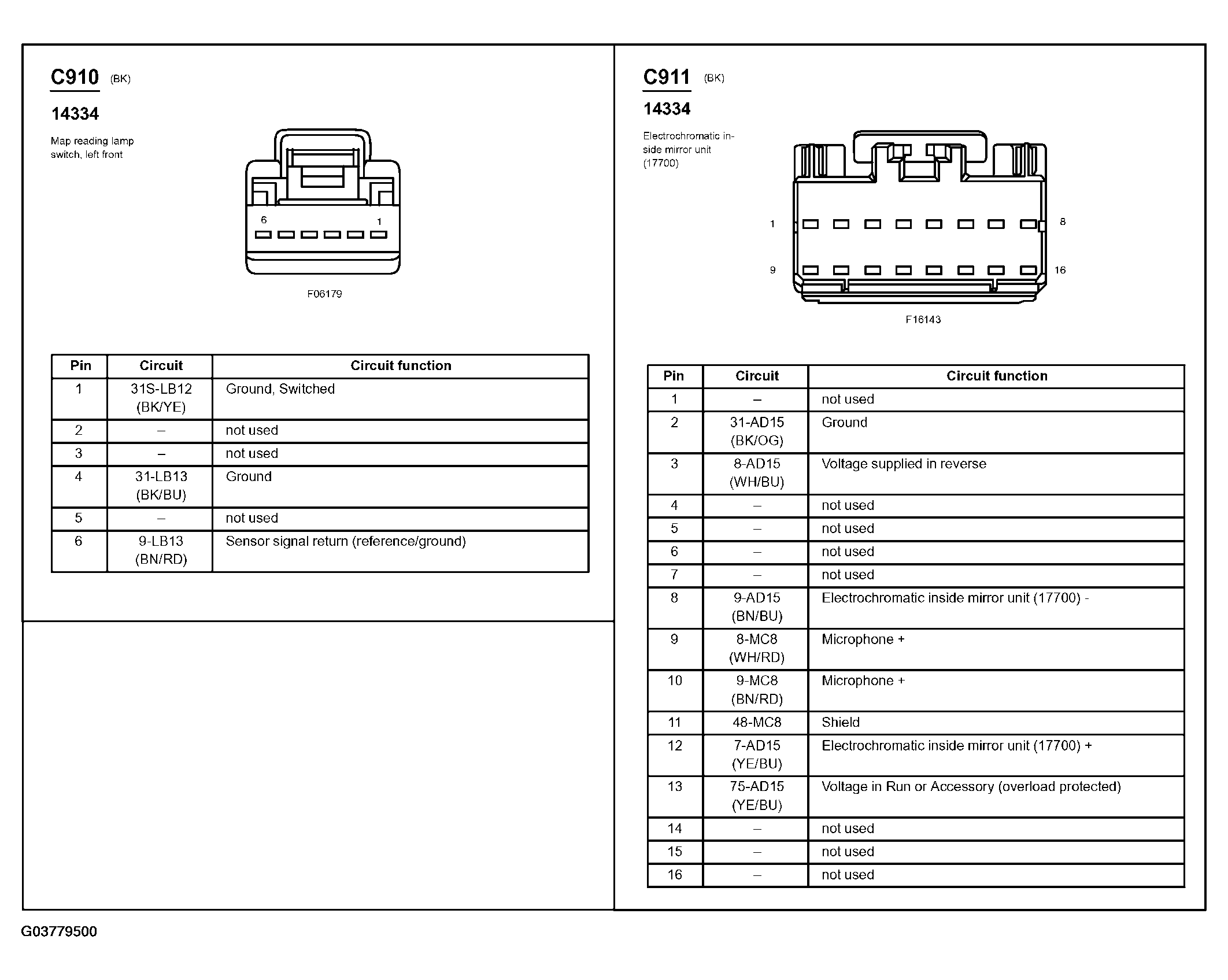

Fig 122: Identifying Connector C910 & C911

G03779500

Courtesy of FORD MOTOR CO.

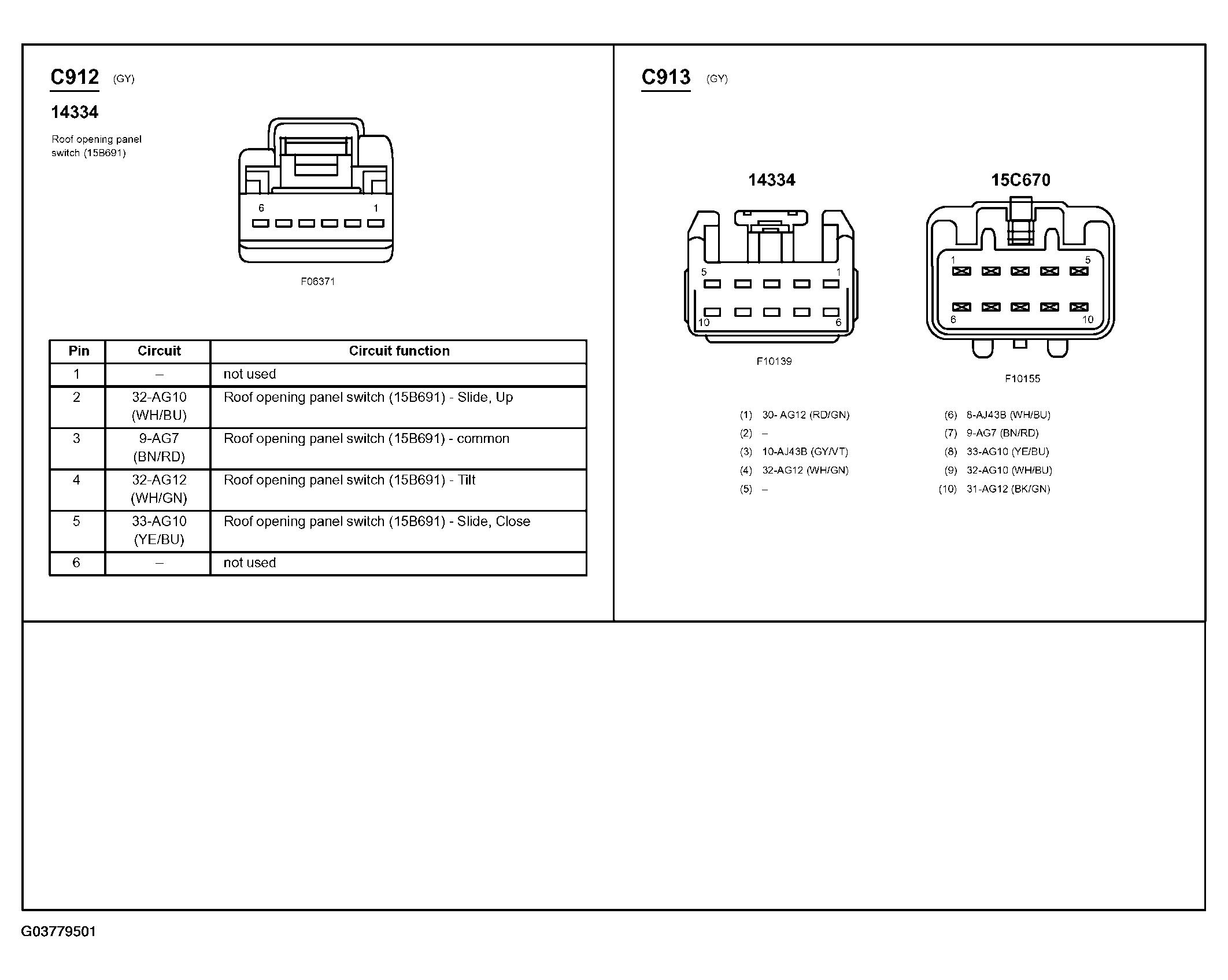

Fig 123: Identifying Connector C912 & C913

G03779501

Courtesy of FORD MOTOR CO.

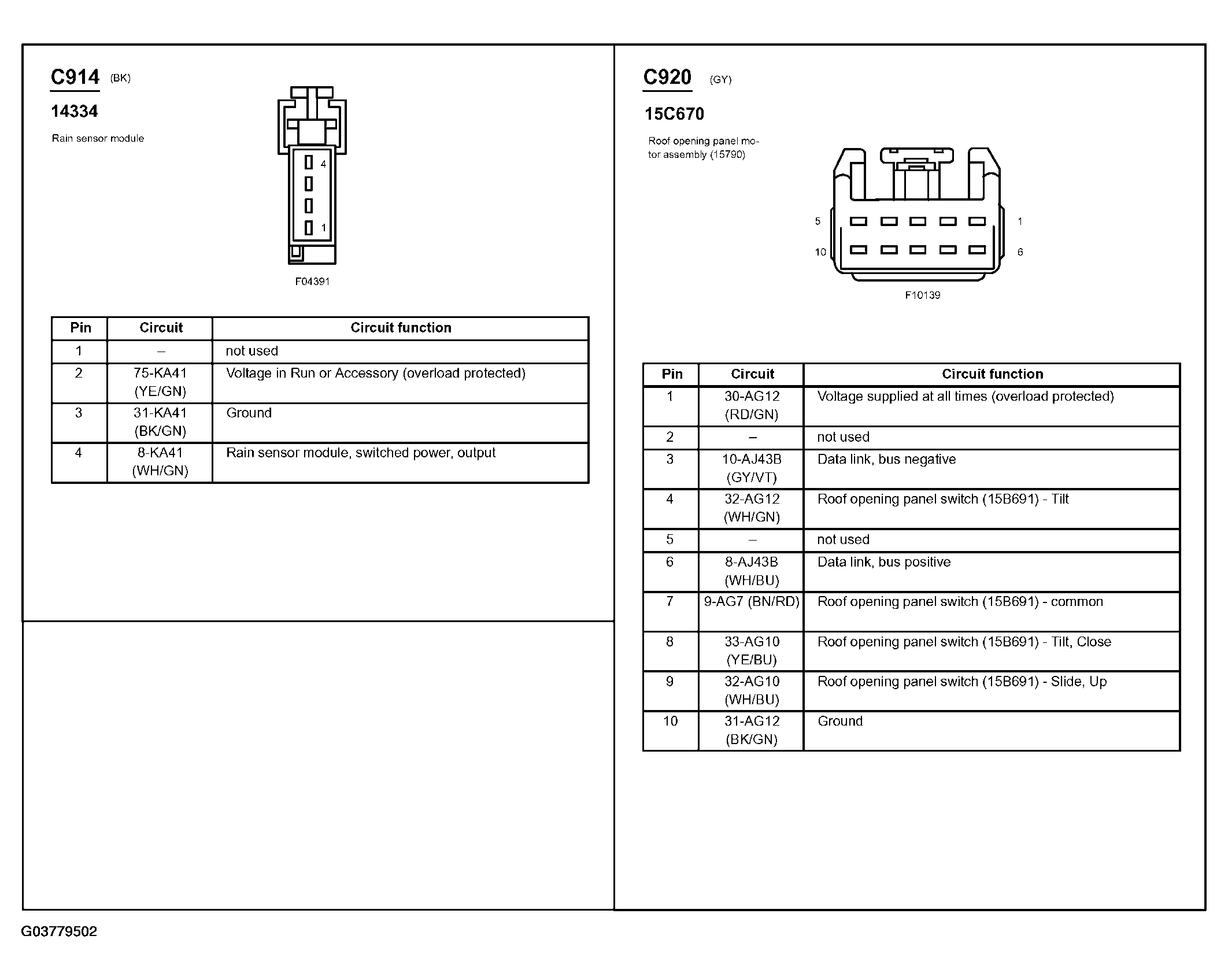

Fig 124: Identifying Connector C914 & C920

G03779502

Courtesy of FORD MOTOR CO.

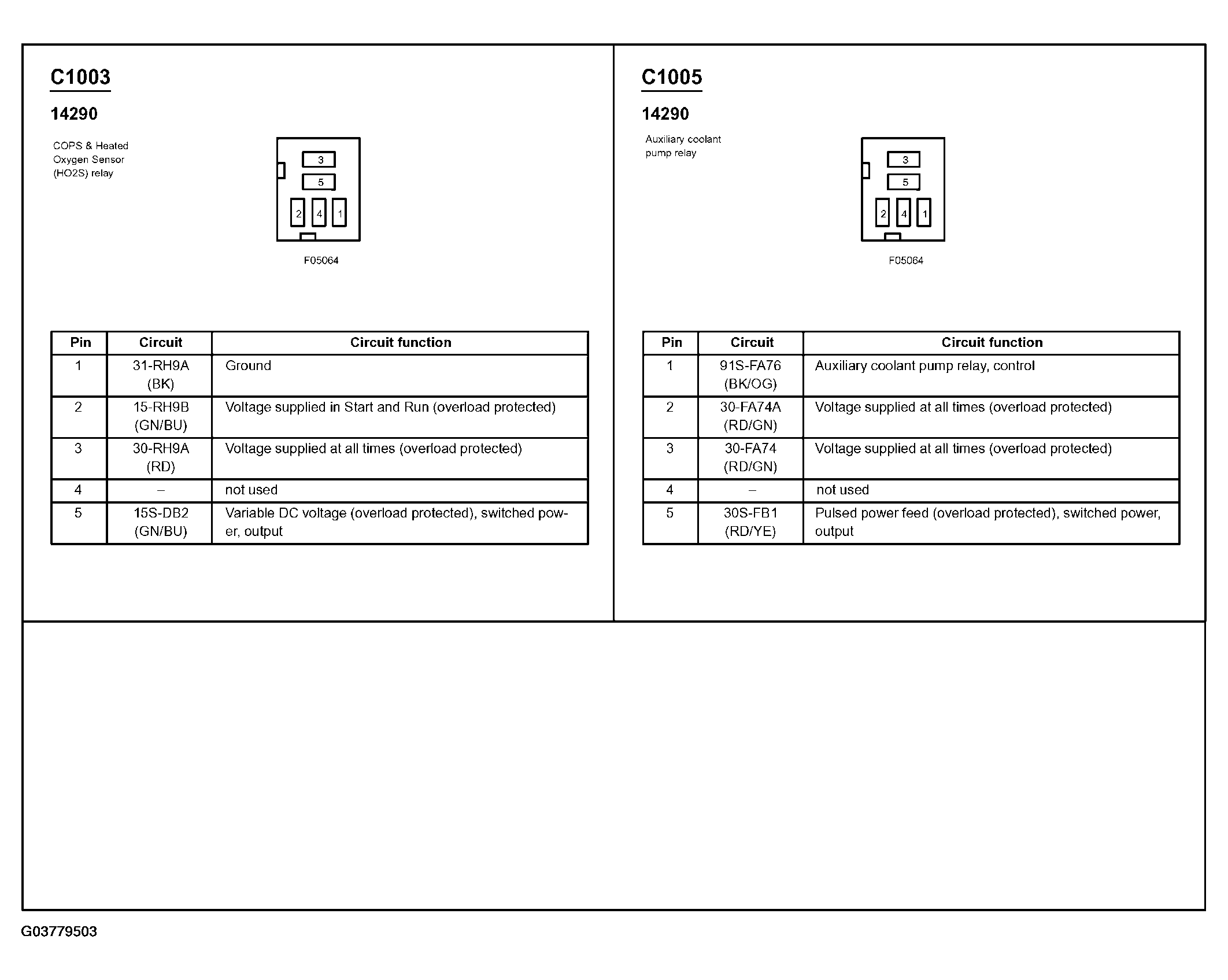

Fig 125: Identifying Connector C1003 & C1005

G03779503

Courtesy of FORD MOTOR CO.

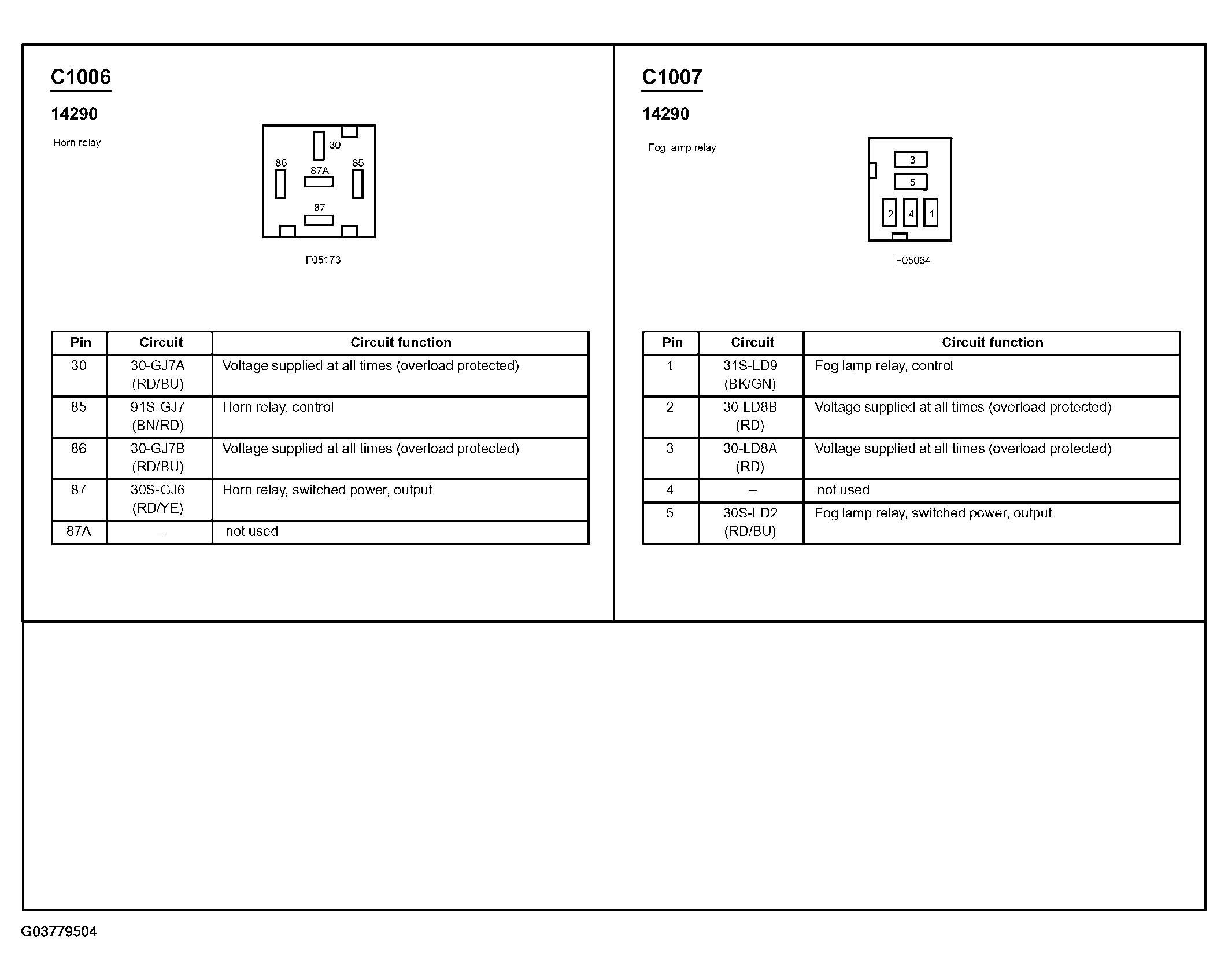

Fig 126: Identifying Connector C1006 & C1007

G03779504

Courtesy of FORD MOTOR CO.

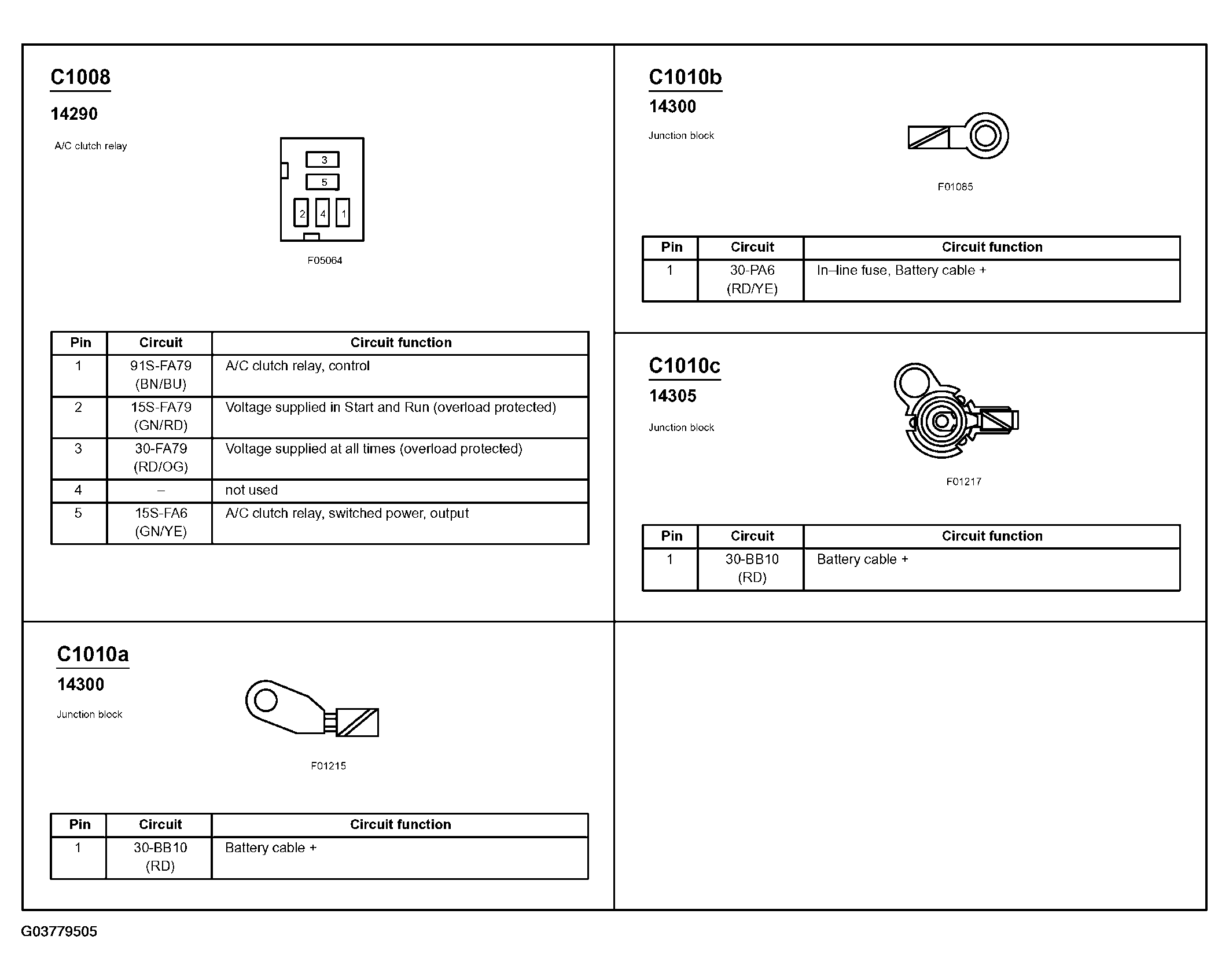

Fig 127: Identifying Connector C1008, C1010a, C1010b & C1010c

G03779505

Courtesy of FORD MOTOR CO.

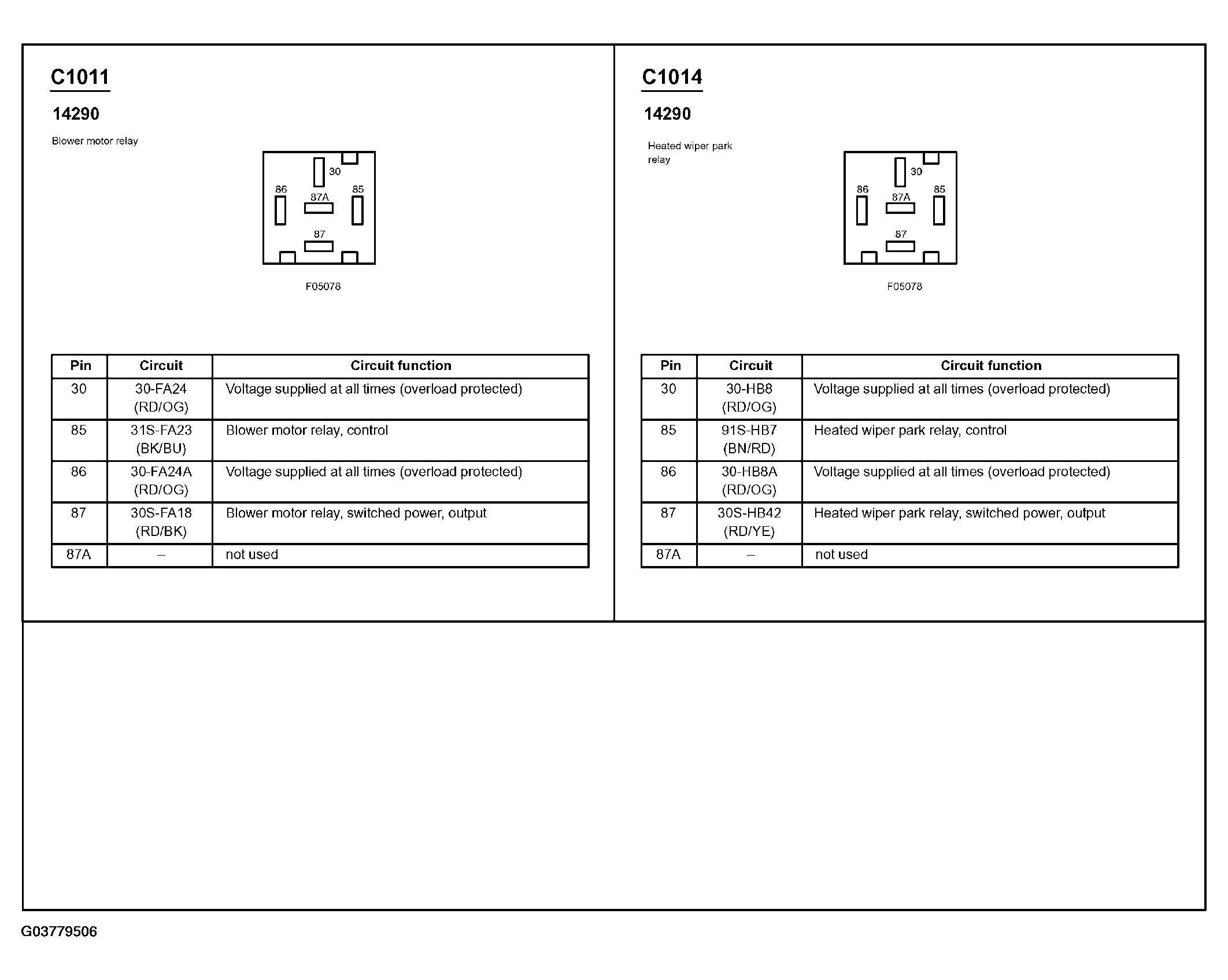

Fig 128: Identifying Connector C1011 & C1014

G03779506

Courtesy of FORD MOTOR CO.

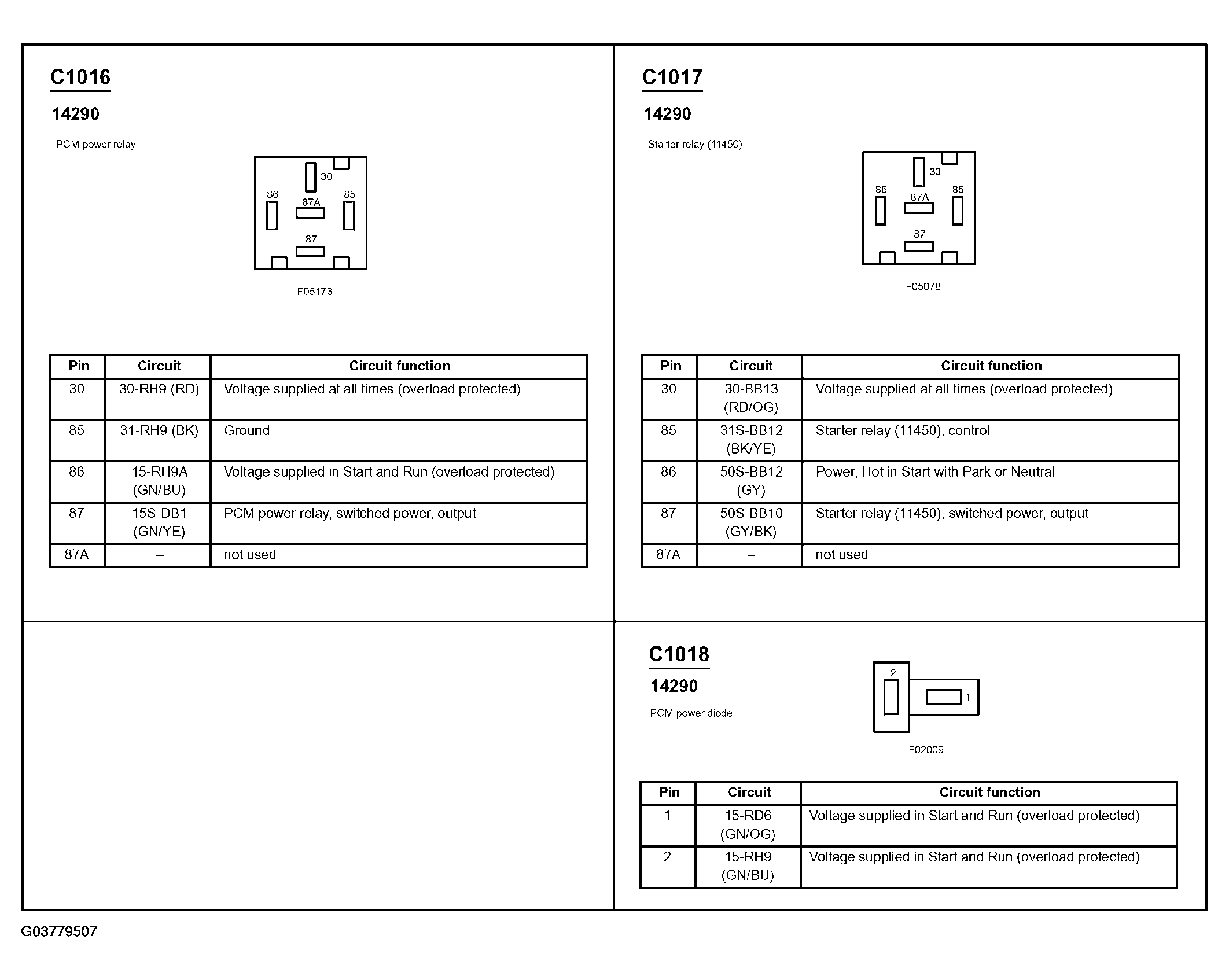

Fig 129: Identifying Connector C1016, C1017 & C1018

G03779507

Courtesy of FORD MOTOR CO.

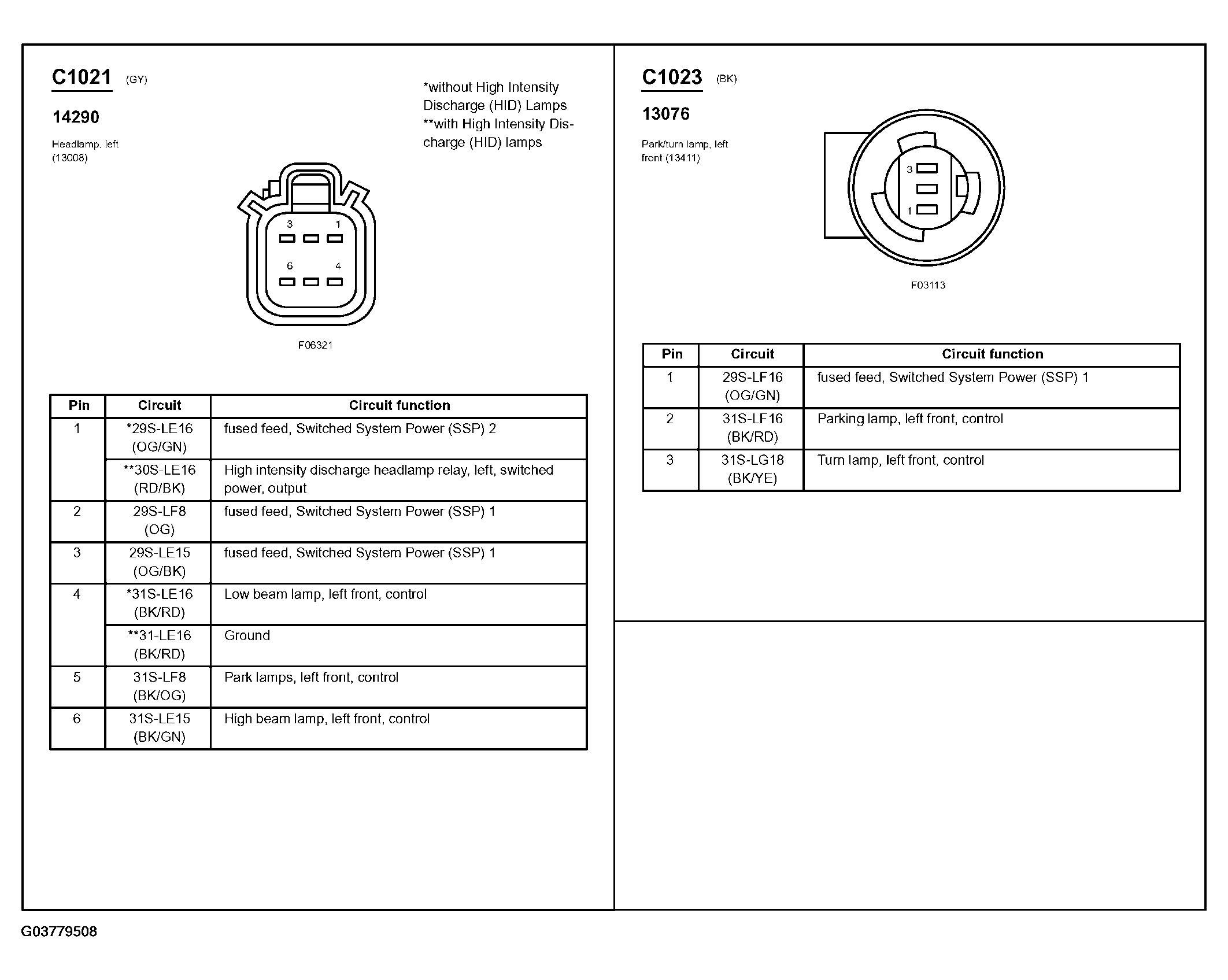

Fig 130: Identifying Connector C1021 & C1023

G03779508

Courtesy of FORD MOTOR CO.

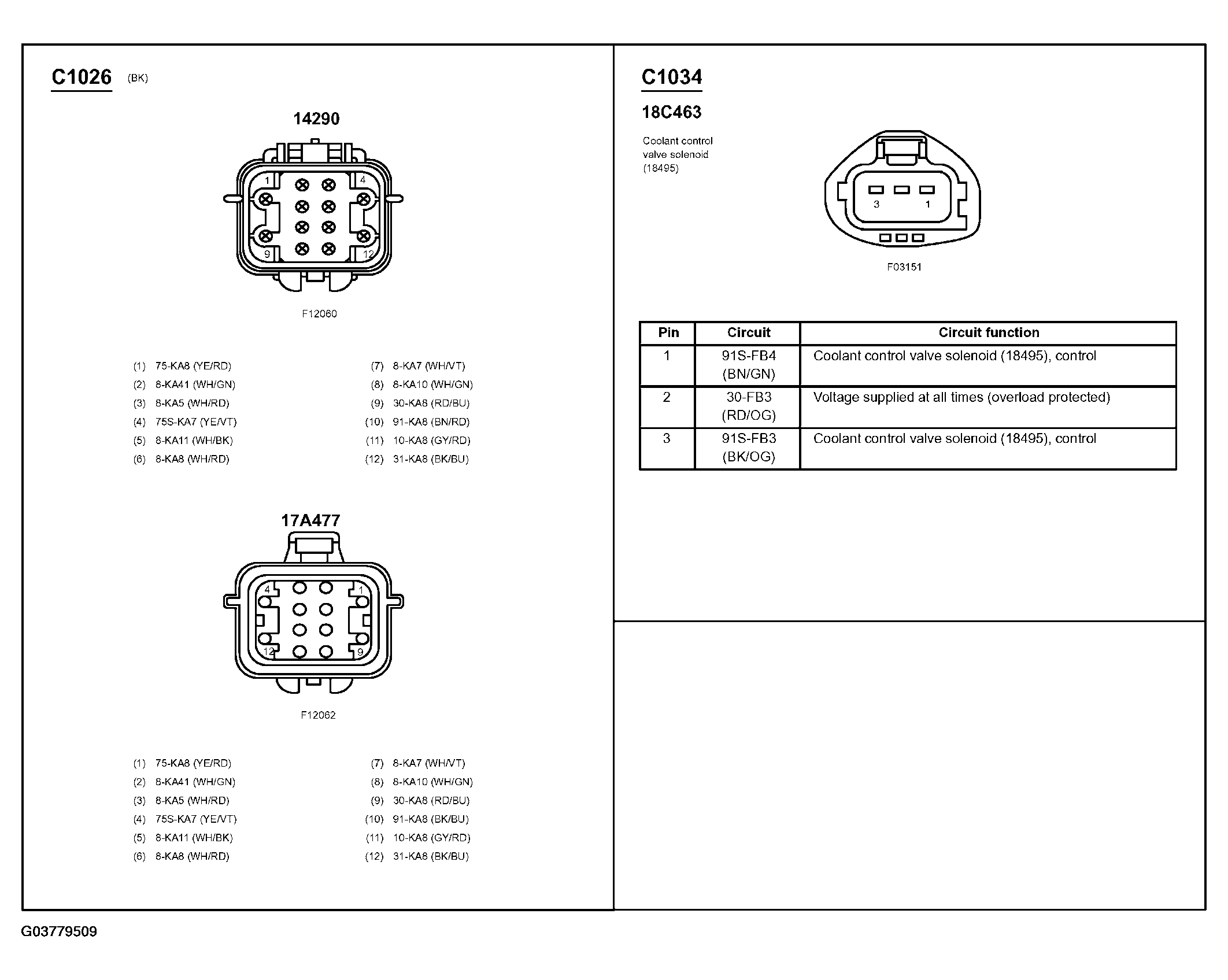

Fig 131: Identifying Connector C1026 & C1034

G03779509

Courtesy of FORD MOTOR CO.

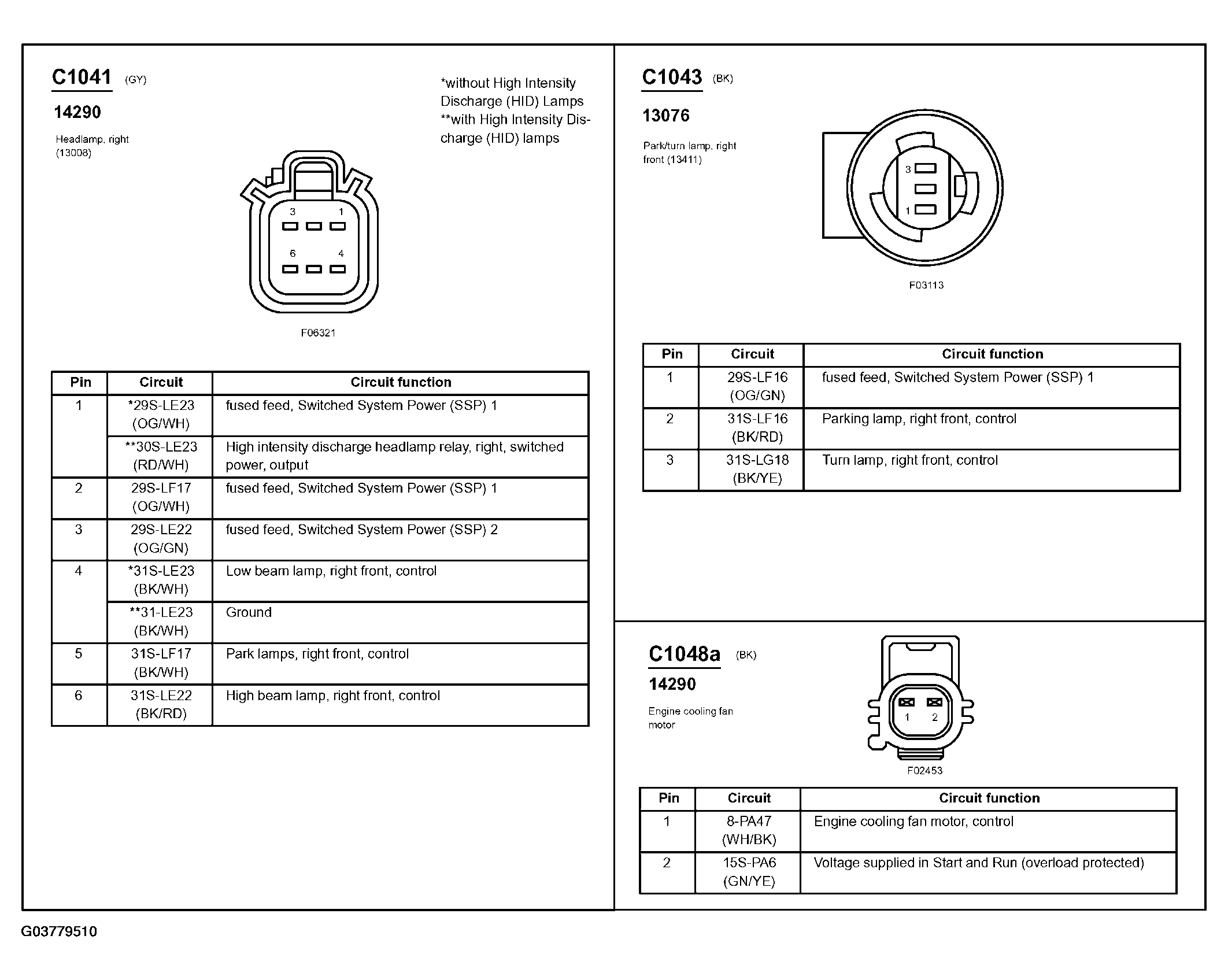

Fig 132: Identifying Connector C1041, C1043 & C1048a

G03779510

Courtesy of FORD MOTOR CO.

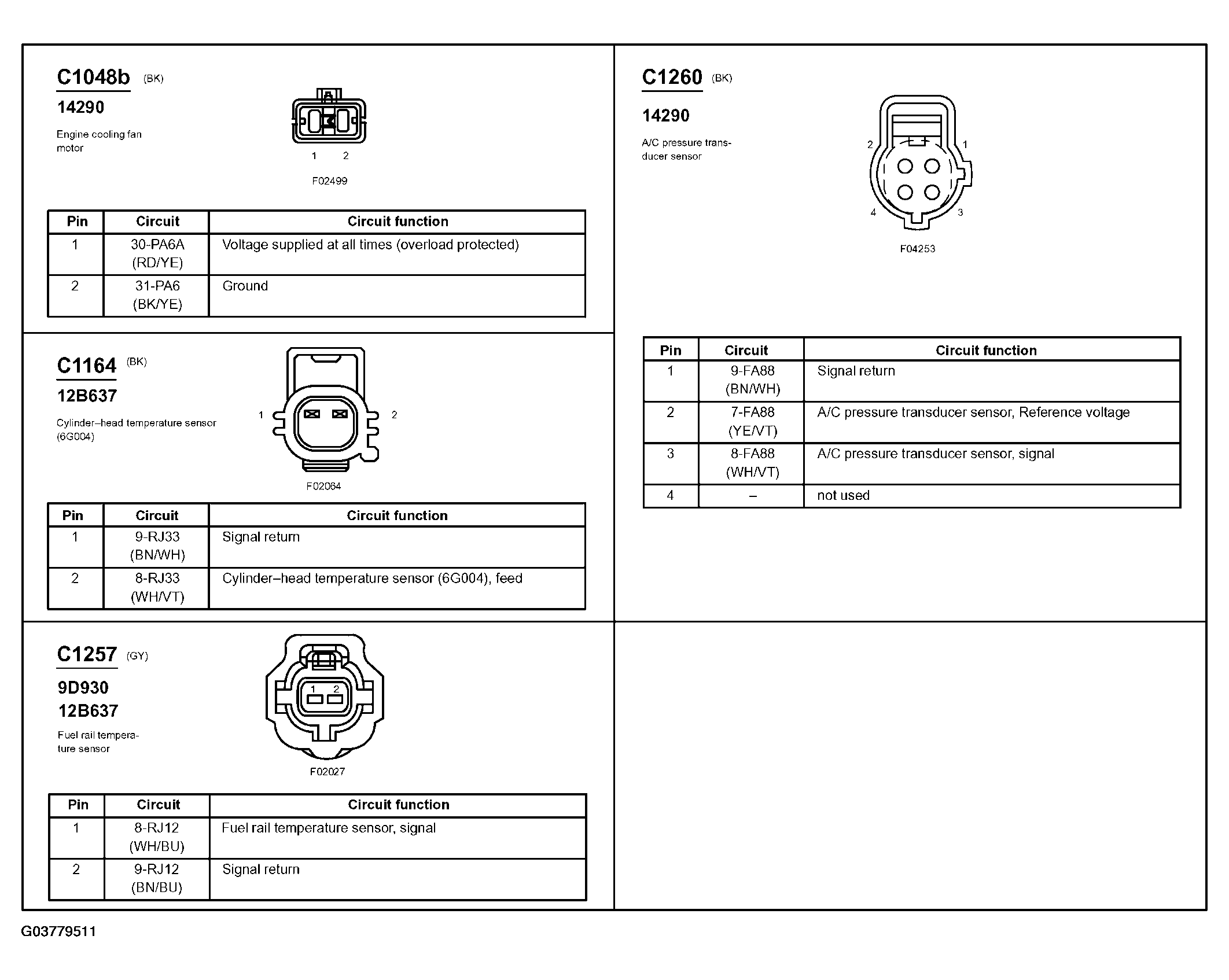

Fig 133: Identifying Connector C1048b, C1164, C1257 & C1260

G03779511

Courtesy of FORD MOTOR CO.

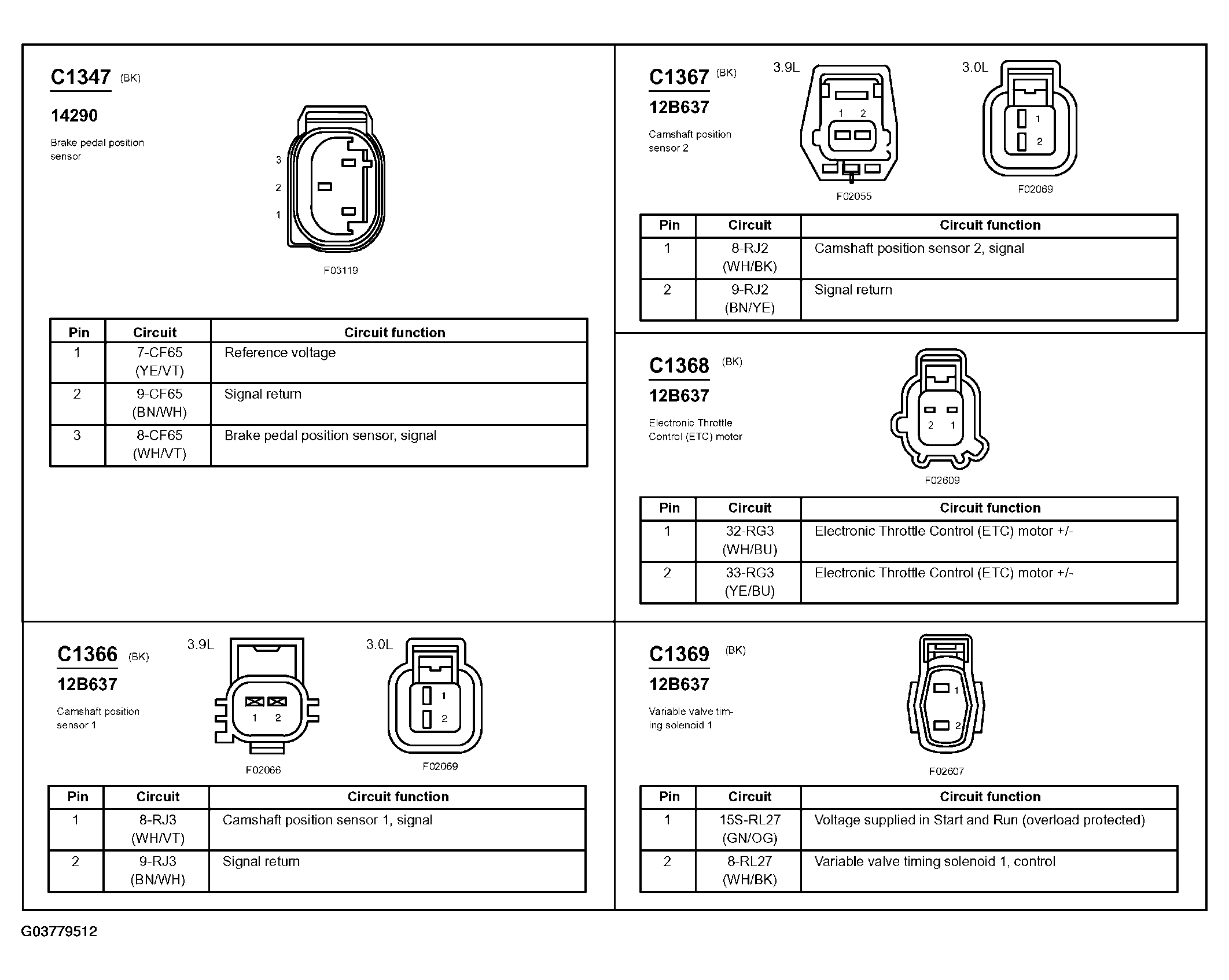

Fig 134: Identifying Connector C1347, C1366, C1367, C1368 & C1369

G03779512

Courtesy of FORD MOTOR CO.

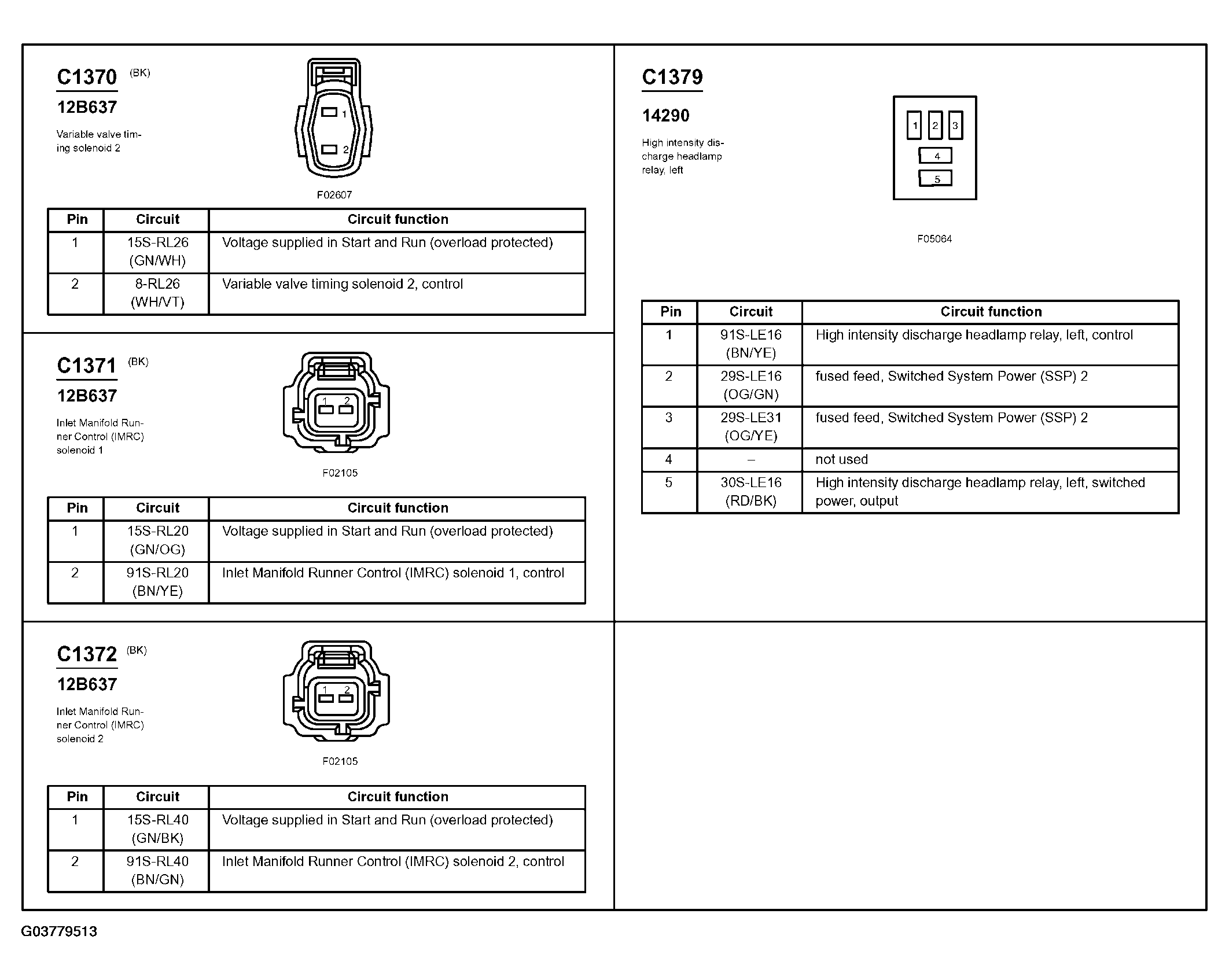

Fig 135: Identifying Connector C1370, C1371, C1372 & C1379

G03779513

Courtesy of FORD MOTOR CO.

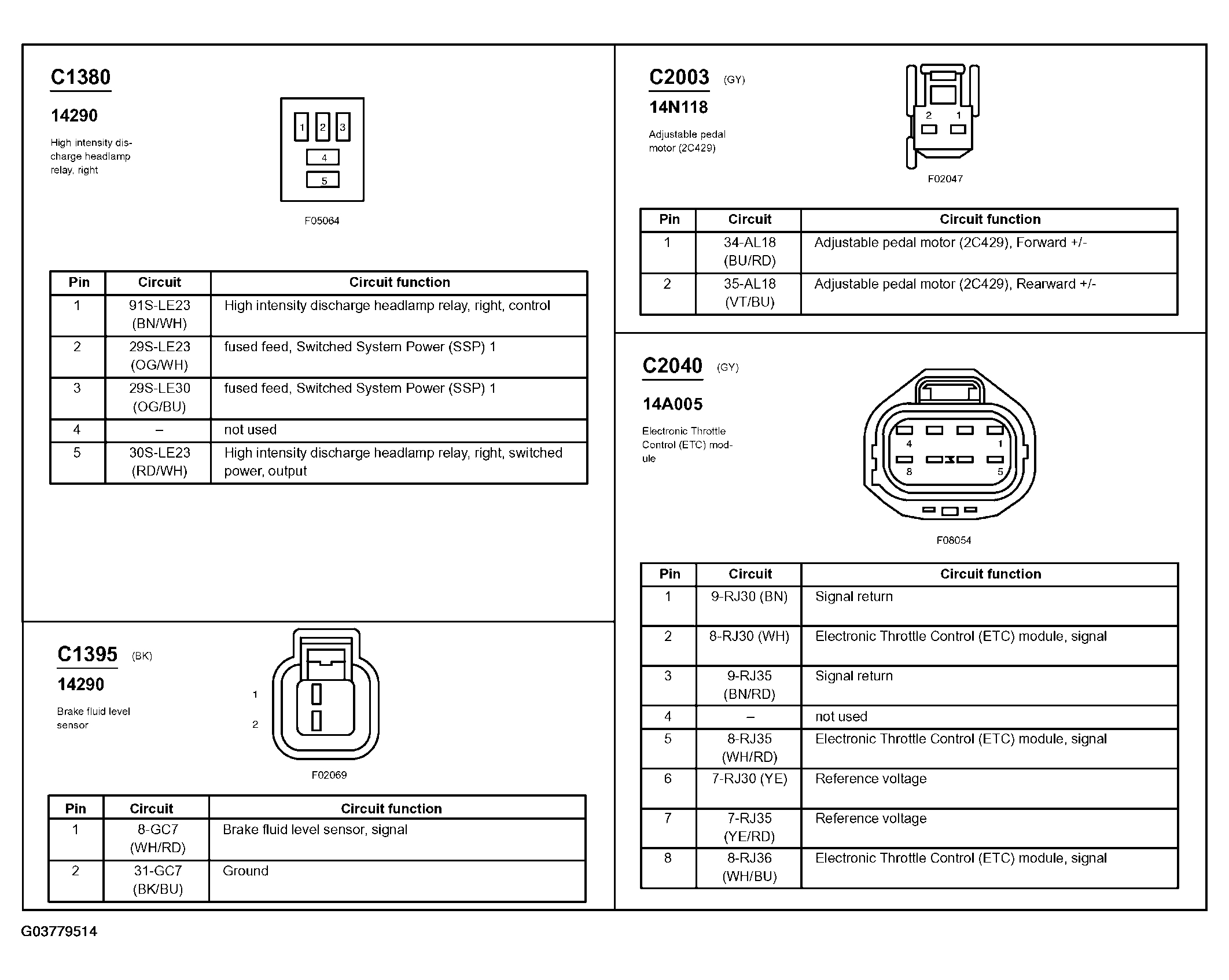

Fig 136: Identifying Connector C1380, C1395, C2003 & C2040

G03779514

Courtesy of FORD MOTOR CO.

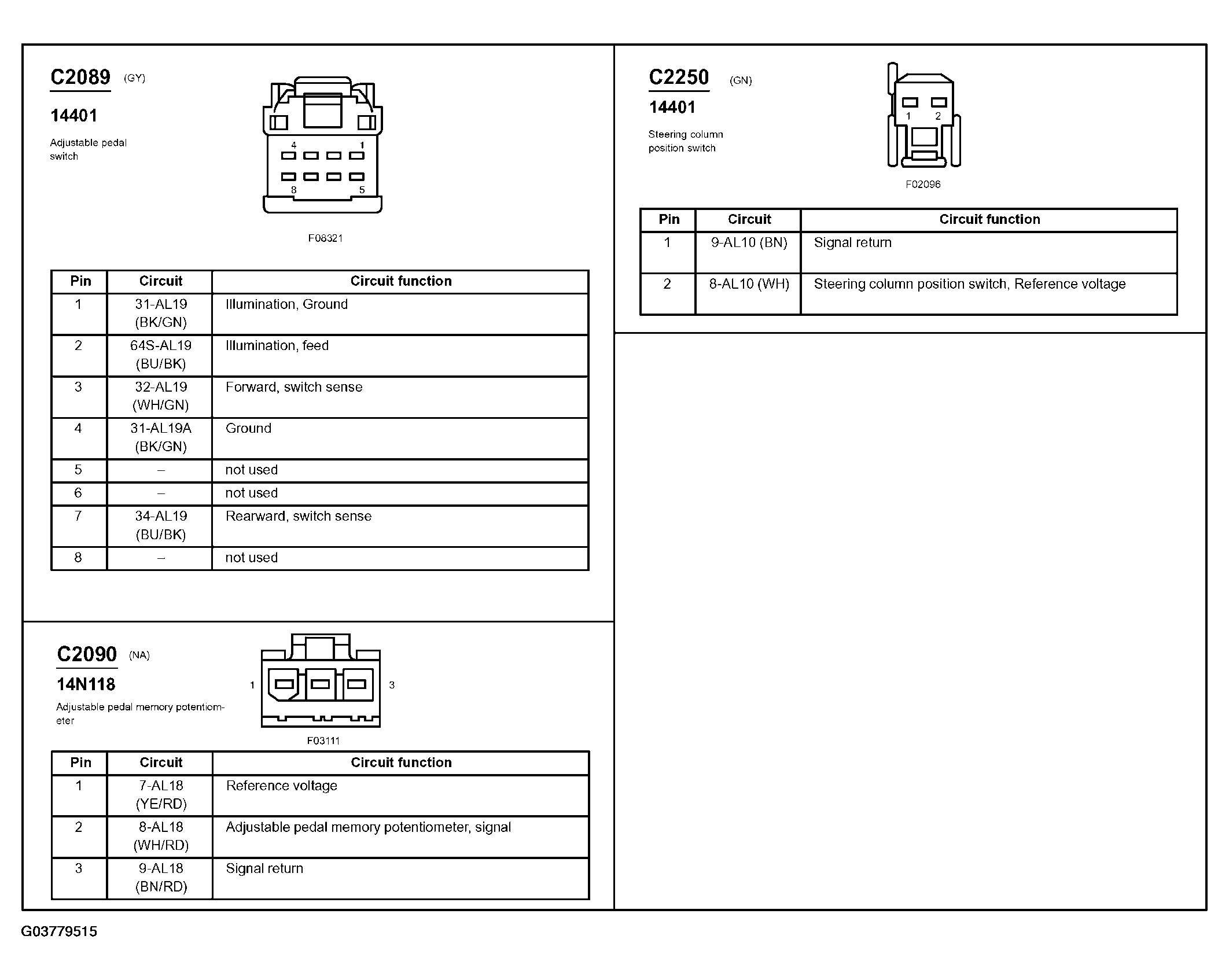

Fig 137: Identifying Connector C2089, C2090 & C2250

G03779515

Courtesy of FORD MOTOR CO.

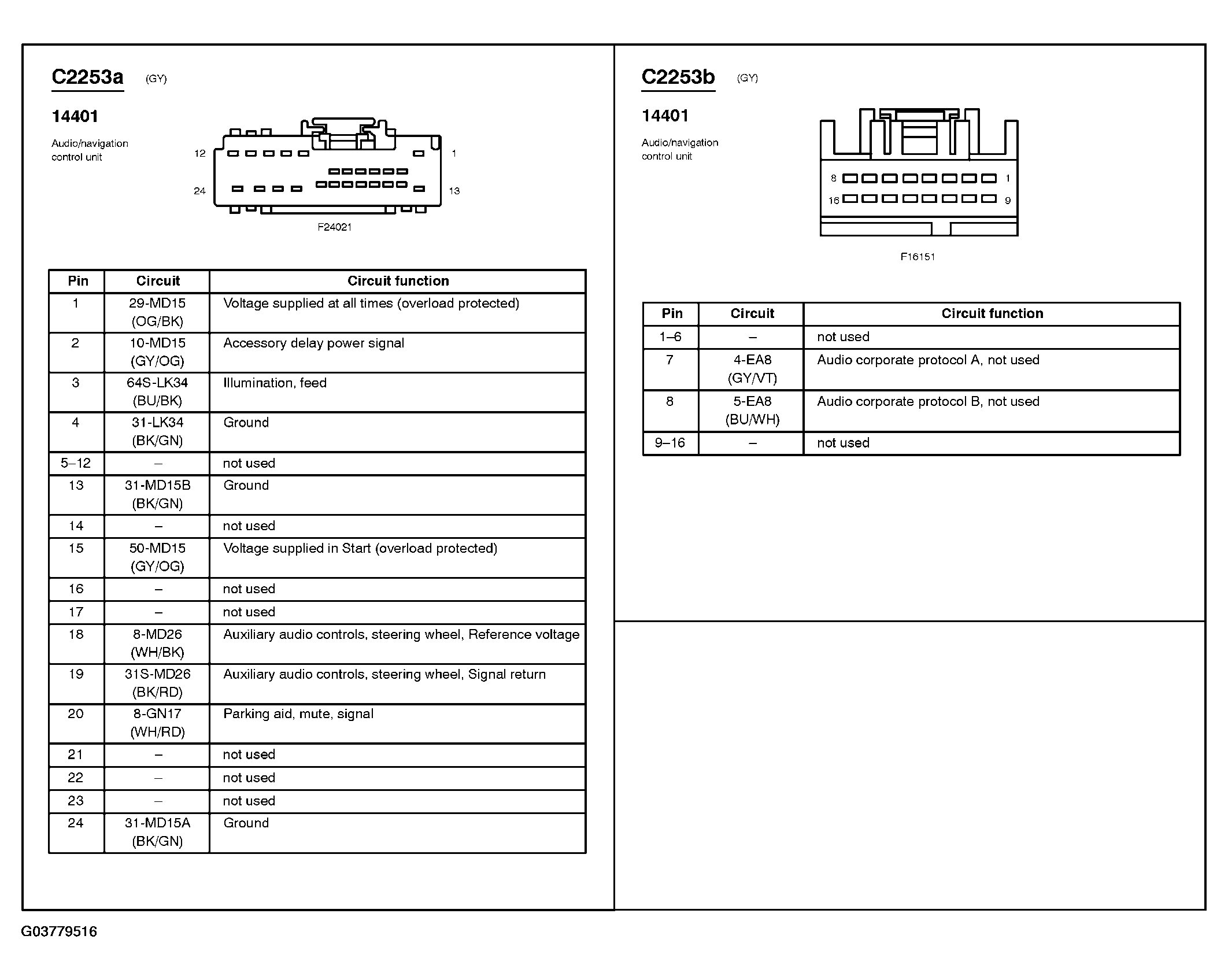

Fig 138: Identifying Connector C2253a & C2253b

G03779516

Courtesy of FORD MOTOR CO.

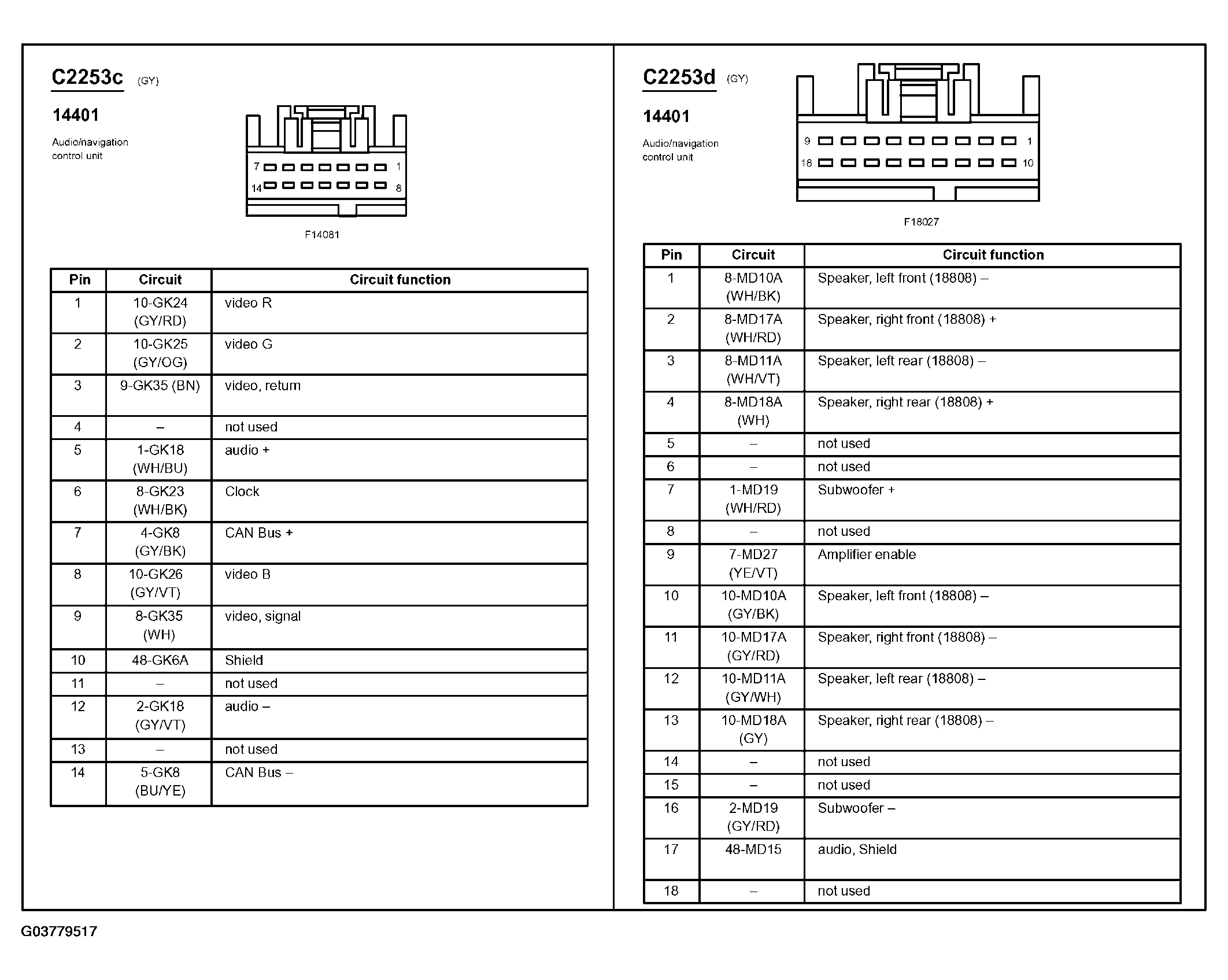

Fig 139: Identifying Connector C2253c & C2253d

G03779517

Courtesy of FORD MOTOR CO.

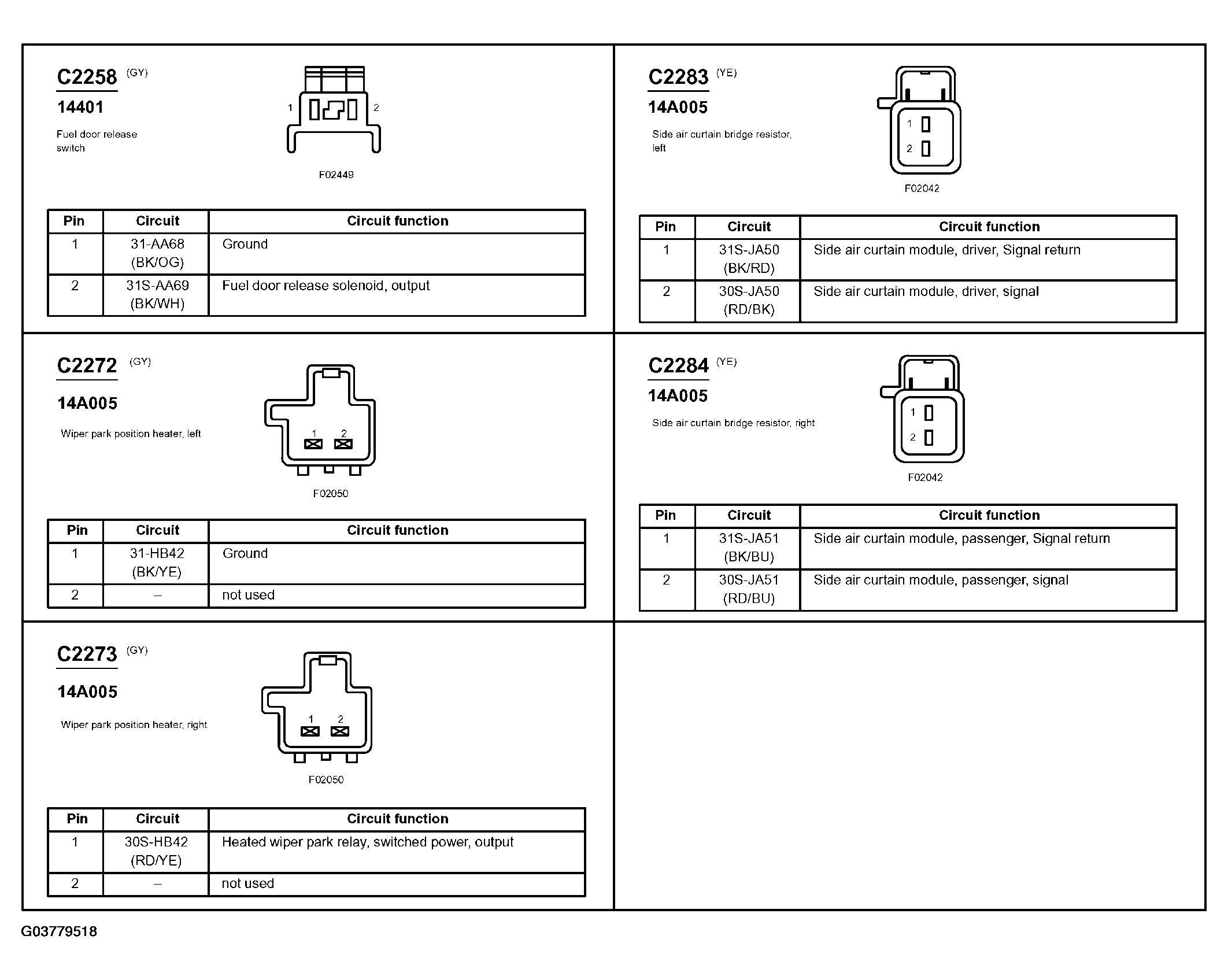

Fig 140: Identifying Connector C2258, C2272, C2273, C2283 & C2284

G03779518

Courtesy of FORD MOTOR CO.

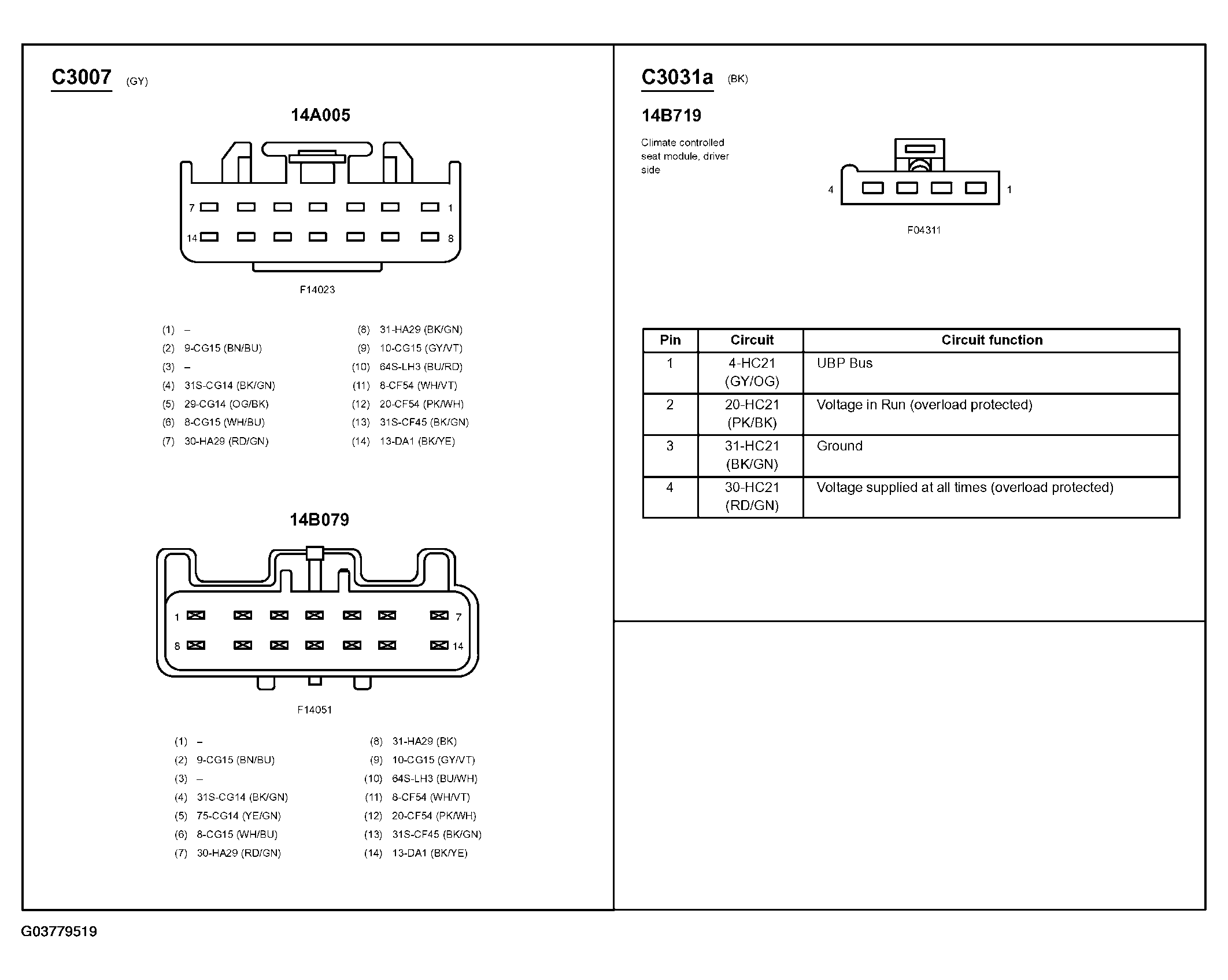

Fig 141: Identifying Connector C3007 & C3031a

G03779519

Courtesy of FORD MOTOR CO.

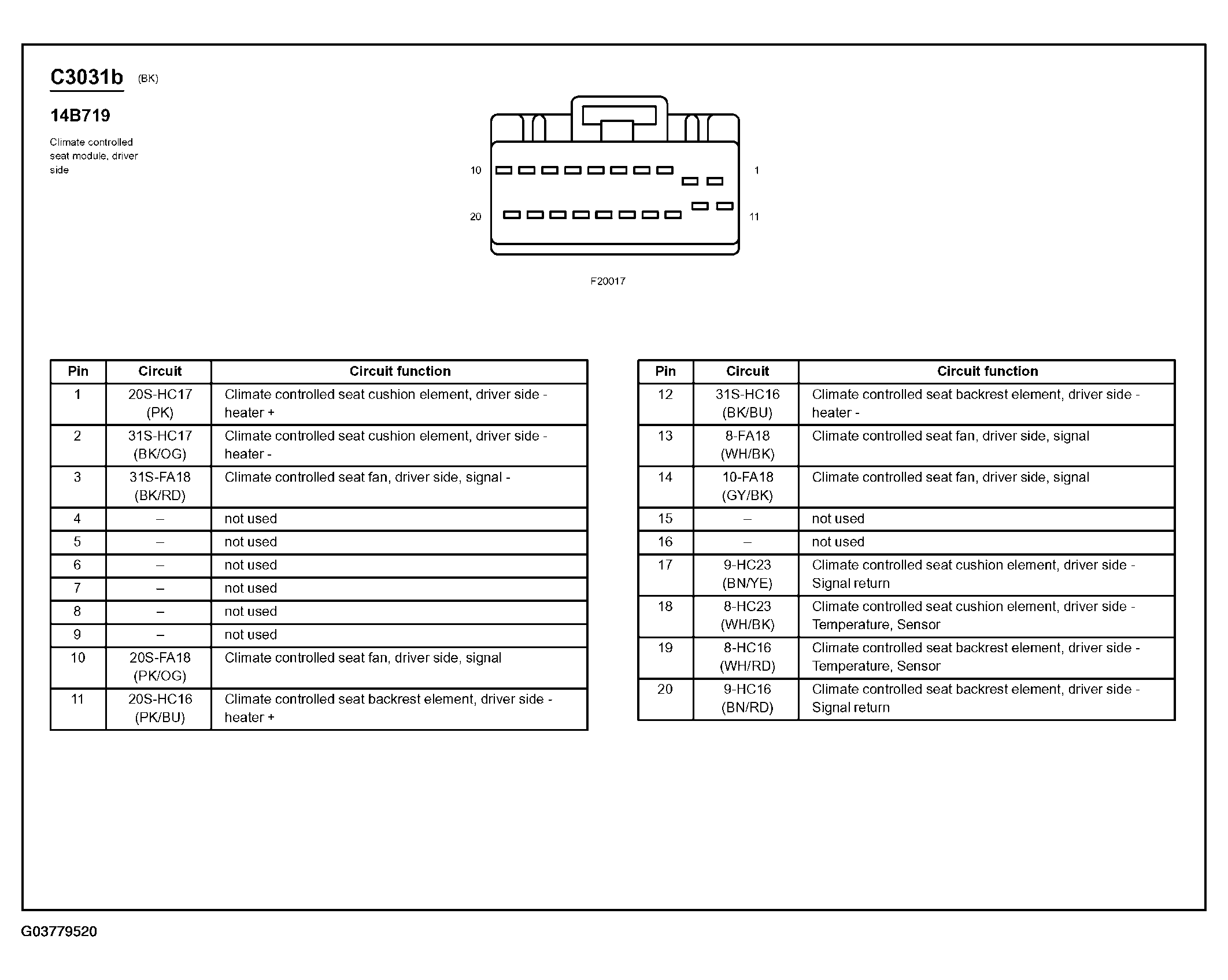

Fig 142: Climate Controlled Seat Module, Driver Side Connector End View (C3031b)

G03779520

Courtesy of FORD MOTOR CO.

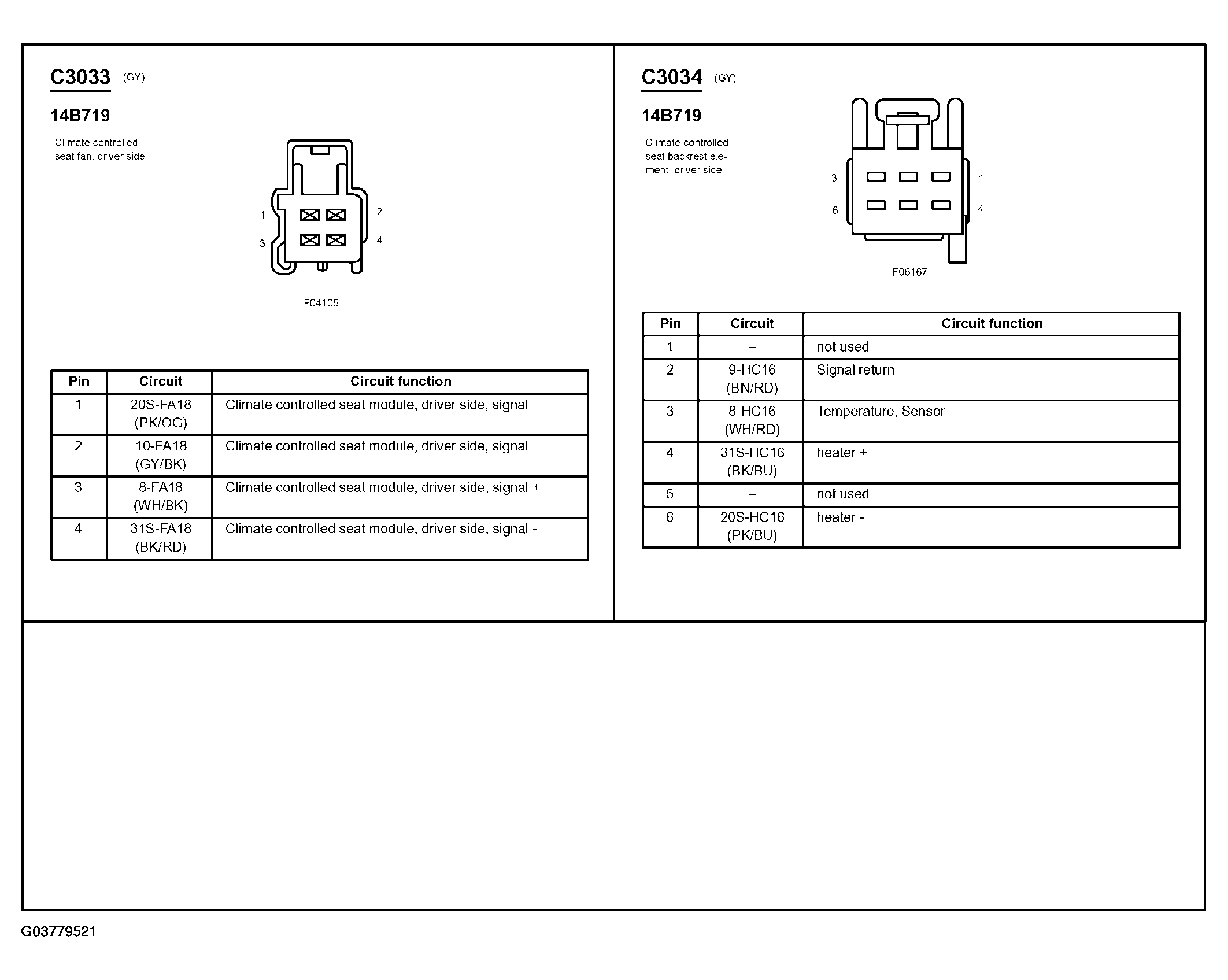

Fig 143: Identifying Connector C3033 & C3034

G03779521

Courtesy of FORD MOTOR CO.

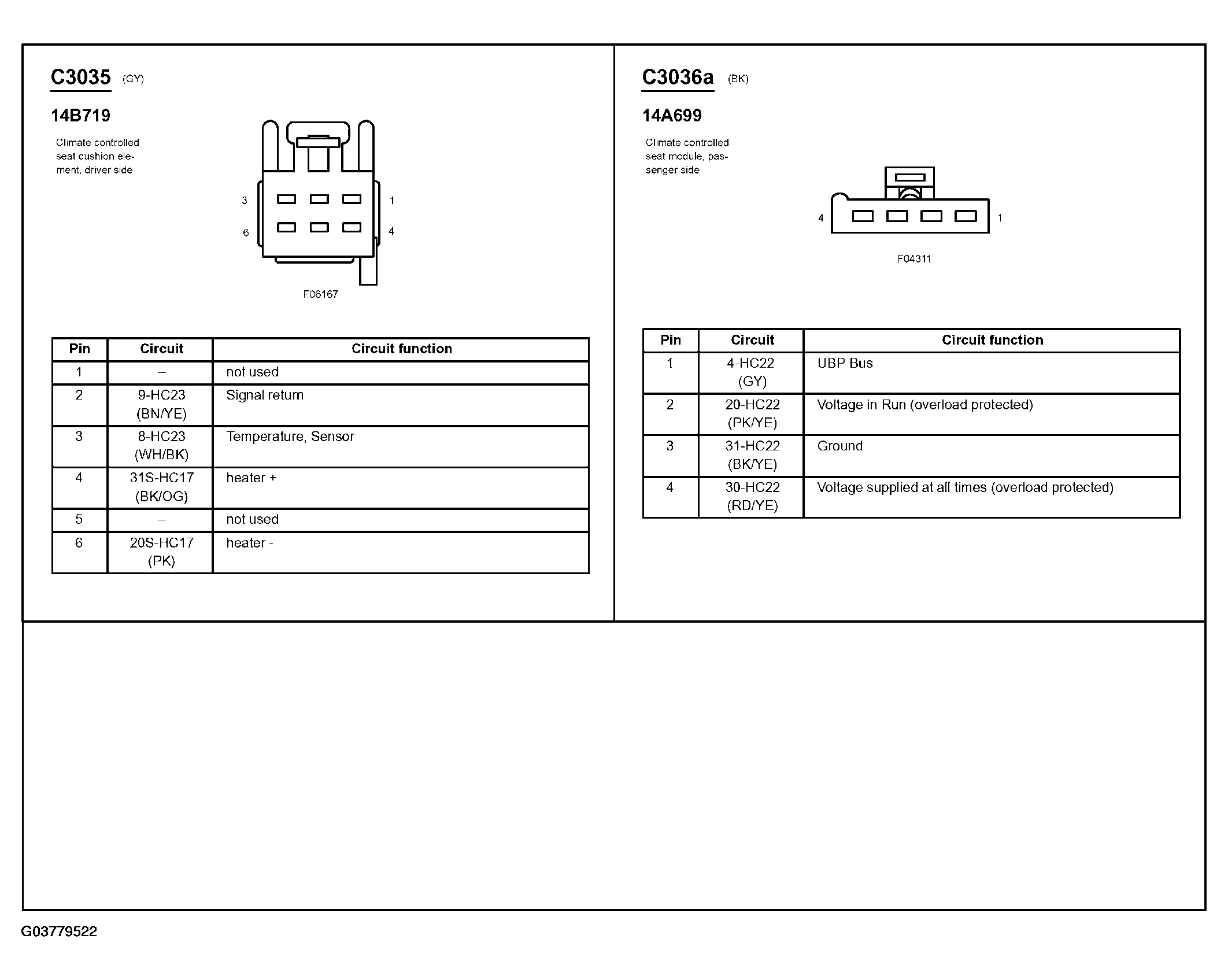

Fig 144: Identifying Connector C3035 & C3036a

G03779522

Courtesy of FORD MOTOR CO.

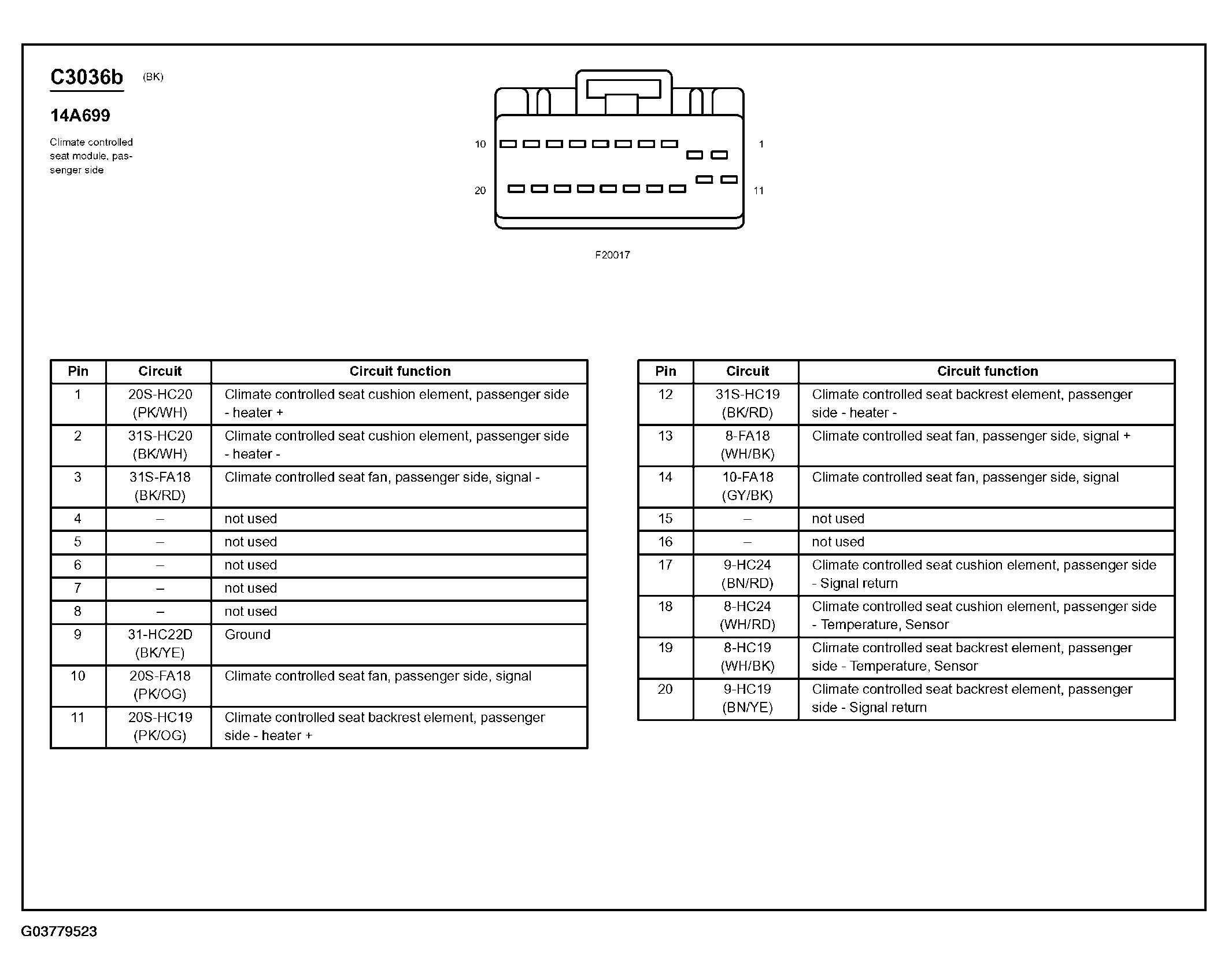

Fig 145: Climate Controlled Seat Module, Passenger Side Connector End View (C3036b)

G03779523

Courtesy of FORD MOTOR CO.

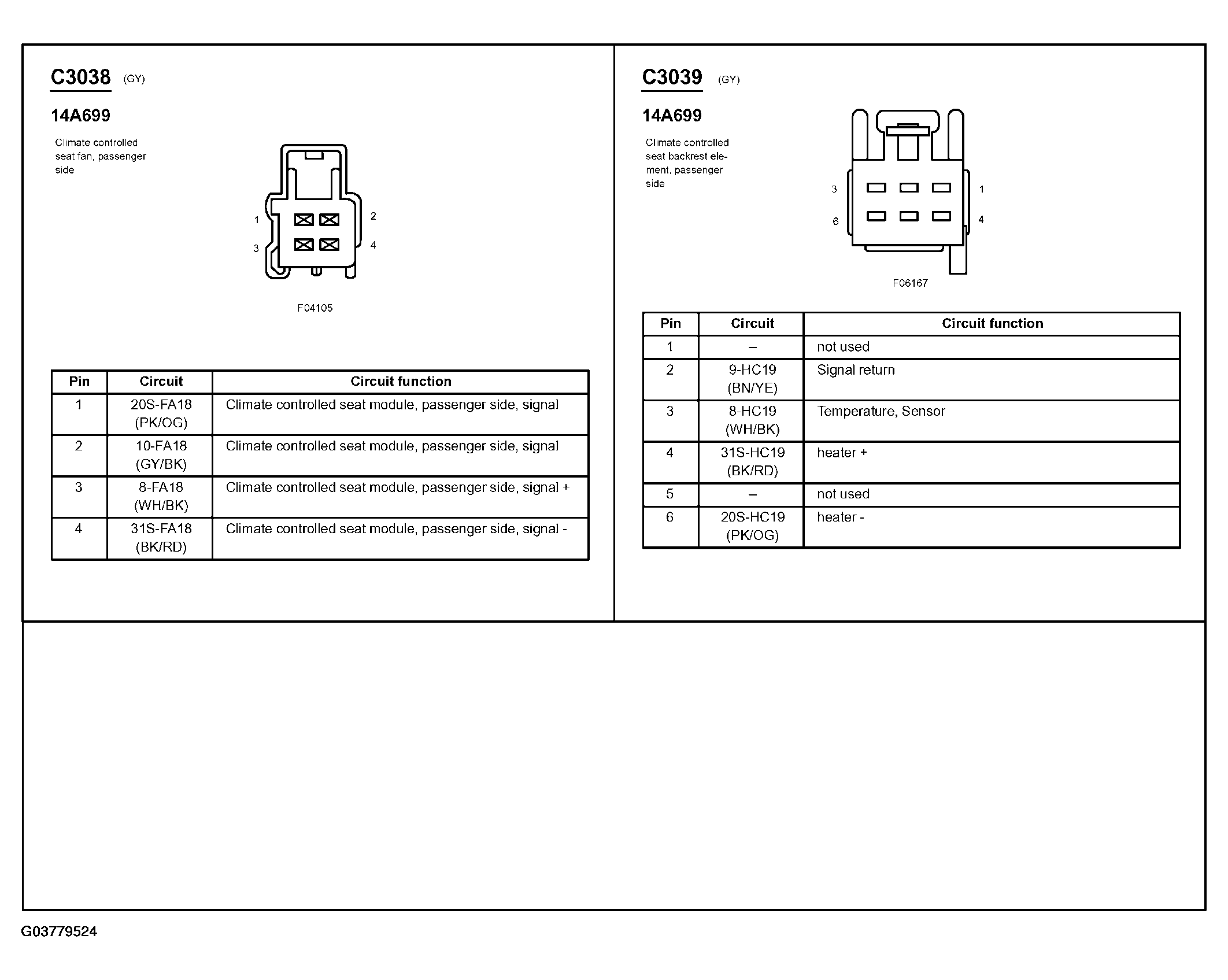

Fig 146: Identifying Connector C3038 & C3039

G03779524

Courtesy of FORD MOTOR CO.

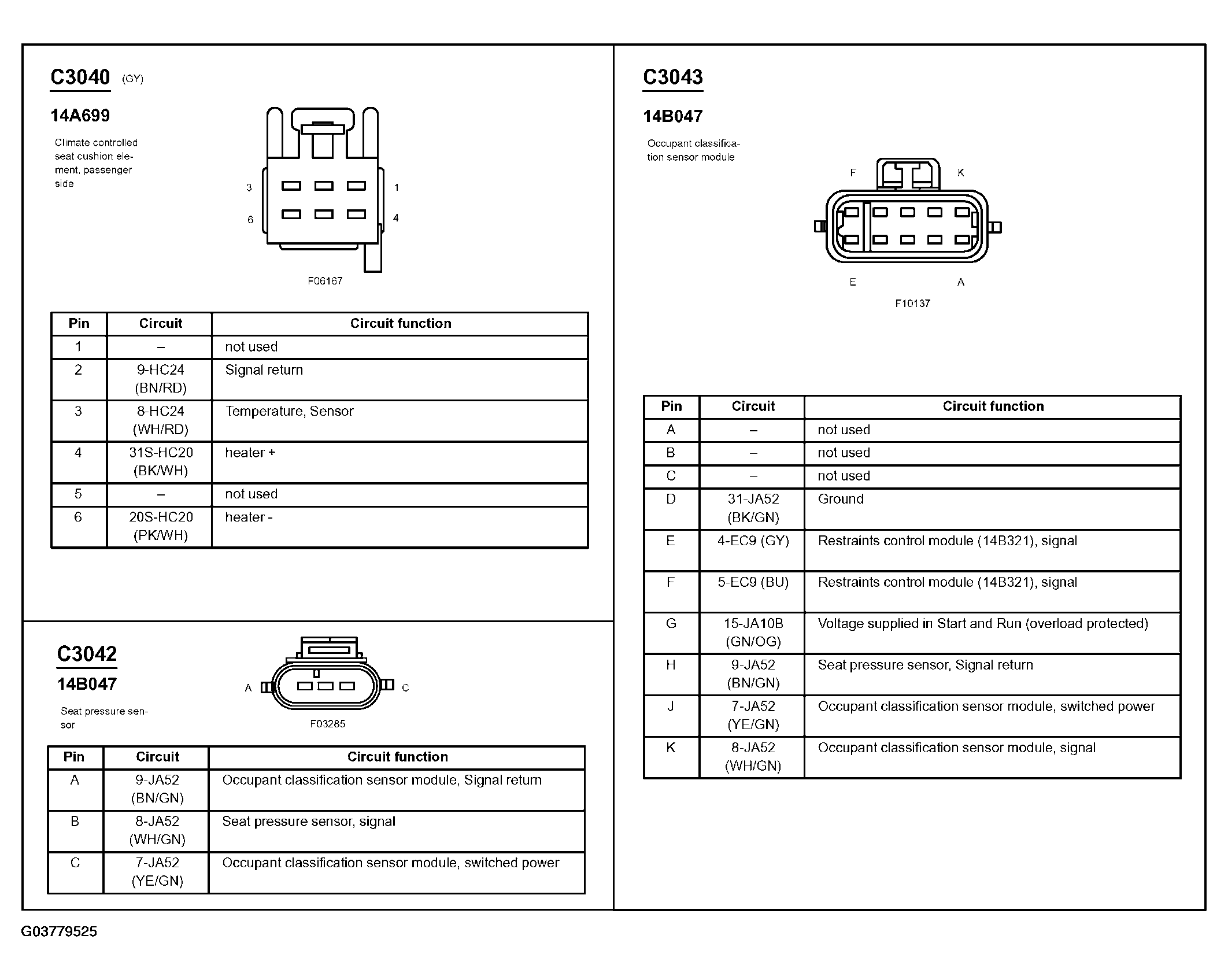

Fig 147: Identifying Connector C3040, C3042 & C3043

G03779525

Courtesy of FORD MOTOR CO.

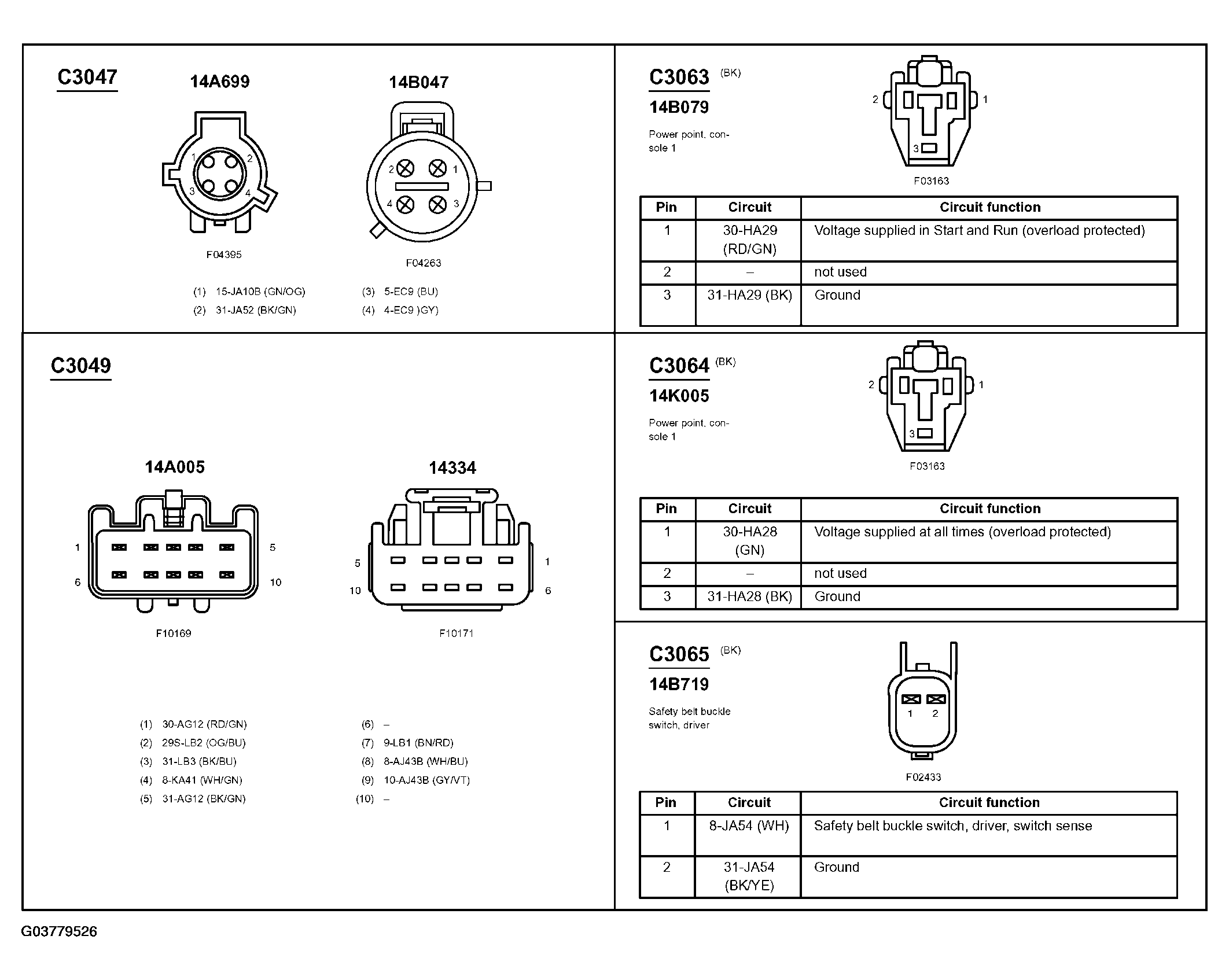

Fig 148: Identifying Connector C3047, C3049, C3063, C3064 & C3065

G03779526

Courtesy of FORD MOTOR CO.

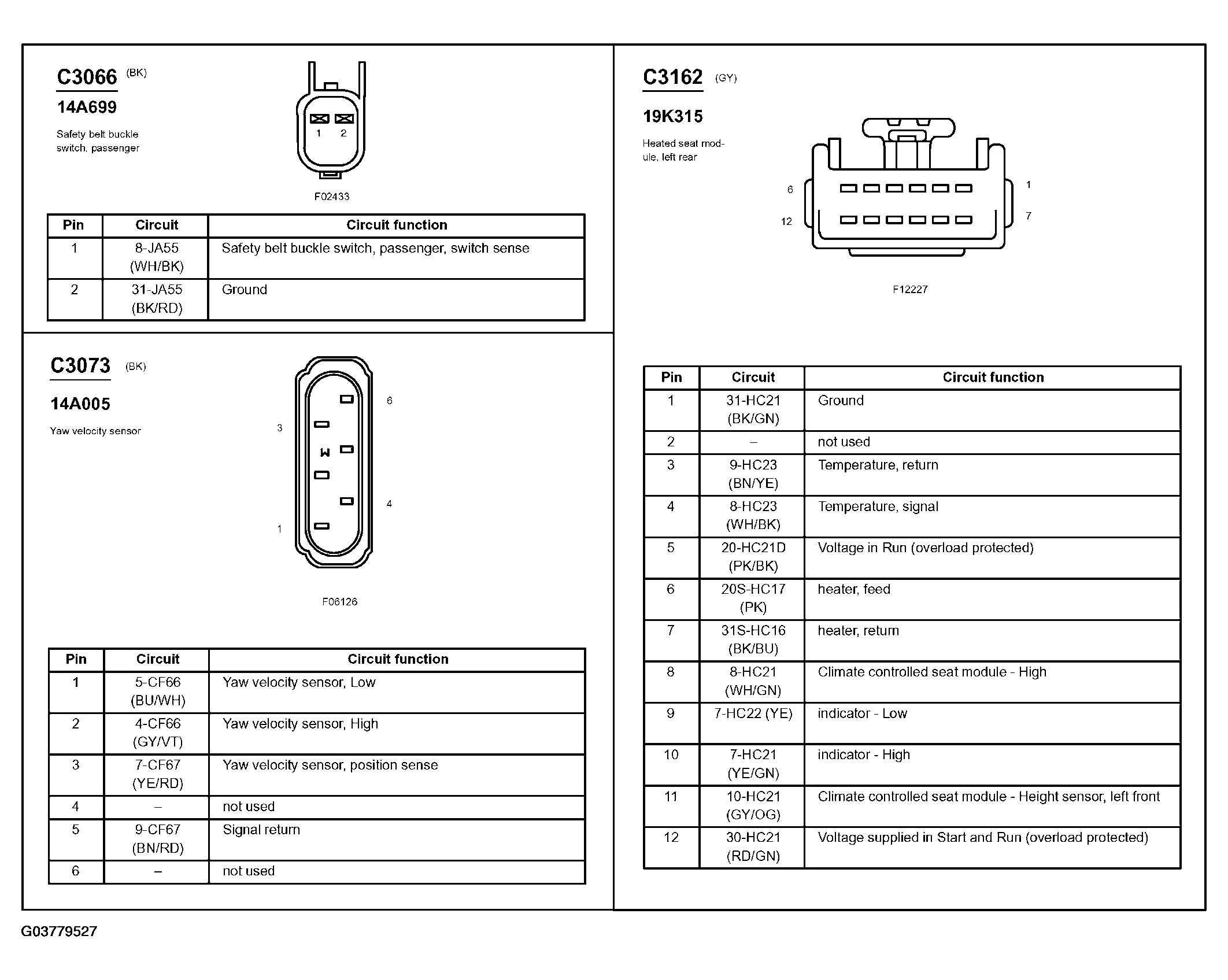

Fig 149: Identifying Connector C3066, C3073 & C3162

G03779527

Courtesy of FORD MOTOR CO.

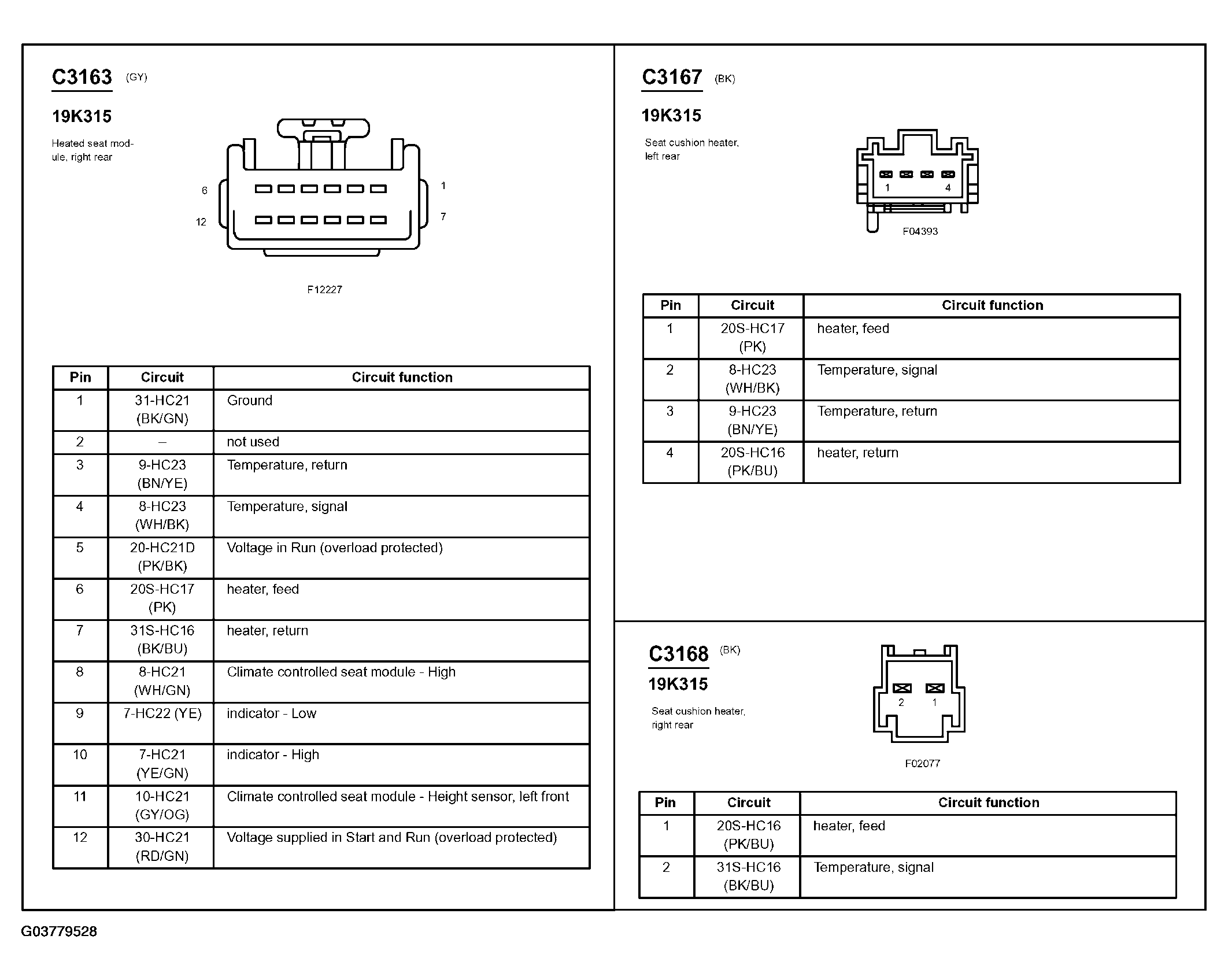

Fig 150: Identifying Connector C3163, C3167 & C3168

G03779528

Courtesy of FORD MOTOR CO.

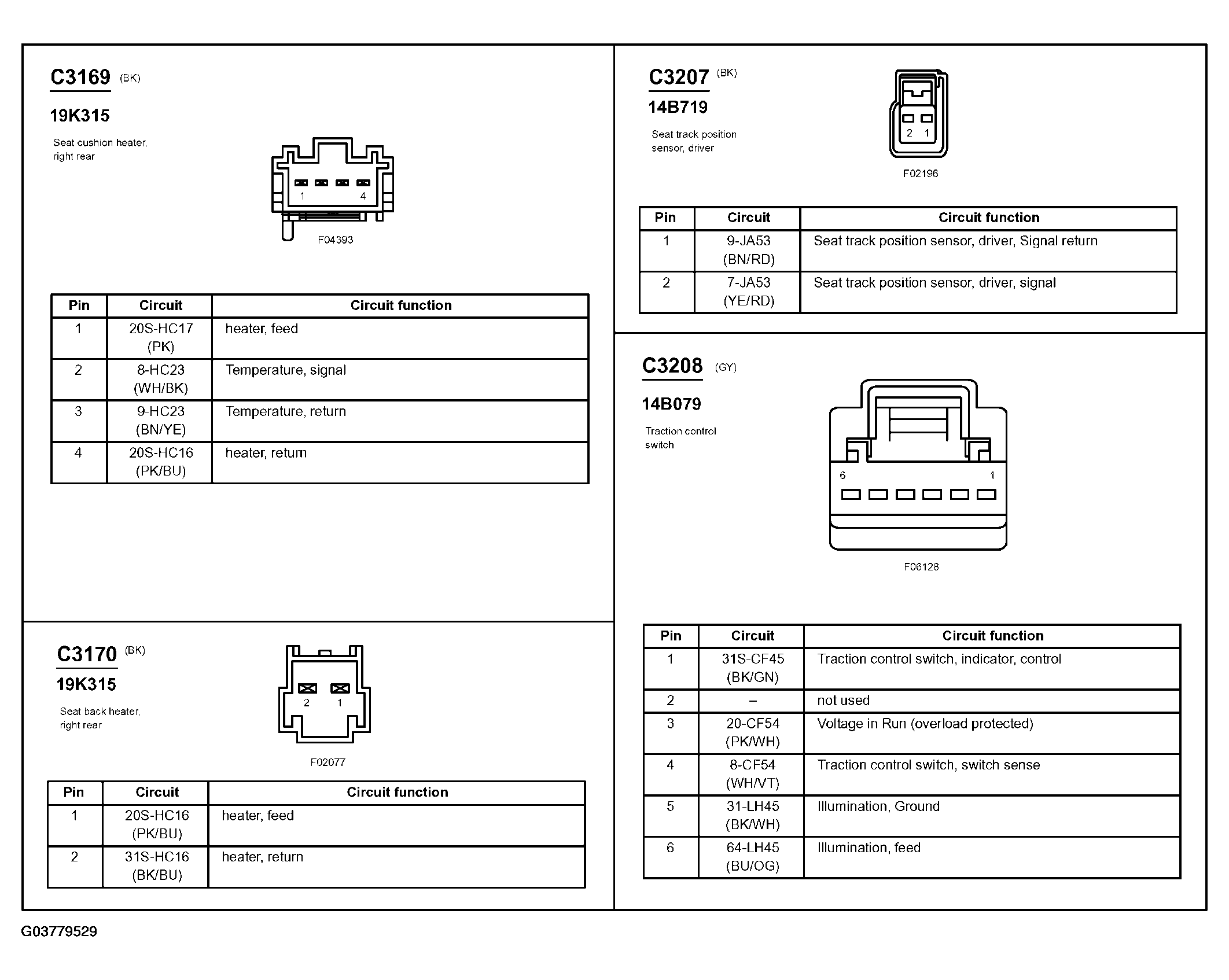

Fig 151: Identifying Connector C3169, C3170, C3207 & C3208

G03779529

Courtesy of FORD MOTOR CO.

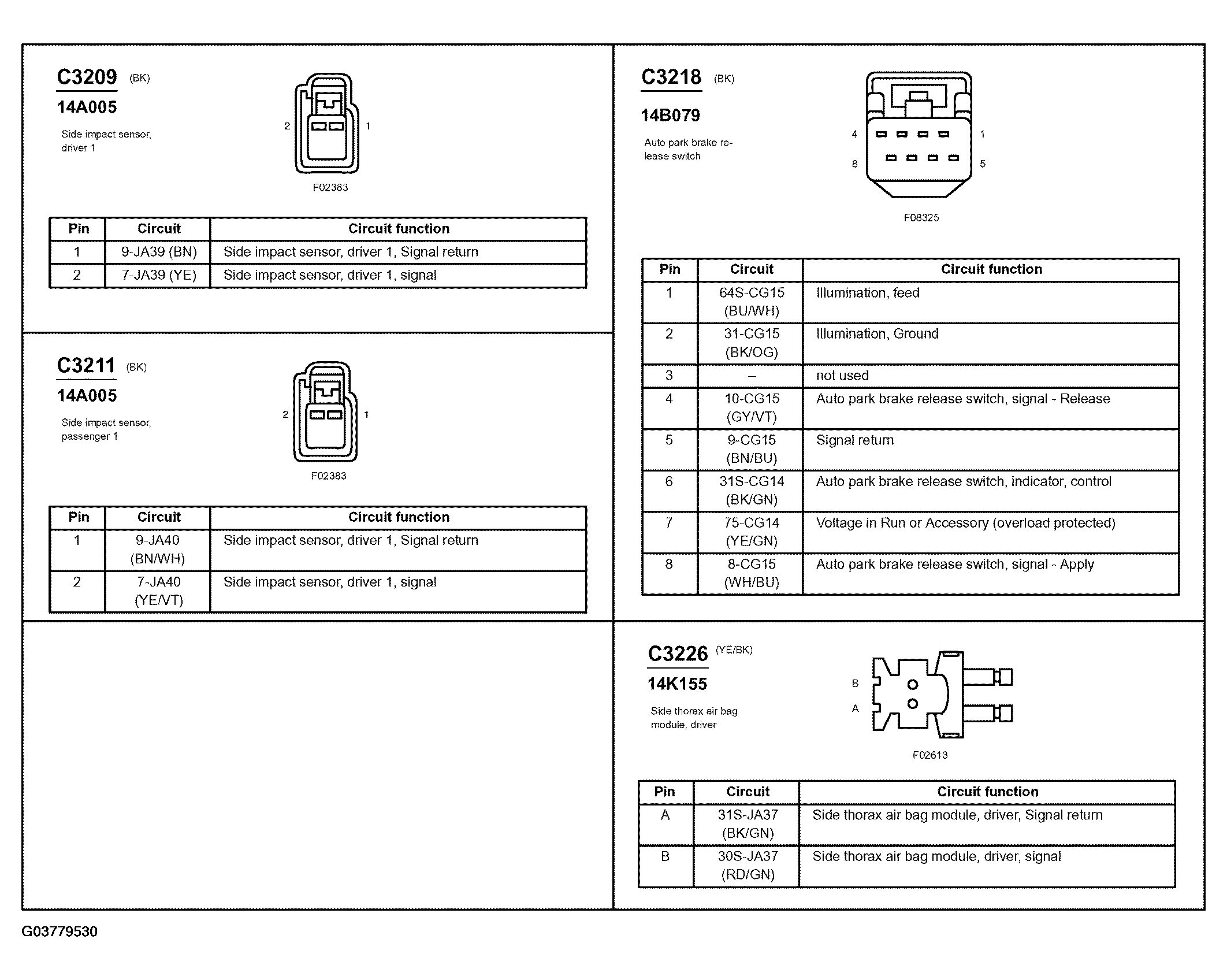

Fig 152: Identifying Connector C3209, C3211, C3218 & C3226

G03779530

Courtesy of FORD MOTOR CO.

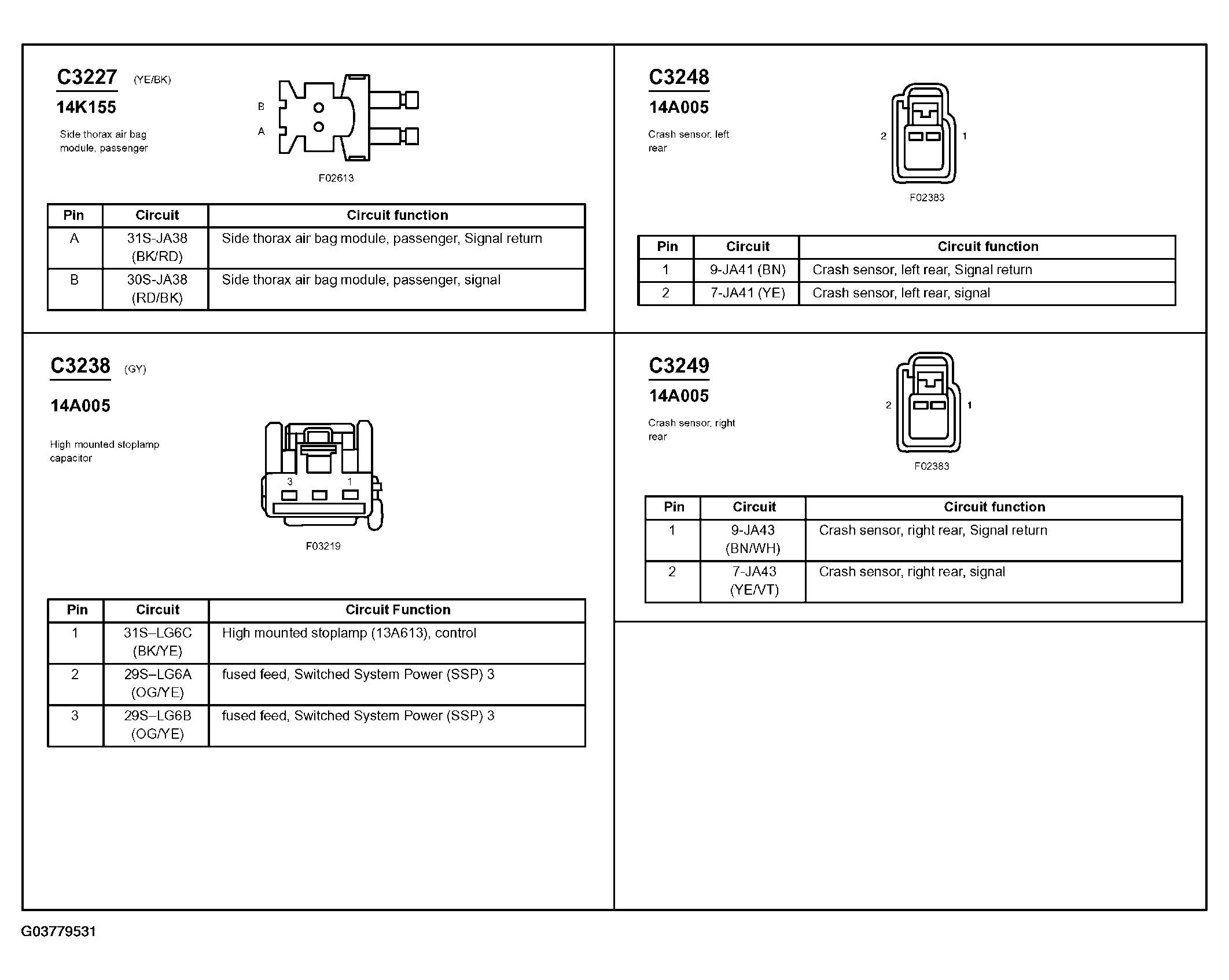

Fig 153: Identifying Connector C3227, C3238, C3248 & C3249

G03779531

Courtesy of FORD MOTOR CO.

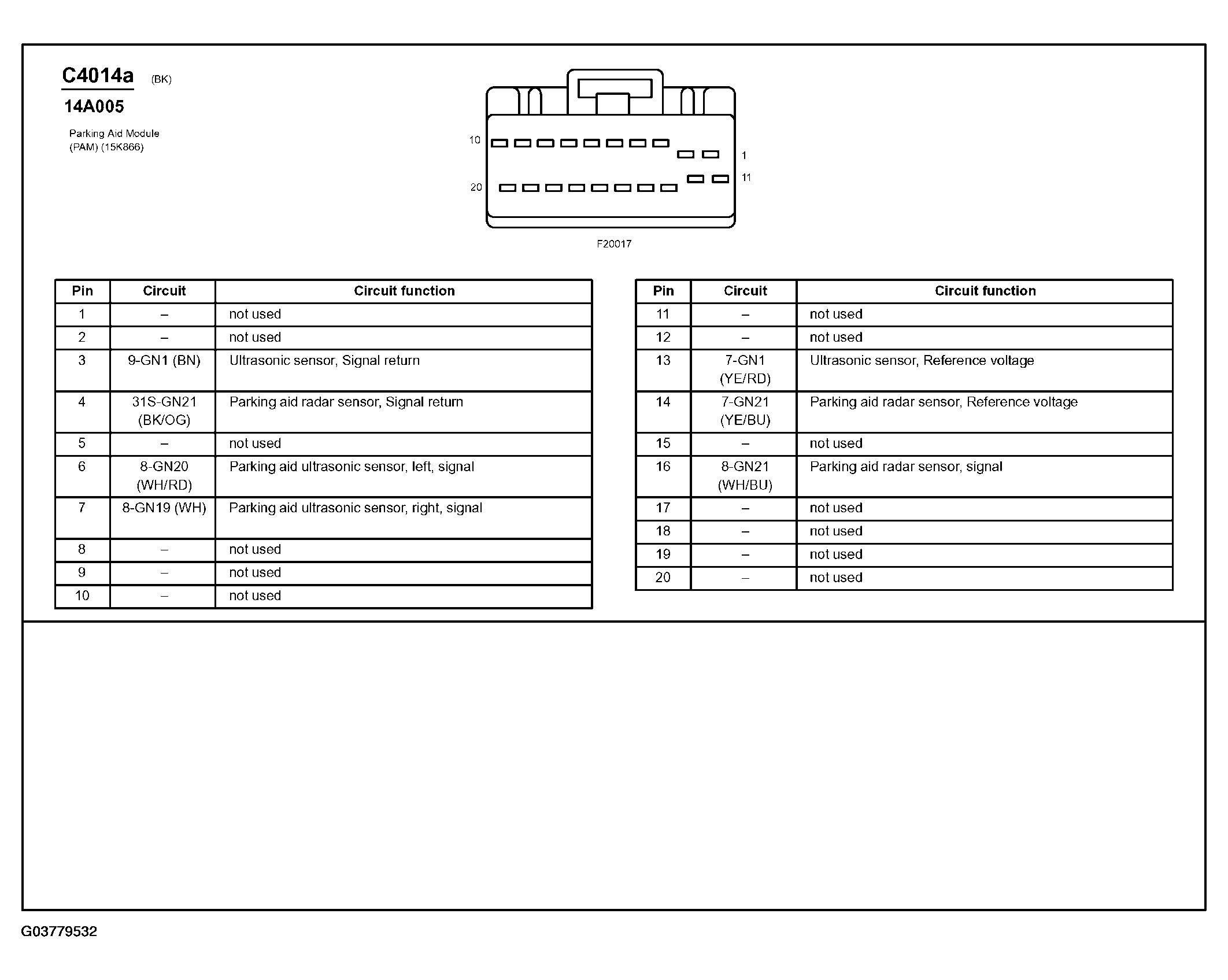

Fig 154: Parking Aid Module (PAM) Connector End View (C4014a)

G03779532

Courtesy of FORD MOTOR CO.

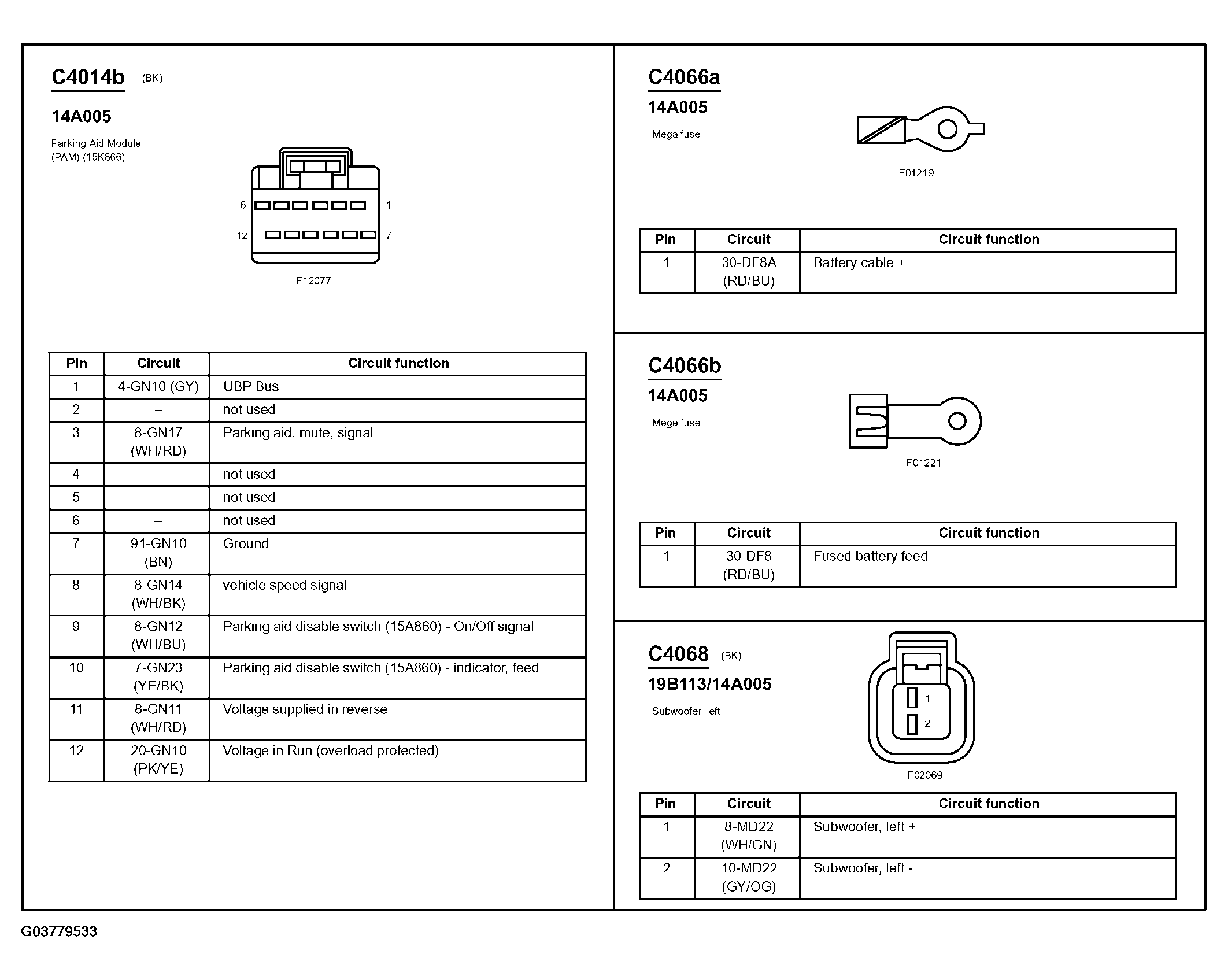

Fig 155: Identifying Connector C4014b, C4066a, C4066b & C4068

G03779533

Courtesy of FORD MOTOR CO.

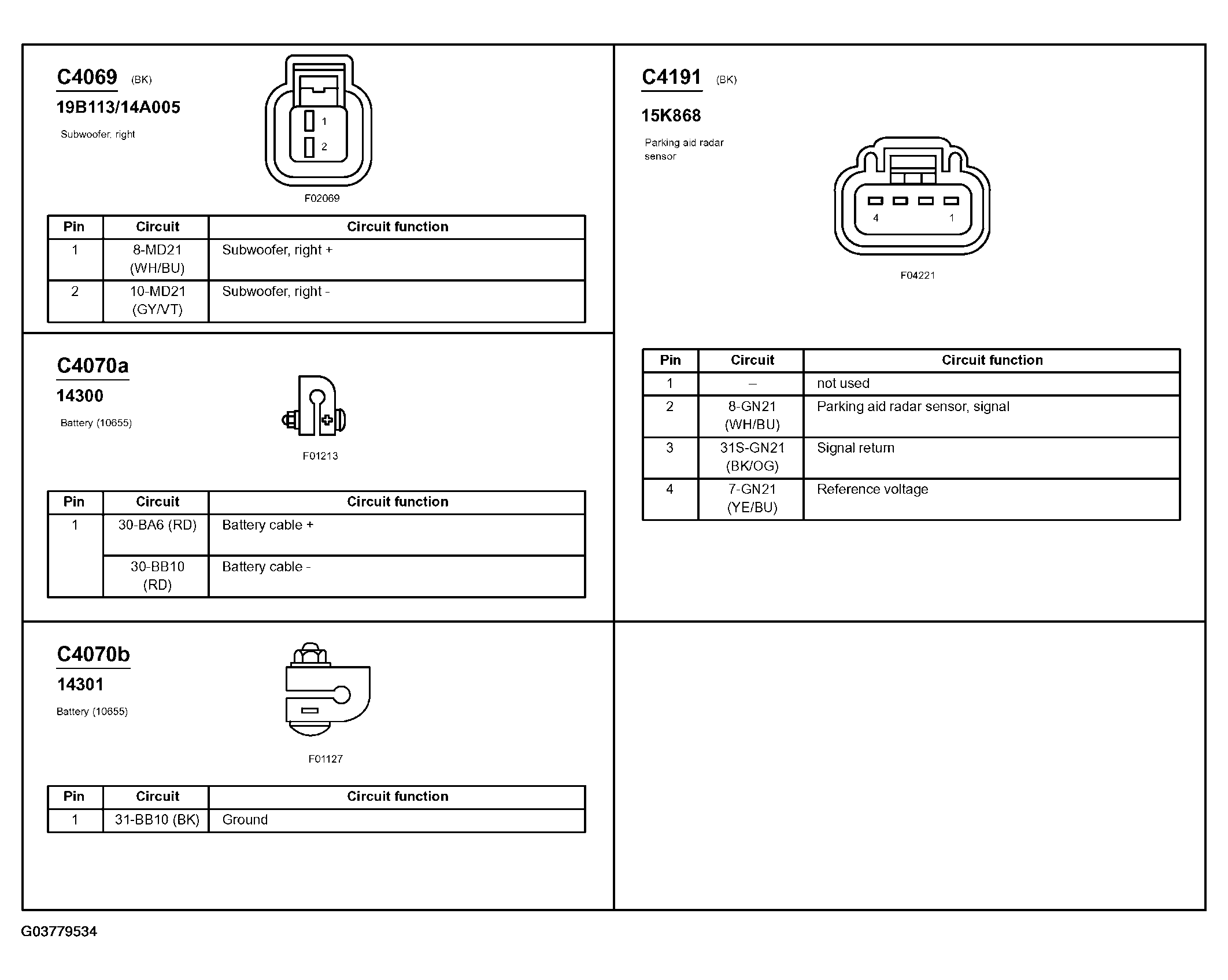

Fig 156: Identifying Connector C4069, C4070a, C4070b & C4191

G03779534

Courtesy of FORD MOTOR CO.

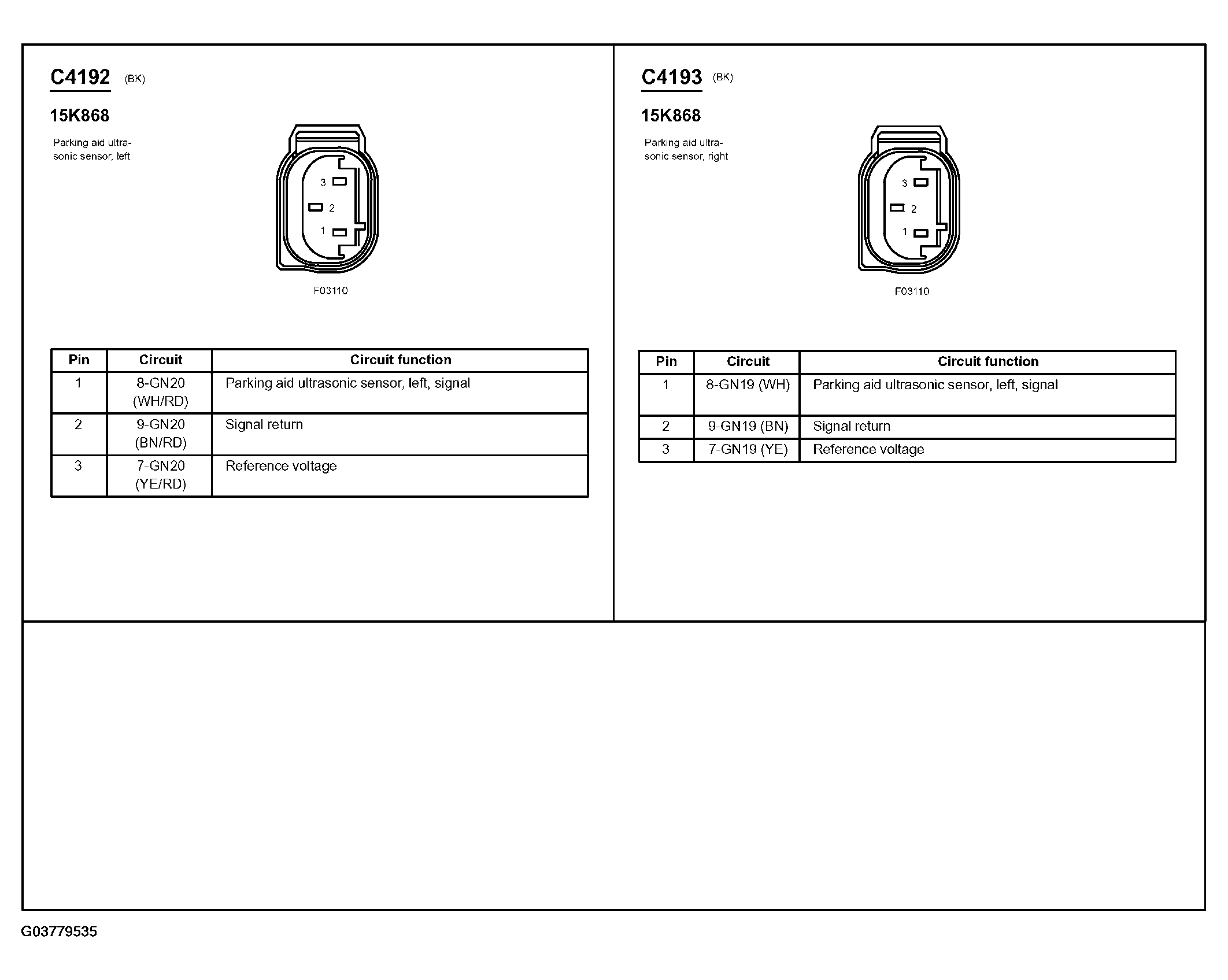

Fig 157: Identifying Connector C4192 & C4193

G03779535

Courtesy of FORD MOTOR CO.

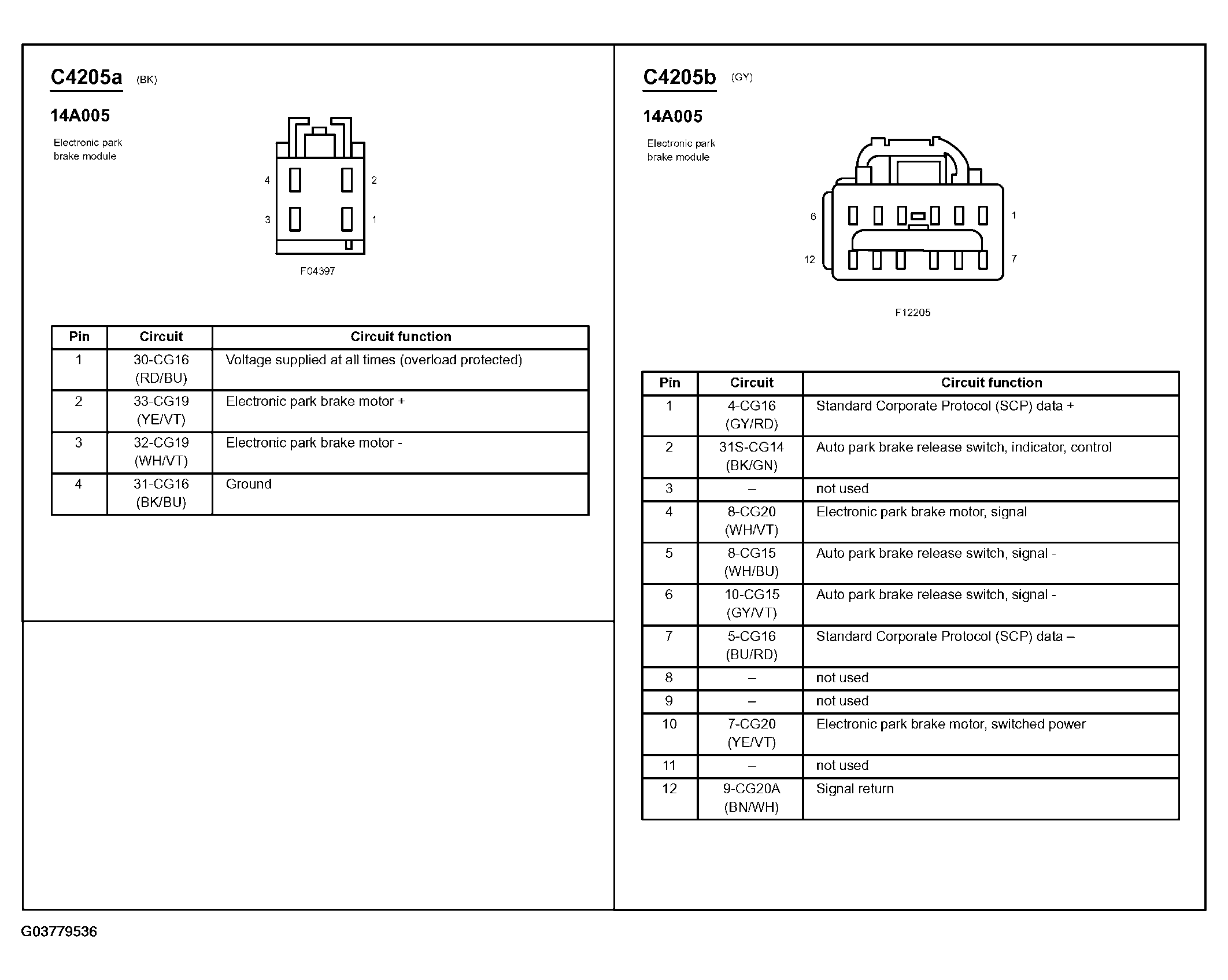

Fig 158: Identifying Connector C4205a & C4205b

G03779536

Courtesy of FORD MOTOR CO.

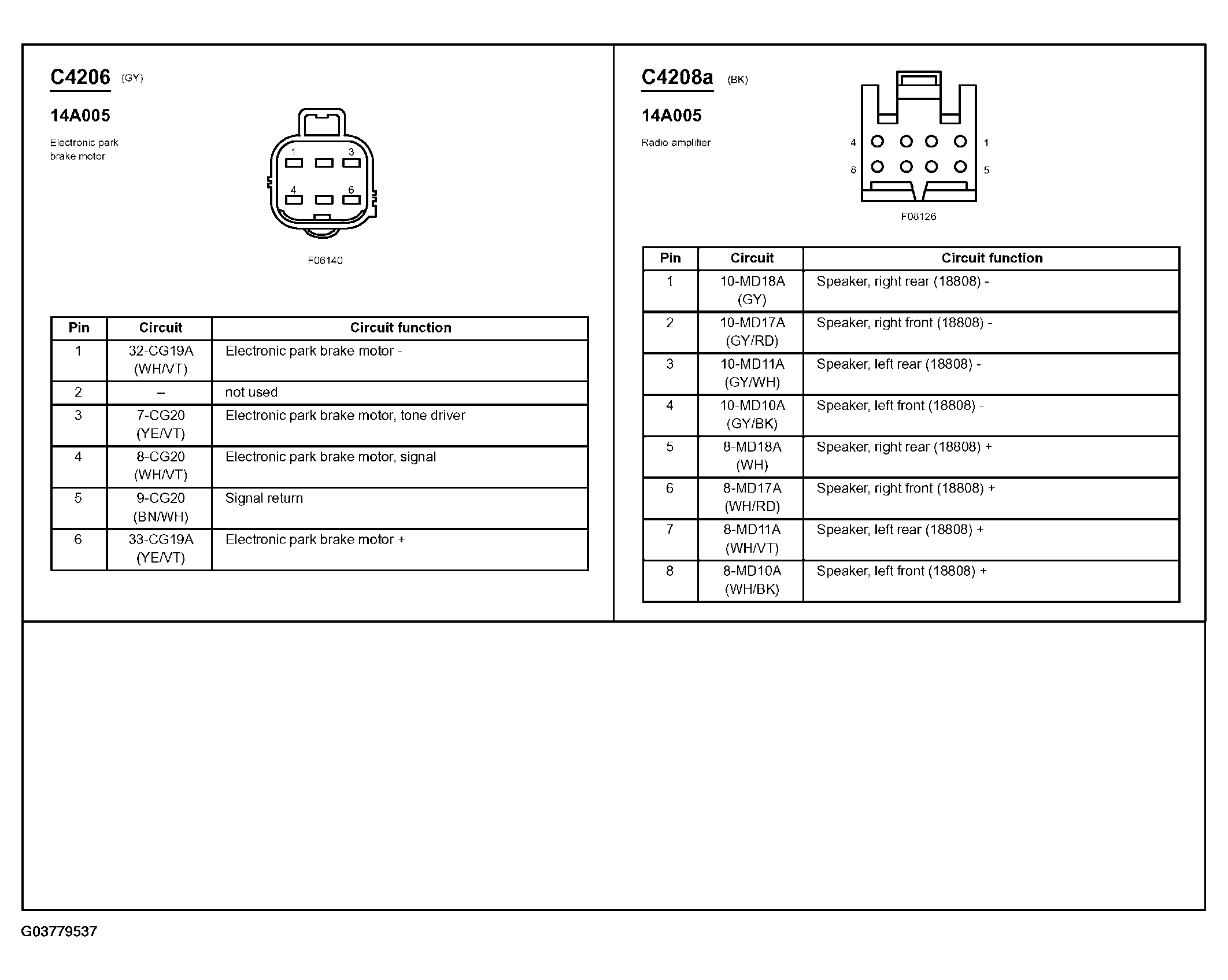

Fig 159: Identifying Connector C4206 & C4208a

G03779537

Courtesy of FORD MOTOR CO.

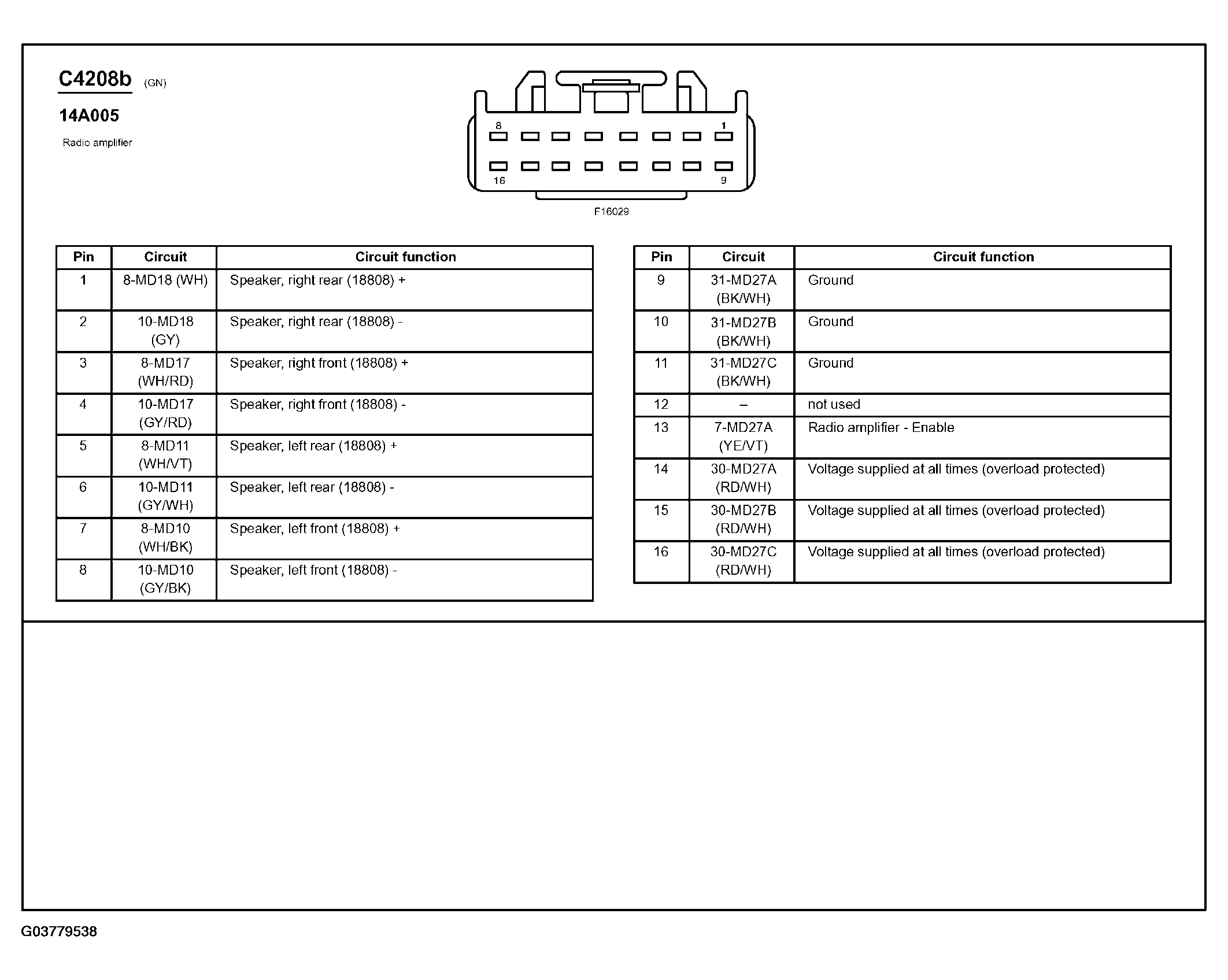

Fig 160: Radio Amplifier Connector End View (C4208b)

G03779538

Courtesy of FORD MOTOR CO.

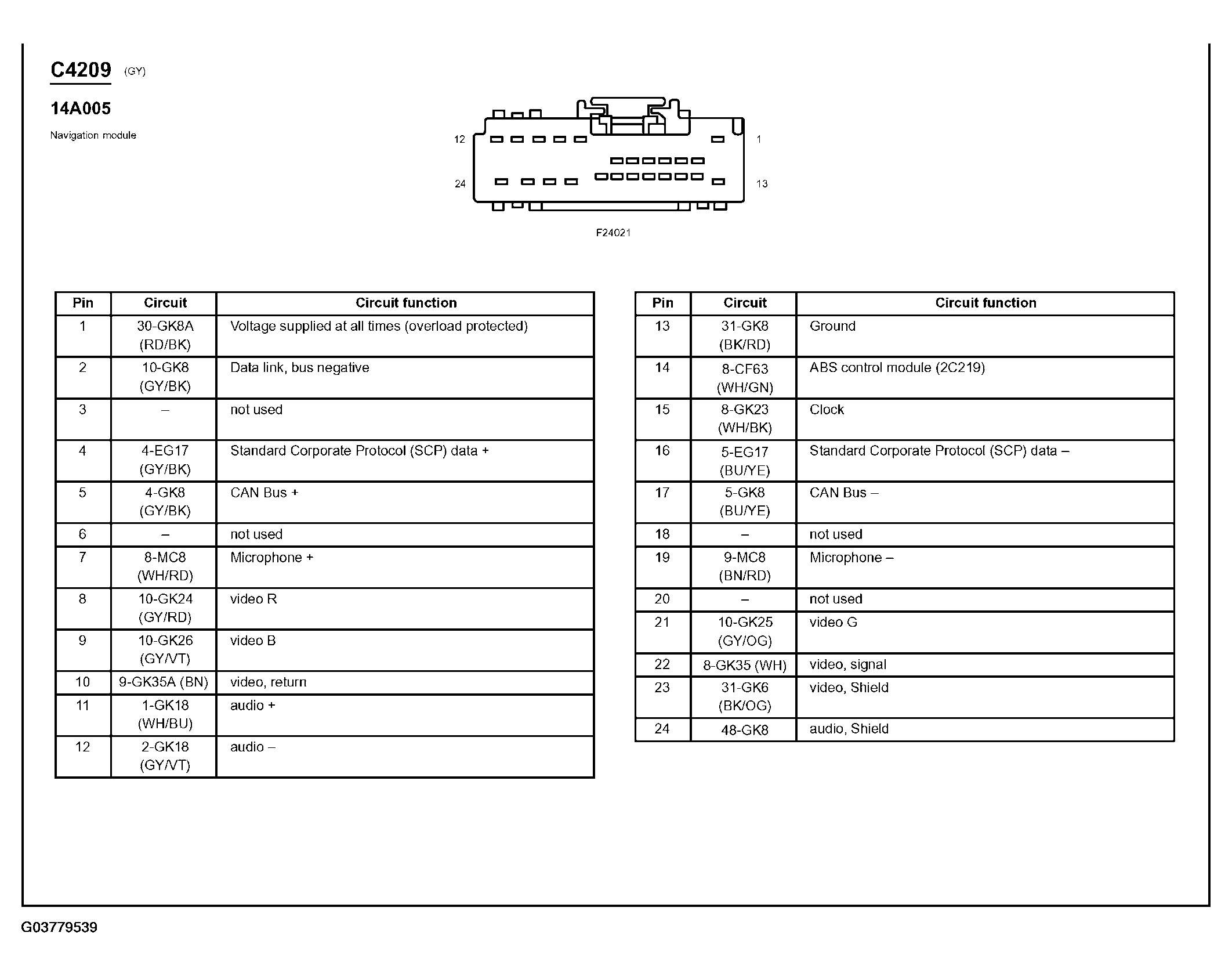

Fig 161: Navigation Module Connector End View (C4209)

G03779539

Courtesy of FORD MOTOR CO.

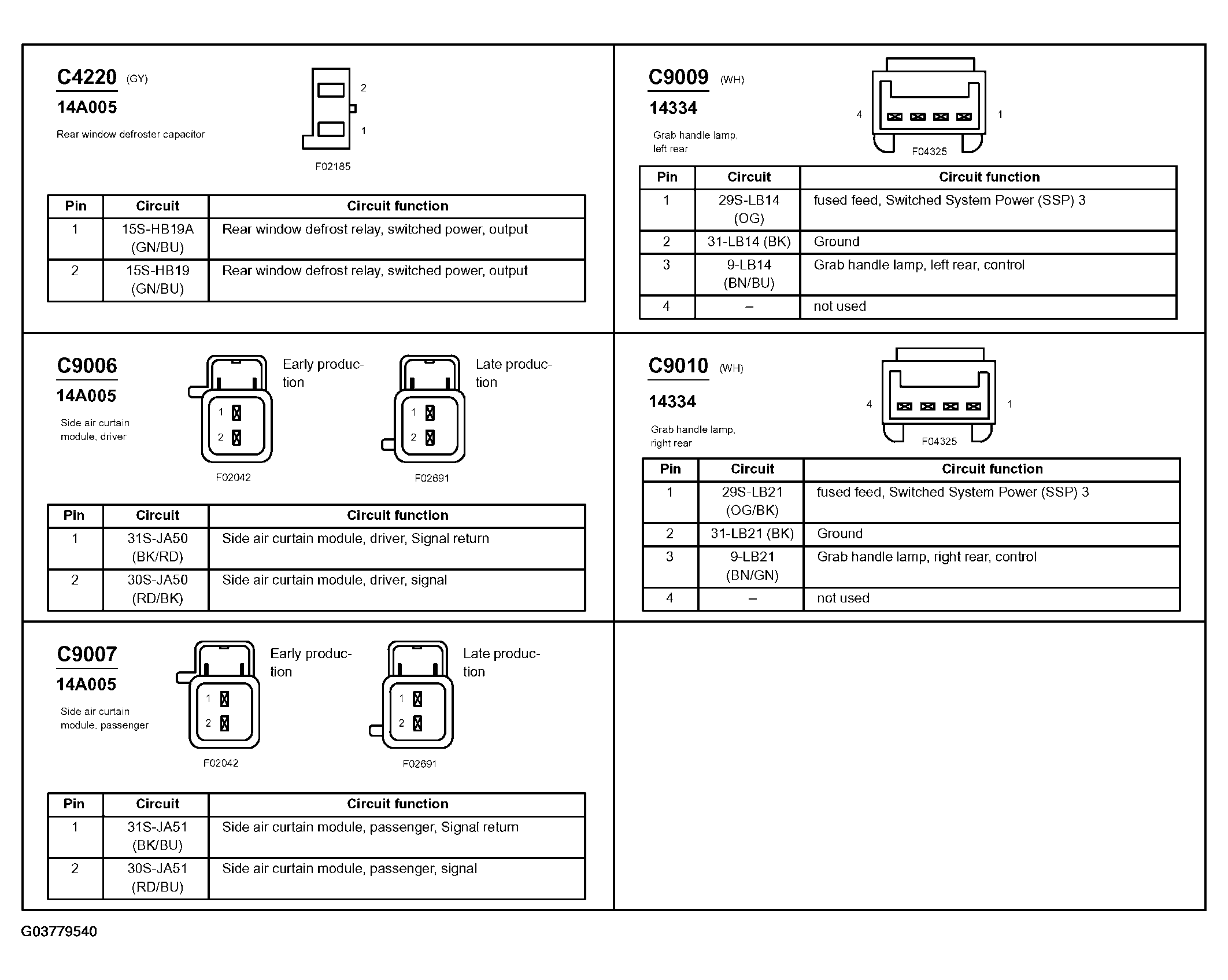

Fig 162: Identifying Connector C4220, C9006, C9007, C9009 & C9010

G03779540

Courtesy of FORD MOTOR CO.

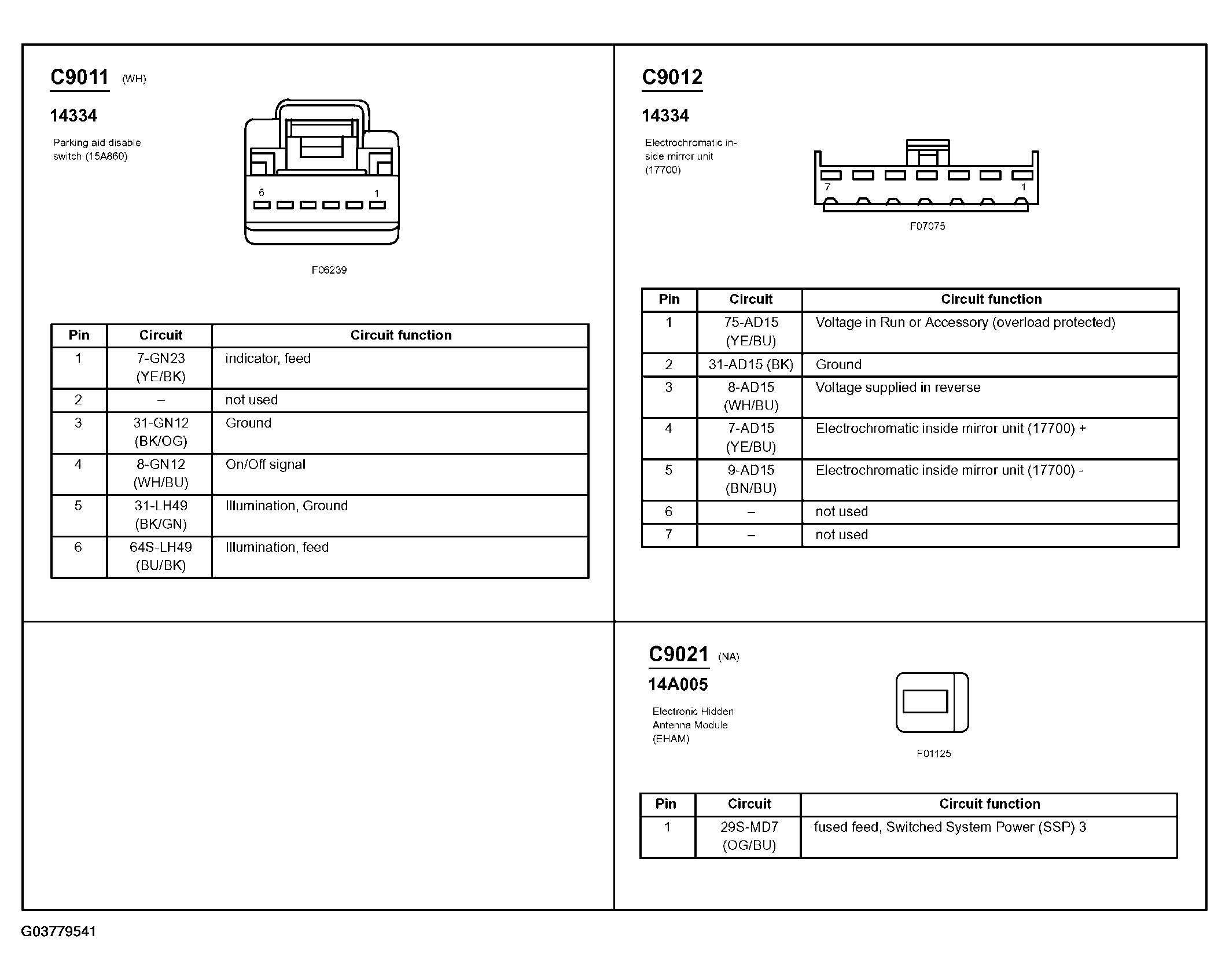

Fig 163: Identifying Connector C9011, C9012 & C9021

G03779541

Courtesy of FORD MOTOR CO.
