Item 6: Transmission Range Sensor Electrical Connector Installation Note

  1. Connect the digital transmission range TR sensor connector and slide the rubber boot back over the connector.

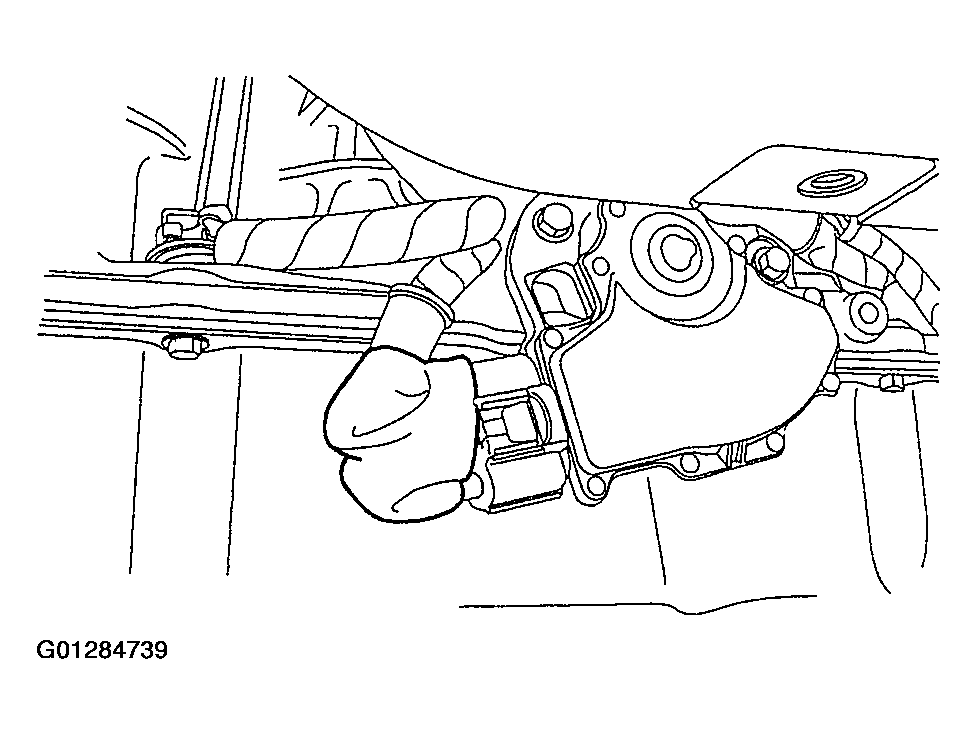

    Fig 1: Connecting Digital Transmission Range TR Sensor Connector And Slide Rubber Boot Back Over Connector
    G01284739Courtesy of FORD MOTOR CO.
  2. Install a new tie strap around the rubber boot connector.

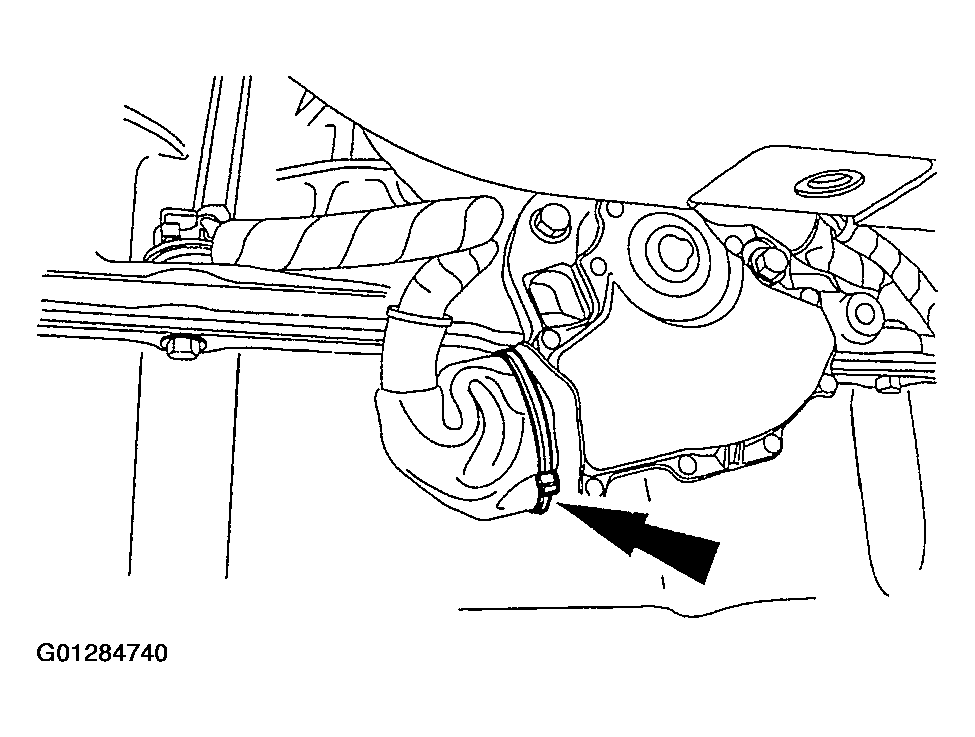

    Fig 2: Installing Tie Strap Around Rubber Boot Connector
    G01284740Courtesy of FORD MOTOR CO.
