Lincoln
›
2003
›
LS 3.0 S
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission - LS
›
Specifications
›
Band/Clutch Application Chart A
Band/Clutch Application Chart A

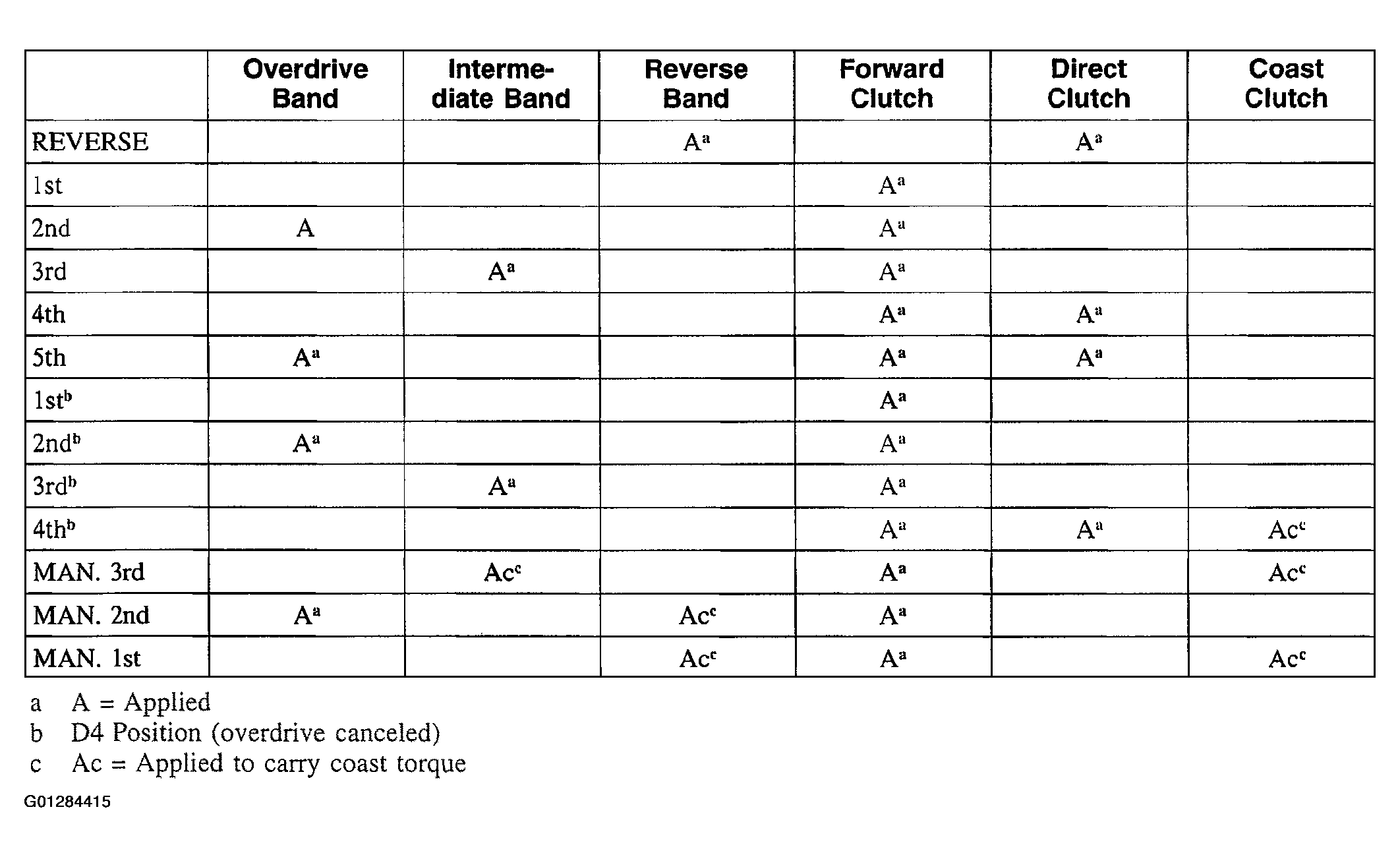

Fig 1: Band/Clutch Application Chart (1 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
