PCM C175a

Fig 1: Identifying PCM C175a Connector
G01286962Courtesy of FORD MOTOR CO.

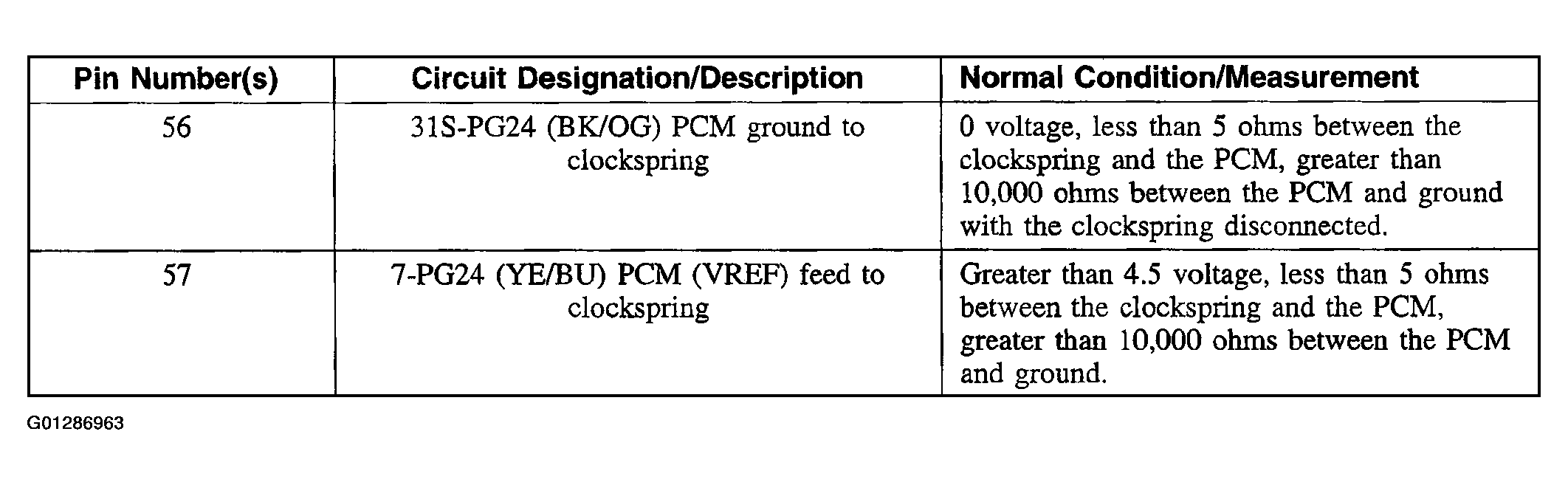

Fig 2: Connector Circuit Reference Chart
G01286963Courtesy of FORD MOTOR CO.
