Door Check Arm: Notes

Remove the door trim panel. For additional information, Refer to BODY SYSTEM - INTERIOR .
Remove the components in the order listed in Fig 1.

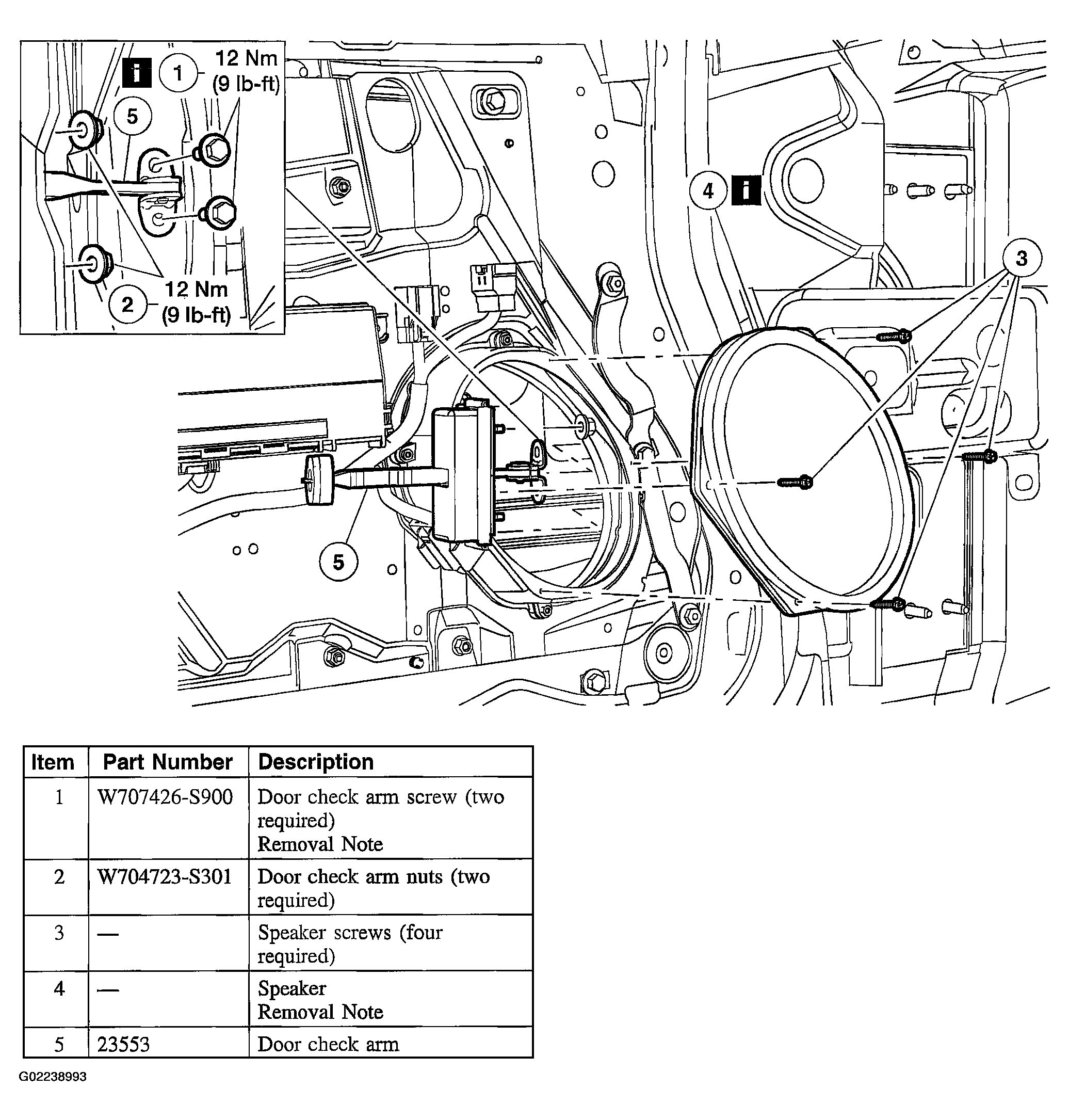

Fig 1: Identifying Door Check Arm Components And Specifications
Courtesy of FORD MOTOR CO.
Install in the reverse order of removal.
