Cylinder Head: Notes

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Compressor, Valve Spring	303-300 (T87C-6565-A)
Courtesy of FORD MOTOR CO.	Compressor, Valve Spring	303-350 (T89P-6565-A)
Courtesy of FORD MOTOR CO.	Installer, Valve Stem Oil Seal	303-470 (T94P-6510-CH)

Material

Item	Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

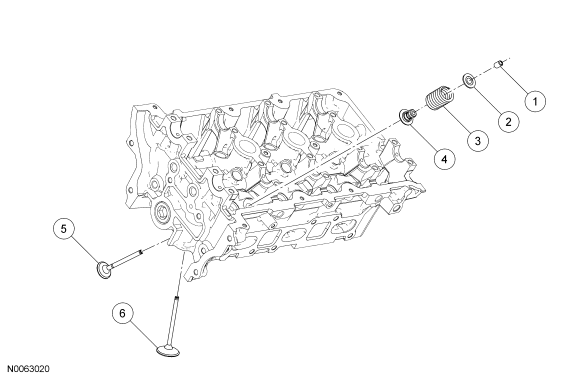

Fig 1: Cylinder Head Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6518	Valve spring retainer key (24 required)
2	6514	Valve spring retainer (12 required)
3	6513	Valve spring (12 required)
4	6A517	Valve stem seal (12 required)
5	6505	Intake valve (6 required)
6	6507	Exhaust valve (6 required)
